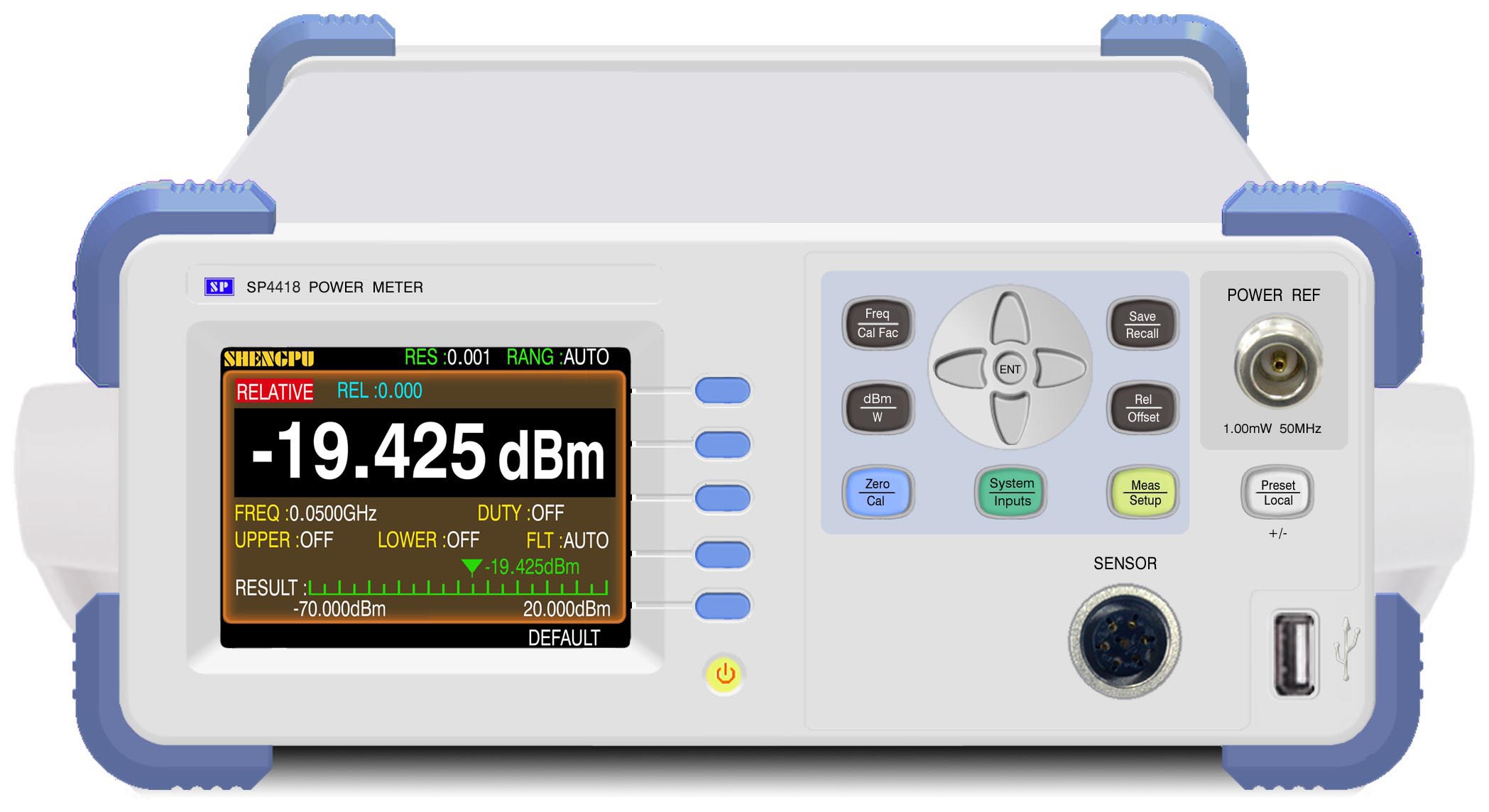

SP4418型微波功率计是一种单通道、 可程控高性能功率计， 配8480系列功率计探头，可对不同频率、功率的微波信号进行高精度的平均功率测量。本仪器采用高亮度彩色液晶显示屏，读数清晰、亮度高、寿命长。该机具有功耗低、体积小、重量轻等特点。仪器测量功率时既可以选择自动测量量程也可以选择手动测量量程。该仪器是生产车间和实验室微波计量和测试的必备仪器。该仪器测量的稳定性好、分辨率高、重复性好，可用计量信号源输出功率的误差和准确性，也可用于自动测试系统中测试微波功率，以及测试放大器输出功率，衰减器的衰减量等等。
同厂商产品
30 MHz 视频带宽能够以高达 100 MSa/s 的采样率执行单次实时捕获22 种预先定义的制式：WiMAX、DME、HSDPA 等在一个屏幕视图中显示多种脉冲测量分析结果：自动定标、自动选通、上升时间/下降时间、占空比等等在连接到被测器件时可进行内部归零和校准仪器随附的 BenchVue 软件许可证（BV0007B）让仪器的连接和控制以及自动执行测试序列变得更简单当与 N192XA 宽带功率传感器配合使用时，N1911A 功率计可以提供 50 MHz 至 40 GHz 的测量频率范围以及内部归零和校准功能。符合 LXI-C 类标准平均触发功能可启动平均功率测量标配 USB、LAN 和 GPIB 接口，提供多样化的连通性高速互补累积分布函数（CCDF）统计分析兼容工业标准 8480 和 E 系列传感器，E 系列传感器可提供 –70 至 +44 dBm 的宽广动态范围，以及 9 kHz 至 110 GHz 的频率范围。兼容 E932x 功率传感器
E4416A EPM-P 系列单通道功率计|是德/KEYSIGHT (在产)
参考价格 ： US$ 13,143
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
E4416A 单通道功率计可以对 TDMA 和 W-CDMA 无线制式和脉冲信号进行峰值功率、峰均比、平均功率以及时间选通等测量。
要点
E4416A 单通道 EPM-P 系列功率计支持使用 E9320 峰值和平均功率传感器进行峰值、平均值、峰均比和时间选通测量。
20 MSa/s 采样率支持对宽带信号进行可靠的连续测量和单次测量
时间选通和自由运行的功率测量
免费的“分析仪软件”提供完整的脉冲和统计分析，软件处于“程序库”中
拥有 8 种预定义的无线配置（GSM、EDGE、NADC、iDEN、蓝牙、IS-95 CDMA、W-CDMA 和 cdma2000）
主要技术指标
Connector Type:
n/a
频率范围:
9 kHz to 110 GHz
Modular Design:
否
Number of Channels:
1
Power Range:
-70 to +44 dBm
Speed:
Up to 1000 readings/sec
Video Bandwidth:
5 MHz
关键词:
技术支持: E4416A EPM-P 系列单通道功率计 - 是德科技Keysight
技术概述
The selection guide for Keysight power meters and sensors. Includes power meter and sensor compatibility table.
2018-09-25
参考指南
This is a PDF format 2D Drawing of the E4417A EPM-P Series Dual-Channel Power Meter.
2017-04-18
其他资源
This is a STEP format 3D Model of the E4417A EPM-P Series Dual-Channel Power Meter.
2015-01-28
编程指南
The Keysight EPM-P series power meter Programming Guide is for use with the E4416A and E4417A power meters.
2023-08-23
用户手册
Keysight EPM-P Series Peak and Average Power Meters User’s Guide
2021-12-19
服务手册
The Keysight EPM-P series power meter Service Guide is for use with the E4416A and E4417A power meters.
2021-12-14
安装指南
Keysight E4416A and E4417A EPM-P Series Power Meters Installation Note
2021-09-10
安装指南
The Keysight EPM-P series power meter Installation Guide is for use with the E4416A and E4417A power meters.
2017-11-01
用户手册
The Keysight EPM-P series power meters supplemental operating information for the battery powered EPM-P Special Option K01.
2002-06-01
配置指南
This configuration guide describes the standard configurations, options, and compatible accessories of EPM Series and EPM-P Series power meters.
2022-06-28
技术资料
This data sheet covers the specifications for the E4416A/E4417A EPM-P series power meters and the E-series E9320 peak and average power sensors.
2024-04-05
技术概述
P-Series and EPM-P Power Meters for Bluetooth Testing Technical Overview and Self-Guided Demonstration.
2017-12-05
服务手册
Keysight 8480 Series Coaxial Power Sensors Operating and Service Manual
2023-08-11
参考指南
This document has a website link for user to view and download the latest Declaration of Conformity statement for this product.
2016-04-10
应用指南
Want to learn how to make better power measurements? Follow these 4 steps to get you on your way to better power measurements.
2014-07-31
应用指南
This app note guides you to choose the right power meter and power sensors, as well as explains the advantage and disadvantage of each sensor technology.
2024-04-08
技术概述
Learn how to protect the power meter / sensors from damage to ensure accurate power measurement to reduces the minimal test time and maximize throughput.
2024-07-29
应用指南
Learn simple ways to effectively minimize test time while obtaining power measurements.
2017-12-01
应用指南
Part 4 of the “Fundamentals of RF and Microwave Power Measurements” series includes selection guides and application-oriented comparisons of power instrumentation.
2024-08-29
应用指南
Learn how to protect the power meter / sensors from damage to ensure accurate power measurement to reduces the minimal test time and maximize throughput.
2023-11-27
应用指南
Part 3 of “Fundamentals of RF and Microwave Power Measurements” is a comprehensive overview of the contributing factors to power measurement uncertainty.
2014-08-01
应用指南
Part 2 in the fundamentals of RF and microwave power measurement series. We explain the sensor technologies needed for unknown modulations and signals under test.
2014-07-31
应用指南
See the capabilities Keysight power meters and power sensors have for measuring CW and average power signals without compromising measurement accuracy.
2017-12-02
手册
This brochure covers features, applications, specifications and selection guide for Keysight's power measurement solutions.
2023-10-30
应用指南
Keysight’s cdma2000 mobile test solution provides essential RF parametric test and call processing capabilities to verify RF performance of cdma2000 phones.
2017-12-01
采购产品
联系我们了解价格、库存、升级信息、答疑解惑、下订单、获取订单状态或加速订单。 Keysight 可能会使用授权销售合作伙伴来更好地满足您的需求。
其它销售渠道 :
授权销售合作伙伴
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
分销商
特别推荐
租赁
特别推荐
租赁
特别推荐
分销商
特别推荐
分销商
分销商
租赁
分销商
分销商
分销商
租赁
租赁
分销商
选项
了解详细信息: 查看配置指南
| E4416A-001 | Front panel input sensor and reference calibration connector | |
| E4416A-002 | Parallel rear panel sensor input connector and front panel reference calibrator connector | |
| E4416A-003 | Parallel rear panel sensor input connector and rear panel reference calibrator connector |
| E4416A-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) | |
| E4416A-A6J | ANSI Z540-1-1994 Calibration |
| E4416A-E23 | Bundled with carrying case and E9322A sensor | |
| E4416A-E20 | Bundled with transit case and E9322A sensor |
| E4416A-005 | Include power sensor cable, E9288A length 5-ft (1.5m) | |
| E4416A-004 | Delete power sensor cable | |
| E4416A-006 | Include power sensor cable, E9288B length 10-ft (3m) |
| E9288B | Sensor cable 3m/10ft (E9288B) | |
| E9288C | Sensor cable 10m/31ft (E9288C) | |
| E9288A | Sensor cable 1.5m/5ft (E9288A), Volt: 30 VRMS |
| E4416A-908 | Rackmount kit (one instrument) | |
| E4416A-909 | Rackmount kit (two instruments) | |
| 34161A | Accessory pouch for 34401A, 33120/250A, 34970A, 53131A, etc. | |
| 34131A | Transit case for half-rack 2U high instruments (e.g., 34401A) |
