    UCD-340 • 4K USB-C DP Alt Mode 信号发生器和分析仪


    产品种类:
    • DisplayPort • USB-C
    待测试设备:
    • 显示器 • 智能手机 • 笔记本电脑
    用例:
    • DP HDCP 2.3 兼容性测试 • 测试自动化 • 生产测试 • 研发调适
    特性:
    • 4K

    描述

    UCD-340是一款4K USB-C DP Alt Mode信号分析仪和发生器设备。您可以测试分辨率高达4K @ 60Hz的视频接收器（sink)和信号源(source)。 UCD-340具有强大的测试功能，能测试USB-C接口的视频、音频、电源传输功能以及测试USB-C 的连接器引脚是否正确焊接。 UCD-340是唯一经过DCP LLC认可的HDCP 2.3 CTS测试工具，用于在USB-C DP Alt模式发送器和接收器设备上进行HDCP 2.3 CTS测试。

    UCD-340内有现成的测试脚本，这些测试可通过易于操作的UCD Console进行设置和运行。所有视频、音频和电源测试都可以自动进行测试，适用于研发调试和生产线测试。

    兼容性测试

    UCD-340是唯一经DCP认可，对USB Type-C DP Alt模式接收器和信号源进行HDCP 2.3 兼容性测试的测试工具。HDCP 2.3兼容性测试功能属于UCD Console GUI的选购功能，您可以单独购买便可在UCD-340测试工具中授权使用。



    测试自动化

    UCD-340软件既支持实验室中的手动调试，也支持研发或生产阶段中的自动化测试。UCD-340拥有用于测试自动化的TSI脚本和软件API。脚本通过Unigraf的测试系统界面（Test System Interface）里的测试软件API命令集运行，它可使系统集成商快速可靠地确信测试设备的功能。 TSI使基本的视频和音频测试实现了自动化，以完成用于研发设计验证或生产线中的一系列“兼容性测试。

    独特的功能

    电气测试

    通过软件控制的电缆翻转(Cable Flip)功能 ，仅需单向插入电缆即可对USB-C 连接器全部的引脚进行电气测试，来验证所有连接器引脚是否正确焊接。通过电气测试，您可以确保DUT中的USB-C引脚的正常运作，并且确保焊接和组装正确。

    UCD Console

    UCD Console 是UCD-340的用户界面。 它具有接收视频和音频的预览窗口，用于监控USB-C的链接参数，DP链接参数和EDID编辑器，也能监控HDCP的功能和状态， 并内建多种测试套件来测试信号源（source）与接收器（sink)的CRC 和链接测试。

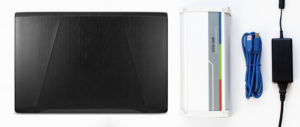

    便携式测试设备

    UCD-340是一款便携式测试设备。它的尺寸仅为281×128×62 mm，重量不到1 kg，您可使用UCD-340 通过PC进行控制与测试。

    您需要随身携带的所有物品。

    UCD控制台专业版 (UCD Console Pro)

    您可以使用UCD Console Pro功能将调试提升到更高的水平。 Pro功能是单独提供的选购软件。它可用于测试接收器或信号源设备。请参考下表比较UCD Console和UCD Console Pro的功能差异。

    Feature CategoryFeatureUCD ConsoleUCD Console Pro
    USB-C ModesUSB Data Role status✓✓

    		USB-C Power Role status✓✓

    		USB-C Power Role control
    		✓

    		USB Data Role control
    		✓

    		Power Delivery protocol monitoring
    		✓
    DP Alt ModeUSB-C DP Alt Mode status✓✓

    		USB-C DP Alt Mode control
    		✓

    		EDID Editor
    		✓

    		DCPD Editor
    		✓

    		AUX Monitor
    		✓
    Testing DP Alt Mode Sink DUTDP Link Status information of the upstream link✓✓

    		Video mode and control of the upstream link✓✓

    		Audio monitoring and saving✓✓

    		DP Alt Mode capture, preview and saving
    		✓
    Testing DP Alt Mode Source DUTDP Link status information of the downstream link✓✓

    		Control of the downstream link
    		✓

    		Video Pattern Generator with fixed patterns and timings✓✓

    		Video Pattern Generator with custom patterns and timings✓✓
    Testing HDCPHDCP preview up to 1.3
    		✓

    		HDCP status monitor and control up to HDCP 1.3
    		✓

    		HDCP Test Key support
    		✓

    TSI SDK 测试开发套件

    Unigraf用于自动化测试的软件开发套件（SDK）被称为测试系统界面（Test System Interface）。

    TSI是独立于硬件的高级软件API（软件应用程序接口）。在下表中，您可以比较基本和高级TSI API测试开发套件的功能差异。

    Feature CategoryFeatureTSI Test Automation SoftwareTSI Advanced Test Automation Software
    USB-C ModesUSB-C Data Role Status✓✓

    		USB-C Power rRole status✓✓

    		Power Delivery protocol monitoring
    		✓

    		USB-C Vbus / CC / Vconn voltage / current monitoring✓✓

    		Power Delivery protocol monitoring
    		✓
    DP Alt ModeUSB-C DP Alt Mode Status✓✓

    		USB-C DP Alt Mode Control
    		✓

    		DP Link Status Information✓✓

    		EDID read and write
    		✓

    		DPCD read and write
    		✓

    		Suppoer for Electrical Test Option and cable✓✓

    		Orientation test with electrical test cable✓✓
    DP Alt Mode Reference SinkDP Alt Mode capture, preview and saving✓✓

    		TSI Video Test (SW Pixel comparison)✓✓

    		TSI Audio Test✓✓

    		CRC Based Video test set
    		✓
    DP Alt Mode Reference SourceVideo Pattern Generator with fixed patterns and timings✓✓

    		Video Pattern Generator with custom patterns and timings
    		✓

    		Monitor SDP
    		✓
    Testing HDCPHDCP status monitor and control up to HDCP 1.3✓✓

    产品特色

    • 4K @ 60 Hz视频分析仪和发生器

    • 测试USB-C DP Alt模式的视频和音频

    • 测试USB-C的供电模式

    • DCP认证的HDCP 2.3 CTS测试工具

    • 使用软件控制的电缆翻转功能来测试USB-C引脚的焊接是否正确

    • 支持HDCP 1.3和HDCP 2.3

    • 所有测试均可自动化

    • USB资料传输(Pass-Thru)信号测试
