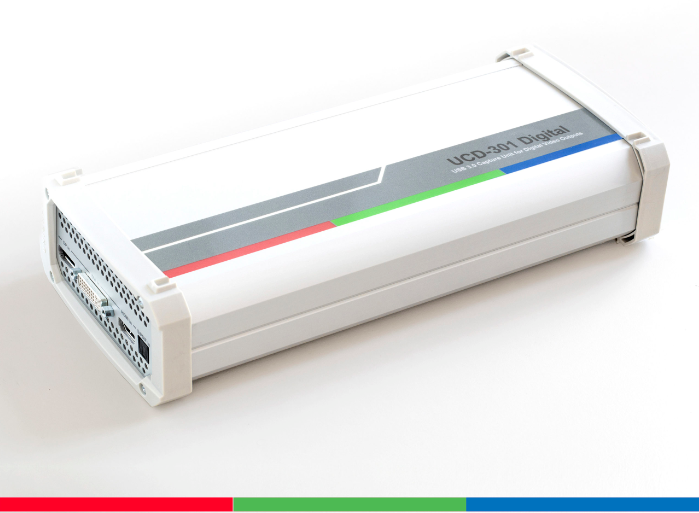

    UCD-301 • HDMI & DisplayPort 4K信号分析仪


    产品种类:
    • DisplayPort • HDMI
    待测试设备:
    • 机顶盒 • 游戏机 • 蓝光播放器
    用例:
    • DP HDCP 2.3 兼容性测试 • 测试自动化 • 生产测试 • 研发调适
    特性:
    • 4K

    描述

    UCD-301是一款支持UHD / 4K的信号分析仪，用于测试DisplayPort™和HDMI信号源(source)待测物。UCD-301支持最高HBR2频宽，可以测试HDMI 2.0和DP 1.2a的所有功能。 UCD-301是经过DCP认可的HDCP 2.3兼容性测试的测试工具，可用于测试DisplayPort信号源(source)待测物。


    可信赖的兼容性测试工具

    UCD-301是DCP 认可的HDCP 2.3兼容性测试的测试工具，可用于测试DisplayPort 信号源 (source) 待测物。 HDCP 2.3兼容性测试功能属于UCD Console GUI的选购功能，用户可通过单独购买并在UCD-301测试工具上进行授权使用。

    自动化测试

    用户可以使用C ++代码直接从命令行运行自动化测试。Unigraf还为用户提供了一个脚本库，内部包含详细测试的示例。脚本可通过Unigraf的测试系统界面（TSI）运行，TSI是一种测试软件API，它使系统集成商可以快速可靠地确保其测试设备的功能。 这些脚本可自动执行UCD-301中的所有测试，包括HDCP 2.3的兼容性测试。

    独特的功能

    电气测试

    使用UCD-301 可以验证HDMI和DisplayPort接口中每个信号的连续性，TSI自动化测试范例可以进行程序设置和目标范围限制。 TSI将以“通过/失败”显示测试结果，并且纪录实际测量值。

    UCD Console

    UCD Console GUI是UCD系列产品的专用软件，用户可通过GUI操作UCD-301的所有测试功能，且可通用于Windows、macOS和Linux系统。 此软件为用户提供了灵活的使用方式，可在不同的角色(Role)状态与功能面板之间自由切换。 UCD Console 具有预览(Preview) 视窗，用于确认采集的视频和音频，同时还有监视UCD-301中的链接参数面板、内建图形产生器、EDID编辑器与HDCP控制功能。

    数位学习中心：UCD Console GUI

    UCD Console Pro

    您可以使用UCD Console Pro功能将调试提升到更高的水平。 Pro功能是单独提供的选购软件。 可用于测试接收器或信号源(source)设备。请参考下表以比较UCD Console和UCD Console Pro的功能差异。

    注意：HDCP 2.3测试功能属于UCD Console Pro的选购功能。

    注意：Console Pro 包含 TSI Advanced Test Set (高级测试集)。

    RoleFeatureUCD ConsoleUCD Console Pro for Testing Source DUT
    Testing HDMI sources (HDMI RX)Video preview and saving✓✓

    		Audio monitoring and saving✓✓

    		Status information of the upstream link✓✓

    		EDID editor
    		✓

    		HDCP status monitor and control
    		✓

    		InfoFrames
    		✓

    		Ready-made test sets (CRC, Link) for testing source DUT
    		✓
    Testing DisplayPort sources (DPRX)Video preview and saving✓✓

    		Audio monitoring and saving✓✓

    		Status information of the upstream link✓✓

    		Video mode and control of the upstream link
    		✓

    		EDID editor
    		✓

    		DPCD editor
    		✓

    		HDCP status monitor and control
    		✓

    		Ready-made test sets (CRC, Link) for testing source DUT
    		✓

    		Event Log, DP AUX Analyzer
    		✓

    TSI SDK高级测试集

    TSI SDK高级测试集可为用户提供例如 EDID和DPCD编辑器以及内置的信号源 (source) DUT测试（ARC，CEC，CRC）。用户可将TSI SDK高级测试集启用到UCD-301。请参考下表比较TSI基本和TSI高级测试集的功能差异。

    注意：HDCP 2.3测试功能为UCD Console Pro的选购功能。

    注意：电气测试为为UCD Console Pro的选购功能。

    RoleFeatureTSI BasicTSI Advanced
    Testing HDMI sources (HDMI RX)Video preview and saving✓✓

    		Audio monitoring and saving✓✓

    		Status information of the upstream link✓✓

    		EDID editor
    		✓

    		HDCP status monitor and control
    		✓

    		InfoFrames
    		✓

    		Ready-made test sets (CRC, Link) for testing source DUT
    		✓
    Testing DisplayPort sources (DPRX)Video preview and saving✓✓

    		Audio monitoring and saving✓✓

    		Status information of the upstream link✓✓

    		Video mode and control of the upstream link
    		✓

    		EDID editor
    		✓

    		DPCD editor
    		✓

    		HDCP status monitor and control
    		✓

    		Ready-made test sets (CRC, Link) for testing source DUT
    		✓

    产品特色

    • USB 3.0连接界面

    • 4K/超高清@60 Hz 信号分析仪

    • 支持HDMI 2.0和DP 1.4设备测试 (最大HBR2频宽速率)

    • 测试视频、音频和元数据

    • 验证输出信号的连续性




    关键词:



    UCD-301 Digital Data Sheet

    UCD-301 User Manual: Console 1

    UCD-301 User Manual: Console 2

    DP CTS Tool Options for Unigraf UCD-3XX


    产品描述下载点
    UCD - 500UCD - 500 User Manual下载
    UCD - 500DisplayPort Compliance Test Tool Options for UCD - 500下载
    UCD - 424UCD - 424 User Manual: Console 1下载
    UCD - 424UCD - 424 User Manual: Console 2下载
    UCD - 422UCD - 422 User Manual: Console 2下载
    UCD - 400UCD - 400 User Manual: Console 1下载
    UCD - 400UCD - 400 User Manual: Console 2下载
    UCD - 400DisplayPort Compliance Test Tool Options for UCD - 400下载
    UCD - 400Quick Operating Guide & Use Examples下载
    UCD - 300 seriesDisplayPort Compliance Test Tool Options for UCD - 3xx下载
    UCD - 340UCD - 340 User Manual: Console 1下载
    UCD - 340UCD - 340 User Manual: Console 2下载
    UCD - 323UCD - 340 User Manual: Console 1下载
    UCD - 323UCD - 323 User Manual: Console 2下载
    UCD - 301UCD - 301 User Manual: Console 1下载
    UCD - 301UCD - 301 User Manual: Console 2下载
    UCD - 240UCD Console for UCD - 240 User Manual下载
    TSI (Test System Interface)TSI Full Reference Manual下载
    TSI - XReference Manual for Extended TSI下载
    VTG - 5225 / UFG - 04 / DPR - 100 / DPT - 200DisplayPort Reference Source Compliance Test Tool User Manual下载
    VTG - 5225 / UFG - 04 / DPR - 100 / DPT - 200DisplayPort Reference Sink Compliance Test Tool User Manual下载
    DPA - 400DPA - 400 DisplayPort Aux Channel Monitor User Manual下载
    DPR - 120DisplayPort Reference Sink with Debug and Test Controller Gui User Manual下载
    DPR - 120User Manual for DPR - 120 Shell下载
    DPT - 200Start Up Guide for DPT - 200下载
    DPR - 100DisplayPort Reference Sink Compliance Test Tool下载
    DPR - 100Using RealTerm to Send and Receive PTCMD Messages with DPR - 100下载
    UCD - 1 & 2API Reference Manual for Unigraf's USB Capture Devices下载
    UCD - 1 & 2User Manual for UCD - 1 & 2下载
    UCD - 1 & 2User Manual for UCD - 1 MLC and UCD - 1 QLV下载
    UCD - 2 Vx1User Manual for UCD - 2 Vx1下载
    Frame GrabbersUFG Console User Manual for UFG - 06 and UFG - 04 Series下载
    Frame GrabbersUser Manual for UFG - 06 Nopea Frame Grabber下载
    Frame GrabbersEasy Programming Guide for UFG - 12 Family Frame Grabbers下载
    Frame GrabbersUser Manual for UFG - 12 Family Frame Grabbers下载
    VTG - 5225User Manual for VTG - 5225下载
    VTG - 5225User Manual for VTG - 5225下载

    		版本描述日期版本说明
    		下载点
    UCD-500 与 UCD-500 Gen2 软件和固件



    		UCD-500, UCD-500 Gen2
    Console 3: SW Bundle3.5.252Console v3 Software Bundle includes:
    - UCD-5XX and UCD-4XX device driver installer
    - UCD Console installer
    - UCD-5XX and UCD-4XX Firmware    		4.10.2024





    		下载版本说明UCD-500, UCD-500 Gen2下载 Windows

    下载 macOS

    下载 Linux
    Console 3: SW Bundle3.4.240Console v3 Software Bundle includes:
    - UCD-5XX and UCD-4XX device driver installer
    - UCD Console installer
    - UCD-5XX and UCD-4XX Firmware    		8.8.2024
    		UCD-500, UCD-500 Gen2下载 Windows

    下载 macOS

    下载 Linux





    		UCD-500, UCD-500 Gen2
    Console 2: SW Bundle2.4.38Console v2 Software Bundle includes:
    - UCD-500, 4xx, 3xx device driver installer
    - UCD Console installer    		13.9.2023
    		UCD-500, UCD-500 Gen2下载
    随着第二代 UCD 控制台用户界面软件的更新，Unigraf 正在重组软件架构和新版本的发布。 目前针对 UCD系列产品分别发布软件和固件包。



    		UCD-500, UCD-500 Gen2
    Console 2: FW Package2.3.38

    - With enabled HDCP support for 8b/10b link coding    		Console v2:
    - Firmware package    		9.8.2022
    		UCD-500, UCD-500 Gen2下载

    Console 2: FW Package2.3.40

    - With enabled DisplayID CTS and Adaptive-Sync CTS tests
    - Without HDCP support    		Console v2:
    - Firmware package    		9.8.2022
    		UCD-500, UCD-500 Gen2下载
    UCD-424, 400 软件和固件



    		UCD-424, UCD-400
    Console 3: SW Bundle3.5.252Console v3 Software Bundle includes:
    - UCD-5XX and UCD-4XX device driver installer
    - UCD Console installer
    - UCD-5XX and UCD-4XX Firmware    		4.10.2024





    		下载版本说明UCD-424, UCD-400下载 Windows

    下载 macOS

    下载 Linux
    Console 3: SW Bundle3.4.240Console v3 Software Bundle includes:
    - UCD-5XX and UCD-4XX device driver installer
    - UCD Console installer
    - UCD-5XX and UCD-4XX Firmware    		8.8.2024
    		UCD-424, UCD-400下载 Windows

    下载 macOS

    下载 Linux





    		UCD-424, UCD-400
    Console 2: SW Bundle2.4.38Console v2 Software Bundle includes:
    - UCD-500, 4xx, 3xx device driver installer
    - UCD Console installer    		13.9.2023
    		UCD-424, UCD-400下载
    随着第二代 UCD 控制台用户界面软件的更新，Unigraf 正在重组软件架构和新版本的发布。 目前针对 UCD系列产品分别发布软件和固件包。



    		UCD-424, UCD-400
    Console 2: FW Package2.3.38Console v2:
    - Firmware package    		9.8.2022
    		UCD-424, UCD-400下载

    Console 2: FW Package2.3.40Console v2:
    - Firmware package    		9.8.2022
    		UCD-424, UCD-400下载





    		UCD-424, UCD-400
    Console 1: UCD-300/400 SW Bundle1.12.7Console 1 Software Bundle includes:
    - UCD-300 and UCD-400 device driver installer
    - UCD Console installer
    - TSI installer
    - UCD-300 Firmware installer
    - UCD-400 Firmware    		8.8.2022
    		UCD-424, UCD-400下载
    Console 1: UCD-300/400 Firmware Packages- UCD-422: F0.3.42_N1.10.92
    - UCD-4xx: F0.3.45_N1.10.92
    - UCD-3xx: 0.21.201.124    		Console v1:
    - Firmware package    		9.8.2022
    		UCD-424, UCD-400下载
    UCD-422, 452, 451 软件和固件



    		UCD-424, UCD-400, UCD-422
    Console 3: SW Bundle3.5.252Console v3 Software Bundle includes:
    - UCD-5XX and UCD-4XX device driver installer
    - UCD Console installer
    - UCD-5XX and UCD-4XX Firmware    		4.10.2024





    		下载版本说明UCD-424, UCD-400, UCD-422下载 Windows

    下载 macOS

    下载 Linux
    Console 3: SW Bundle3.4.240Console v3 Software Bundle includes:
    - UCD-5XX and UCD-4XX device driver installer
    - UCD Console installer
    - UCD-5XX and UCD-4XX Firmware    		8.8.2024
    		UCD-422, UCD-451, UCD-452下载 Windows

    下载 macOS

    下载 Linux





    		UCD-422, UCD-451, UCD-452
    Console 2: SW Bundle2.4.38Console v2 Software Bundle includes:
    - UCD-500, 4xx, 3xx device driver installer
    - UCD Console installer    		13.9.2023
    		UCD-422, UCD-451, UCD-452下载
    随着第二代 UCD 控制台用户界面软件的更新，Unigraf 正在重组软件架构和新版本的发布。 目前针对 UCD系列产品分别发布软件和固件包。



    		UCD-422, UCD-451, UCD-452
    Console 2: FW Package2.3.38Console v2:
    - Firmware package    		9.8.2022
    		UCD-422, UCD-451, UCD-452下载

    Console 2: FW Package2.3.40Console v2:
    - Firmware package    		9.8.2022
    		UCD-422, UCD-451, UCD-452下载
    UCD-422 固件包



    		UCD-422

    		F0.2.21_N1.9.72
    		FW for UCD-422 with ISP support F0.2.21_N1.9.72
    		12.4.2021
    		UCD-422下载

    		F0.3.42_N1.10.92FW for UCD-4229.8.2022
    		UCD-422下载

    下载

    		F0.2.11_N1.9.63
    		FW for UCD-422 with ISP support F0.2.11_N1.9.63
    		21.9.2020
    		UCD-422下载


    		F0.2.5_N1.9.34FW for UCD-422 with ISP support F0.2.5_N1.9.3418.9.2020
    		UCD-422下载
    Console 1: UCD-300/400 Firmware Packages- UCD-422: F0.3.42_N1.10.92
    - UCD-4xx: F0.3.45_N1.10.92
    - UCD-3xx: 0.21.201.124    		Console v1:
    - Firmware package    		9.8.2022
    		UCD-422, UCD-451, UCD-452, UCD-461, UCD-462下载





    		UCD-422, UCD-340, UCD-323 Gen2, UCD-323, UCD-301
    UCD-340, 323 Gen2, 323, 301 软件和固件



    		UCD-340, UCD-323 Gen2, UCD-323, UCD-301
    Console 2: SW Bundle2.4.38Console v2 Software Bundle includes:
    - UCD-500, 4xx, 3xx device driver installer
    - UCD Console installer    		13.9.2023






    		UCD-340, UCD-323 Gen2, UCD-323, UCD-301下载
    随着第二代 UCD 控制台用户界面软件的更新，Unigraf 正在重组软件架构和新版本的发布。 目前针对 UCD系列产品分别发布软件和固件包。



    		UCD-340, UCD-323 Gen2, UCD-323, UCD-301
    Console 2: FW Package2.3.38Console v2:
    - Firmware package    		9.8.2022
    		UCD-340, UCD-323 Gen2, UCD-323, UCD-301下载

    Console 2: FW Package2.3.40Console v2:
    - Firmware package    		9.8.2022
    		UCD-340, UCD-323 Gen2, UCD-323, UCD-301下载





    		UCD-340, UCD-323 Gen2, UCD-323, UCD-301
    Console 1: UCD-300/400 SW Bundle1.12.7Console 1 Software Bundle includes:
    - UCD-300 and UCD-400 device driver installer
    - UCD Console installer
    - TSI installer
    - UCD-300 Firmware installer
    - UCD-400 Firmware    		8.8.2022
    		UCD-340, UCD-323 Gen2, UCD-323, UCD-301下载
    Console 1: UCD-300/400 Firmware Packages- UCD-422: F0.3.42_N1.10.92
    - UCD-4xx: F0.3.45_N1.10.92
    - UCD-3xx: 0.21.201.124    		Console v1:
    - Firmware package    		9.8.2022
    		UCD-340, UCD-323 Gen2, UCD-323, UCD-301下载





    		UCD-340, UCD-323 Gen2, UCD-323, UCD-301
    UTC-274



    		UTC-274
    UTC Console SW Package1.0.26UTC Console v1 Software Bundle includes:
    - UTC Console installer
    - UTC-274 device driver installer and firmware
    - UTC-274 User Manual    		22.7.2024






    		UTC-274下载 Windows





    		UTC-274
    UCD-300/400 Playback



    		UCD-400, UCD-422, UCD-323 Gen2, UCD-323, Playback
    UCD-300/400 playback tool0.10.28
    		Command line tool to play video as a sequence of custom frames9.7.2021
    		Playback, UCD-323, UCD-400, UCD-422, UCD-424, UCD-451, UCD-452下载





    		Playback, UCD-323, UCD-400, UCD-422, UCD-424, UCD-451, UCD-452
    UCD-240 Software & Firmware



    		UCD-240
    Console 1: UCD-200/300/400 SW Bundle1.12.7Console 1 Software Bundle includes:
    - UCD-300 and UCD-400 device driver installer
    - UCD Console installer
    - TSI installer
    - UCD-300 Firmware installer
    - UCD-400 Firmware    		8.8.2022
    		UCD-240下载
    UCD-240 Materials
    		Includes:
    - UCD-240 User Manual
    - TSI-X Reference Manual
    - Tutorial Videos
    - TSI Automation Script Examples    		11.07.2023
    		UCD-240下载






    		UCD-240
    QT Source Code



    		QT Source Code
    QT Source Code5.12.12Used Qt libraries source code25.2.2022
    		QT Source CodeWindows Version
    下载

    Linux/MacOSx Version
    下载
    QT Source Code5.15.2Used Qt libraries source code25.2.2022
    		QT Source CodeWindows Version
    下载

    Linux/MacOSx Version
    下载
    QT Source Code6.2.3Used Qt libraries source code25.2.2022
    		QT Source CodeWindows Version
    下载

    Linux/MacOSx Version
    下载





    		QT Source Code, DPA-400, DPR-120, DPR-100, DPT-200, UCD-1
    DPA-400, DPR-120, DPR-100, DPT-200, UCD-1



    		DPA-400, DPR-120, DPR-100, DPT-200, UCD-1
    DPA-4002.1.6AUX Channel Monitor GUI and FW with DP 1.1 to 2.1 support and
    HDCP 1.3 and 2.2 support.    		10.4.2024






    		DPA-400下载
    DPR-1201.11DPR-120 Debug and Test Controller Install package with
    DP Link CTS Set A + B + C + D. Latest version    		12.7.2018
    		DPR-120下载
    DPR-1003.4.1CTS Tool software. Installation package for HDCP and Audio CTS and DP Sink Console. Includes HDCP Pseudo Sink feature.3.4.2018
    		DPR-100下载
    DPR-100 DP AUX Controller SW for PHY CTS1.1
    (FW 6.1.1)    		DP AUX Controller SW for Physical Layer testing with compatible test equipment. Installation package for Device Drivers, Sink and Source Reference Controllers and utility for firmware update.13.10.2016
    		DPR-100下载
    DPT-200 & VTG-5225 DP3.3.9CTS Tool software LL CTS 1.2 Core rev. 1.1 compliant. Installation package for Link layer and HDCP CTS and DP Source Console.20.12.2017
    		DPT-200, VTG-5225下载
    DPT-200 DP AUX Controller SW for PHY CTS1.1
    (FW 6.0.0)    		DP AUX Controller SW for Physical Layer testing with compatible test equipment. Installation package for Device Drivers, Sink and Source Reference Controllers and utility for firmware update.13.10.2016
    		DPT-200下载
    UCD-1 MLC
    UCD-1 QLD
    UCD-2 VX1    		1.6.18Windows installation package for UCD-1 and UCD-2 capture devices.11.10.2019
    		UCD-1 MLC, UCD-1 QLD, UCD-2 VX1下载





    		UCD-1 MLC, UCD-1 QLD, UCD-2 VX1
    VTG and UFG Frame Grabbers



    		UFG, VTG
    UFG-04 Frame Grabbers3.1Installation package for UFG-04 Test Frame Grabbers.15.9.2011
    		UFG-04下载
    UFG-06 Frame Grabbers1.4.4Software Bundle including
    - UFG-06 device driver installer
    - Quick Preview installer
    - TSI installer
    Release notes, versions:
    - UFG-06, 1.7 [R3]    		16.3.2018
    		UFG-06下载
    UFG-07 Frame Grabbers1.6UFG-07 frame grabber family installation CD including support for Windows 10, Windows 7 and Windows XP.30.11.2017
    		UFG-07下载
    UFG-12 Frame Grabbers
    		UFG-12 M, 2S, 4H Programming User27.9.2017
    		UFG-12下载


    		UFG-12 M, 2S, 4H Directshow User27.9.2017
    		UFG-12下载


    		UFG-12 MC / UFG-12 HDMI 4K Programming User27.9.2017
    		UFG-12下载


    		UFG-12 MC / UFG-12 HDMI 4K Directshow User27.9.2017
    		UFG-12下载


    		UFG-12 frame grabber SDK for Linux operating system

    		UFG-12Please Contact Unigraf Support
    VTG-5225 DP / QLT

    		VTG-5225 installation package

    		VTG-5225Please Contact Unigraf Support
    UFG-10 Frame Grabbers
    		UFG-10, 4H, 2S, MC and M installation

    		UFG-10Please Contact Unigraf Support
    UFG-05 Frame Grabbers
    		UFG-05 frame grabber family installation package including support for Windows 8, Windows 7 and Windows XP.

    		UFG-05Please Contact Unigraf Support





    Unigraf 中国办事处

    联络人 : 吴振廷 Charles Wu
    微信账号: Unigraf_001
    官方网站 : https://unigraf-china.cn
    电邮 : sales.asia@unigraf.fi
    微信 QR Code



    Unigraf WeChat Official Account qrcode 8cm



    营业时间：
    星期一 – 星期五 9 AM to 5 PM (GMT+8)






    可搭配产品

    硬件

    UCD-301测试装置

    研发调适


    UCD Console Pro-用于测试DP源DUT


    UCD Console Pro-用于测试HDMI源DUT


    HDCP 2.3支持

    DP HDCP 2.3 兼容性测试


    DP HDCP 2.3 CTS-用于测試发送器DUT

    测试自动化


    TSI SDK 高级测试集


    TSI SDK高级测试集-支持HDCP 2.3


    TSI电气测试組


    关键词:

    0条提问

    X

    提问

    X

    回答



    关键词:
    0条口碑
    X

    发表口碑

    口碑标题
    上传图片

    收录与合作

    产品相关收录：info@onetest.cn

              或致电：+86 755 23033660

    商务合作：info@onetest.cn

        或致电：+86 755 23033660

    投诉与建议：service@onetest.cn

    深圳至一测控技术有限公司

    扫一扫，关注我们公众号

    获取全球最新产品资讯、资料、软件购买渠道、技术支持

    © 2024 Onetest仪器资源库 All Rights Reserved   粤ICP备17028186号-2      粤公网安备44030902003758

    2.661115s
