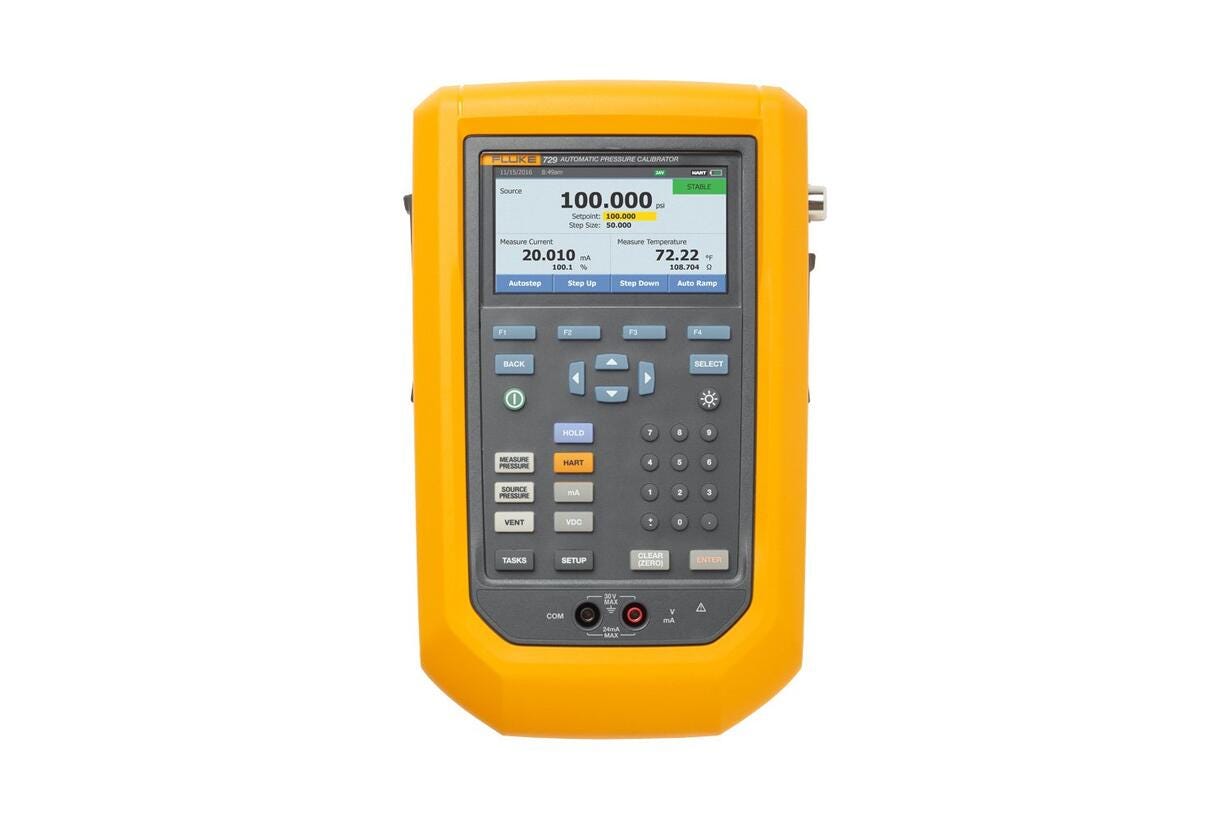

Fluke729全自动压力校验仪经过专门设计，可简化压力校准，并提供快速、精确的结果。
7252系列提供了一种独特灵活的方式，可在较宽的压力范围内进行自动校准。7252同时具有两个压力输出通道，每个通道都具有独立的控制系统。
7250LP型微压型压力控制器，专门用于微压压力设备的校准。
- «
- 1
- »
7250-7250I-7250XI 压力控制器/校准器|福禄克校准 (在产)
参考价格 ：
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
福禄克校准|Fluke Calibration

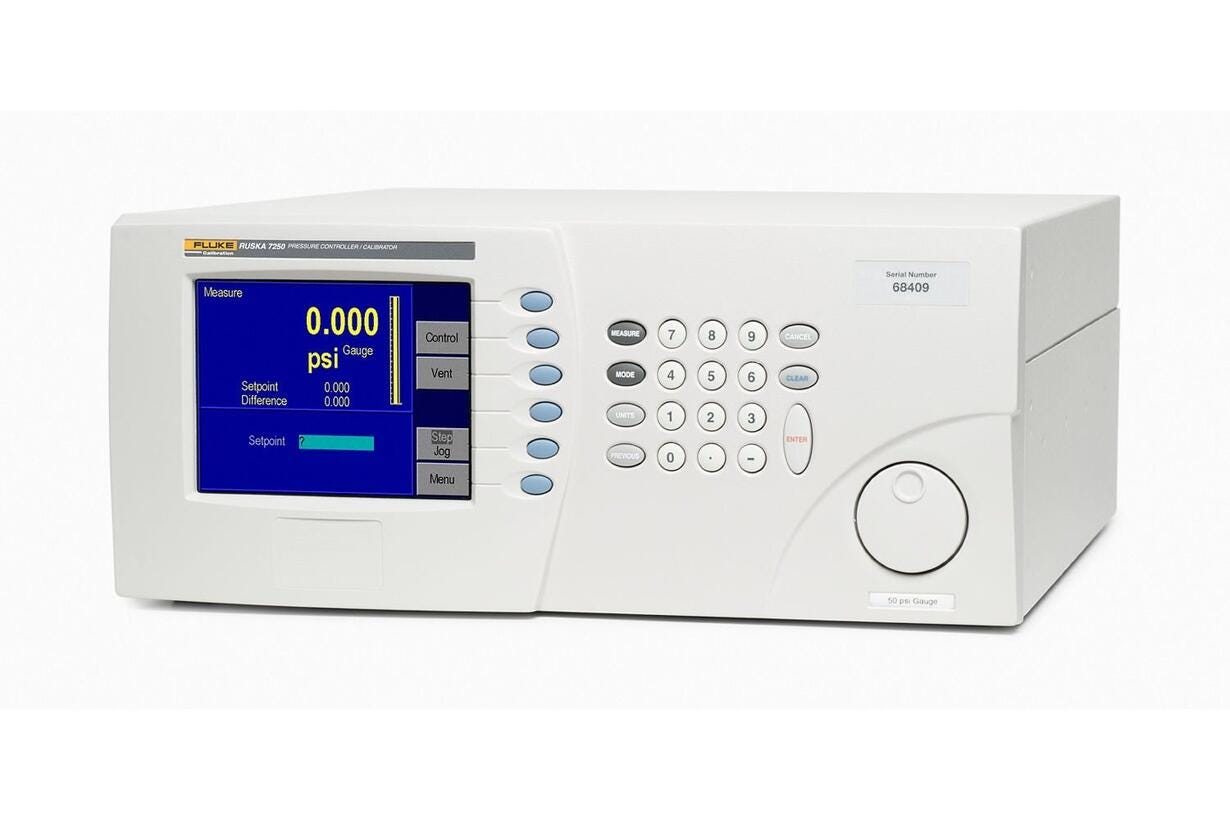

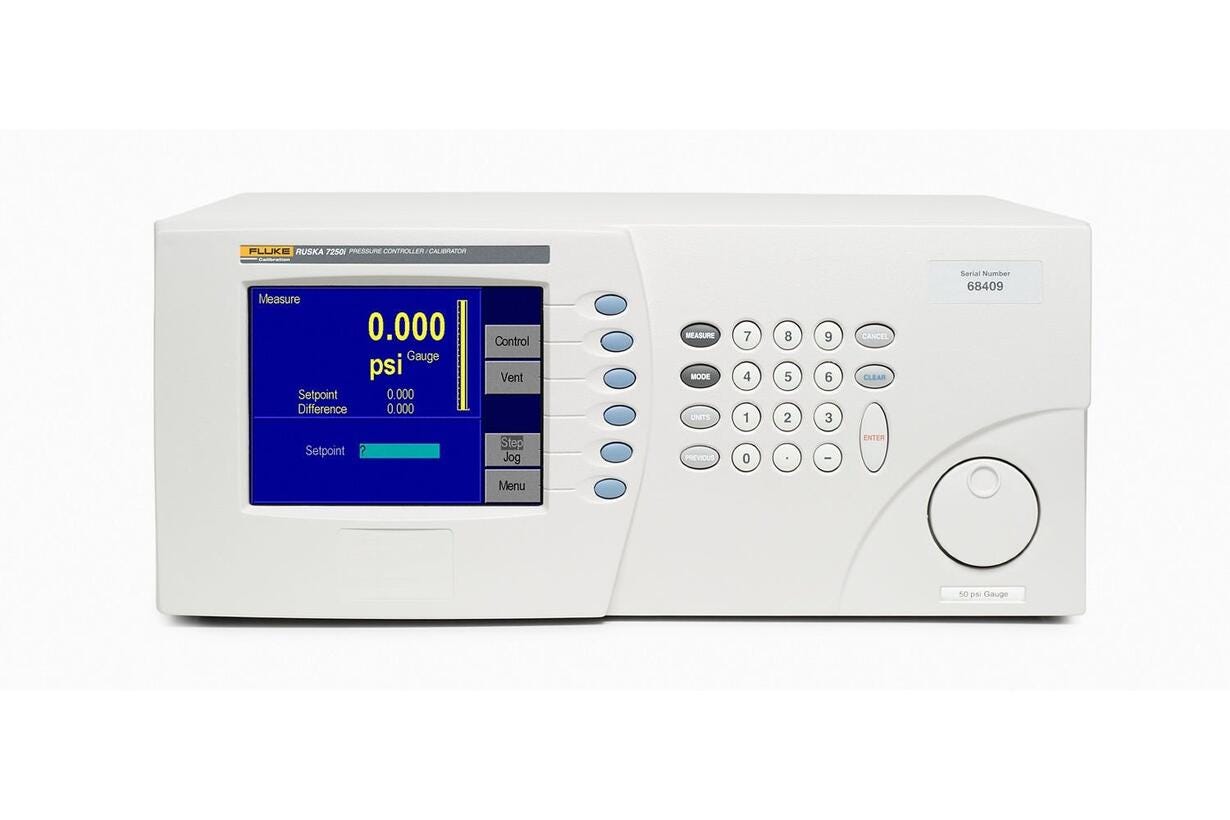

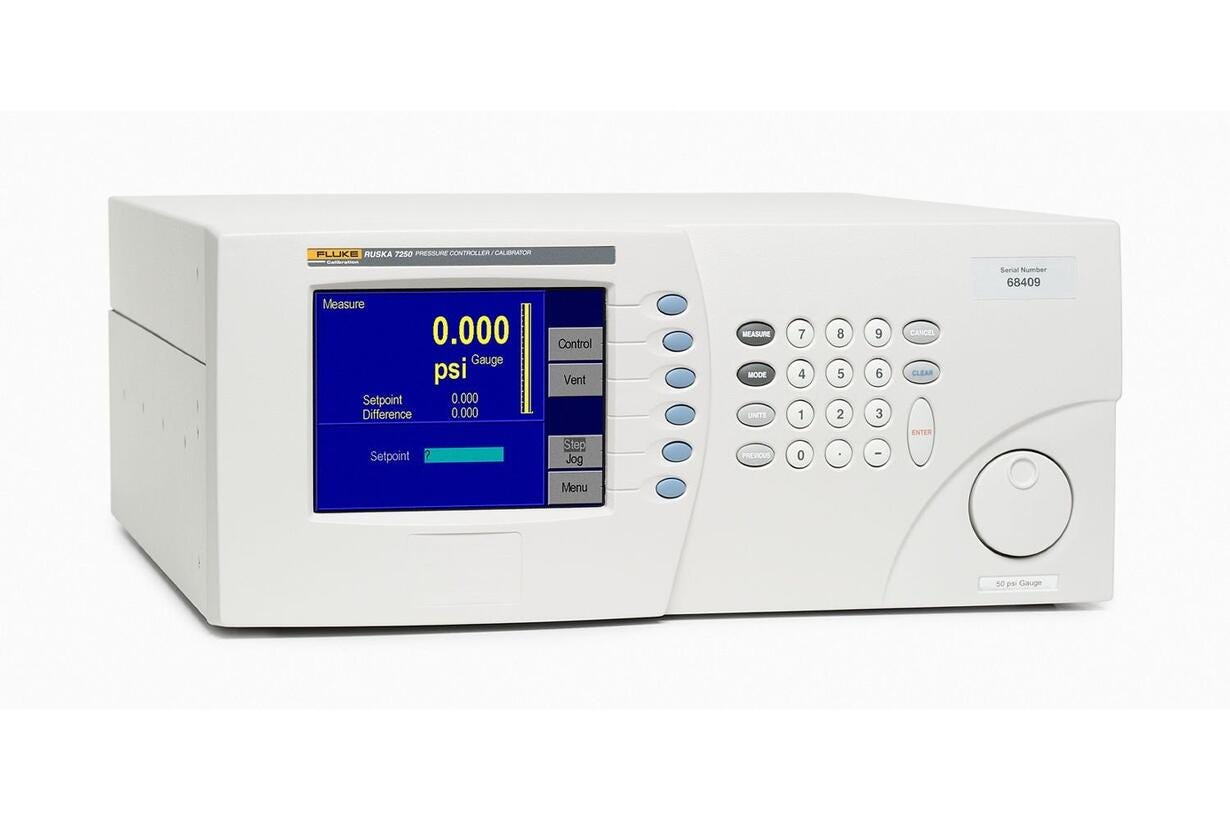

7250, 7250i, and 7250xi 压力控制器/校准器
独有的石英波登管压力传感器设计，可提供高精度的压力测量 · 提供 5 至 2500 psi 的定制压力量程 · 可实现 0.001 % FS 的稳定压力控制。
产品简介
7250型数字压力控制器/校准器可覆盖0-21Mpa的各种压力量程，满量程精度，经济实用。
功能特性
• The high-precision quartz Bourdon …：The high-precision quartz Bourdon tube sensor 7250 high-speed digital pressure controller is Rosska's fifth-generation automatic pressure controller. It has unrivaled performance and a large-screen color Chinese interface display,and enhanced control stability,integrating precision,Stability,speed and versatility all rolled into one. The 7250xi,7250i and 7250 with a measuring range within 17.2MPa are equipped with Rosska's unique quartz sensors. The performance of each quartz sensor is rigorously tested by Rosskar pressure calibration equipment to ensure that high accuracy is provided to users. , high stability and high reliability products.
• Standard Accuracy For applications…：Standard Accuracy For applications that do not require the high-precision instrumentation of the 7250xi and 7250i, the 7250 provides cost-effective automated pressure testing and calibration. The pressure range is within 17.2MPa, and the accuracy is ±0.003% of the full scale. For the pressure range of 21MPa, the accuracy is ±0.01% of the full scale, and three range options are available: 7MPa, 14MPa and 21MPa, and the accuracy is ±0.01%FS of each range.
• Flexible and changeable control me…：Flexible and changeable control methods
• High-speed pressure control of all…：High-speed pressure control of all 7250 series instruments, within the range of 17.2MPa (7250 to 21MPa), for a load volume of 245cc, can stably output the set pressure value within 15 seconds or less, without overshoot pressure, can Perform high-speed stress testing and calibration.
• Dual control mode The 7250 series …：Dual control mode The 7250 series has two control modes: active mode and passive mode for users to choose. In active mode, the 7250 maintains set-point pressure and automatically compensates for pressure changes caused by temperature changes or pressure leaks. In passive mode, the user can define the control error bandwidth. Once the instrument output pressure is within the error bandwidth, the instrument stops controlling. In situations where there is no leakage and the temperature is stable, the passive mode can maximize the high-precision performance of the instrument and eliminate the interference of uncertain factors such as control fluctuations.
• Pressure automatic testing and cal…：Pressure automatic testing and calibration
• Automatic pressure test and calibr…：Automatic pressure test and calibration 7250xi, 7250i and 7250 are very convenient to use and can be automatically calibrated using a variety of methods.
• Up/down stepping is used for calib…：Up/down stepping is used for calibration with a fixed step size. Enter the user-defined step size. The 7250 series uses the Jog Dial (dial) method to automatically add or subtract the step size instead of a lengthy keyboard operation process.
• 独有的石英波登管压力传感器设计，可提供高精度的压力测：独有的石英波登管压力传感器设计，可提供高精度的压力测量
• 提供 5 至 2500 psi 的定制压力量程：提供 5 至 2500 psi 的定制压力量程
• 可实现 0.001 % FS 的稳定压力控制。：可实现 0.001 % FS 的稳定压力控制。
• 使用 7250i 或 7250xi，以 0.005%：使用 7250i 或 7250xi，以 0.005% 的读数测量精度覆盖更宽的压力量程
资源下载
以上内容与指标均取自福禄克校准（FLUKE CALIBRATION）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
福禄克校准|Fluke Calibration · onetest 仪器资源库
福禄克校准|Fluke Calibration
7250, 7250i, and 7250xi 压力控制器/校准器 详细指标
独有的石英波登管压力传感器设计，可提供高精度的压力测量 · 提供 5 至 2500 psi 的定制压力量程 · 可实现 0.001 % FS 的稳定压力控制。
详细指标
以下指标取自福禄克校准（FLUKE CALIBRATION）官网该产品页「技术指标」表，为官网公布值；实际精度与适用条件以官方手册为准。
Technical indicators
• pressure range：Gauge pressure is optional between 40kPa~16MPa; absolute pressure is 100~400kPa and 21MPa
• Optional：Absolute pressure range using atmospheric reference sensor, from 100kPa to 17.2MPa gauge pressure, vacuum (negative gauge pressure) range from 100kPa to 17.2MPa gauge pressure
• temperature：Working temperature: 18~36℃; Storage temperature: -20~70℃
• humidity：5%~95%RH, no condensation
• Preheat time：2~3 hours; can be turned on continuously
• pressure medium：Nitrogen or clean dry air
• Test port：1/4"NPT internal thread
• Control parameters：Load capacity: 82~980cc, minimum control (absolute pressure): 1kPa absolute pressure
• communication：RS-232 and IEEE488 interface, SCPI protocol. Roska 7215 series, 7010 series, 6000 series and DPI-510 emulation mode. The LabVIEW driver can be downloaded for free from the Fluke website, and software upgrades can be completed through the RS-232 interface.
• Menu language：Chinese operation menu
• show：TFT, VGA, active matrix, 6.4 inches, 640×480 resolution, 65.000 colors
• Dimensions：All models are 18cm high x 43cm wide x 48cm deep
• weight：7.7 kg
• Atmospheric reference (optional)：The maximum error is 13.79Pa per year
• Accuracy：to 17.2MPa: ±0.003%FS, 21 MPa 30% to 100% full scale 90 day: 0.012% reading 1 year: 0.013% reading
• stability：To 17.2MPa: ±0.0075%Rdg per year, 21MPa absolute pressure: ±0.01%FS per year
• control stability：Active mode: ±0.001%FS (10ppm) Passive mode: no additional uncertainty
• display resolution：User selectable, up to 1:1.000.000
• Controller response speed：When the load volume is 245cc, the controller can stabilize the output without overshoot within 15 seconds. When the 7250 range is 21MPa, the response time is 30~45 seconds.
• Negative gauge pressure accuracy：±0.003%FS
• check：The controller comes with a calibration report traceable to NIST. Maximum deviation from true pressure value including accuracy, stability, temperature effects and calibration
• total uncertainty：(~17.2MPa), 90 days: ±0.003%FS/±0.002%Rdg, 1 year: ±0.003%FS/±0.0075%Rdg Pressure range 21MPa Absolute pressure, 90 days: ±0.01% (per range) FS, 1 Year: ±0.014% (per range) FS
型号与选件
• 7250 高速数字压力控制器：
• 7250i 高速数字压力控制器：
• 7250xi 高速数字压力控制器：
资源下载
以上规格取自福禄克校准（FLUKE CALIBRATION）官网 7250, 7250i, and 7250xi 压力控制器/校准器 产品页技术指标表。
