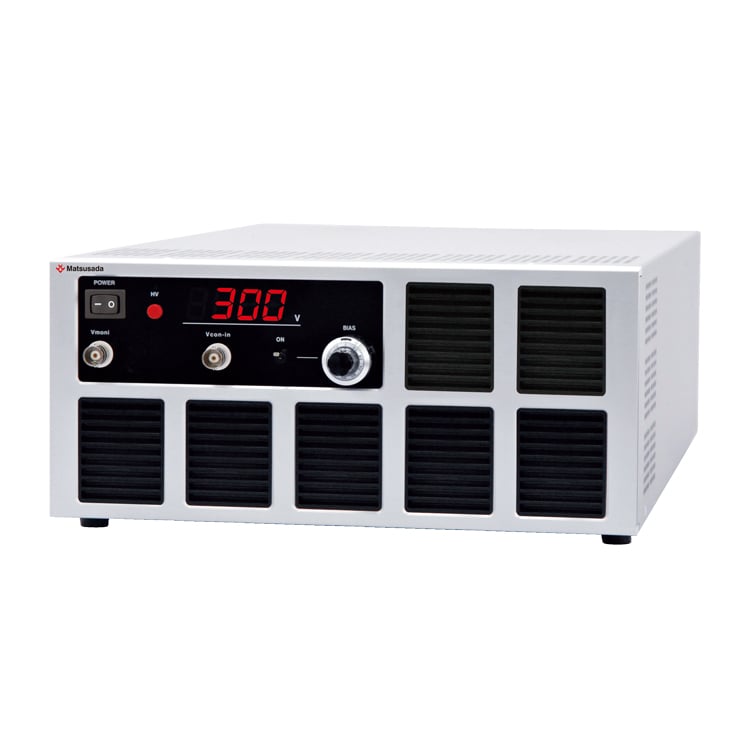

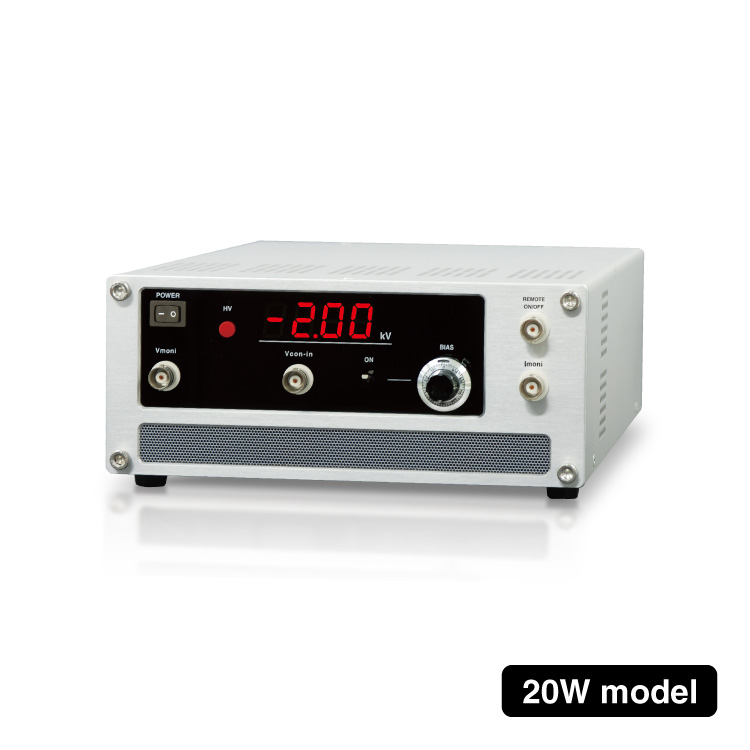

AMJ-0.5B80 放大器
高压 AMPLIFIER 0.5V / 80mA / 40W
产品简介
AMJ-0.5B80 是松田精密（Matsusada Precision）AMJ 系列的一款放大器，最大输出电压 0.5V，最大输出电流 80mA，最大输出功率 40W。

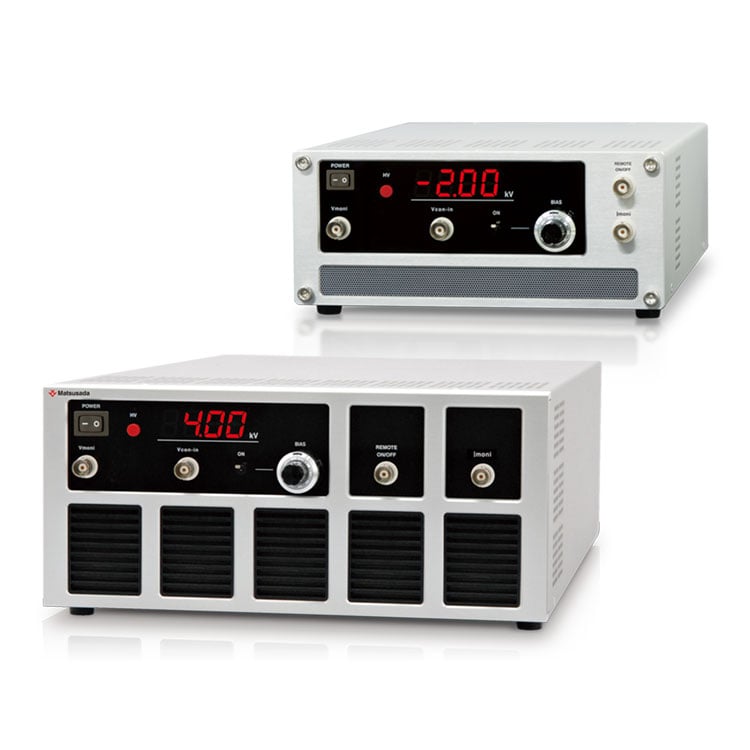

The AMJ series is a compact, benchtop high-voltage amplifier engineered for high-speed response. It precisely amplifies input signals into high-voltage outputs, supporting various waveforms such as sine, triangle, sawtooth, and square waves. The all-solid-state design ensures high reliability, offering output voltages from ±0.5 kV to ±4 kV and a frequency bandwidth from DC to 75 kHz across a broad lineup of models.
IMPORTANT: For applications involving capacitive loads or electrical discharge, please refer to " For capacitive loads and discharge loads "
核心参数
• 输出电压：-0.5 to +0.5 kV
• 输出电流：80 mA
• Output power：40 W
• Slew rate：150 V/µs
• Frequency response [-3 dB]
Typical value at sine wave：DC to 75 kHz
• 输入电压：85 to 264 Vac, 50/60 Hz, Single-phase
100 to 240 Vac ±10％, 50/60 Hz, Single-phase (option)
• 输出电压控制：External control voltage -10 to +10 V (DC or peak AC)
• -LCs：Overcurrent value setting function
The overcurrent limit level is controlled via an external voltage of +0.5 Vdc to +10.5 Vdc.
(Note: An external control voltage must be applied to activate the limit setting).
BNC terminal is supplied on the front panel.
Cannot be selected at the same time as -L1.
• -LN：Output state auto-recovery (Auto-restart after power failure)
The output state (ON/OFF) is automatically restored when power returns after an interruption.
• -L1：Output current monitor
Provides a monitor output proportional to the output current.
Monitor output: −10 V to +10 V (BNC connector on the front panel)
Output impedance: 1 kΩ (DC to 2 kHz bandwidth)
Cannot be selected together with the -LCs option.
• -L(5m)：Changing the output cable length to be 5 meters
The length of the high voltage output non-shielded cable is changed from the standard 1.5 meters to 5 meters.
Note that phenomena such as reduced slew rate or response speed, or output waveform distortion may occur.
• -CE：Conform to CE marking
For available models, see “MODELS” .
The product is designed to be installed in the customer's system and so as to meet the requirements of CE marking regarding chassis mounting,noise control,proper protections,and isolated devices. It is not designed to perform alone.
资源下载
松田精密（Matsusada Precision） · onetest 仪器资源库
松田精密|Matsusada Precision Inc.
AMJ-0.5B80 放大器 详细指标
高压 AMPLIFIER 0.5V / 80mA / 40W
详细指标
以下指标取自松田精密（Matsusada Precision）官网 AMJ 系列产品页的「Models / Specifications / Options / Dimensions」区块，其中「型号输出参数」为该型号在官方型号表中的原始列值；官方原文为英文，此处按原文保留。详细规格与测试条件以官方数据手册为准。
型号输出参数
• 输出电压：-0.5 to +0.5 kV
• 输出电流：80 mA
• Output power：40 W
• Slew rate：150 V/µs
• Frequency response [-3 dB]
Typical value at sine wave：DC to 75 kHz
系列共用规格
• 输入电压：85 to 264 Vac, 50/60 Hz, Single-phase
100 to 240 Vac ±10％, 50/60 Hz, Single-phase (option)
• 输出电压控制：External control voltage -10 to +10 V (DC or peak AC)
• -LCs：Overcurrent value setting function
The overcurrent limit level is controlled via an external voltage of +0.5 Vdc to +10.5 Vdc.
(Note: An external control voltage must be applied to activate the limit setting).
BNC terminal is supplied on the front panel.
Cannot be selected at the same time as -L1.
• -LN：Output state auto-recovery (Auto-restart after power failure)
The output state (ON/OFF) is automatically restored when power returns after an interruption.
• -L1：Output current monitor
Provides a monitor output proportional to the output current.
Monitor output: −10 V to +10 V (BNC connector on the front panel)
Output impedance: 1 kΩ (DC to 2 kHz bandwidth)
Cannot be selected together with the -LCs option.
• -L(5m)：Changing the output cable length to be 5 meters
The length of the high voltage output non-shielded cable is changed from the standard 1.5 meters to 5 meters.
Note that phenomena such as reduced slew rate or response speed, or output waveform distortion may occur.
• -CE：Conform to CE marking
For available models, see “MODELS” .
The product is designed to be installed in the customer's system and so as to meet the requirements of CE marking regarding chassis mounting, noise control, proper protections, and isolated devices. It is not designed to perform alone.
• 交流输入电缆：Standard
CABLE TYPE1
Rated voltage: 125V
Maximum current: 10A
(For Japan or North America)
2.5 meters
Sold separately
CABLE TYPE3
Rated voltage: 250V
Maximum current: 10A
(For Europe)
2.5 meters
Select an appropriate AC input cable according to your operating environment and region.
Please note that other than AC input cables that correspond to the following are to be prepared by customers.
See CABLE series datasheet for details .

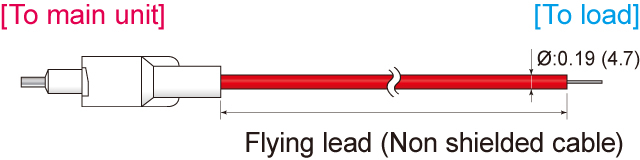

• 高压 output cable：Standard
CN-40-AHVP
High voltage output cable 1.5 meters length
Sold separately
(with -L(5m) option)
CN-40-AHVP (5)
High voltage output cable 5 meters length
See CN series datasheet for details .
选件 / 附件
• -LCs：Overcurrent value setting function
The overcurrent limit level is controlled via an external voltage of +0.5 Vdc to +10.5 Vdc.
(Note: An external control voltage must be applied to activate the limit setting).
BNC terminal is supplied on the front panel.
Cannot be selected at the same time as -L1.
• -LN：Output state auto-recovery (Auto-restart after power failure)
The output state (ON/OFF) is automatically restored when power returns after an interruption.
• -L1：Output current monitor
Provides a monitor output proportional to the output current.
Monitor output: −10 V to +10 V (BNC connector on the front panel)
Output impedance: 1 kΩ (DC to 2 kHz bandwidth)
Cannot be selected together with the -LCs option.
• -L(5m)：Changing the output cable length to be 5 meters
The length of the high voltage output non-shielded cable is changed from the standard 1.5 meters to 5 meters.
Note that phenomena such as reduced slew rate or response speed, or output waveform distortion may occur.
• -CE：Conform to CE marking
For available models, see “MODELS” .
The product is designed to be installed in the customer's system and so as to meet the requirements of CE marking regarding chassis mounting, noise control, proper protections, and isolated devices. It is not designed to perform alone.
• 交流输入电缆：Standard
CABLE TYPE1
Rated voltage: 125V
Maximum current: 10A
(For Japan or North America)
2.5 meters
Sold separately
CABLE TYPE3
Rated voltage: 250V
Maximum current: 10A
(For Europe)
2.5 meters
Select an appropriate AC input cable according to your operating environment and region.
Please note that other than AC input cables that correspond to the following are to be prepared by customers.
See CABLE series datasheet for details .
• 高压 output cable：Standard
CN-40-AHVP
High voltage output cable 1.5 meters length
Sold separately
(with -L(5m) option)
CN-40-AHVP (5)
High voltage output cable 5 meters length
See CN series datasheet for details .
