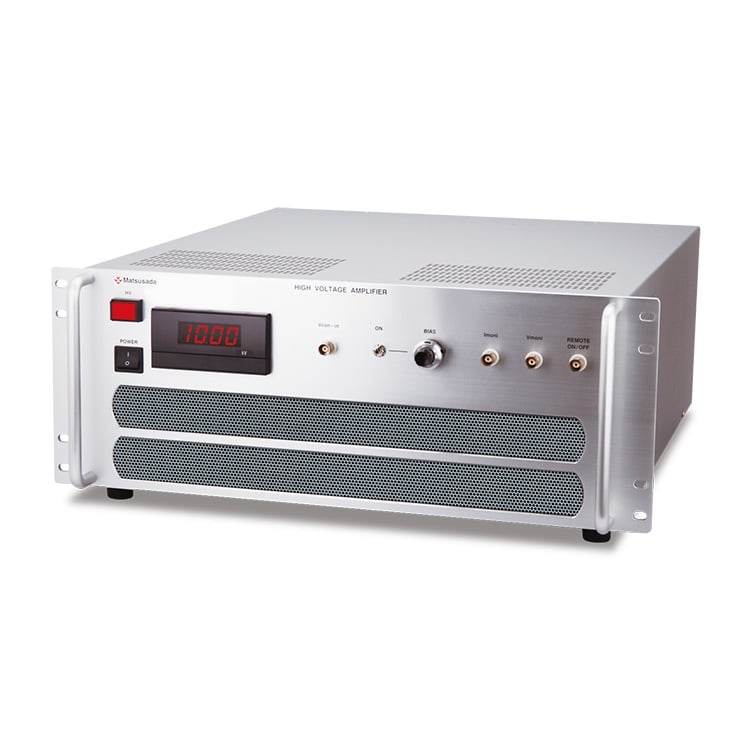

AMS-5B6 放大器
ULTRA HIGH SPEED 高压 AMPLIFIER 5kV / 6mA / 30W
产品简介
AMS-5B6 是松田精密（Matsusada Precision）AMS 系列的一款放大器，最大输出电压 5kV，最大输出电流 6mA，最大输出功率 30W。
The AMS/AMT series consists of rack-mountable, high-speed high-voltage operational amplifiers. Engineered for precision and reliability, these amplifiers provide fast response speeds of up to 100 kHz, capable of outputting high-voltage sine, triangle, sawtooth, and square waves proportional to the input waveform.
We have eight models with output voltage ranging from ±0.6 kV to ±10 kV, which are all solid-state.
IMPORTANT: For applications involving capacitive loads or electrical discharge, please refer to " For capacitive loads and discharge loads "
核心参数
• Output / Voltage [kVdc]：-5 to +5 kV
• Current [max]：±6 mA
• Power [max]：30 W
• Slew rate：30 V/µs
• Frequency response (-3dB) *1 / Full scale：DC to 2 kHz
• 10% of full scale：DC to 4 kHz
• 输入电压：115 Vac ±10% (103.5 to 126.5 Vac), 50/60 Hz, Single-phase
230 Vac ±10% (207 to 253 Vac), 50/60 Hz, Single-phase (option)
100 to 240 Vac, 50/60 Hz, Single-phase (option)
• 输出电压控制：External control voltage -10 to +10 V (DC or peak AC)
• -LC：Current Limit
Limits the output current at the time of overload
• -LN：Output state auto-recovery
(former: no power failure protection)
• -L1：Output current monitor
-10 V to +10 V from BNC connector on front panel
(output impedance 1 kΩ up to 2 kHz bandwidth)
• -L(230V)：Input Voltage 230 Vac ±10% single-phase
(unavailable with -CE option selected)
资源下载
以上内容与指标均取自Matsusada Precision 官网产品页与官方数据手册，未标注口径的为厂家公布值。
松田精密（Matsusada Precision） · onetest 仪器资源库
松田精密|Matsusada Precision Inc.
AMS-5B6 放大器 详细指标
ULTRA HIGH SPEED 高压 AMPLIFIER 5kV / 6mA / 30W
详细指标
以下指标取自松田精密（Matsusada Precision）官网 AMS 系列产品页的「Models / Specifications / Options / Dimensions」区块，其中「型号输出参数」为该型号在官方型号表中的原始列值；官方原文为英文，此处按原文保留。详细规格与测试条件以官方数据手册为准。
型号输出参数
• Output / Voltage [kVdc]：-5 to +5 kV
• Current [max]：±6 mA
• Power [max]：30 W
• Slew rate：30 V/µs
• Frequency response (-3dB) *1 / Full scale：DC to 2 kHz
• 10% of full scale：DC to 4 kHz
系列共用规格
• 输入电压：115 Vac ±10% (103.5 to 126.5 Vac), 50/60 Hz, Single-phase
230 Vac ±10% (207 to 253 Vac), 50/60 Hz, Single-phase (option)
100 to 240 Vac, 50/60 Hz, Single-phase (option)
• 输出电压控制：External control voltage -10 to +10 V (DC or peak AC)
• -LC：Current Limit
Limits the output current at the time of overload
• -LN：Output state auto-recovery
(former: no power failure protection)
• -L1：Output current monitor
-10 V to +10 V from BNC connector on front panel
(output impedance 1 kΩ up to 2 kHz bandwidth)
• -L(230V)：Input Voltage 230 Vac ±10% single-phase
(unavailable with -CE option selected)
• -L(5m)：High Voltage output cable 5 meters length
Note that phenomena such as through rate or response speed reduced, or output waveform distorted may happen.
• -CE：Conform to CE marking with input voltage 100 Vac to 240 Vac
(For available models, see "Models" CE marking)
Conforms to CE marking safety standards with the input voltage 100 Vac to 240 Vac ±10%, 50 Hz/60 Hz, single-phase.
* The product is designed to be installed in the customer's system so as to meet the requirements of CE marking regarding chassis mounting,noise control,proper protections,and isolated devices. It is not designed to perform alone.
•交流输入电缆：Standard
CABLE TYPE1
Rated voltage: 125 V
Maximum current: 10 A
(For Japan or North America)
2.5 meters
Standard
with -L(230V) option
CABLE TYPE3
Rated voltage: 250 V
Maximum current: 10 A
(For Europe)
2.5 meters
Sold separately
with -L(230V) option
CABLE TYPE4
Rated voltage: 250 V
Maximum current: 10 A
(For Europe)
2.5 meters
Select the appropriate AC input cable for your operating environment and region. For cable types not listed below, customers must provide their own compatible cables.
• 高压 output cable：Standard
CN-40-AHVP
1.5 meters length
Standard with -L(5m) option
CN-40-AHVP(5)
5 meters length
*Standard cable length is 1.5 meters. For 5 meter length,suffix(5) to the model number.
Example CN-120AR-MHVP(5)
For more details,refer to the CN series.
选件 / 附件
• -LC：Current Limit
Limits the output current at the time of overload
•-LN：Output state auto-recovery
(former: no power failure protection)
• -L1：Output current monitor
-10 V to +10 V from BNC connector on front panel
(output impedance 1 kΩup to 2 kHz bandwidth)
•-L(230V)：Input Voltage 230 Vac ±10% single-phase
(unavailable with -CE option selected)
• -L(5m)：High Voltage output cable 5 meters length
Note that phenomena such as through rate or response speed reduced,or output waveform distorted may happen.
•-CE：Conform to CE marking with input voltage 100 Vac to 240 Vac
(For available models, see "Models" CE marking)
Conforms to CE marking safety standards with the input voltage 100 Vac to 240 Vac ±10%, 50 Hz/60 Hz,single-phase.
*The product is designed to be installed in the customer's system so as to meet the requirements of CE marking regarding chassis mounting, noise control, proper protections, and isolated devices. It is not designed to perform alone.
• 交流输入电缆：Standard
CABLE TYPE1
Rated voltage: 125 V
Maximum current: 10 A
(For Japan or North America)
2.5 meters
Standard
with -L(230V) option
CABLE TYPE3
Rated voltage: 250 V
Maximum current: 10 A
(For Europe)
2.5 meters
Sold separately
with -L(230V) option
CABLE TYPE4
Rated voltage: 250 V
Maximum current: 10 A
(For Europe)
2.5 meters
Select the appropriate AC input cable for your operating environment and region. For cable types not listed below, customers must provide their own compatible cables.
• 高压 output cable：Standard
CN-40-AHVP
1.5 meters length
Standard with -L(5m) option
CN-40-AHVP(5)
5 meters length
* Standard cable length is 1.5 meters. For 5 meter length, suffix(5) to the model number.
Example CN-120AR-MHVP(5)
For more details, refer to the CN series.
资源下载
以上规格取自松田精密（Matsusada Precision）官网 AMS 系列产品页（https://www.matsusada.com/product/high-voltage-amplifiers/high-voltage-amplifiers/ams/）。
