松田精密|Matsusada Precision Inc.
DHOP30-8 放大器
Four-Quadrant Fast Response Bipolar Power Amplifier 30V / 8A / 240W
产品简介
DHOP30-8 是松田精密（Matsusada Precision）DHOP 系列的一款放大器，最大输出电压 30V，最大输出电流 8A，最大输出功率 240W。
The DHOP series is a four-quadrant bipolar amplifier capable of sourcing and sinking current. It operates in both Constant Voltage (CV) and Constant Current (CC) modes. Thanks to its proprietary design, the series achieves a compact and lightweight form factor, weighing only 7 kg with a width of 8.27 inches (210 mm).
These ultra-compact, high-speed amplifiers generate output signals proportional to various input waveforms, including sine, triangle, sawtooth, and square waves. The DHOP series is ideal for evaluating solar panels, battery-powered instruments, and battery management ICs.
Note: This product is not designed for battery charging and discharging cycles.
For battery charging and discharging applications, please refer to the Battery Cycle Tester product page.
核心参数
• 最大输出电压：±30 V
• 电流：±8 A
• 功率：240 W
• Frequency response (-3dB)：CV mode: DC to 100 kHz CC mode: DC to 10 kHz
• 输入电压：85 to 264 Vac, 50/60 Hz, Single-phase
• 输出控制：[External control signal] Vcon-in, Input voltage -10 to +10 V
[Front panel] DC bias: 10-turn potentiometer with -100% to +100% setting
功能特性
• 过压保护 (OVP)：The DHOP series is equipped with overvoltage protection, which safeguards the load by limiting voltage to approximately 110% of the rated output, even under abnormal conditions.
• 过流保护 (OCP)：The series also features overcurrent protection, protecting both the power supply and the load by limiting current to approximately 110% of the rated output.

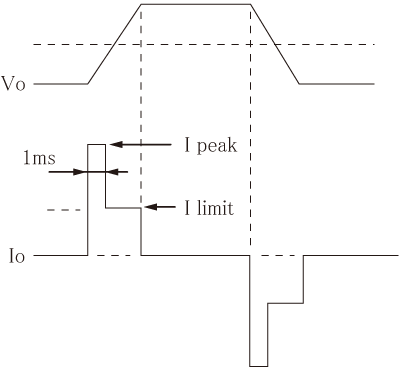

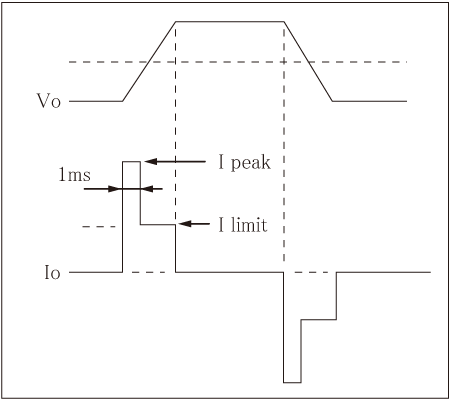

• 高速过流保护：DHOP series is provided with 2 types of overcurrent protection: high-speed overcurrent protection to limit the pulse current and standard overcurrent protection to limit the static current. The standard overcurrent protection limits the static current, responding at around 1 ms. Additional high-speed overcurrent protection can limit the pulse current of square waveforms or from capacitors to appro
• Output range：DHOP series is a bipolar power supply that can perform the four-quadrant operation. They can supply (source) and absorb (sink) current in the field of the drawing on the right.
• CV/CC setting selection：Inputting voltage via Vcon-in enables the control of output voltage V when CV control is selected and output current A when CC control is selected. In CV mode In CC mode Vcon Output voltage Output current -10 V -Rating -Rating 0 V 0 V 0 A +10 V +Rating +Rating
• Use of BIAS：When the "BIAS ON/OFF switch" is flipped to ON, bias can be changed with the "BIAS setting dial." The bias of the voltage can be set when CV control is selected, and that of the current can be when CC control is selected. In CV mode In CC mode Scale Output voltage Output current 000 (ccw) -Rating -Rating 500 0 V 0 A 1000 (cw) +Rating +Rating
资源下载
以上内容与指标均取自Matsusada Precision 官网产品页与官方数据手册，未标注口径的为厂家公布值。
松田精密（Matsusada Precision） · onetest 仪器资源库
松田精密|Matsusada Precision Inc.
DHOP30-8 放大器 详细指标
Four-Quadrant Fast Response Bipolar Power Amplifier 30V / 8A / 240W
详细指标
以下指标取自松田精密（Matsusada Precision）官网 DHOP 系列产品页的「Models / Specifications / Options / Dimensions」区块，其中「型号输出参数」为该型号在官方型号表中的原始列值；官方原文为英文，此处按原文保留。详细规格与测试条件以官方数据手册为准。
型号输出参数
• 最大输出电压：±30 V
• 电流：±8 A
• 功率：240 W
• Frequency response (-3dB)：CV mode: DC to 100 kHz CC mode: DC to 10 kHz
系列共用规格
• 输入电压：85 to 264 Vac, 50/60 Hz, Single-phase
• 输出控制：[External control signal] Vcon-in, Input voltage -10 to +10 V
[Front panel] DC bias: 10-turn potentiometer with -100% to +100% setting
选件 / 附件
• -LD：Interlock
• -LN：Automatic output recovery (previous: no power failure protection)
This option retains the output state when recovering from an input power interruption, such as an AC power switch ON/OFF or a power failure. Therefore, there is no need to reset the protection status by turning off the OUTPUT switch once.
Caution: If you turn on the power while the OUTPUT setting is ON, the output will be ON.
• -LS：External output ON/OFF
• 交流输入电缆：Standard
CABLE TYPE1
125 V/10 A
2.5 meters Fixed length
Sold separately
CABLE TYPE3
250 V/10 A
2.5 meters Fixed length
Sold separately
CABLE TYPE4
250 V/10 A
2.5 meters Fixed length
资源下载
以上规格取自松田精密（Matsusada Precision）官网 DHOP 系列产品页（https://www.matsusada.com/product/low-voltage-amplifiers/bipolar-amplifiers/dhop/）。
