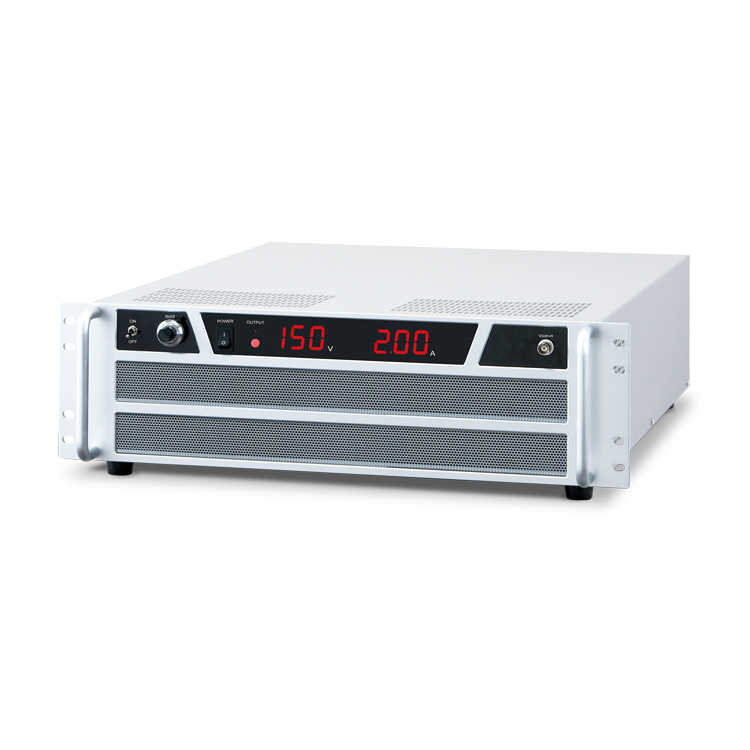

DOA150-2 是松田精密（Matsusada Precision）DOA 系列的一款放大器，最大输出电压 150V，最大输出电流 2A，最大输出功率 300W。 The DOA series is a four-quadrant bipolar amplifier featuring wide bandwidth and ultra-high-speed response from DC to 1 MHz.
DOA150-1 是松田精密（Matsusada Precision）DOA 系列的一款放大器，最大输出电压 150V，最大输出电流 1A，最大输出功率 150W。 The DOA series is a four-quadrant bipolar amplifier featuring wide bandwidth and ultra-high-speed response from DC to 1 MHz.
DJOPF60-1 是松田精密（Matsusada Precision）DJOPF 系列的一款放大器，最大输出电压 60V，最大输出电流 1A，最大输出功率 60W。 Four-quadrant bipolar power supplies which source and sink power DJOPF series is a four-quadrant bipolar power supply which sources and sinks electric power.
- «
- 1
- »
DJOPF30-2 30V/2A功率放大器 60W|松田精密 (在产)
参考价格 ：
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
松田精密|Matsusada Precision Inc.
DJOPF30-2 放大器
FOUR-QUADRANT HIGH SPEED 双极性直流电源 30V / 2A / 60W
产品简介
DJOPF30-2 是松田精密（Matsusada Precision）DJOPF 系列的一款放大器，最大输出电压 30V，最大输出电流 2A，最大输出功率 60W。
Four-quadrant bipolar power supplies which source and sink power
DJOPF series is a four-quadrant bipolar power supply which sources and sinks electric power. Thanks to the original design, phenomenal light weight and compact size power supply, which is 5.51 inches (140 mm) width, and weigh 3 kg has been
achieved, bipolar amplifier equipped with a built-in function generator enabling its compact size and fast response. They can be used in 2-mode of a constant voltage (CV) or a constant current (CC). They are ultra compact and high speed, driving output proportional to the input waveform such as a sine wave, triangular wave, saw wave, and square wave. DJOPF series is most appropriate for evaluation test such as solar panels, the instruments driven by battery and the IC which control battery.
Note : We do not design this bipolar power supply for charging and discharging batteries.
For battery charge and discharge application, please refer to the Battery Cycle Tester product page.
核心参数
• 最大输出电压：±30 V
• 电流：±2 A
• 功率：60 W
• Frequency bandwidth (-3 dB)：DC to 30 kHz
• 输入电压：85 to 264 Vac, 50/60 Hz, Single-phase
• 输出控制：[Local] Front panel controls
[External control signal] Vcon-in, Input voltage -10 to +10 V
[Digital remote] Command (Option)
功能特性
• Voltage limit protection (V limit)：The DJOPF is equipped with voltage limit protection, which safeguards the load by limiting the output to a user-defined value, even under abnormal conditions.
• Current limit protection (I limit)：The DJOPF is equipped with current limit protection, which protects load and power supply by limiting output to the value that was set optionally, even in the event of overload.
• 过压保护 (OVP)：The DJOPF is equipped with overvoltage protection, which protects the load by limiting voltage up to approx. 120% of the rated output voltage even at abnormal conditions.
• 过流保护 (OCP)：The DJOPF is also equipped with overcurrent protection, which protects power supplies and load by limiting current up to approx. 120% of the rated output current.
• 高速过流保护：DJOPF is provided with 2 types of overcurrent protections, high speed overcurrent protection to limit the pulse current, and standard overcurrent protection to limit the static current. The standard overcurrent protection limits the static current, responding at around 1ms. An additional fast response type limited current circuit can limit the pulse current of square waveforms or from capacitors t
• Operation diagram：The DJOPF series operates as a four-quadrant power supply, meaning it can both source and sink current across its voltage range. As shown in the diagram, it can supply power to a load (source) and absorb power from a load (sink). This capability makes it suitable for driving inductive and capacitive loads, as well as for battery charge/discharge simulation.
• Fundamental Waveform Generated Function：The DJOPF series is a bipolar power supply that can perform four-quadrant operation. It can supply (source) and absorb (sink) current in the field of the drawing on the right. Start phase (90 deg) On-phase control (+90 deg) On-phase control (–180 deg) Duty cycle (20%)
资源下载
以上内容与指标均取自Matsusada Precision 官网产品页与官方数据手册，未标注口径的为厂家公布值。
松田精密（Matsusada Precision） · onetest 仪器资源库
松田精密|Matsusada Precision Inc.
DJOPF30-2 放大器 详细指标
FOUR-QUADRANT HIGH SPEED 双极性直流电源 30V / 2A / 60W
详细指标
以下指标取自松田精密（Matsusada Precision）官网 DJOPF 系列产品页的「Models / Specifications / Options / Dimensions」区块，其中「型号输出参数」为该型号在官方型号表中的原始列值；官方原文为英文，此处按原文保留。详细规格与测试条件以官方数据手册为准。
型号输出参数
• 最大输出电压：±30 V
• 电流：±2 A
• 功率：60 W
• Frequency bandwidth (-3 dB)：DC to 30 kHz
系列共用规格
• 输入电压：85 to 264 Vac, 50/60 Hz, Single-phase
• 输出控制：[Local] Front panel controls
[External control signal] Vcon-in, Input voltage -10 to +10 V
[Digital remote] Command (Option)
选件 / 附件
• -LEt *：LAN interface port
Enable digital control via LAN.
Output ON/OFF, Voltage/Current setting (AC and DC), Switch of constant voltage/constant current, Frequency setting, Waveform setting (sine wave, square wave, and triangle wave), Phase setting (sine wave), Duty setting (square wave and triangle wave)
• -LGob *：Optical Interface port
With optical communication, isolation control is performed. As complete isolation is performed by means of optical fiber, this enables advanced prevention of erroneous operations involved with transient phenomena caused by surges, inductive lightning, external noise, etc.
-LGob: Optical interface port + optical cable 2 meters
-LGob(Fc5): Optical interface port + optical cable 5 meters
-LGob(Fc10): Optical interface port + optical cable 10 meters
-LGob(Fc20): Optical interface port + optical cable 20 meters
-LGob(Fc40): Optical interface port + optical cable 40 meters
The optional optical interface port (-LGob) is recommended when using this bipolar power supply under the following conditions:
Noisy environment including factories (Example: Motors or coils are used near power supplies and loads).
Operating the unit with high-voltage floating (greater than 250 V).
Installation distance of 2 meters or more between this AC Power Source and a controller such as a computer, laptop, or Programmable Logic Controller (PLC).
• -LNh：No handle
The handle for carrying will not be equipped.
• -LS：External Output ON/OFF
This option cannot be combined with -LGob, -LUs1, or -LEt (Digital interface ports).
• -LUs1 *：USB interface port
Enable digital control via USB.
Output ON/OFF, Voltage/Current setting (AC and DC), Switch of constant voltage/constant current, Frequency setting, Waveform setting (sine wave, square wave, and triangle wave), Phase setting (sine wave), Duty setting (square wave and triangle wave)
• AC INPUT CABLE：Standard
CABLE TYPE1
125 V/10 A
2.5 meters
Fixed length
Sold separately
CABLE TYPE3
250 V/10 A
2.5 meters
Fixed length
Sold separately
CABLE TYPE4
250 V/10 A
2.5 meters
Fixed length
• 接口适配器：To use the optical interface, you need to prepare an optical interface adapter separately. The following interface adapters are available according to your controller port.
CO-E32: LAN to optical interface adapter
USB-OPT: USB to optical interface adapter
CO-OPT2-9: RS-232C (9 pin) to optical interface adapter
CO-OPT2-25: RS-232C (25 pin) to optical interface adapter
CO-OPT4-25: RS-485 (25 pin) to optical interface adapter
CO-G32: GPIB to optical interface adapter (Scheduled for discontinuation in December 2028)
Example of communication with optical fiber
For details, refer to CO/USB series.
• 应用软件：PSS2en series: Remote control, Test workflow design, and Data logging
PSS2en is the dedicated software that can actuate various power supplies, electronic loads, and digital controllers for power supplies manufactured by Matsusada Precision Inc. with a simple setup.
It is perfect for the aging test, the burn-in test, and the withstand voltage test for electronic parts, as well as for the endurance test, intermittent/continuous operation test, or various simulation tests for automobile electric components.
Click here for the PSS2en series
资源下载
以上规格取自松田精密（Matsusada Precision）官网 DJOPF 系列产品页（https://www.matsusada.com/product/low-voltage-amplifiers/bipolar-power-supplies/djopf/）。
松田精密（Matsusada Precision） · onetest 仪器资源库
