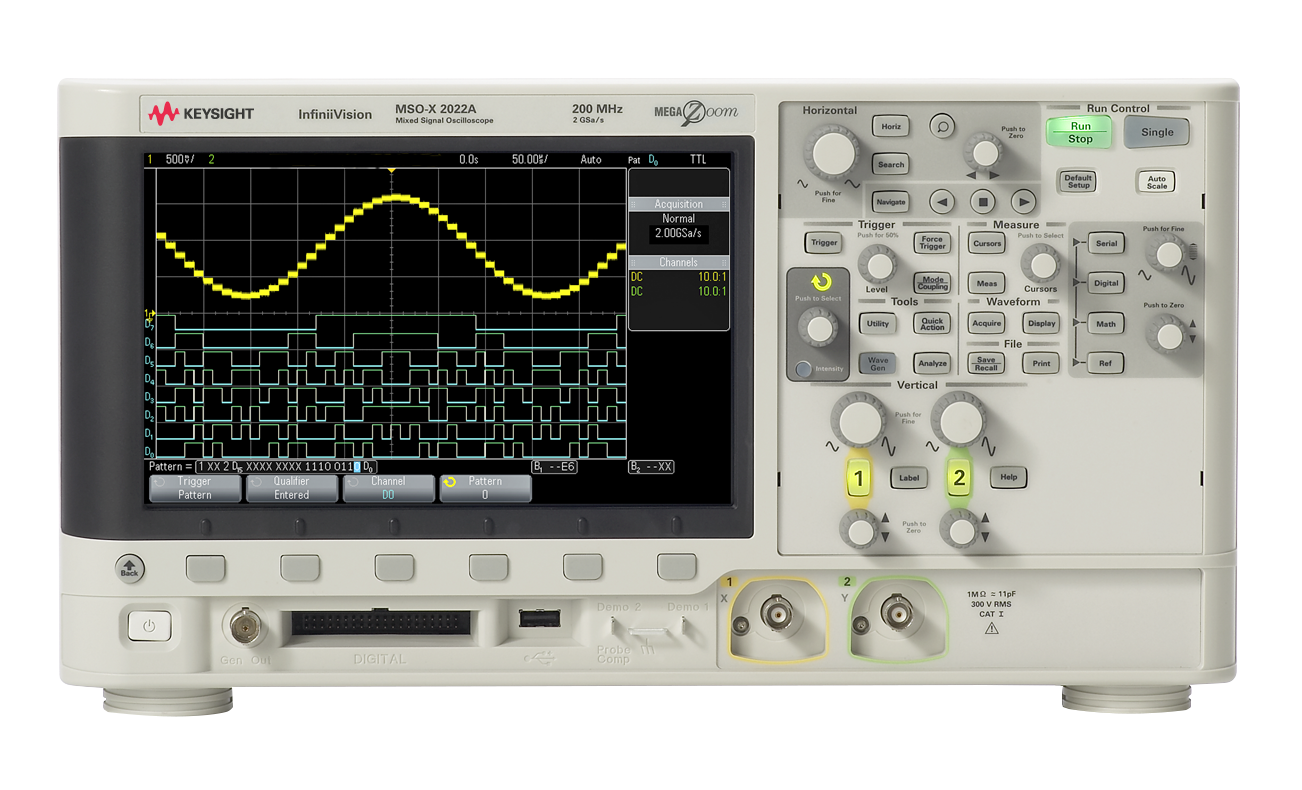

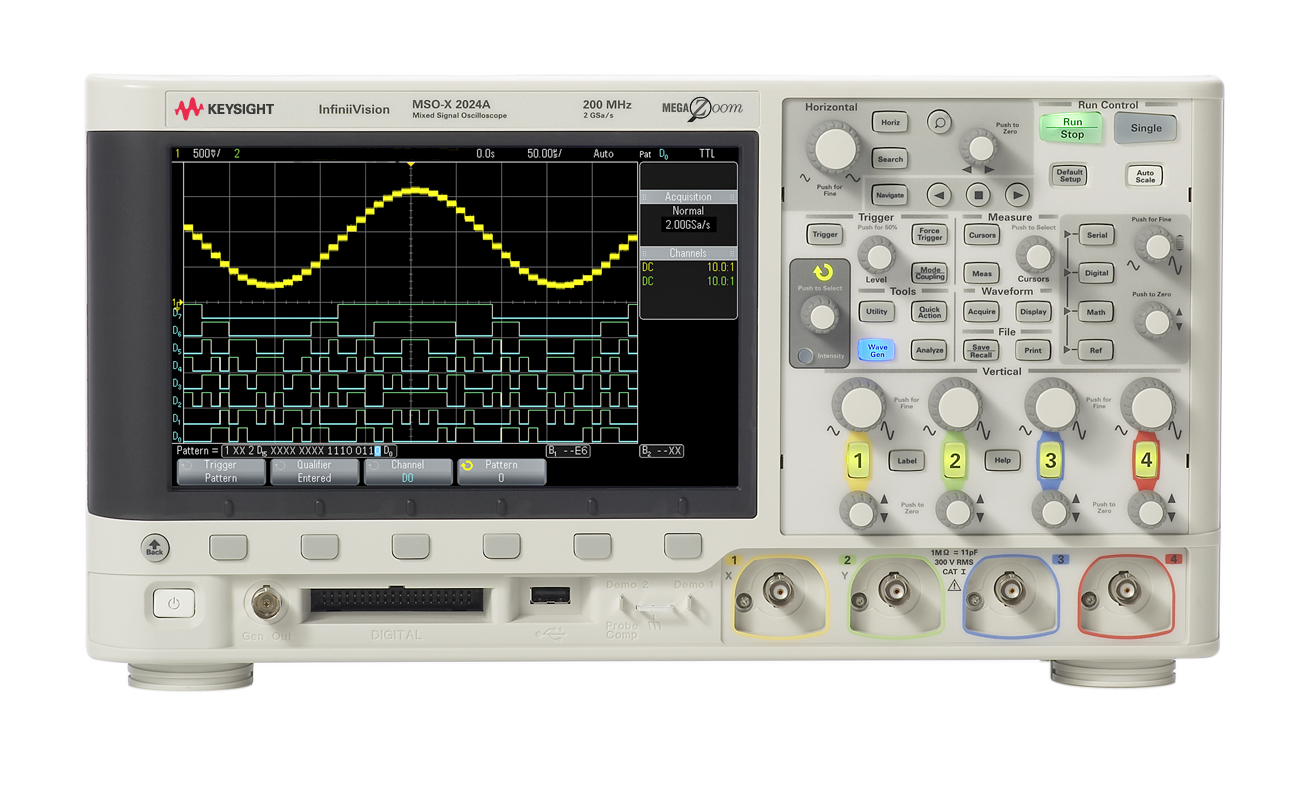

MSOX2004A 示波器 70MHz 详细指标
Benchtop Oscilloscopes
Specification overview 2002A 2004A 2012A 2014A 2022A
2024A
Bandwidth 1 (–3 dB) 70 MHz 100 MHz
200 MHz
Calculated rise time (10 to 90%) ≤ 5 ns ≤ 3.5 ns ≤
1.75 ns
Input channels DSOX 2 4 2 4 2
4
MSOX 2 + 8 4 + 8 2 + 8 4 + 8 2 + 8 4 +
8
Maximum sample rate 1 2 GSa/s half-channel interleaved
1 GSa/s per channel
Maximum memory depth
1M points per channel (standard)
Display size and type
8.5-inch WVGA with 64 levels of intensity grading
Waveform update rate
200,000 waveforms per second
Input sensitivity range 1 mV/div to 5 V/div
2
Input impedance 1 MΩ
± 2% (11 pF)
Vertical resolution 8 bits (measurement resolution is
12 bits with averaging)
Dynamic range
± 8 divisions from center screen
Maximum input voltage 135 Vrms
190 Vpk
Probing technology allows testing of higher voltages. For example, the
included N2841A or N2842A
10:1 probe supports testing up to 300 Vrms
Use this instrument only for measurements within its specified measurement
category (not rated for CAT II, III, IV). No transient overvoltage allowed
DC vertical accuracy ± [DC vertical gain accuracy + DC vertical offset accuracy +
0.25% full scale]2
DC vertical gain accuracy 1 ± 3% full scale (≥ 10 mV/div); ± 4% full scale (< 10 mV/div)
2
DC vertical offset accuracy ± 0.1 div ± 2mV
± 1% of offset setting
Channel-to-channel isolation ≥
40 dB from DC to maximum specified bandwidth of each model
Position/offset range 1 MΩ 1 mV to 200 mV/div: ± 2 V, > 200 mV to 5 V/div
± 50 V
Hardware bandwidth limits Approximately
20 MHz (selectable)
Horizontal system analog channels 2002A 2004A 2012A 2014A 2022A
2024A
Time base range 5 ns/div to 50 s/div
2 ns/div to 50 s/div
Time base accuracy 1 25 ppm
± 5 ppm per year (aging)
Horizontal system analog channels 2002A 2004A 2012A 2014A 2022A
2024A
Pre-trigger Greater of 1 screen width or 200 μs (400 μs in interleaving mode)
Channel-to-channel deskew range
± 100 ns
Δ Time accuracy (using cursors) ± (time base accuracy 1 reading) ± (0.0016 1 screen width)
± 100 ps
Peak detect Capture glitch as narrow as
500 ps at all timebase settings
Averaging Select from 2, 4, 8, 16
64... to 65,536
High resolution mode 12 bits of resolution when ≥
20 µs/div
Segmented Re-arm time=
19 µs (minimum time between trigger events)
Trigger modes • Normal (triggered): Requires trigger event for scope to trigger
• Auto: Triggers automatically in absence of trigger event
• Single: Triggers only once on a trigger event, press [Single] again for
scope to find another trigger event, or press [Run] to trigger continuously
• Force: 前面板面板 button that forces 触发
Trigger coupling Coupling selections: AC, DC, noise reject, LF reject and HF reject
Trigger source Each analog channel, each digital channel (MSO models or DSOX2MSO
upgrade, Ext, WaveGen, line)
Trigger sensitivity (internal) 1 < 10 mV/div: greater of 1 div or 5 mV; ≥ 10 mV/div
0.6 div
Trigger sensitivity (external) 1 200 mV (DC to 100 MHz)
350 mV (100 to 200 MHz)
Edge Trigger on a rising, falling, alternating or either edge of any source
Edge then edge (B trigger) Arm on a selected edge, wait a specified time, then trigger on a specified
count of another selected edge
Pulse width Trigger on a pulse on a selected channel, whose time duration is less than a
值, greater than 值, 或 inside 时间范围
条件:1. Denotes warranted specifications, all others are typical. Specifications are valid after a 30- minute warm -up
2. 1 mV/div and 2 mV/div is a magnification of 4 mV/div setting. For vertical accuracy calculations, use full scale
combination of analog, digital, or trigger channels is [entered | exited].
• Minimum duration setting
2 to 10 ns (depends on bandwidth)
• Maximum duration setting
10 s
period and from
± 10 °C firmware calibration temperature.
of 32 mV for 1 mV/div and 2 mV/div sensitivity setting.
Pattern Trigger when a specified pattern of high, low, and don’t care levels on any
Pattern must have stabilized for a minimum of 2 ns to qualify as a valid
Video Trigger on all lines or individual lines, odd/even or all fields from composite
video, or broadcast standards (NTSC, PAL, SECAM, PAM-M)
条件:on any combination of analog, digital, or trigger channels is [entered | exited].
trigger condition. Minimum duration setting: 6-10 ns (depending on
I²C (optional) Trigger on I²C (Inter-IC bus) serial protocol at a start/stop condition or user
acknowledge, address with no ack, restart, EEPROM read, and 10-bit write.
CAN (optional) Trigger on CAN (controller area network) version 2.0A and 2.0B signals.
Runt Trigger on a position runt pulse that fails to exceed a high-level threshold. Trigger on
a negative runt pulse that fails to exceed a low-level threshold. Trigger on
either polarity runt pulse based on two threshold settings. Runt triggering can
also be time-qualified (< or >) with a minimum time setting of 6~10 ns
(depending on bandwidth) and maximum time setting of 10 s.
Rise/fall time Trigger on rise-time or fall-time edge speed violations (< or >) based on user-
selectable threshold. Select from (< or >) and time settings range between
3-5 ns (depending on bandwidth) and 10 s
Nth edge burst Trigger on the Nth (1 to 65535) edge of a pulse burst. Specify idle time
(10 ns to 10 s) for framing.
Pattern Trigger when a specified pattern of high, low, and don’t care levels
Pattern must have stabilized for a minimum of 2 ns to qualify as a valid
bandwidth) and 10 s
Or: Trigger on any selected edge across multiple analog or digital channels
defined frame with address and/or data values. Also trigger on missing
SPI (optional) Trigger on SPI (Serial Peripheral Interface) data pattern during a specific
framing period. Supports positive and negative Chip Select framing as well
as clock Idle framing and user specified number of bits per frame.
Trigger on the start of frame (SOF) bit (standard). Remote frame ID (RTR),
data frame ID (~RTR), remote or data frame ID, data frame ID and data,
error frame, all errors, acknowledge error and overload frame.
LIN (optional) Trigger on LIN (Local Interconnect Network) sync break, sync frame ID, or
RS232/422/485/UART (optional) Trigger on Rx or Tx start bit, stop bit or data content
Types Amplitude, time, frequency (FFT), manual, tracking, binary, HEX
Measurements ΔT, 1/ΔT, ΔV/X
1/ΔX, ΔY, Phase and Ratio
Cursors
2 • Single cursor accuracy: ± [DC vertical gain accuracy + DC vertical offset
accuracy +
0.25% full scale]
• Dual cursor accuracy: ± [DC vertical gain accuracy + 0.5% full scale]
1
Voltage Snapshot all, maximum, minimum, peak-to-peak, top, base, amplitude,
overshoot, preshoot, average- N cycles, average-full screen, DC RMS- N
cycles, DC RMS- full screen, AC RMS- N cycles, AC RMS- full screen
Time Period, frequency, rise time, fall time, + width, – width, duty cycle, delay A→B
(rising edge), delay A→B (falling edge), phase A→B (rising edge,) and phase
Operators Add, subtract, multiply, divide, FFT, Ax + B, Square, Absolute, Common Log,
Natural Log, Exponential, Base
10 Exponential, LP Filter, HP Filter, Magnify
Measurement Trend, Chart Logic Bus (Timing or State)
FFT Windows: Hanning, flat top, rectangular; Blackman-Harris - up to 64 kpts resolution
Display
8.5-inch WVGA color TFT LCD
Resolution 800 (H) x
480 (V) pixel format (screen area)
Interpolation Sin(x)/x interpolation (using FIR filter; used when there is less than one sample
per column of the display)
Persistence Off, infinite, variable persistence (100 ms to 60 s)
Intensity gradation
64 intensity levels
XY – XY mode changes the display from voltage versus time scale to a
Roll – Displays the waveform moving across the screen from right to left
条件:1. Denotes warranted specifications, all others are typical. Specifications are valid after a 30- minute warm -up
2. 1 mV/div and 2 mV/div is a magnification of 4 mV/div setting. For vertical accuracy calculations, use full scale
MSO channels
8 channels (D0 to D7)
Maximum sample rate
1 GSa/s
Maximum record length
500 kpts per channel (digital channels only)
125 kpts per channel (analog and digital channels)
Threshold selections TTL (+1.4 V),CMOS (+2.5 V), ECL (-1.3 V), User-definable (
± 8.0 V in 10 mV stops)
Threshold accuracy 1 ± (100 mV +
3% of threshold settings)
Maximum input voltage
± 40 V peak CAT I
Maximum input dynamic range
± 10 V about threshold
Minimum voltage swing
500 mVpp
Input impedance 100 kΩ ± 2% at probe tip
~8 pF
Minimum detectable pulse width
5 ns
Channel-to-channel skew 2 ns (typical)
3 ns (maximum)
period and from
± 10 °C firmware calibration temperature.
of 32 mV for 1 mV/div and 2 mV/div sensitivity setting.
WaveGen – built-in function generator (Specifications are typical)
Waveforms Sine, square, pulse, triangle, ramp, noise, DC
Sine • Frequency range
0.1 Hz to 20 MHz
• Amplitude flatness
± 0.5 dB (relative to 1 kHz)
• Harmonic distortion
–40 dBc
• Spurious (non harmonics)
–40 dBc
• Total harmonic distortion
1%
• SNR (50 Ω load, 500 MHz BW): 40 dB (Vpp ≥ 0.1 V); 30 dB (Vpp <
0.1 V)
Square wave/pulse • Frequency range
0.1 Hz to 10 MHz
• Duty cycle resolution: Larger of 1% or 10 ns
• Pulse width
20 ns minimum
• Pulse width resolution
10 ns or 5 digits, whichever is larger
• Rise/fall time
18 ns (10 to 90%)
• Asymmetry (at 50% DC): ± 1%
± 5 ns
Ramp/triangle wave • Frequency range
0.1 Hz to 100 kHz
• Variable symmetry
0 to 100%
Noise Bandwidth
20 MHz typical
• 130 ppm (frequency <
10 kHz)
• 50 ppm (frequency >
10 kHz)
• [50+frequency/200] ppm (frequency <
25 kHz)
• 50 ppm (frequency ≥
25 kHz)
• Resolution
0.1 Hz or 4 digits, whichever is larger
• 20 mVpp to 5 Vpp into Hi-Z
• 10 mVpp to 2.5 Vpp into
50 Ω
• Resolution
100 µV or 3 digits, whichever is larger
• Accuracy: 2% (frequency =
1 kHz)
• Resolution
100 μV or 3 digits, whichever is larger
• Accuracy: ± 1.5% of offset setting ± 1.5% of amplitude
± 1 mV
Carrier waveforms: Sine, ramp
Modulation source: Internal (no external modulation capability)
Modulation frequency (1 Hz to 20 kHz)
Modulation: Sine, square, ramp (1 Hz to 20 kHz)
Modulation frequency (1 Hz to 20 kHz)
Minimum carrier frequency
10 kHz
Maximum deviation
100 kHz or (carrier frequency - 9 kHz), whichever
Modulation
50% duty cycle square wave
Minimum carrier frequency
10 kHz
Minimum hop frequency
2 x FSK rate to 10 MHz
Resolution ACV/DCV: 3 digits frequency
5.5 digits
Measuring rate
100 times/second
Autoranging Automatic adjustment of vertical amplification to maximize the dynamic range
Range meter Graphical display of most recent measurement, plus extrema over the
Frequency counter
1 Hz – BW of Scope
三、InfiniiVision X-Series Physical Specifications
Standard ports One USB
2.0 hi-speed device port on rear panel. Supports USBTMC protocol
Two USB
2.0 hi-speed host ports, front and rear panel
Power line consumption
100 W
Power voltage range 100 to 120 V, 50/60/400 Hz; 100 to 240 V, 50/60 Hz
± 10%
Electromagnetic compatibility 5 to 50 °C
4000m max
Maximum Relative Humidity (non-condensing)
95%RH up to 40 °C
From 40 °C to 50 °C, the maximum % Relative Humidity follows the line of
Meets EMC Directive (2004/108/EC), meets or exceeds IEC
61326-1:2005/EN
61326-1:2006 Group
1 Class A requirement
IEC 61000-4-2/EN
61000-4-2
IEC 61000-4-3/EN
61000-4-3
IEC 61000-4-4/EN
61000-4-4
IEC 61000-4-5/EN
61000-4-5
IEC 61000-4-6/EN
61000-4-6
IEC 61000-4-11/EN
61000-4-11
Canada: ICES-001:2004
Australia/New Zealand: AS/NZS
Safety ANSI/UL Std. No. 61010-1:2012; CAN/CSA-C22.2 No.
61010-1-12
ANSI/UL Std. No. 61010-2-030:2012; CAN/CSA-C22.2 No.
61010-2-030-12
Dimensions (W x H x D) 381 mm (15 in) x 204 mm (8 in) x
142 mm (5.6 in)
Weight Net: 3.9 kg (8.5 lbs.), shipping
4.1 kg (9.0 lbs.)
Reference waveform display
2 internal waveforms or USB thumb drive
Waveform storage Set up, .bmp, .png, .csv, ASCII, XY, reference waveforms, .alb, .bin, lister,
Max USB flash drive size Supports industry standard flash drives
Set ups without USB flash drive
10 internal setups
Included standard with oscilloscope
Calibration Soft copy of Certificate of Calibration (CoC) downloadable from
• N2841A 150 MHz
10:1 passive probe Standard one per channel for 70 and 100 MHz models
• N2842A 300 MHz
10:1 passive probe Standard one per channel for 200 MHz models
• N2755A 8-channel logic probe and accessory kit Standard on MSO models or with DSOX2MSO upgrade
Built-in help language support for English, Japanese, simplified Chinese, traditional Chinese, Korean, German,
French, Spanish, Russian, Portuguese and Italian, Certificate of Calibration, Documentation CD
Interface language support GUI menus: English, Japanese, simplified Chinese, traditional Chinese, Korean,
German, French, Spanish, Russian, Portuguese, Thai, Polish and Italian
Included standard with oscilloscope
For MET/CAL procedures, click on the Cal Labs solutions link below Cal Labs Solutions
DSOX2WAVEGEN Built-in
20 MHz function generator upgrade
DSOX2MSO Upgrade to 8 digital timing channels (logic probe included)
DSOX2BW12 Bandwidth upgrade from 70 to 100 MHz
2-ch models
DSOX2BW14 Bandwidth upgrade from 70 to 100 MHz
4-ch models
DSOX2BW22 Bandwidth upgrade from 100 to 200 MHz
2-ch models
DSOX2BW24 Bandwidth upgrade from 100 to 200 MHz
4-ch models
DSOX2PLUS1 Upgrade 2000X oscilloscopes that were purchased before March
2018 to
include maximum memory (1M pt), segmented memory, enhanced update
rate, advanced triggering, and advanced math function.
1. Enhancement:
• Waveform update rate increases from 50,000 w avef orms/sec to over
200,000 w avef orms/sec
• Memory increase from 100 kpts/ch to 1 Mpts/ch (replaces DSOX2MEMUP)
• Segmented memory
250 segments
• Add advanced trigger: rise/fall time trigger, setup/hold time trigger
• Add advanced math: Ax + B, Square, Square Root, Absolute Value, Common Logarithm, Natural
Logarithm, Differentiate, Integrate, Base
10 Exponential, Exponential, Low -pass Filter, High- pass Filter
Measurement Trend, Magnify, Chart Logic Bus Timing, Chart Logic Bus State
D2000GENB Embedded Software Package: I2C, SPI, and UART (RS232/422/485) serial trigger
& decode, plus Mask Limit testing
D2000AUTB Automotive Software Package: CAN and LIN serial trigger & decode, plus Mask
D2000BDLB Ultimate Bundle Software Package: I2C, SPI, UART, CAN, and LIN serial trigger &
decode, plus Mask Limit testing
条件:be sent with the upgrade. 2 Receive a paper or electronic .pdf Entitlement Certificate document for any of the orderable software packages. For bandwidth upgrades only, you receive a stick-on label document indicating upgraded bandwidth specification.
number and serial number unit. 4 Receive the licensed file and installation instructions via email. 5 Copy license file (.lic extension) from email to a USB drive and follow instructions in email to install the purchased bandwidth upgrade or measurement application on the oscilloscope.
of the oscilloscope. Model number and serial number of the oscilloscope do not change.
please contact your local Keysight office. The complete list is available at:
Process description
1 Place order for a license only bandwidth upgrade or software package to a Keysight sales partner. If multiple bandwidth upgrade steps are needed, order all the corresponding upgrade products required to get from current bandwidth to desired bandwidth. In the case where the new
bandwidth requires higher bandwidth passive probes, they are included with the upgrade. For the
DSOX2BW22 and DSOX2BW24, the N2842A 10:1
300 MHz passive probes (1 per channel) will
3 Use Entitlement Certificate or electronic .pdf document containing instructions and certificate
number needed to generate a license file for a particular
2000 X-Series oscilloscope model
6 For bandwidth upgrades only, attach bandwidth upgraded stick-on labels to front and rear panels
For more information on Keysight Technologies’ products, applications or services,
This information is subject to change without notice. © Keysight Technologies, 2019 - 202 2, Published in USA, May 30, 202 2, 5990
-6618EN
Multiple form factors from 50 MHz to >
110 GHz | Industry leading specs | Powerful applications
Download your next insight
条件:we deliver the tools your team needs to accelerate from data to information to actionable insight.
Keysight software is downloadable expertise. From first simulation through first customer shipment,
Start with a
30-day free trial.
以上指标摘自厂家官方数据手册,完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
