系统与解决方案

是德科技|KEYSIGHT
协议运营商验收工具套件
使用操作员核准的测试计划验证器件
产品简介
协议运营商验收工具集全面覆盖全球主要移动网络运营商的 5G 协议、功能和性能测试计划
核心参数
• 测试域:Protocol
• 工作流阶段:Acceptance, Regulatory
• 测试类型:信令、数据吞吐量、功耗、定位、音频质量、紧急呼叫、热性能、图标显示 更多... 更少
• 技术:5G NR, LTE, CAT-M, RedCap
• 典型用途:运营商验收(协议、功能与性能)
功能特性
• 产品亮点
S8706A 协议运营商验收工具集提供对全球主要 5G 移动运营商所要求的协议运营商验收测试计划的全面访问。
该工具集灵活应对 sub-6GHz(FR1)和毫米波(FR2)频率中的广泛测试场景,
适用于非独立组网(NSA)和独立组网(SA)模式:信令、性能和应用测试,包括 Wi-Fi、基于位置的服务(LBS)、
气压、热、RedCap 和双卡双待
该工具集提供:
对 5G 协议运营商验收测试计划的全面覆盖
对欧盟要求的法规 E112 测试的访问
模块化且可扩展的软件和硬件平台
灵活的许可架构,实现资产的最佳利用
全面的测试活动管理
先进的日志记录功能,可快速调试测试用例失败
支持设备自动化的无人值守测试活动执行
S8706A 协议运营商验收工具集是是德科技 5G 网络仿真解决方案产品组合的一部分。
它基于主要移动运营商的测试要求,为移动设备评估提供高效平台,
这些运营商将 S8706A 5G 协议运营商验收工具集解决方案所支持的测试作为其设备验收计划的一部分进行验证
S8706A 协议运营商验收工具集可轻松与是德科技 S8701A 协议研发工具集和 S8704A 协议一致性测试工具集解决方案扩展配合,
在整个协议工作流程中促进移动设备验证,从早期调制解调器开发到设备认证和运营商验收
资源下载
以上内容与指标均取自是德科技(KEYSIGHT)官网该产品详情页与官方产品资料,未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库





是德科技 | KEYSIGHT
S8706A 无线通信测试仪 详细指标
Validate devices with operator-approved test plans
一、MNO defines 测试规格
MNO validates Keysight tests
Keysight delivers validated test cases through test cases batches
Users run the validated test cases against their devices using S8706A
Protocol Carrier Acceptance Toolset Workspace
条件:Keysight´s suite of licensed protocol carrier acceptance test case batches.
To run a single script the user must first load the script and then click play on the toolbar.
Protocol Test Manager offers a user-friendly environment to create, manage and execute test campaigns.
rerun these campaigns to test the same device with different firmware or test a different device altogether.
Automation Gateway or a customized automation tool, allowing unattended test campaign execution.
Manager. Additionally, you can create test reports in Excel or HTML formats.
The Protocol Carrier Acceptance Toolset is used for viewing and running individual scripts from any of
Figure 2: Protocol Carrier Acceptance Toolset to view and run individual scripts
Protocol Test Manager and Automation for running large campaigns of tests
A test campaign is a range of tests selected by the user to run in a specific sequence. You can save and
Test campaigns may either be run manually, with the user performing actions (e.g. powering on/off the
device) when prompted by the test cases, or they may be automated using Keysight’s Terminal
You can easily review results with verdicts and launch test execution log files from Protocol Test
P a g e
Figure
3: Protocol Test Manager, enabling execution of test- campaigns
Real Time Trace to view signaling trace during execution
条件:to read, is saved in a log called the RTT log. Examples of information being displayed include:
The Real Time Trace (RTT) displays the signaling trace during a test execution. This trace, which is easy
• Active cells and the length of time these cells have been active
• Cell information, such as its NR ARFCN, channel allocation, power levels, synchronization, and
相对频率偏置
条件:• A trace of the Layer 3 messages exchanged in real time between the network and the device.
Messages are displayed in a simplified sequence chart and you can decode these messages to view
Layer
2 information
• Progress and error messages; Protocol Carrier Acceptance Toolset reports communication failures,
protocol errors, and information about the state of the system, and also prompts for user action, such
P a g e
Figure
4: Real Time Trace- displaying the signaling trace during a test execution
Log Viewer to facilitate troubleshooting
条件:The Log Viewer enables you to view all protocol layers (i.e. PHY, MAC, RLC, PDCP and RRC) in one log.
The Log Viewer has a user-friendly graphical user interface where several windows are displayed in one
view (see Figure 5). The filtering functionality allows you to view the protocol layers and test information of
interest. You can use any of the default filters or create customized ones. Bookmarks enable you to go
back to any record in the log thereby facilitating troubleshooting. The Bookmarks tab displays all
The following records can be logged in Log Viewer
• LTE and NR protocol messages for all protocol layers (PHY, MAC, RLC, PDCP and RRC)
• All information transmitted and received at the air interface, recorded at the MAC/PHY boundary
• Control information, such as the activation/deactivation of physical and transport channels
• 测试系统 Diagnostic Data
条件:thereby freeing the test system PC so that it can be used solely for running tests.
The Log Viewer allows you to analyze the results of tests on the test system PC or a separate PC,
The Log Viewer is a common logging tool also used by other Keysight Network Emulation solutions,
including Protocol Conformance Toolset and Protocol R&D Toolset.
P a g e
Figure
5: The Log Viewer is useful for debugging
Dashboard Viewer for efficient debugging
The Dashboard Viewer allows you to display predefined or customized graphs using a list of KPIs that
have been captured in Log Viewer. Graphs and data of different KPIs can be displayed in the same view
by creating a dashboard, see Figure
6. KPI data can be displayed numerically or graphically with a style
option, which allows you to select what type of graphs to create, such as a histogram, a time graph or a
scatter graph. You have the option of launching a Dashboard Viewer whilst a test is under execution or
after a test has been executed
Figure 6: Dashboard Viewer shows graphical KPI data in one view
SIM Programmer Switch
Keysight’s SIM Programmer Switch enables users to automate the programming of SIM cards when
running test cases with different SIM card requirements in the same campaign. It is supported for MNO
test plans that require a large number of different SIM profiles.
Flexible Licensing Options
Keysight offers a wide range of license types and terms to fit into your testing needs, allowing cost-
License 类型说明
Node locked License may be used on one specified PC/instrument
License may be used on one PC/instrument at a time but may be
manually transferred to another via the Keysight Software Manager
Floating Networked instruments/computers can access a license from a server
one at a time
• Floating single site License server is based within
1 mile radius from the
• Floating single region License server is based in the same region as the
instrument/computer eg. Americas, Europe and Asia
• Floating worldwide License server can be based anywhere in the world -export
Perpetual Perpetual licenses can be used indefinitely
Time based Temporary licenses can be used for a limited duration of 6, 12
24, or
36 months

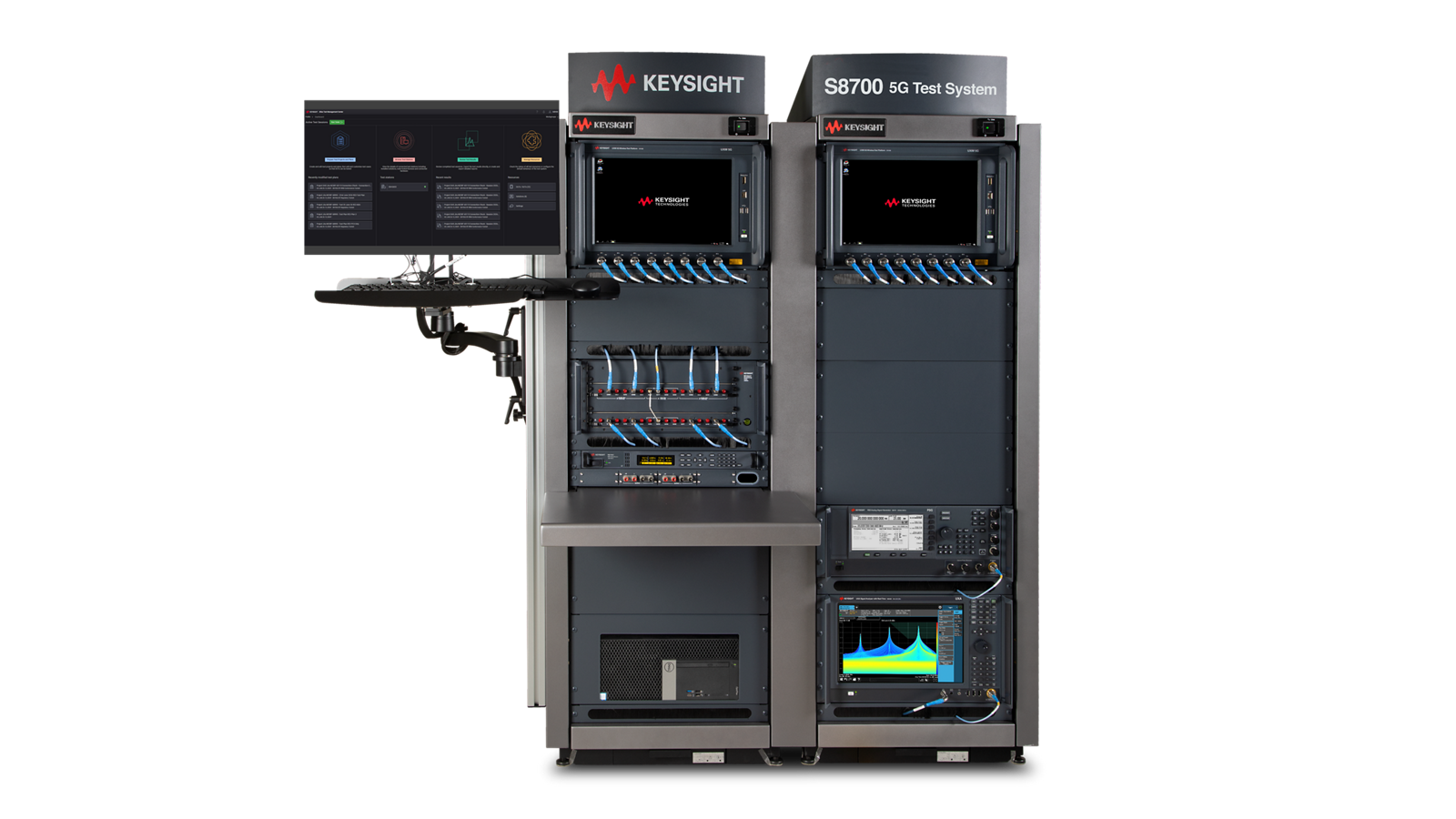

Hardware Platform
The S8706A Protocol Carrier Acceptance Toolset uses the Keysight E7515B UXM
5G Wireless Test
Platform to flexibly address a wide range of requirements and support a comprehensive set of 5G
protocol carrier acceptance test in FR1 and FR2 for both
5G non-standalone (NSA) and standalone (SA)
条件:Up to 2 UXMs may be required depending on the number of component carriers required by the operator.
The UXM
5G integrates seamlessly with a Keysight E7770A Common Interface Unit and Keysight
M1740A mmWave dual-band (28/39 GHz) t
以上指标摘自厂家官方数据手册,完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
