LitePoint
IQxel-80 / IQxel-160 无线连接测试系统 详细指标
860MHz至6000MHz · 80MHz 或 160MHz 中频带宽 · 2 端口 · 802.11ac 时代的参考机型
详细指标
指标取自 LitePoint 官方技术规格书与产品页；未列出的项目表示官方资料未给出，本站不作推测。
通用技术规格
• Input frequency range：RF1, RF2 ｜ 860 to 960 MHz 1770 to 2100 MHz 2200 to 2600 MHz 4900 to 6000 MHz
• 中频带宽：RF1, RF2 ｜ IQxel-80 ｜ 120 MHz
• Max input power：RF1, RF2 ｜ +30 dBm peak +25 dBm average
• Input power accuracy：RF1, RF2 ｜ Specification: ｜ ± 0.75 dB (+20 to -75 dBm)
• Quantization：16 bits
• Input return loss：RF1, RF2 ｜ > 12 dB (> 1 GHz)
• 杂散：RF1, RF2 ｜ < -55 dBc (50 kHz RBW) (CW)
• 频谱平坦度：RF1, RF2 ｜ Specification: ｜ ≤ ± 0.50 dB (+/- 40 MHz, > 1 GHz) ≤ ± 0.50 dB (+/- 8 MHz, < 1 GHz)
• Inherent spurious floor：RF1, RF2 ｜ ≤ -90 dBm
• 噪声系数：≤ 30 dB at minimum input attenuation
• Integrated phase noise：< 0.5 degrees (100 Hz to 1 MHz) 0.3 degrees (100 Hz to 1 MHz) typical
• Signal to noise ratio：≥ 55 dB 100 kHz RBW
• 采样数据率：10, 20, 40, 80, 160 MHz
• Waveform capture duration：at 10 MHz sampling data rate ｜ 3200 ms
• Absolute minimum value：Wideband RF ｜ -30 dBm
• Absolute maximum value：Limited by the maximum input power
• Trigger relative threshold：30 dB
• 电平精度：< +/- 2 dB
• Input power range：BBA_I+, BBA_I- BBA_Q+, BBA_Q- ｜ 2 V peak-to-peak
• Common mode voltage：BBA_I+, BBA_I- BBA_Q+, BBA_Q- ｜ 0 V (DC coupled)
• 阻抗：BBA_I+, BBA_I- BBA_Q+, BBA_Q- ｜ 50 Ω (100 Ω differential)
• Output frequency range：RF1, RF2 ｜ 860 to 960 MHz 1770 to 2100 MHz 2200 to 2600 MHz 4900 to 6000 MHz
• Output power accuracy：Specification: ｜ ± 0.75 dB (0 to -95 dBm, with ALC1)
• Output return loss：RF1, RF2 ｜ > 12 dB (> 1 GHz)
• 杂散（in channel）：RF1, RF2 ｜ Specification: ｜ ≤ -50 dBc or ≤ -95 dBm (80 MHz)
• 杂散（out of channel）：RF1, RF2 ｜ Out-of-band (>± 40 MHz from carrier): ｜ ≤ -45 dBc
• Integrated phase noise：< 0.5 degrees (100 Hz – 1 MHz) 0.3 degrees (100 Hz – 1 MHz) typical
• Signal to noise ratio：Specification: ｜ ≥ 60 dB 100 kHz RBW, minimum attenuation, power level = -45 dBm
• Carrier leakage：≤ -45 dBc (CW output) ≤ -90 dBm (between packets, when enhanced gap rejection enabled)
• Gap power：≤ -90 dBm/100kHz
• Waveform playback duration (non-repeat)：at 10 MHz sampling data rate ｜ 3200 ms
• 输出功率范围：BBG_I+, BBG_I- BBG_Q+, BBG_Q- ｜ 2 V peak-to-peak
• Common mode voltage：BBG_I+, BBG_I- BBG_Q+, BBG_Q- ｜ 0 V (DC coupled)
• 阻抗：BBG_I+, BBG_I- BBG_Q+, BBG_Q- ｜ 50 Ω (100 Ω differential)
• 频率：10 MHz
• Initial accuracy (25oC, after 60 minute warm-up)：< +/- 0.05 ppm
• Maximum aging：< +/- 0.1 ppm per year
• Temperature stability：< +/-0.05 ppm over 0oC to 50oC range, referenced to 25oC
• 预热时间（to within +/-0.1 ppm at 25oC）：< 30 minutes
Wireless LAN (802.11a/b/g/n/p/ac) 测量规格
• EVM：EVM averaged over payload based on standard requirements ｜ (Averaged over 20 packets, 16 data OFDM symbols long) Full packet channel estimation Residual VSA EVM: ≤ -45 dB (+20 to -20 dBm) ≤ -43 dB (-20 to -25 dBm) ≤ -38 dB (-25 to -30 dBm) Residual VSG EVM: ≤ -45 dB (-5 to -45 dBm) Preamble only channel estimation Residual VSA EVM: ≤ -42 dB (+20 to -20 dBm) ≤ -40 dB (-20 to -25 dBm) ≤ -35 dB (-25 to -30 dBm) Residual VSG EVM: ≤ -42 dB (-5 to -45 dBm) Note: 80 MHz 802.11ac waveform, measured system loopback
• Peak power：Peak power over all symbols (dBm) ｜ VSA power accuracy: ± 0.75 dB (+20 to -35 dBm)
• RMS power：All: average power of complete data capture (dBm)
• Max avg power：Peak value of the amplitude as a moving average over 40 samples (dBm)
• I/Q amplitude error：I/Q amplitude imbalance (%) and approximate contribution to EVM (dB) ｜ Residual VSA I/Q imbalance: ≤ 1% (+20 to -35 dBm) Residual VSG I/Q imbalance: ≤ 1% (-5 to -70 dBm)
• I/Q phase error：I/Q phase imbalance (degrees) and approximate contribution to EVM (dB) ｜ Residual VSA I/Q imbalance: ≤ 0.5 degree (+20 to -35 dBm) Residual VSG I/Q imbalance: ≤ 0.5 degree (-5 to -70 dBm)
• 频率误差：Carrier frequency error (kHz) ｜ (For 802.11n packet at 16 symbols, EVM better than -25 dB) VSA measurement error: ≤ ± 0.2 ppm calibrated
• RMS phase noise：Integrated phase noise (degrees) ｜ VSA integrated phase noise: < 0.5 degrees (100 Hz to 1 MHz) (2200 to 2600 MHz) < 0.5 degrees (100 Hz to 1 MHz) (4900 – 6000 MHz)
• PSD：Power spectral density (dBm/Hz) versus frequency offset center frequency ± 40 MHz
• Spectral mask：Transmit spectrum mask ｜ IQxel-80 ｜ ± 120 MHz
• 频谱平坦度：Reflects variation of signal energy as a function of OFDM subcarrier number 802.11a/g OFDM signals only ｜ VSA flatness over ≤ 80 MHz Ch BW: ± 0.5 dB
• Sidelobe analysis (spectral mask, LO leakage)：Center peak and peaks of 1st and 2nd upper/lower sidelobes (dB) 802.11b/g DSSS signals only
• CCDF（complementary cumulative distribution function）：Probability of peak signal power being greater than a given power level versus peak-to-average power ratio (dB)
• Power on / power down ramp：On: relative power level (% of average) versus time (802.11b/g CCK signals only) Power-on time from 10% to 90% Power-on time from 90% power level to start of packet (Not provided for 802.11a/g OFDM signals) Off: relative power level (% of average) versus time (802.11b/g CCK signals only) Power-on time from 10% to 90% Power-on time from 90% power level to start of packet (Not provided for 802.11a/g OFDM signals)
• Eye diagram：I and Q channels versus time (802.11b/g DSSS signals only)
• PSDU data：Recovered binary data sequence, including the MAC header and Frame Check Sequence, if present
• Raw capture data：I and Q signals versus time
• General waveform analysis：DC offset, RMS level, minimum/maximum amplitude, peak-to- peak amplitude, RMS I- and Q-channel levels
• CW frequency analysis：Frequency of CW tone
Bluetooth ® (1.0, 2.0, 2.1, 3.0) 测量规格
• TX output power：Transmit DUT output power (dBm) ｜ VSA power accuracy: ± 0.75 dB (+20 to -35 dBm) ± 0.50 dB (+20 to -35 dBm) typical
• TX output spectrum：Transmit DUT power spectral density
• 20 dB bandwidth：Bandwidth between the +/- 20 dB down points of the modulation waveform ｜ VSA frequency accuracy: ≤ ± 0.2 ppm calibrated
• In-band emissions (Adjacent channel)：Spurious emission measured at +/- 5 MHz of DUT TX frequency only ｜ VSA spurious: < -50 dBc (50 kHz RBW) (CW)
• 调制特性：Average and peak frequency deviation (Hz) ｜ (For EVM better than -25 dB) VSA measurement error: ≤ ± 0.2 ppm calibrated
• Carrier frequency tolerance：Carrier frequency offset (Hz)
• Carrier frequency drift：Carrier frequency change over the Bluetooth burst (Hz)
• Relative transmit power (EDR)：Average power of complete data capture (dBm) ｜ VSA power accuracy: ± 0.75 dB (+20 to -35 dBm)
• Carrier frequency stability (EDR)：Frequency drift over the Bluetooth EDR burst duration (Hz)
• Receive sensitivity1：Receive sensitivity test using LitePoint or user- generated waveforms. Includes Dirty Packets. ｜ VSG power accuracy: ± 0.75 dB (+ 5 to -95 dBm)
• 最大输入信号电平：Assuming single-ended BER measurement
• RMS EVM (EDR)：RMS EVM for Bluetooth EDR ｜ Residual VSA EVM: ≤ -35 dB (+20 to -25 dBm) Residual VSG EVM: ≤ -35 dB (-5 to -70 dBm)
• Peak EVM (EDR)：Peak EVM for Bluetooth EDR
Bluetooth (4.0, 4.1, 4.2) 测量规格
• Output power at NOC1：VSA power accuracy: ± 0.75 dB (+20 to -35 dBm)
• In-band emissions at NOC1：Spurious emission measured at +/- 5 MHz of DUT TX frequency only ｜ VSA spurious: < -50 dBc (50 kHz RBW) (CW)
• 调制特性：Average and peak frequency deviation (Hz) ｜ VSA frequency accuracy: ≤ ± 0.2 ppm calibrated
• Carrier frequency offset and drift at NOC1：Carrier frequency offset (Hz) and change over the Bluetooth burst (Hz)
• Receiver sensitivity at NOC1,2：Receive sensitivity test using LitePoint or user-generated waveforms ｜ VSA power accuracy: ± 0.75 dB (+20 to -35 dBm)
• C/I and receiver selectivity performance3：VSA spurious: < -50 dBc (50 kHz RBW) (CW)
• 最大输入信号电平：Assuming single-ended BER measurement ｜ VSG maximum output power: +9 to -95 dBm CW 0 to -95 dBm modulated
• PER report integrity：Verifies the DUT PER report mechanism
device stable and better range coverage and thus competitive advantage
• In-band emissions：Spurious emission measured at ± 5 MHz of DUT TX frequency only. Tested at 1 Mbps, 2 Mbps ｜ VSA spurious: < -50 dBc (50 kHz RBW) (CW)
• 调制特性：Average and peak frequency deviation (Hz). Tested at 1 Mbps, 2 Mbps, 125 kbps ｜ VSA frequency accuracy: ≤ ± 0.2 ppm calibrated
• Carrier Frequency offset and drift：Carrier frequency offset (Hz) and change over the Bluetooth burst (Hz). Tested at 1 Mbps, 2 Mbps, 125 kbps
• Stable Modulation Characteristics：Tested at 1 Mbps, 2 Mbps ｜ VSA frequency accuracy: ≤ ± 0.2 ppm calibrated
• Receiver Sensitivity：Receive sensitivity test using LitePoint or user-generated waveforms. Tested at 1 Mbps, 2 Mbps, 125 kbps ｜ VSG power accuracy: ± 0.75 dB (0 to -95 dBm)
• Receiver Sensitivity – Stable Modulation Index：Tested at 1 Mbps, 2 Mbps, 500 kbps, 125 kbps
• 最大输入信号电平：Assuming single-ended BER measurement. Tested at 1 Mbps, 2 Mbps ｜ VSG maximum output power: 0 to -95 dBm
• Maximum Input signal level – Stable Modulation Index：Tested at 1 Mbps, 2 Mbps
• C/I and Receiver Selectivity Performance：Tested at 1 Mbps, 2 Mbps, 500 kbps, 125 kbps ｜ VSA spurious: < -50 dBc (50 kHz RBW) (CW)
• Blocking Performance：Tested at 1 Mbps, 2 Mbps
• Intermodulation Performance：Tested at 1 Mbps, 2 Mbps
• PER Report Integrity：Verifies the DUT PER report mechanism. Tested at 1 Mbps, 2 Mbps,500 kbps, 125 kbps
ZigBee (802.15.4)
• 输出功率：Transmit DUT output power (dBm) ｜ VSA power accuracy: ± 0.75 dB (+20 to -35 dBm) ± 0.50 dB (+20 to -35 dBm) typical
• Power spectral density：Transmit DUT power spectral density
• Center Frequency Tolerance：Tx center frequency tolerance ｜ VSA frequency accuracy: ≤ ± 0.2 ppm calibrated
• EVM：Offset: compensate the I and Q offset in OQPSK Normal: no compensation applied
• Other modulation quality measurements：LO leakage, clock error, phase error, symbol clock error
• CCDF（complementary cumulative distribution function）：Probability of peak signal power being greater than a given power level versus peak-to-average power ratio (dB)
Z-Wave (ITU-T G.9959)
• 输出功率：TX output power (dBm) ｜ VSA power accuracy: +/- 0.75 dB (+20 to -35 dBm) +/- 0.50 dB (+20 to -35 dBm) typical
• Power Spectral Density：TX power spectral density
• Carrier Frequency Offset：TX center frequency error ｜ VSA frequency accuracy: <= +/- 0.2 ppm calibrated
• Frequency Deviation：RMS, Min, Max Frequency Deviation
• Symbol Clock Error：Symbol Clock Error and Jitter
• RX Power Level：RF Generator Output Level Range ｜ VSG output power: +9 to -95 dBm CW 0 to -95 dBM modulated
WiSUN MR-FSK (802.15.4g)
• 输出功率：TX output power (dBm) ｜ VSA power accuracy: +/- 0.75 dB (+20 to -35 dBm) +/- 0.50 dB (+20 to -35 dBm) typical
• Power Spectral Density：TX power spectral density
• Carrier Frequency Offset：TX center frequency error ｜ VSA frequency accuracy: <= +/- 0.2 ppm calibrated
• Frequency Deviation：RMS, Min, Max Frequency Deviation
• Symbol Clock Error：Symbol Clock Error and Jitter
• RX Power Level：RF Generator Output Level Range ｜ VSG output power: +9 to -95 dBm CW 0 to -95 dBM modulated
DECT (ETSI EN 300 176-1)
• 功率：Normal Transmit Power ｜ VSA power accuracy: ± 0.75 dB (+20 to -35 dBm) ± 0.50 dB (+20 to -35 dBm) typical
• Power vs. time：Power time template
• Frequency offset：Frequency offset ｜ VSA frequency accuracy: ≤ ± 0.2 ppm calibrated
• Frequency drift：Frequency drift during packet transmission
• Frequency deviation：S field, B field, whole packet
MIMO 系统性能
• VSA capture trigger accuracy：≤ ± 3.5 ns
• VSA start trigger accuracy：≤ ± 3.5 ns

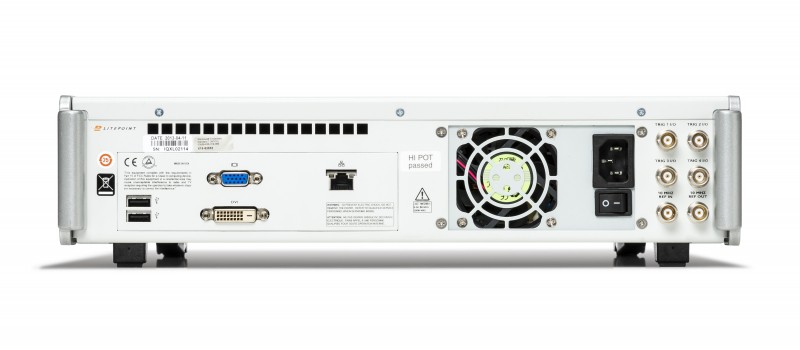

端口说明
• Power switch：Power on/off ｜ Pushbutton switch
• RF port 1：WiFi, Bluetooth input/output ｜ N female
• RF port 2：WiFi, Bluetooth input/output ｜ N female
• RF port 3 (IQxel-280 only)：WiFi, Bluetooth input/output ｜ N female
• RF port 4 (IQxel-280 only)：WiFi, Bluetooth input/output ｜ N female
