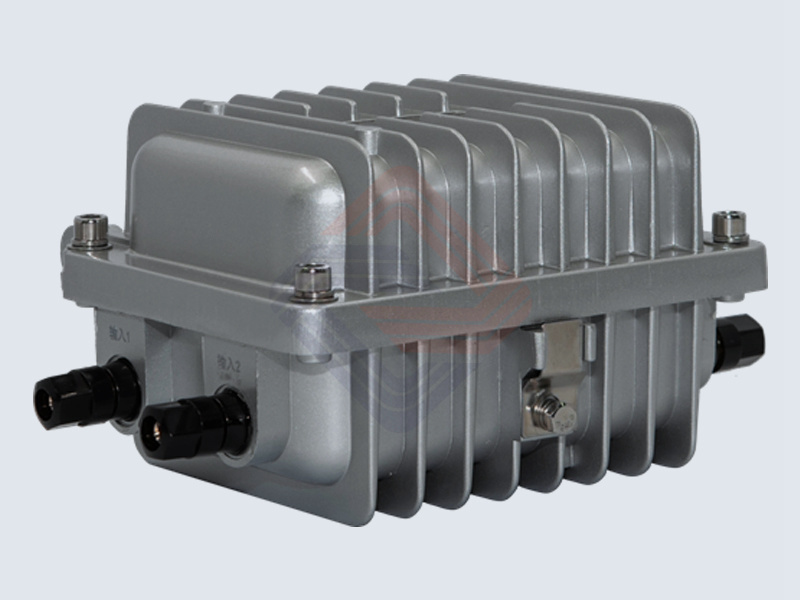

    阻抗匹配器主要用于天线匹配端，完成天线端输出的阻抗变换，实现天线与后端设备或传输线的阻抗匹配；具有驻波比低、插损小、匹配效果好的性能特点；常用阻抗匹配器有200:50、350:50、600:50等多种规格。
    OT7052 智能探头控制器（跨系列通用件）。
    OT7001 智能探头控制器（跨系列通用件）。
    1 2 3 4 5 6 7

    同厂商产品

    The CO-MS series is a digital controller designed for the master/slave operation of Matsusada Precision power supplies equipped with the -LGob optical interface option. This unit enables the parallel or series control of up to 32 。

    CO/USB 数字控制适配器|松田精密 (在产)

    The CO/USB series is a line of digital interface adapters controlled by a computer, laptop, or programmable logic controller (PLC) for Matsusada Precision's DC power supplies, high voltage power supplies, AC power supplies, bipola。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录2330个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 其他测试附件

    CO/USB 数字控制适配器

    RGJ series · RGJ series · 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase
    RGJ series
    CO-RG
    RGJ series
    CO-RG-LH
    100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase
    Input voltage
    1.8 meters (flying lead)
    AC input cable
    Asynchronous 9600 bps (fixed)
    Speed
    8 bits
    Data length
    产品定位

    The CO/USB series is a line of digital interface adapters controlled by a computer, laptop,

    or programmable logic controller (PLC) for Matsusada Precision's DC power supplies,

    high voltage power supplies, AC power supplies, bipolar power supplies,

    and electronic loads. These products are ideal for enabling multifunctional and high-precision automatic inspection systems,

    24/7 production lines, and various system equipment using power supply devices.

    The interface adapters enable automation and labor-saving in manufacturing processes,

    accelerate research and development,

    and also contribute to improving safety and reliability. In addition to high-resolution 16-bit (1/65535) control,

    it is equipped with various functions such as readback and status,

    making it suitable for various applications such as R&D that require high accuracy,

    quality testing that requires constant monitoring of power supply status and manufacturing processes.

    核心参数
    OPTICAL ISOLATION ADAPTER
    · CO-E32
    – Interface：LAN
    – Supported models：Supported model list
    · USB-OPT
    – Interface：USB
    – Supported models：Supported model list
    – Safety standards：-
    · CO-OPT2-9
    – Interface：RS-232C
    – Supported models：Supported model list
    – Safety standards：-
    · CO-OPT2-25
    – Interface：RS-232C
    – Supported models：Supported model list
    – Safety standards：-
    · CO-OPT4-25
    – Interface：RS-485
    – Supported models：Supported model list
    – Safety standards：-
    · CO-G32
    – Interface：GPIB
    – Supported models：Supported model list
    DIGITAL COMMUNICATION ADAPTER
    · CO-E32m
    – Interface：LAN
    – Supported models：Supported model list
    · USB-MET New
    – Interface：USB
    – Supported models：Supported model list
    功能与特点
    · Fine setting of output voltage and output current is available by high-resolution 16-bit.
    · Each voltage value and each current value can be set individually.
    · LAN, USB, RS-232C, RS-485 and GPIB communication are available.
    典型应用
    · 测试连接
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 CO-USB-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 其他测试附件

    CO/USB 数字控制适配器 · 详细指标

    RGJ series · RGJ series · 100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase
    产品简介

    The CO/USB series is a line of digital interface adapters controlled by a computer, laptop,

    or programmable logic controller (PLC) for Matsusada Precision's DC power supplies,

    完整技术指标
    OPTICAL ISOLATION ADAPTER
    · CO-E32
    – Interface：LAN
    – Supported models：Supported model list
    · USB-OPT
    – Interface：USB
    – Supported models：Supported model list
    – Safety standards：-
    · CO-OPT2-9
    – Interface：RS-232C
    – Supported models：Supported model list
    – Safety standards：-
    · CO-OPT2-25
    – Interface：RS-232C
    – Supported models：Supported model list
    – Safety standards：-
    · CO-OPT4-25
    – Interface：RS-485
    – Supported models：Supported model list
    – Safety standards：-
    · CO-G32
    – Interface：GPIB
    – Supported models：Supported model list
    DIGITAL COMMUNICATION ADAPTER
    · CO-E32m
    – Interface：LAN
    – Supported models：Supported model list
    · USB-MET New
    – Interface：USB
    – Supported models：Supported model list
    · CO-U32m
    – Interface：USB
    – Supported models：Supported model list
    · CO-MET2-9
    – Interface：RS-232C
    – Supported models：Supported model list
    – Safety standards：-
    · CO-MET2-25
    – Interface：RS-232C
    – Supported models：Supported model list
    – Safety standards：-
    · CO-MET4-25
    – Interface：RS-485
    – Supported models：Supported model list
    – Safety standards：-
    · CO-G32m
    – Interface：GPIB
    – Supported models：Supported model list

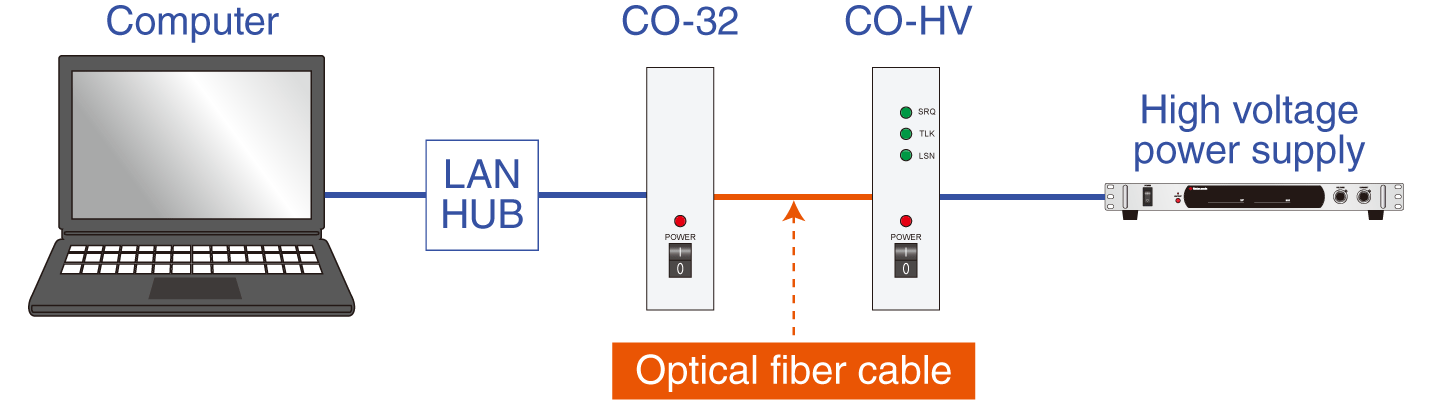

    DIGITAL CONVERTER FOR ANALOG CONTROL POWER SUPPLIES
    · CO-HV：Supported models：Supported model list
    Optional program SWEEP CONTROL
    · Sweep control program for CO/USB series
    – Supported models：Supported model list
    – Safety standards：-
    Discontinued models
    · ：Models ｜Supported models
    · CO-RG：RGJ series
    · CO-RG-LH：RGJ series
    LAN-adapter for optical communication CO-E32
    ·
    – Can be used to connect directly ｜Models with optical interface option, -LGob
    · Can be used via CO-HV
    – AU , AUH , AK , AKP , XPg , XKg , AE , ES , W , WA , K12-R , XR series
    ·
    – Interface specifications ｜ [LAN] RJ-45 port x1 IEEE802.3 version 2.0 compliant Network interface: 10BASE-T/100BASE-TX Protocol: TCP/IP, Telnet, DHCP, BOOTP, Auto IP, HTTP
    · Input voltage：100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase
    · Withstand voltage
    – 1500 Vac/min, between the primary and secondary windings
    · AC input cable：1.8 meters (flying lead)
    USB adapter for optical communication USB-OPT
    ·
    – Can be used to connect directly ｜Models with optical interface option, -LGob
    · Can be used via CO-HV
    – AU , AUH , AK , AKP , XPg , XKg , AE , ES , W , WA , K12-R , XR series
    ·
    – Interface specifications ｜ [USB] Type-B port x1 USB1.1 compliant * Power from USB port
    RS-232C adapter for optical communication CO-OPT2-9/CO-OPT2-25
    ·
    – Can be used to connect directly ｜Models with optical interface option, -LGob
    · Can be used via CO-HV
    – AU , AUH , AK , AKP , XPg , XKg , AE , ES , W , WA , K12-R , XR series
    · ：Interface specifications ｜ [RS-232C]
    · Speed：Asynchronous 9600 bps (fixed)
    · Data length：8 bits
    · Flow control：None
    · Stop bit：1 bit
    · Parity：None
    · D-sub connector
    – 9 pins (female): Data input: PIN3, Data output: PIN2, GND: PIN5
    ·
    – 25 pins (male): Data input: PIN2, Data output: PIN3, GND: PIN7
    RS-485 adapter for optical communication CO-OPT4-25
    ·
    – Can be used to connect directly ｜Models with optical interface option, -LGob
    · Can be used via CO-HV
    – AU , AUH , AK , AKP , XPg , XKg , AE , ES , W , WA , K12-R , XR series
    · ：Interface specifications ｜ [RS-485]
    · Speed：Asynchronous 9600 bps (fixed)
    · Data length：8 bits
    · Parity：None
    · Stop bit：1 bit
    · Flow control：None
    · D-sub connector
    – 25 pins (male) Data input +: PIN16 Data input -: PIN19 Data output +: PIN13 Data output -: PIN14 GND: PIN7
    GPIB adapter for optical communication CO-G32 (Scheduled for discontinuation in December 2028)
    ·
    – Can be used to connect directly ｜Models with optical interface option, -LGob
    · Can be used via CO-HV
    – AU , AUH , AK , AKP , XPg , XKg , AE , ES , W , WA , K12-R , XR series
    · ：Interface specifications ｜ [GPIB]
    · Electrical specification：IEEE488-1978 compliant
    · Mechanical specification：IEEE488-1978 compliant
    · Interface function：SH1, AH1, L4, T6, SR1, RL0, PP0, DC1, DT0, C0
    · Address setting
    – Desired address can be assigned from 0 to 30 with address switch.
    · Delimiter：Combination of EOI, CR and LF
    · Service request function
    – Indication of output status and shut off status of controlled power supply
    · Input voltage：100 Vac to 240 Vac, 50 Hz/60 Hz, single-phase
    · Withstand voltage
    – 1500 Vac/min, between the primary and secondary windings
    · AC input cable：1.8 meters (flying lead)

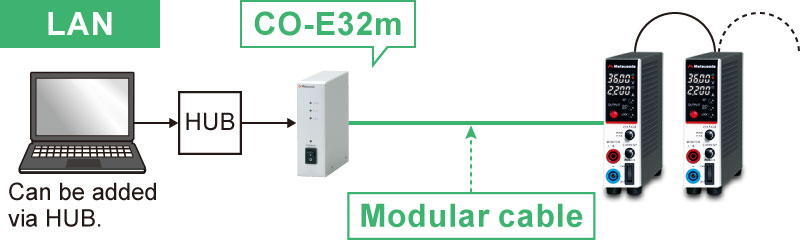

    LAN adapter for digital communication CO-E32m
    ·
    – This communication adapter supports the following products with Matsusada Precision's original digital communication port ｜R4K-36 , R4K-80 , RK , RKT , TB , REK/REKJ , PVCE , EGD , EGS , EZD , ( EHD/EHDD :Discontinued) series
    · The -LGmb option is available for the following products when used with this adapter.
    – R4G , R4GT , RK-80 , P4KF-80 , CD , CDPU , DRS series
    ·
    – Interface specifications ｜ [LAN] RJ-45 port x1 IE
