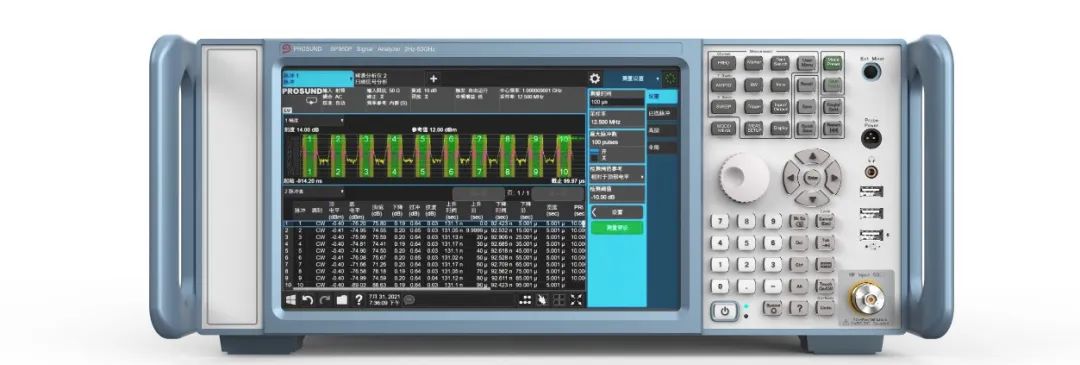

SP900S(2Hz~50GHz)频率范围:2Hz~50GHz分析带宽:1/1.5/2/4GHz三阶互调（TOI）失真:+23dBm@2GHz幅度精度:±0.16dB相位噪声(10KHz频偏):-136dBc/Hz
频率范围2Hz至8.4/18/26.5/45/50/67/90/110GHz1GHz载波，10kHz频偏的条件下，相位噪声优于-135dBc/Hz10MHz/40MHz/200MHz/400MHz/600MHz/1.2GHz/2GHz/4GHz共8种分析带宽配置选择最大实时带宽1.2GHz1.2GHz分析带宽下无杂散动态范围为-65dBc。实时分析带宽高达400MHz，100%频域截获信号时长小于0.6us
2 Hz 至 67 GHz（可扩展至 110 GHz）· 最大分析带宽 1.2 GHz · 实时分析带宽 600 MHz
同厂商产品
1 GHz 时的等效噪声级-171 dBm最大分析带宽2吉赫兹最大频率32吉赫兹1 GHz 时，10 kHz 频偏处的相位噪声-132 dBc/Hz
频率2Hz至8.4/13.6/26.5/44/50GHz1 GHz 时的 DANL：-174 dBm最大分析带宽510MHz最大实时带宽510MHz1 GHz 时，10 kHz 频偏处的相位噪声-136 dBc/Hz
频率：2 Hz 至90/110 GHz1 GHz 时的 DANL-174 dBm最大分析带宽：1 GHz最大实时带宽：255 MHz1 GHz 时，10 kHz 频偏处的相位噪声：-135 dBc/Hz
- «
- 1
- »
XA7系列N9040B 信号分析仪，2Hz至8.4/13.6/26.5/44/50GHz|是德/KEYSIGHT (在产)
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
是德科技|KEYSIGHT

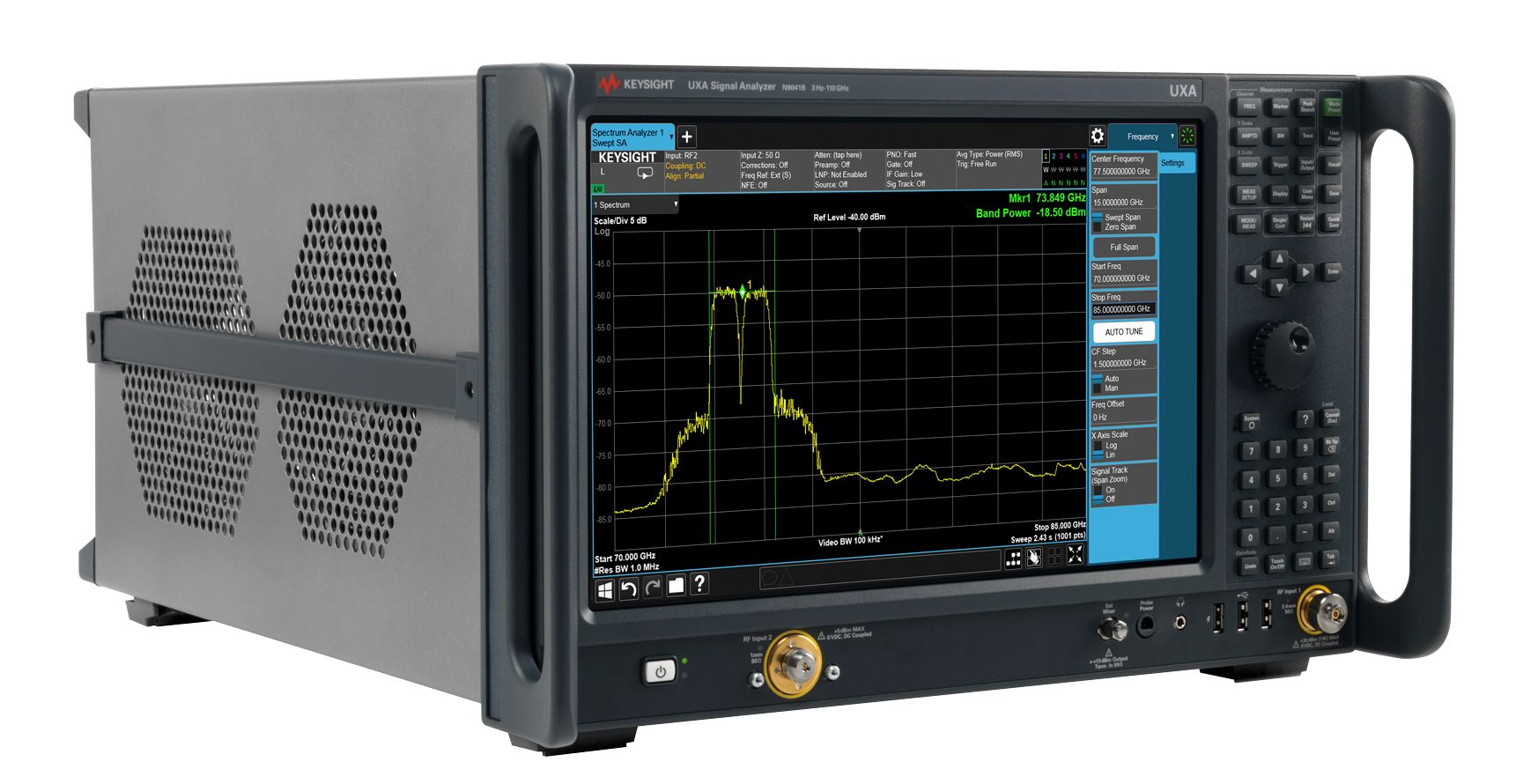

XA7-class 信号分析仪，50 GHz
台式信号与频谱分析仪
产品简介
N9040B 信号分析仪是一款高性能信号分析仪，适用于带宽高达 510 MHz 的宽带应用，包括在航空航天与国防、商业通信等领域中使用的实时频谱分析。
核心参数
• 1GHz的DANL：-166 dBm
• 最大分析带宽：1 GHz
• 1 GHz 时的相位噪声（10 kHz 偏移）：-135 dBc/Hz
• 最大频率：50 GHz
• 实时频谱分析：是的
功能特性
• 了解设计的真实性能
UXA 性能卓越，可帮助您表征当今最具挑战性的信号，包括5G、802.11ax/ay、卫星、雷达、电子战等应用中的快速跳频、宽带及瞬态信号。
优异的相位噪声性能与宽广的无杂散动态范围，助您深入洞察设计纯度。
以更宽广（高达 1 GHz）、更深入的视角洞察极具挑战性的信号
超低的相位噪声以及在510 MHz带宽上高达78 dBc的无杂散动态范围，使您能够准确测量设计的频谱纯度。
通过使用是德科技智能混频器，可将射频输入频率扩展至高达110 GHz；
借助第三方解决方案，更可扩展至太赫兹范围。
通过无间隙的实时频谱分析，能够捕获间歇性信号
DANL路径噪声更低，有助于捕获电平更低的杂散信号
14.1英寸显示屏可显示更多信息，助您进一步完善自身设计
资源下载
以上内容与指标均取自是德科技（KEYSIGHT）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库
是德科技 | KEYSIGHT
XA7系列N9040B 信号分析仪，2Hz至8.4/13.6/26.5/44/50GHz 详细指标
台式信号与频谱分析仪
一、频率与时间规格
频率范围 DC 耦合 AC 耦合
Option 508 2 Hz to 8.4 GHz
10 MHz to 8.4 GHz
Option 513 2 Hz to 13.6 GHz
10 MHz to 13.6 GHz
Option 526 2 Hz to 26.5 GHz
10 MHz to 26.5 GHz
Option 544
2 Hz to 44 GHz NA
Option 550
2 Hz to 50 GHz NA
Frequency band LO multiple (N) Frequency range 0 1 2 Hz to 3.6 GHz 1 1 3.5 to 8.4 GHz 2 2
8.3 to 13.6 GHz
3 2
13.5 to 17.1 GHz
4 4
17 to 26.5 GHz
5 4
26.4 to 34.5 GHz
6 8
34.4 to 50 GHz
频率参考
Accuracy ± [(time since last adjustment x aging rate) + temperature stability + calibration accuracy]
Aging rate ± 3 x
10–8 / year
温度稳定度
条件：≤ (0.25 Hz x N) p-p in 20 ms nominal
Full temperature range ± 4.5 x
10–9
Achievable initial calibration accuracy ± 3.1 x
10–8
Example frequency reference accuracy
1 year after last adjustment
= ± (3 ×10–8 + 4.5 ×10–9 + 3.1 x
10–8)
= ± 6.6 x
10–8
Residual FM (Center frequency = 1 GHz 10 Hz RBW
10 Hz VBW)
见频段 table above · N (本振倍频次数)
Frequency readout accuracy (start, stop, center, marker) ± (marker frequency x frequency reference accuracy + 0.10% x span + 5 % x RBW + 2 Hz + 0.5 x horizontal resolution
1)
标记频率计数器
Accuracy ± (marker frequency x frequency reference accuracy +
0.100 Hz)
Delta counter accuracy ± (delta frequency x frequency reference accuracy +
0.141 Hz)
Counter resolution
0.001 Hz
频率跨度 (FFT 和扫描模式)
Range 0 Hz (zero span)
10 Hz to maximum frequency of instrument
Resolution
2 Hz
扫描时间与触发
Range Span =
0 Hz
Span ≥
10 Hz
1 μs to 6000 s
1 ms to 4000 s
Accuracy Span ≥
10 Hz, swept
Span ≥
10 Hz, FFT
Span =
0 Hz
± 0.01% nominal
± 40% nominal
± 0.01% nominal
Sweep trigger Free run, line, video, external 1, external
2, RF burst, periodic timer
Trigger Delay Span =
0 Hz or FFT
Span ≥
10 Hz, swept
–150 to +500 ms
0 to 500 ms
0.1 μs
Gate methods Gated LO; gated video; gated FFT
条件：Gate delay jitter 33.3 ns p-p nominal
Gate length range (except method = FFT)
1 μs to 5.0 s
Gate delay range
0 to 100.0 s
扫描 (迹线) point 范围
All spans
1 to 100,001
分辨率带宽 (RBW)
Range (–3.01 dB bandwidth)
条件：With Option B2X, B5X, or H1G and Option RBE
1 Hz to 3 MHz (10% steps), 4, 5, 6
8, and 10 MHz
10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 100, 133, 150
200, and 212 MHz, in Spectrum Analyzer mode
带宽精度 (功率)
条件：RBW range 1 Hz to 1.3 MHz ± 2% nominal
Selectivity (–60 dB/–3 dB) 4.1:1 nominal
RBW range
1 Hz to 100 kHz
110 kHz to 1.0 MHz (<
3.6 GHz CF)
1.1 to 2 MHz (<
3.6 GHz CF)
2.2 to 3 MHz (<
3.6 GHz CF)
4 to 10 MHz (<
3.6 GHz CF)
± 0.5% (
± 0.022 dB)
± 1.0% (
± 0.044 dB)
± 0.07 dB nominal
0 to -0.2 dB nominal
0 to -0.4 dB nominal
Bandwidth accuracy (–3.01 dB)
EMI bandwidth (CISPR compliant) 200 Hz, 9 kHz, 120 kHz
1 MHz (Option EMC required)
EMI bandwidth (MIL STD 461 compliant) 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz
1 MHz (Option EMC required)
Analysis bandwidth
1
Maximum bandwidth Option B25 (standard)
适用型号选件 B40
Option B2X
Option B5X
Option H1G
25 MHz
40 MHz
255 MHz
510 MHz
1 GHz
视频带宽 (VBW)
条件：Accuracy ± 6% nominal (in swept mode and zero span)
1. Analysis bandwidth is the instantaneous bandwidth available around a center frequency over which the input signal can be digitized for further analysis or
Range 1 Hz to 3 MHz (10% steps), 4, 5, 6, 8 MHz, and wide open (labeled
50 MHz)
二、幅度精度与量程规格
Measurement range Displayed average noise level (DANL) to +30 dBm (for preamp Off)
DANL to +24 dBm (for frequency opts ≤
526 with preamp On)
DANL to +20 dBm (for frequency opts >
526 with preamp On)
Input mechanical attenuator range (2 Hz to 50 GHz)
0 to 70 dB in 2 dB steps
Electronic attenuator (Option EA3)
Frequency range
2 Hz to 3.6 GHz
Electronic 衰减器范围
Full attenuation range (mechanical + electronic) 0 to 24 dB, 1 dB steps 0 to 94 dB
1 dB steps
最大安全输入电平
Average total power (with and without preamp)
+30 dBm (1 W)
Peak pulse power (< 10 μs pulse width, < 1% duty cycle, and input attenuation ≥
30 dB)
+50 dBm (100 W)
DC coupled
AC coupled ± 0.2 Vdc ± 100 Vdc (For frequency Option 508
513, or 526)
显示范围
Log scale
0.1 to 1 dB/division in 0.1 dB steps
1 to 20 dB/division in 1 dB steps (10 display divisions)
Linear scale
10 divisions
Scale units dBm, dBmV, dBμV, dBmA, dBμA, V, W, A
条件：1. Refer to N9040B UXA Specifications Guide document N9040-90026 for frequency response of options LNP (Low Noise Path - Chapter 5), MPB (Microwave
Frequency response Specifications 1 95th percentile (≈
2 s)
(10 dB input attenuation, 20 to 30 °C, preselector centering applied above
3.6 GHz)
RF/MW (Option 508, 513, 526) 3 Hz to 10 MHz
10 to 50 MHz
50 MHz to 3.6 GHz
3.5 to 5.2 GHz
5.2 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 17.1 GHz
17.0 GHz to 22 GHz
22.0 to 26.5 GHz
± 0.46 dB
± 0.35 dB
± 0.35 dB
± 1.5 dB
± 1.5 dB
± 2.0 dB
± 2.0 dB
± 2.0 dB
± 2.5 dB
± 0.19 dB
± 0.14 dB
± 0.50 dB
± 0.42 dB
± 0.51 dB
± 0.57 dB
± 0.65 dB
± 0.87 dB
mmW (Option 544, 550) 3 Hz to 20 MHz
20 to 50 MHz
50 MHz to 3.6 GHz
3.5 to 5.2 GHz
5.2 to 8.4 GHz
5.2 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 17.1 GHz
17.0 GHz to 22 GHz
22.0 to 26.5 GHz
26.4 to 34.5 GHz
34.4 to 50 GHz
± 0.46 dB
± 0.35 dB
± 0.35 dB
± 1.7 dB
± 1.5 dB
± 1.5 dB
± 2.0 dB
± 2.0 dB
± 2.0 dB
± 2.5 dB
± 2.5 dB
± 3.2 dB
± 0.20 dB
± 0.16 dB
± 0.69 dB
± 0.42 dB
± 0.42 dB
± 0.39 dB
± 0.54 dB
± 0.62 dB
± 0.59 dB
± 0.93 dB
± 1.28 dB
Preselector Bypass - Chapter 6) and FBP (Full Bypass - Chapter
12).
幅度精度与量程规格 (continued)
Frequency response Specifications 95th percentile (≈
2 s)
Preamp on (0 dB attenuation)
RF/MW (Option P08, P13, P26) 9 kHz to 1 MHz
1 to 50 MHz
50 MHz to 3.6 GHz
3.5 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 17.1 GHz
17.0 to 22.0 GHz
22.0 to 26.5 GHz
± 0.68 dB
± 0.55 dB
± 2.0 dB
± 2.3 dB
± 2.5 dB
± 3.0 dB
± 3.5 dB
± 0.38 dB
± 0.32 dB
± 0.28 dB
± 0.64 dB
± 0.69 dB
± 0.84 dB
± 1.13 dB
± 1.48 dB
mmW (Option P44, P50) 9 kHz to 1 MHz
1 to 50 MHz
50 MHz to 3.6 GHz
3.5 to 5.2 GHz
5.2 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 17.1 GHz
17.0 to 22.0 GHz
22.0 to 26.5 GHz
26.4 to 34.5 GHz
34.4 to 50 GHz
± 0.68 dB
± 0.60 dB
± 2.0 dB
± 2.0 dB
± 2.3 dB
± 2.5 dB
± 3.0 dB
± 3.5 dB
± 3.0 dB
± 4.1 dB
± 0.45 dB
± 0.27 dB
± 0.29 dB
± 0.75 dB
± 0.52 dB
± 0.61 dB
± 0.61 dB
± 0.73 dB
± 0.63 dB
± 1.11 dB
± 1.47 dB
Input attenuation switching uncertainty Specifications Supplemental information
Relative to 10 dB and preamp off
At 50 MHz
(reference frequency) attenuation 12 to 40 dB attenuation 2 to 8 dB attenuation
0 dB
± 0.14 dB
± 0.18 dB
± 0.04 dB typical
± 0.06 dB typical
± 0.05 dB nominal
Attenuation >
2 dB
3 Hz to 3.6 GHz
3.5 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 26.5 GHz
26.4 to 50 GHz
± 0.3 dB nominal
± 0.5 dB nominal
± 0.7 dB nominal
± 0.7 dB nominal
± 1.0 dB nominal
三、Total 绝对幅度精度规格
条件：level, any scale, s = nominal standard deviation)
(10 dB attenuation, 20 to 30°C, 1 Hz ≤ RBW ≤ 1 MHz, input signal
-10 to -50 dBm, all settings auto-coupled except Auto Swp Time = Accy, any reference
At 50 MHz
At all frequencies 0.01 to 3.6 GHz
± 0.24 dB ± (0.24 dB + frequency response)
± 0.16 dB (95th Percentile approx.
2 s)
适用型号前置放大器开 (选件 P08, P13, P26, P44, P50)
At all frequencies ± (0.36 dB + frequency response)
Input voltage standing wave ratio (VSWR)
95th percentile
(10 dB input attenuation)
50 MHz
10 MHz to 3.6 GHz
3.5 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 17.1 GHz
17.0 to 26.5 GHz
26.4 to 34.5 GHz
34.4 to 50 GHz
Freq Opt 508, 513
526
1.07 nominal 1.101 1.278 1.341 1.58 1.60
Freq Opt 544
550
1.025 nominal 1.116 1.144 1.158 1.258 1.233 1.363 1.55
幅度精度与量程规格 (continued)
Input voltage standing wave ratio (VSWR)
95th percentile
Freq Opt 508, 513, 526 Freq Opt 544
550
Preamp on (Option P08, P13, P26, P44, or P50) (0 dB input attenuation)
10 MHz to 3.6 GHz
3.5 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 17.1 GHz
17.0 to 26.5 GHz
26.4 to 34.5 GHz
34.4 to 50 GHz 1.56 1.47 1.57 1.72 1.70
NA 1.40 nominal 1.53 1.316 1.337 1.42 1.62
1.389
Resolution bandwidth switching uncertainty (referenced to 30 kHz RBW)
1 Hz to 1.5 MHz RBW
1.6 MHz to 2.7 MHz RBW
3 MHz RBW
4, 5, 6, 8
10 MHz RBW
± 0.03 dB
± 0.05 dB
± 0.10 dB
± 0.30 dB
Linear scale
–170 to +30 dBm in 0.01 dB steps
707 pV to 7.07 V with 0.11% (0.01 dB) resolution
Accuracy
0 dB1
显示刻度 switching 不确定度
Switching between linear and log
0 dB1
Log scale/div switching
0 dB1
显示刻度 fidelity
Between –10 dBm and –18 dBm input mixer level ± 0.10 dB total
± 0.04 dB typical
Below –18 dBm input mixer level ± 0.07 dB
± 0.02 dB typical
迹线检波方式
条件：With Option EMC Add quasi-peak to above
Standard Normal, peak, sample, negative peak, log power average, RMS average, and voltage average
Frequency range
2 Option P08
适用型号选件 P50
条件：+35 dB nominal (for freq opts ≤ 526)
+40 dB nominal (for freq opts > 526)
1. Only affects the display, not the measurement, so it causes no additional error in measurement results from trace data or markers.
2. Below 100 kHz, only 95th percentile (approx. 2s) value for frequency response is provide
9 kHz to 8.4 GHz
9 kHz to 13.6 GHz
9 kHz to 26.5 GHz
9 kHz to 44 GHz
9 kHz to 50 GHz
Gain
9 kHz to 3.6 GHz
3.6 to 26.5 GHz
3.6 to 50 GHz
+20 dB nominal
四、动态范围规格
条件：1. With Option NF2 (Noise Floor Extension) “Off”.
2. LNP (Low Noise Path) is standard for the UXA.
3. At higher frequency bands (beyond 3.6 GHz), Preamp “On” supersedes “LNP enabled”. LNP cannot operate simultaneously with preamp.
1 dB gain compression (two-tone) Maximum power at input mixer
(At
1 kHz RBW with 100 kHz tone spacing)
Preamp Off
20 to 40 MHz
40 MHz to 2 GHz
2 to 26.5 GHz
26.5 to 50 GHz
2 dBm nominal
5 dBm nominal
10 dBm nominal
0 dBm nominal
Preamp On
10 MHz to 3.6 GHz
3.6 to 26.5 GHz
Tone spacing
100 kHz to 20 MHz
Tone spacing >
70 MHz
Freq Opt ≤
526
Freq Opt >
526
26.5 to 50 GHz
–14 dBm nominal
–28 dBm nominal
–10 dBm nominal
–20 dBm nominal
–30 dBm nominal
Displayed average noise level (DANL)
1 Specifications Typical
(Input terminated, sample or average detector, averaging type = Log, 0 dB input attenuation, IF Gain = High, 1 Hz RBW
20 to 30 °C)
RF/MW (Option 508, 513, 526) LNP Off/LNP On 2 LNP Off/LNP On
2
Preamp Off
3 to 10 Hz
10 to 100 Hz
100 Hz to 1 kHz
1 to 9 kHz
9 to 100 kHz
100 kHz to1 MHz
1 to 10 MHz
10 MHz to 1.2 GHz
1.2 to 2.1 GHz
2.1 to 3.0 GHz
3.0 to 3.6 GHz
3.5 to 4.2 GHz
4.2 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 16.9 GHz
16.9 to 20.0 GHz
20.0 to 26.5 GHz
–141 dBm/NA
–150 dBm/NA
–155 dBm/NA
–155 dBm/NA
–153 dBm/NA
–152 dBm/NA
–151 dBm/NA
–149 dBm/–154 dBm
–150 dBm/–155 dBm
–149 dBm/–155 dBm
–145 dBm/–152 dBm
–143 dBm/–151 dBm
–136 dBm/–148 dBm
–100 dBm/NA nominal
–125 dBm/NA nominal
–130 dBm/NA nominal
–137 dBm/NA nominal
–146 dBm/NA typical
–155 dBm/NA typical
–157 dBm/NA typical
–156 dBm/NA typical
–155 dBm/NA typical
–153 dBm/NA typical
–152 dBm/NA typical
–152 dBm/–155 dBm typical
–152 dBm/–156 dBm typical
–151 dBm/–156 dBm typical
–147 dBm/–155 dBm typical
–146 dBm/–154 dBm typical
–139 dBm/–151 dBm typical
Preamp On
100 to 200 kHz
200 to 500 kHz
0.5 to 1 MHz
1 to 10 MHz
10 MHz to 2.1 GHz
2.1 to 3.6 GHz
3.5 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 16.9 GHz
16.9 to 20.0 GHz
20.0 to 26.5 GHz
–152 dBm
–155 dBm
–159 dBm
–161 dBm
–165 dBm
–163 dBm
–164 dBm
–163 dBm
–161 dBm
–159 dBm
–155 dBm
–159 dBm
–161 dBm
–164 dBm
–166 dBm
–166 dBm
–164 dBm
–166 dBm
–165 dBm
–163 dBm
–161 dBm
–158 dBm
动态范围规格 (continued)
DANL with Noise Floor Extension Improvement (Option NF2)
DANL improvement exceeds
9 dB with 95% confidence in the average of all bands, paths (normal, preamp, low noise path and microwave preselector
bypass), frequency options and signal path options (LNP and MPB).
DANL with Noise Floor Extension
95th percentile
Frequency Preamp Off Preamp On LNP On2
Band 0, f >
20 MHz
Band
1
Band
2
Band
3
Band
4
-163 dBm
-162 dBm
-162 dBm
-159 dBm
-148 dBm
-174 dBm
-174 dBm
-174 dBm
-172 dBm
-166 dBm
条件：1. With Option NF2 (Noise Floor Extension) “Off”.
2. LNP (Low Noise Path) is standard for the UXA.
3. FBP (Full Bypass) DANL is applicable to N9040B UXA instruments with option H1G. Refer to N9040B UXA Specifications Guide document N9040-90026
-166 dBm
-167 dBm
-165 dBm
-162 dBm
Displayed average noise level (DANL)
3 Specifications Typical
(Input terminated, sample or average detector, averaging type = Log, 0 dB input attenuation, IF Gain = High, 1 Hz RBW
20 to 30 °C)
mmW (Option 544, 550) LNP Off/LNP On 2 LNP Off/LNP On
2
Preamp Off
3 to 10 Hz
10 to 100 Hz
100 Hz to 1 kHz
1 to 9 kHz
9 to 100 kHz
100 kHz to 1 MHz
1 to 10 MHz
10 MHz to 1.2 GHz
1.2 to 2.1 GHz
2.1 to 3.0 GHz
3.0 to 3.6 GHz
3.5 to 4.2 GHz
4.2 to 6.6 GHz
6.6 to 13.6 GHz
13.5 to 14 GHz
14 to 17 GHz
17 to 22.5 GHz
22.5 to 26.5 GHz
26.4 to 34 GHz
33.9 to 37 GHz
37 to 40 GHz
40 to 46 GHz
46 to 49 GHz
49 to 50 GHz
–141 dBm/NA
–150 dBm/NA
–154 dBm/NA
–153 dBm/NA
–151 dBm/NA
–150 dBm/NA
–149 dBm/NA
–145 dBm/–151 dBm
–144 dBm/–152 dBm
–147 dBm/–153 dBm
–144 dBm/–150 dBm
–145 dBm/–151 dBm
–141 dBm/–149 dBm
–139 dBm/–146 dBm
–138 dBm/–146 dBm
–134 dBm/–142 dBm
–132 dBm/–141 dBm
–130 dBm/–141 dBm
–130 dBm/–139 dBm
–128 dBm/–139 dBm
–95 dBm/NA nominal
–114 dBm/NA nominal
–128 dBm/NA nominal
–136 dBm/NA nominal
–144 dBm/NA typical
–154 dBm/NA typical
–156 dBm/NA typical
–155 dBm/NA typical
–153 dBm/NA typical
–152 dBm/NA typical
–151 dBm/NA typical
–148 dBm/–154 dBm typical
–148 dBm/–154 dBm typical
–149 dBm/–155 dBm typical
–148 dBm/–153 dBm typical
–148 dBm/–153 dBm typical
–146 dBm/–152 dBm typical
–143 dBm/–150 dBm typical
–143 dBm/–150 dBm typical
–140 dBm/–148 dBm typical
–139 dBm/–146 dBm typical
–137 dBm/–146 dBm typical
–137 dBm/–145 dBm typical
–135 dBm/–145 dBm typical
动态范围规格 (continued)
mmW (Option 544, 550) LNP Off/LNP On 2 LNP Off/LNP On 2 LNP Off/LNP On
2
Preamp On
100 to 200 kHz
200 to 500 kHz
0.5 to 1 MHz
1 to 2.1 GHz
2.1 to 3.6 GHz
3.5 to 13.6 GHz
13.5 to 17.1 GHz
17.0 to 20.0 GHz
20.0 to 26.5 GHz
26.4 to 30 GHz
30 to 34 GHz
33.9 to 37 GHz
37 to 40 GHz
40 to 46 GHz
46 to 50 GHz
–157 dBm
–159 dBm
–162 dBm
–164 dBm
–162 dBm
–161 dBm
–161 dBm
–160 dBm
–158 dBm
–157 dBm
–155 dBm
–153 dBm
–152 dBm
–149 dBm
–146 dBm
–159 dBm typical
–161 dBm typical
–164 dBm typical
–165 dBm typical
–164 dBm typical
–162 dBm typical
–164 dBm typical
–163 dBm typical
–161 dBm typical
–160 dBm typical
–159 dBm typical
–158 dBm typical
–156 dBm typical
–155 dBm typical
–152 dBm typical
平均显示噪声电平 (DANL)（含） 噪声
Floor Extension (Option NF2) on
95th percentile
DANL improvement 前置放大器关前置放大器开 LNP 开
Band 0, f >
20 MHz
Band
1
Band
2
Band
3
Band
4
Band
5
Band
6
10 dB
8 dB
8 dB
9 dB
10 dB
11 dB
11 dB
9 dB
9 dB
8 dB
8 dB
8 dB
8 dB
7 dB
NA 9 dB 9 dB
10 dB
11 dB
11 dB
11 dB
DANL（含） 噪声底 Extension 前置放大器关前置放大器开 LNP 开
Band 0, f >
20 MHz
Band
1
Band
2
Band
3
Band
4
Band
5
Band
6
–163 dBm
–157 dBm
–159 dBm
–160 dBm
–155 dBm
–156 dBm
–148 dBm
–174 dBm
–173 dBm
–174 dBm
–174 dBm
–171 dBm
–169 dBm
–161 dBm
条件：1. At higher frequency bands (beyond 3.6 GHz), Preamp “On” supersedes “LNP enabled”. LNP cannot operate simultaneously with preamp.
–163 dBm
–164 dBm
–164 dBm
–163 dBm
–162 dBm
–156 dBm
Residuals, images, and spurious responses
Residual responses (Input terminated and 0 dB attenuation)
200 kHz to 8.4 GHz
Zero span or FFT or other frequencies
–100 dBm
–100 dBm nominal
Image responses Tuned Freq (f) Excitation Freq Response RF/MW
(Opt 508, 513, 526) mmW (Opt 544
550)
(Mixer level at –10 dBm)
10 MHz to 26.5 GHz
10 MHz to 3.6 GHz
10 MHz to 3.6 GHz
3.5 to 13.6 GHz
13.5 to 17.1 GHz
17.0 to 22 GHz
22 to 26.5 GHz
f+45 MHz
f+10,245 MHz
f+645 MHz
f+645 MHz
f+645 MHz
f+645 MHz
f+645 MHz
–80 dBc
–80 dBc
–80 dBc
–78 dBc
–74 dBc
–70 dBc
–66 dBc
–105 dBc typical
–106 dBc typical
–101 dBc typical
–86 dBc typical
–84 dBc typical
–78 dBc typical
–75 dBc typical
–80 dBc
–80 dBc
–80 dBc
–80 dBc
–80 dBc
–80 dBc
–70 dBc
–104 dBc typical
–106 dBc typical
–101 dBc typical
–106 dBc typical
–106 dBc typical
–101 dBc typical
–102 dBc typical
(Mixer level at –30 dBm)
26.5 to 50 GHz
26.5 to 34.5 GHz
34.4 to 42 GHz
42 to 50 GHz
f+45 MHz
f+645 MHz
f+645 MHz
f+645 MHz
–70 dBc
–60 dBc
–90 dBc nominal
–98 dBc typical
–84 dBc typical
–75 dBc nominal
Other spurious responses Mixer level Response
条件：(f ≥ 10 MHz from carrier) –30 dBm –90 dBc nominal
Carrier frequency ≤
26.5 GHz
First RF order (f ≥
10 MHz from carrier)
Higher RF order (f ≥
10 MHz from carrier)
–10 dBm
–40 dBm
–80 dBc + 20log(N
2) Including IF feedthrough, LO harmonic mixing responses
–80 dBc + 20log(N
2) Including higher order mixer responses
Carrier frequency >
26.5 GHz
LO-related spurious responses (200 Hz ≤ f <
10 MHz from carrier)
Line-related spurious responses
条件：–73 dBc1 + 20log (N2) (nominal)
–10 dBm –68 dBc1 +
20log(N2)
Second harmonic distortion (SHI) Source frequency Mixer level Distortion
SHI (LNP Off/LNP On)
RF/MW (Opt 508, 513, 526)
10 MHz to 1.8 GHz
1.75 to 2.5 GHz
2.5 to 4 GHz
4 to 6.5 GHz
6.5 to 10 GHz
10 to 13.25 GHz
–15 dBm
–15 dBm
–15 dBm
–15 dBm
–15 dBm
–15 dBm
–60 dBc/NA
–77 dBc/–95 dBc
–77 dBc/–101 dBc
–77 dBc/–105 dBc
–70 dBc/–105 dBc
–62 dBc/–105 dBc
+45 dBm/NA
+62 dBm/+80 dBm
+62 dBm/+86 dBm
+62 dBm/+90 dBm
+55 dBm/+90 dBm
+47 dBm/+90 dBm
mmW (Opt 544, 550)
10 MHz to 1.8 GHz
1.75 to 2.5 GHz
2.5 to 4 GHz
4 to 6.5 GHz
6.5 to 10 GHz
10 to 13.25 GHz
13.25 to 25 GHz
–15 dBm
–15 dBm
–15 dBm
–15 dBm
–15 dBm
–15 dBm
–15 dBm
–60 dBc/NA
–72 dBc/–95 dBc
–72 dBc/–99 dBc
–77 dBc/–105 dBc
–70 dBc/–105 dBc
–62 dBc/–105 dBc
–65 dBc/–105 dBc (nom)
+45 dBm/NA
+57 dBm/+80 dBm
+57 dBm/+84 dBm
+62 dBm/+90 dBm
+55 dBm/+90 dBm
+47 dBm/+90 dBm
+50/+90 dBm (nom)
适用型号前置放大器开 (选件 P08, P13, P26, P44
条件：1. Nominally –40 dBc under large magnetic (0.38 Gauss rms) or vibrational (0.21 g rms) environmental stimuli.
2. N is the LO multiplication factor. Refer to page 3 for the N value verses frequency ranges.
P50)
10 MHz to 1.8 GHz
1.8 to 13.25 GHz
13.25 to 25 GHz
–45 dBm
–50 dBm
–50 dBm
–78 dBc nominal
–60 dBc nominal
–50 dBc nominal
+33 dBm nominal
+10 dBm nominal
0 dBm nominal
动态范围规格 (continued)
Third-order intermodulation distortion (TOI) (two –16 dBm tones at input mixer with tone separation > 5 times IF prefilter bandwidth
20 to 30 °C)
RF/MW (Opt 508, 513, 526) 10 to 300 MHz
300 to 600 MHz
0.6 to 1.5 GHz
1.5 to 3.6 GHz
3.5 to 8.4 GHz
8.3 to 13.6 GHz
13.5 to 17.1 GHz
17.0 to 26.5 GHz
+13.5 dBm
+18 dBm
+20 dBm
+21 dBm
+19 dBm
+19 dBm
+18 dBm
+19 dBm
+16 dBm typical
+21 dBm typical
+22 dBm typical
+23 dBm typical
+22 dBm typical
+23 dBm typical
+23 dBm typical
+24 dBm typical
mmW (Opt 544, 550)
10 to 300 MHz
300 to 600 MHz
0.6 to 1.5 GHz
1.5 to 3.6 GHz
3.5 to 13.6 GHz
13.5 to 17.1 GHz
17.0 to 26.5 GHz
26.4 to 34.5 GHz
34.4 to 50 GHz
+13.5 dBm
+18 dBm
+20 dBm
+21 dBm
+16 dBm
+13 dBm
+13 dBm
+13 dBm
+7 dBm
+16 dBm typical
+21 dBm typical
+22 dBm typical
+23 dBm typical
+23 dBm typical
+17 dBm typical
+20 dBm typical
+18 dBm typical
+12 dBm typical
适用型号前置放大器开 (选件 P08, P13, P26, P44, P50)
Tones at preamp input (two –45 dBm) (two –45 dBm) (two
–50 dBm)
10 to 500 MHz
500 MHz to 3.6 GHz
3.6 to 26.5 GHz
+4 dBm nominal
+4.5 dBm nominal
–15 dBm nominal
相位噪声偏置规格典型值
条件：1. For wide reference loop bandwidth.
Figure 1. Nominal UXA phase noise at various center frequencies. 50 GHz curve is the predicted phase noise computed from the 25.2 GHz observation.
Noise sidebands (20 to 30 °C, CF = 1 GHz)
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
1 MHz
10 MHz
–107 dBc/Hz
−124 dBc/Hz
–134 dBc/Hz
–139 dBc/Hz
–145 dBc/Hz
–155 dBc/Hz
−93 dBc/Hz typical
1
–112 dBc/Hz typical
−127 dBc/Hz typical
−135 dBc/Hz typical
−141 dBc/Hz typical
–147 dBc/Hz typical
–157 dBc/Hz typical
五、通用规格
温度范围
Operating
1
Storage
0 to 55 °C
–40 to +70 °C
Altitude 4,500 meters (approx.
15,000 feet)
Complies with the essential requirements of the European EMC Directive as well as current editions of the following standards (dates and editions are
cited in the Declaration of Conformity)
– IEC/EN
61326-1
– CISPR 11 Group
1, Class A
– AS/NZS CISPR
11
– ICES/NMB-001
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme a la norme NMB-001 du Canada.
South Korean Class A EMC declaration
条件：This equipment is Class A suitable for professional use and is for use in electromagnetic environments outside of the home.
A 급 기기 (업무용 방송통신기자재)이 기 기는 업무용 (A 급) 전자파적합기기로서 판 매자 또는 사용자는 이 점을 주 의하시기 바라
Complies with the essential requirements of the European Low Voltage Directive as well as current editions of the following standards (dates and editions
are cited in the Declaration of Conformity)
– IEC/EN
61010-1
– Canada: CSA C22.2 No.
61010-1
– ·USA: UL std no.
61010-1
Acoustic noise emission
LpA <
70 dB
Operator position
Normal operation mode per ISO
7779
Acoustic noise – more information
Values given are per ISO
7779 standard in the “Operator Sitting” position
Ambient temperature
< 35 °C Nominally under 55 dBA Sound Pressure. 55 dBA is generally considered suitable for use in quiet office environment
≥ 35 °C Nominally under 65 dBA Sound Pressure. 65 dBA is generally considered suitable for use in noisy office environment
Environmental stress
条件：and power line conditions; test methods are aligned with IEC 60068-2 and levels are similar to MILPRF-28800F Class 3.
Samples of this product have been type tested in accordance with the Keysight Environmental Test Manual and verified to be robust against the environ -
mental stresses of storage, transportation, and end-use; those stresses include, but are not limited to, temperature, humidity, shock, vibration, altitude,
供电要求
条件：The instruments can operate with mains supply voltage fluctuations up to ± 10% of the nominal voltage
Voltage and frequency 100/120 V
50/60/400 Hz
220/240 V
50/60 Hz
数据存储
Internal Removable solid state drive (≥
80 GB) and secure digital (SD) memory device
External Supports USB
3.0/2.0 compatible memory devices
Length 280 mm (11 in) 459 mm (18 in)
500 mm (19.8 in)
校准周期
The recommended calibration cycle is one year. Calibration services are available through Keysight service centers
RF 输入连接器
条件：Option C35 (with Option 526 only)
Standard (for Opt 508, 513
526)
Standard (for Opt 544
550)
Type-N female
50 Ω nominal
2.4 mm male
50 Ω nominal
APC 3.5 mm male
50 Ω nominal
USB ports
Host (3 ports)
输出电流
条件：USB Type-A female 0.5 A nominal
Compatible with USB
2.0
Headphone jack Miniature stereo audio jack (3.5 mm, also known as “1/8 inch”)
IF 中心频率
≤ 25 MHz IF path
40 MHz BW IF path
255 MHz BW IF path
510 MHz BW IF path
LO 输出频率范围
SMA, female
50 Ω nominal
Triplexed for mixer bias, IF input and LO output ± 10 mA in 10 uA step 322.5 MHz
250.0 MHz
750.0 MHz
877 .1484375 MHz
3.75 to 14.1 GHz
Rear panel
10 MHz out
BNC female
50 Ω nominal
≥ 0 dBm nominal
10 MHz + (10 MHz x frequency reference accuracy)
频率 lock 范围
条件：1 to 50 MHz nominal (selectable to 1 Hz resolution)
BNC female
50 Ω nominal
–5 to 10 dBm nominal
± 2 x
10–6 of specified external reference input frequency
Trigger
1 and 2 inputs
BNC female
> 10 kΩ nominal
–5 to +5 V (TTL) factory preset
Trigger
1 and 2 outputs
连接器 BNC female
Monitor output
1 (Option PC6, PC6S, PC8 CPUs)
VGA compatible
15-pin mini D-SUB
XGA (60 Hz vertical sync rates, non-interlaced) Analog RGB
1280 x
800
Monitor output
2 (Option PC6, PC6S, PC8 CPUs)
Mini DisplayPort 1280 x
800
Monitor output
2 (Option PCA CPU)
DisplayPort 1280 x
800
Noise source drive
+28 V (pulsed)
BNC female
On 28.0
± 0.1 V (60 mA maximum)
Off <
1 V
SNS series noise source For use with the Agilent/Keysight SNS Series noise sources
Digital bus
Connector MDR-80
连接器 BNC female
USB ports (Option PC6, PC6S, PC8 CPUs)
Host (3 ports)
输出电流
Device (1 port)
条件：USB Type-A female 0.5 A nominal
Two ports (stacked with each other) are compatible with USB 3.0; one (stacked with LAN port) with USB
2.0
Compatible with USB
3.0
Output power
4 ports
Compitable with USB
3.0
USB Type-A female
0.9 A
Compitable with USB
3.0
USB Type-B female
USB Typer-C female
2 ports
5 V
1.0 A max
GPIB mode
IEEE-488 bus connector
SH1, AH1, T6, SR1, RL1, PP0, DC1, C1, C2, C3, C28, DT1, L4, C0
Controller or device
LAN TCP/IP interface (Option PC6, PC6S, PC8 CPUs)
Connector
1G Base-T
Connector
1 G Base-T
适用型号 RJ45 Ethertwist
10 G Base-T
SMA female, shared by the second IF out (wideband, standard) and Opt CRP, and ALV
50 Ω nominal
Inputs and Outputs (continued)
2nd IF output
中心频率
SA mode or I/Q analyzer with IF BW ≤
25 MHz
with Option B40
with Option B2X
with Option B5X
低频段
条件：Up to 800 MHz (nominal); expandable to 1200 MHz with corrections
IF Path ≤
40 MHz
IF Path
255 MHz
IF Path
510 MHz
IF Path
1 GHz
High band, with preselector bypassed 322.5 MHz 250 MHz
750 MHz
877 .1484375 MHz
1 dB nominal
Up to 160 MHz nominal
255 MHz nominal
510 MHz nominal
1 GHz nominal
IF2 output for 1 GHz analog IF
中心频率
条件：SMA female 50 Ω nominal 750 MHz
IF2 input for 1 GHz digital section
中心频率
条件：SMA female 50 Ω nominal 750 MHz
Trigger
3 input for 1 GHz digitizer
触发通道 passband
BNC female 50 Ω, DC terminated ± 5 V range (minimum amplitude
0.5 V pk-pk)
DC to 2 GHz nominal
六、通用端口规格
条件：Accuracy within range 49 dB (nominal) with input frequency at 1 GHz ± 1.0 dB nominal
Rise time
15 ns nominal
下降时间
条件：Other cases 40 ns nominal best case
Bands
1-4 with Option MPB
七、通用端口规格
条件：Conversion gain –1 to +4 dB (nominal) plus RF frequency response
Resolution 10 to 75 MHz (user selectable)
0.5 MHz
Output at 70 MHz
八、通用端口规格
Log or Lin
All (0.1 to 20 dB/div)
Log video (Log envelope) output
Amplitude range (terminated with 50 Ω)
工作条件
条件：V nominal for –10 dBm at the mixer
1 V per
192.66 dB
Linear video output
Amplitude range (terminated with 50 Ω)
频率跨度
Option B25 (standard)
适用型号选件 B40
Option B2X
Option B5X
Option H1G
10 Hz to 25 MHz
10 Hz to 40 MHz
10 Hz to 255 MHz
10 Hz to 510 MHz
10 Hz to 1 GHz
Span =
1 MHz
Span =
10 kHz
Span =
100 Hz
Window shapes 100 mHz to 3 MHz 50 Hz to 3 MHz
1 Hz to 10 kHz
100 mHz to 100 Hz
Flat Top, Uniform, Hanning, Hamming, Gaussian, Blackman, Blackman-Harris, Kaiser
Bessel (K-B 70 dB, K-B 90 dB and K-B
110 dB)
Analysis 带宽 (波形测量)
Option B25 (standard)
适用型号选件 B40
Option B2X
Option B5X
Option H1G
10 Hz to 25 MHz
10 Hz to 40 MHz
10 Hz to 255 MHz
10 Hz to 510 MHz
10 Hz to 1 GHz
IF frequency response (standard
10 MHz IF path)
IF frequency response (demodulation and FFT response relative to the center frequency)
Frequency (GHz) Span (MHz) Preselector Max error Midwidth error (95th
Slope (dB/MHz) (95th
RMS (标称值)
≤ 3.6
3.6 to <
26.5
≥ 26.5
≤ 10
≤ 10
≤ 10
Off
12
Off
12
± 0.20 dB
± 0.25 dB
± 0.30 dB
± 0.12 dB
± 0.12 dB
± 0.12 dB
± 0.10 dB
± 0.10 dB
± 0.10 dB
0.02 dB
0.02 dB
0.024 dB
IF 相位线性度
条件：Center freq (GHz) Span (MHz) Preselector Peak-to-peak (nominal) RMS (nominal)
≥ 0.02, <
3.6
≥ 3.6
≤ 10
≤ 10
Off
1
0.14°
0.27°
0.032°
0.057°
Dynamic range (standard
10 MHz IF path)
Clipping-to-noise dynamic range Excluding residuals and spurious responses
IF gain = High
条件：1. MPB (microwave preselector bypass) is enabled. All UXAs ship with MPB as a standard feature.
–10 dBm
–20 dBm
Center frequency ≥
20 MHz
–8 dBm nominal
–17.5 dBm nominal
Noise density at mixer at center frequency (DANL + IF Gain effect) +
2.25 dB
I/Q Analyzer (continued)
Data acquisition (standard
10 MHz IF path)
Analysis tool
IQ analyzer
32,000,001 IQ sample pairs Waveform measurement
Advanced tool Data packing
With 89600 VSA or fast capture
32-bit
64-bit
Length (IQ sample pairs) 536 MSa (2 29 Sa) 268 MSa (228 Sa)
2 GB total memory
采样率
IQ pairs
1.25 x IFBW
ADC resolution
16 bits
IF frequency response (standard
25 MHz IF path)
IF frequency response (demodulation and FFT response relative to the center frequency)
Freq (GHz) Span (MHz) Preselector Max error Midwidth error (95th percentile)
Slope (dB/MHz) (95th percentile)
RMS (标称值)
< 3.6
3.6 to <
26.5
≥ 26.5
≤ 25
≤ 25
≤ 25
Off
1
Off
1
± 0.30 dB
± 0.40 dB
± 0.40 dB
± 0.12 dB
± 0.12 dB
± 0.1 dB
± 0.1 dB
0.02 dB
0.03 dB
0.02 dB
IF 相位线性度
条件：Center freq (GHz) Span (MHz) Preselector Peak-to-peak (nominal) RMS (nominal)
≥ 0.02, <
3.6
≥ 3.6
≤ 25
≤ 25
Off
1
0.41°
1.0°
0.11°
0.27°
Dynamic range (standard
25 MHz IF path)
Default 设置, 信号 · CF (IF gain = 低)
Band
0
Bands 1 through
4
–8 dBm mixer level nominal
–7 dBm mixer level nominal
高 gain 设置, 信号 · CF (IF gain = 高)
条件：–18 dBm mixer level nominal, subject to gain limitations
–17 dBm mixer level nominal, subject to gain limitations
Effect of signal frequency ≠ CF Up to ± 3 dB nominal
1. MPB (microwave preselector bypass) is enabled. All UXAs ship with MPB as a standard feature.
Band
0
Bands 1 through
6
I/Q Analyzer (continued)
Data acquisition (standard
25 MHz IF path)
Analysis tool
IQ analyzer
32,000,001 IQ sample pairs Waveform measurement
Advanced tool Data packing
With 89600 VSA or fast capture
32-bit
64-bit
Length (IQ sample pairs) 536 MSa (2 29 Sa) 268 MSa (228 Sa)
2 GB total memory
采样率
IQ pairs
1.25 x IF BW
ADC resolution
16 bits
Option B40
40 MHz analysis bandwidth (Option B40 is automatically included in Option B2X, B5X, or H1G)
IF frequency response (40 MHz IF path)
IF 频率响应 (相对至 center)
条件：Freq (GHz) Span (MHz) Preselector Specification Typical RMS (nominal)
≥ 0.03, <
3.6
≥ 3.6, ≤
8.4
> 8.4, ≤
26.5
> 26.5, ≤
34.4
> 34.4
≤ 40
≤ 40
≤ 40
≤ 40
≤ 40
Off
1
Off
1
Off
1
Off
1
± 0.37 dB
± 0.5 dB
± 0.7 dB
± 0.8 dB
± 1 dB
± 0.22 dB
± 0.13 dB
± 0.14 dB
± 0.25 dB
± 0.35 dB
0.07 dB
0.05 dB
0.05 dB
0.07 dB
0.07 dB
IF 相位线性度
条件：Center freq (GHz) Span (MHz) Preselector Peak-to-peak (nominal) RMS (nominal)
≥ 0.02, <
3.6
≥ 3.6
≤ 40
≤ 40
Off
1
0.36°
1.0°
0.083°
0.24°
Dynamic range (40 MHz IF path)
SFDR (杂散-free 动态范围)
Signal frequency within
± 12 MHz of center
Signal frequency anywhere within analysis BW
Spurious response within
± 18 MHz of center
Response anywhere within analysis BW
–80 dBc nominal
–79 dBc nominal
–77 dBc nominal
Default 设置, 信号 · CF (IF gain = 低)
Band
0
Bands 1 through
4
Bands 5 through
6
RF/MW (Opt 508, 513
526)
–8 dBm nominal
–6 dBm nominal
mmW (Opt 544
550)
–8 dBm nominal
–7 dBm nominal
–7 dBm nominal
高 gain 设置, 信号 · CF (IF gain = 高)
Band
0
Bands 1 through
2
Bands 3 through
4
Bands 5 through
6
subject to gain limitations
条件：Effect of signal frequency ≠ CF Up to ± 4 dB nominal
1. MPB (microwave preselector bypass) is enabled. All UXAs ship with MPB as a standard feature.
–16 dBm nominal
–9 dBm nominal
–6 dBm nominal
–12 dBm nominal
–16 dBm nominal
–16 dBm nominal
–15 dBm nominal
I/Q Analyzer (continued)
Data acquisition (40 MHz IF path)
Analysis tool
IQ analyzer
32,000,001 IQ sample pairs Waveform measurement
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
全部
是德科技官方渠道
官方渠道（官网 / 热线 / 邮箱）
• 销售服务热线
800-810-0189（座机）／400-810-0189（手机） 工作时间 周一至周五 8:30-17:30
• 热线传真
800-820-2816（座机）／400-820-3863（手机）
• 亚洲区支持邮箱 tm_asia@keysight.com
• 服务与支持邮箱
instruments_services@keysight.com
• 官网
www.keysight.com（中国站 www.keysight.com.cn）
全国办事处
• 北京总部
是德科技（中国）有限公司 北京市朝阳区望京北路3号
电话：(010) 64397888
传真：(010) 64390278
邮编：100102
• 上海分公司
上海市虹口区四川北路1350号中信泰富申虹广场5楼、16-19楼
电话：(021) 36127688
传真：(021) 36127188
邮编：200080
• 广州分公司
广州市天河北路233号中信广场66层07-08室
电话：(020) 38113988
传真：(020) 86695074
邮编：510613
• 深圳分公司
深圳市福田中心区福华一路六号免税商务大厦3楼
电话：(0755) 83079588
传真：(0755) 82763181
邮编：518048
• 成都分公司
成都高新区南部园区天府四街116号
电话：(028) 83108888
传真：(028) 85330830
邮编：610041
• 西安分公司
西安市碑林区南关正街88号长安国际大厦D座5/F
电话：(029) 88867770
传真：(029) 88861330
邮编：710068
• 中国香港
是德科技香港有限公司 中国香港北角电气道169号25楼
电话：(852) 31977777
传真：(852) 25069292 香港热线 800-938-693
• 维修 / 校准服务中心
中国大陆 北京 / 成都 / 苏州 服务热线 800-810-0189 / 400-810-0189
授权分销商
• 上海信果电子科技有限公司（上海）
上海市沪闵路8075号虹梅商务大厦6楼609室
邮编：200233
电话：021-64518399
传真：021-54560890
邮箱：jason.wu@signalgroup.com.tw
• 上海精测电子有限公司（上海）
上海市北京东路668号西楼15E
邮编：200001
电话：13916371522
传真：021-53086102
邮箱：yangzhen@jingce.com
• 北京东方中科集成科技股份有限公司（北京）
北京市海淀区复兴路69号院12号楼2层、7层 邮政编码：100039
邮编：100039
电话：400-650-5566
传真：010-68728001
邮箱：zhangzp@oimec.com.cn
官网：www.dfzk.com/br_keysight.html
• 北京千聚科技发展有限公司（北京）
北京市海淀区西三旗花园雪梨澳乡A区23-4号
邮编：100085
电话：010-82907162
邮箱：zhuqihui@qianjukeji.com.cn
• 北京金龙翌阳科技发展有限公司（北京）
北京市海淀区大柳树路17号富海大厦2001室
邮编：100086
电话：010-62167379/6213538
邮箱：zhy@yy17.com
官网：www.yy17.com
• 厦门同昌源电子有限公司（厦门）
厦门市湖里区悦华路215号综合楼二楼C单元
邮编：361000
电话：0592-5663715
传真：0592-2236795
邮箱：tcydz@xmtcy.com
• 合肥新普仪测科技有限公司（合肥）
安徽省合肥市长江路53号长江大厦1102室
邮编：230001
电话：+86(0551)65177518 ext:
传真：+86(0551)6260 7155
邮箱：hfsimple@mail.hf.ah.cn
• 品展国际贸易(上海)有限公司（上海）
上海外高桥保税区泰谷路18号1号楼1105A室
邮编：200003
电话：+86(0512) 6808 6023
传真：+86(0512) 6808 6025
邮箱：melody@chtek.com.tw
官网：chtek.com.tw
• 广州康祺科技发展有限公司（广州）
广州市天河区华强路1号珠控国际中心8层06单元
邮编：510623
电话：020-38295200
传真：020-38295122
邮箱：baobao@kontchi.com
• 广州科欣仪器有限公司（广州）
广州市黄埔区黄埔大道933号209室
邮编：510700
电话：86-20-38699788
传真：86-20-34395932
邮箱：cs@gzkexin.com.cn
• 成都安诚迅飞电子科技有限公司（成都）
成都市武侯区人民南路四段27号1栋1单元 24层3号
邮编：610041
电话：028-86027579
邮箱：jincai.he@ancentest.com
• 新亚制程（浙江）股份有限公司（深圳）
深圳市福田区中康路卓越城梅林中心广场（北区）一期1栋3楼
邮编：518035
电话：0755-23818536
传真：0755-23818625
邮箱：wangrongbin@sunyes.cn
• 无锡市邦达测量科技有限公司（无锡）
江苏省无锡市新区长江北路112号
邮编：214028
电话：0510-85258521 ext:
邮箱：bdyiqi@bdyiqi.com
• 武汉力德仪测科技有限公司（武汉）
武汉市光谷大道54号国际企业中心四期A座501室
邮编：430074
电话：027-85481090 ext:
邮箱：liuyang@leader-e.com
• 苏州工业园区贝奇仪器有限公司（苏州）
苏州工业园区通园路398号海逸大厦A402室
邮编：215006
电话：0512-62883832
邮箱：szbeiqi@szbeiqi.net
• 青岛鲁芯仪器有限公司（青岛）
青岛市福州北路135号鼎都1号写字楼328室
邮编：266007
电话：15953279543
传真：0532-80669058-830
邮箱：gaochangyuan@qdluxin.com
• Avnet Electronics Marketing（Phoenix）
2211 South 47th Street
邮编：85034
电话：+65 6289 9164
邮箱：Josephine.Cheong@avnet.com
官网：OnlineSupportAsia@Avnet.com
• RFMW, Ltd.（San Jose）
188 Martinvale Lane
邮编：95119
电话：#09-129
邮箱：sales@rfmw.asia
官网：www.rfmw.com
• 沈阳实拓科技有限公司（沈阳）
沈阳市和平区三好街35号8层
邮编：110004
电话：024-23843636
传真：024-23905232
邮箱：lf@shituokeji.cn
• 領先科儀有限公司（香港）
新界荃灣海盛路3號TML廣場21樓B5室
邮编：.
电话：852-31523600
传真：852-31523608
邮箱：allenma@advanceinst.com
租赁合作伙伴
• 深圳君鉴科技股份有限公司（深圳市）
光明街道观光路华强创意产业园3栋B座12楼光明新区
邮编：518107
电话：400-860-3035
邮箱：shichang@chrent.com
• 益莱储（北京）检测设备租赁有限公司（北京市）
来广营高科技产业园区4号楼3层301朝阳区
邮编：100102
电话：400-819-2800
邮箱：jim.chen@electrorent.com
• 北京东方中科集成科技股份有限公司科技租赁事业部（北京市）
北京市海淀区阜成路67号银都大厦12层
邮编：100142
电话：400-650-5566
传真：010-68728001
邮箱：wangml@oimec.com.cn
• 客而禧设备租赁（上海）有限公司（Shanghai）
徐汇区古美路1515号19号楼903室
邮编：201102
电话：021-54453166
邮箱：krc@krcchina.com
• 深圳市瑞普高电子有限公司（深圳市）
天安云谷产业园一期3栋D座1505-1506龙岗区
邮编：518129
电话：0755-29050100
邮箱：rickluo@ruipugao.com
• 苏州锦凡精密仪器科技有限公司（苏州）
苏州市高新区滨河路625号创业大厦5幢505
邮编：215011
电话：18914031336
邮箱：18914031336@jfsz.net
解决方案合作伙伴
• Tokyo Weld Co., Ltd.（Ota-ku）
2-28-1 Kitamagome
邮编：143-0021
电话：81-3-3775-4331
传真：81-3-3775-4359
邮箱：d-imai@tokyoweld.com
• 上海恒榉电子科技有限公司（Shanghai）
上海市奉贤区南桥镇西闸公路1036号3栋2层
邮编：201401
电话：18112779808
邮箱：salesvalue@everise-hj.com
• 佳燁科技股份有限公司(Ghiatek)（桃園市龜山區）
光明街243巷2號
邮编：33372
电话：+886-3-350-9960
传真：+886-3-320-3475
邮箱：support@ghiatek.com
• 华美博科技（北京）有限公司（北京市）
蓝靛厂东路2号金源时代商务中心C座9A2海淀区
邮编：100097
电话：010-88598732
邮箱：sino@sino-microtech.com
• 和创联合科技（北京）有限公司（北京市）
中关村东路18号财智国际大厦A座1612海淀区
邮编：100083
电话：400 650 7802
邮箱：info@hisuntest.com
• 昆山捷得立电子有限公司（昆山市）
登云路288号海创大厦C座25楼
邮编：215316
电话：0512-36831748
邮箱：sales@jiedeli-china.com
• 深圳市捷泰普科技有限公司（深圳市）
宝安区西乡街道前进二路桃源居南面深圳市智汇创新中心A座216室
邮编：518126
电话：0755-83908488
邮箱：sales@jtptech.cn
• 深圳市易捷测试技术有限公司（深圳市）
福虹路9号世贸广场C座1203室福田区
邮编：518033
电话：0755-83698930
邮箱：dongni.zhang@gbit.net.cn
官网：gbit.net.cn
• 深圳市泰仕捷科技有限公司（深圳市）
松岗大道7号汉海达大厦616室宝安区
邮编：518105
电话：0755-27128586
邮箱：riky.gua@tesijet.com
• 深圳市蓉声科技有限公司（深圳市）
福中路海连大厦连天阁 1103 室福田区
邮编：518033
电话：13828880571
邮箱：jiang.qian@radiation-test.com
• 苏州伊欧陆系统集成有限公司（苏州）
星湖街218号生物纳米园A7楼305室苏州工业园区
邮编：215000
电话：4008808776
邮箱：info@eoulu.com
• EM Labs Inc.（Kobe）
1-4-13 Mizukasadori, Nagata
邮编：653-0842
电话：+81-50-5370-0262
邮箱：info@emlabs.jp
• MPI Corporation（Chupei）
No. 155 Chungho Street
邮编：302
电话：+886-3-555-1771
传真：+886-3-551-8381
邮箱：info@mpi-corporation.com
官网：www.mpi-corporation.com/ast
• NOFFZ（Tönisvorst）
Vorster Strasse 238
邮编：47918
电话：+49 2151-99878-0
邮箱：info@noffz.com
• Power Technology Solutions（Santa Clara）
3048 Scott Blvd
邮编：95054
电话：650-308-8091 ext:
传真：408-727-0827
邮箱：inquiries@pwrts.com
• Resillion（Hasselt）
Kempische Steenweg 303
邮编：3500
电话：+32 498 92 01 71
邮箱：global-ci-sales@resillion.com
• Suzhou Link Ways Tech Co., Ltd.（Suzhou）
16F, Block B, Jin Shi Wang Hu Building, No. 18, Jia Rui alley, SIP
邮编：215021
电话：+86 512 6602 8998
• 上海凌测电子科技有限公司（上海）
峨山路91弄120号陆家嘴软件园8号楼401A室浦东新区
邮编：200127
电话：021-61090608
邮箱：yue.lin@merlintest.com.cn
• 上海北汇信息科技有限公司（上海市）
秀路100号虹桥总部1号4号楼3C闵行区紫
邮编：201103
电话：021-34716271
邮箱：info@polelink.com
官网：polelink.com
• 上海怿星电子科技有限公司（上海市）
钦州北路1199号智汇园87号楼5F室徐汇区
邮编：200233
电话：021-64955659
邮箱：biz@e-planet.cn
• 东昇电磁兼容技术(深圳)有限公司（深圳市）
福田中心区26-3路中国凤凰大厦2栋25G
邮编：518026
电话：0755-82792411
邮箱：sales@jstoyo.cn
• 南京派格测控科技有限公司（南京市）
建邺区建邺人才服务大厦16楼
邮编：210019
电话：4008920858
邮箱：sales@pgtec.cn
官网：pgtec.cn
• 南京纳特通信电子有限公司（南京市）
江宁开发区临淮街20号
邮编：210012
电话：025-84471796
邮箱：sales@rflight.cn
• 深圳市研辰科技有限公司（深圳市）
益田路3008号皇都广场C座2815室福田区
邮编：518048
电话：0755-82828703
邮箱：roger_huang@ascentest.com
原厂翻新与二手仪器
• 是德科技原厂二手仪器商城（Keysight Certified Pre-Owned）：www.keysight.com/used/cn/zh/
• 原厂翻新仪器经与新品相同的最终测试与校准，原厂保修最长 5 年；享 40%–90% 折扣，另有线上 5% / 教育 15% 优惠
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
