VEGA74 功率分析仪
VEGA74 is a single-phase/three-phase network analyzer capable of acquiring and recording 600 ele…
产品简介
VEGA74 是 HT Italia（HT Instruments，意大利）出品的功率分析仪。
功能特性
• 9 types of electrical systems：1Φ-2 wires, 1Φ-center tap, 3Φ-3 wires, 3Φ-Aron, 3Φ-Δ Open, 3Φ-Y Open, 3Φ-2 el. 1/2, 3Φ-4 Y-wire, 3Φ-High Leg.
• Integration with programmable period：2s, 5s, 10s, 30s, 1min, 2min, 5min, 10min, 15min, 30min
• Three-phase Power quality and Energy consumption analysis:：Single-phase/Three-phase
• AC/DC voltage in single-phase/three-phase systems：up to 600V
• AC/DC current in single-phase/three-phase systems：up to 3000A
• Recording Temperature and Relative Humidity：°C, °F, HR%
• Recording of the Illuminance value：LUX
• Measurement category：CAT IV 300, CAT III 350, MAX 600V between inputs
• Size (LxWx H) (mm)：225 x 165 x 75mm
• Weight：1.2kg
• 标配功能（官网 Functions 列表）：Voltage/current waveforms · Active, reactive, apparent power/energy and DC power · Voltage and current harmonics up to the 49th with THD · Cosphi, Power Factor · Voltage/current vector diagram · Voltage unbalance (NEG%, ZERO%) · Voltage Anomalies (dips and peaks) with a resolution of 20ms · Summary table of main electric parameters · Leakage Currents recording · Indication of recording duration for mains analysis · Touchscreen colour display · Help on line on the display
• 适用标准 / 规范（官网 Guidelines）：IEC/EN61010-031 · IEC/EN61010-1 · IEC/EN61010-2-032 · IEC/EN61187 · IEC/EN61326-1 · IEC/EN61557-1
官网原文（英文）
• 官网产品概述（英文原文）：VEGA74 is a single-phase/three-phase network analyzer capable of acquiring and recording 600 electrical parameters simultaneously. The use of VEGA74 is very simple and intuitive, thanks to the interface with color touchscreen display with icon structure. VEGA74 is ideal for solving problems deriving from low network quality, voltage anomalies, harmonics and high energy consumption which can then become much more harmful and complex phenomena to keep under control if neglected for too long. The measurements taken can be transferred to a PC with USB or WiFi connection with a dedicated software in order to analyze the data and create printed reports. · › 9 types of electrical systems available · › DC/AC TRMS voltage for single-phase/three-phase systems up to 600V · › Current DC/AC TRMS single-phase/three-phase systems up to 3000A · › Active, Reactive and Apparent…
资源下载
• 官方资料：CE
以上内容与指标均取自HT Italia（HT Instruments）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
HT Italia SRL · onetest 仪器资源库
HT Italia
VEGA74 功率分析仪 详细指标
VEGA74 is a single-phase/three-phase network analyzer capable of acquiring and recording 600 ele…
详细指标
以下为该型号的技术指标，逐表取自官网产品页，表内数值按官方表格原样摘录（原文为英文；括号内为单位）。厂家未列出的项目即官网与手册均未给出，未作推测。
环境条件
• Safety：IEC/EN61010-1, IEC/EN61010-2-032
• Insulation：double insulation
• Pollution degree：2
• Measurement category：CAT III 1000V, CAT IV 600VAC
• Current ranges：max 3000 A AC
• 说明：RMS
• Output signal (@ 1000A , 50Hz)：85mV AC
• 说明：RMS
• Accuracy (@ +25°C, 50Hz)：class 1-A1 compliance with IEC 61869-10
• Output impedance (@ 50Hz)：170Ω ± 10Ω
• Minimum load impedance：100kΩ
• Frequency range (-3dB)：10Hz 至 8kHz
• Working voltage：1000V AC
• 说明：RMS
• Coil length：600mm (24in)
• Coil diameter：8.3 ± 0.2mm (0.3in)
• Coil material：Thermoplastic polyurethane UL94-V0
• Type of latch：bayonet
• Output cable length：2m ; (7ft)
• Weight：approx. 170g ; (6ounces)
• Output connector：HT Custom, 3 poles
• Maximum conductor diameter：175mm (7in)
• Mechanical protection：IP65
• Operating temperature：–20°C 至 80°C (–4°F 至 176°F)
• Storage temperature：–40°C 至 90°C (–40°F 至 194°F)
• Operating and storage humidity：15%RH 至 85%RH (without condensation)
• 说明：This product complies with the prescriptions of the European directive on low
• 说明：voltage 2014/35/EU (LVD). This instrument complies with the requirements of
• 说明：2011/65/EU+2015/863/EU (RoHS) directive and 2012/19/EU (WEEE) directive
资源下载
以上规格取自 HT Italia（HT Instruments）官网 VEGA74 产品页与其官方用户手册 TECHNICAL SPECIFICATIONS 章节，页面版式由 onetest 仪器资源库整理。
HT Italia SRL · onetest 仪器资源库
全部

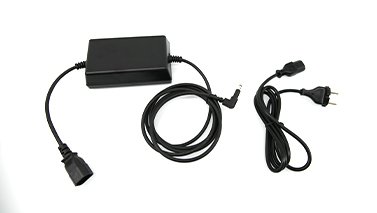

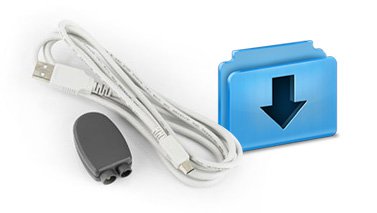

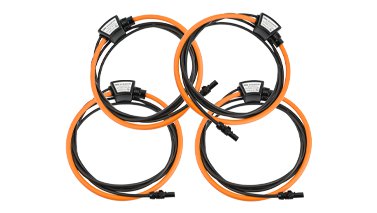

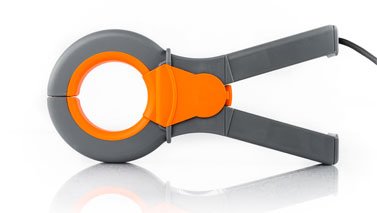

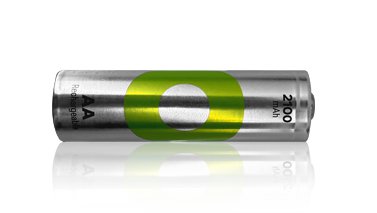

Quick Guide and Downloadable Manual · Calibration report · HTFLEX33E x4 · VA500 · YABAT0003000 · C2006 + Downloadable Software · PT400 · KIT799 · A0061 · SP-0500 · HT96U · HT97U · HP30C3 · HT4005K · HT4005N · HTFLEX35 · HT98U · HP30D1 · HT4004 · HT52/05 · HT53L/05 · BORSA2051 · 607-IECN · HT4003 · HTFLEX33E · KIT607
