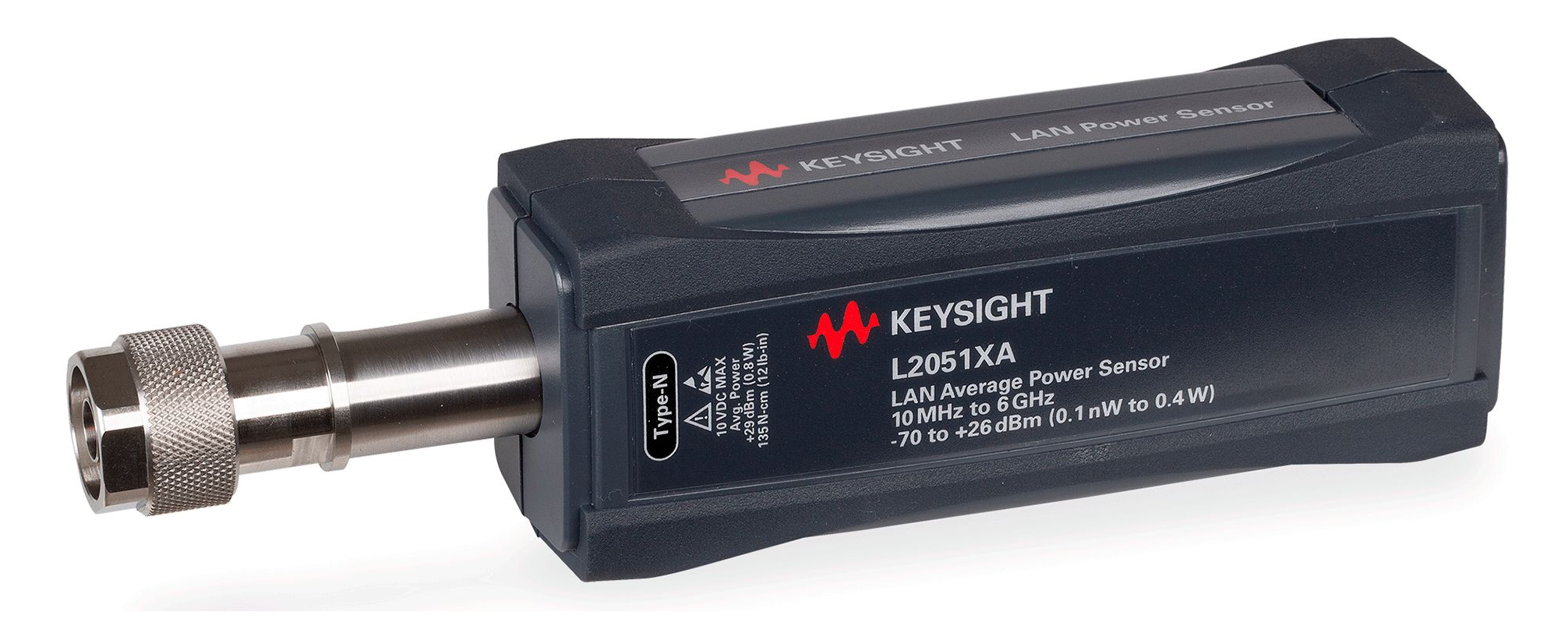

L2051XA 10 MHz 至 6 GHz LAN 宽动态范围平均功率传感器 -70 至 +26 dBm|是德/KEYSIGHT

10 MHz 至 6 GHz 频率范围LAN 连通性及宽广的动态范围（-70 至 +26 dBm），适用于小信号测量50,000 读数/秒的快速实时测量以零静寂时间进行实时测量，可确保对每一个连续脉冲都加以测量平均模式时间选择性功能能够利用整个动态范围执行平均功率测量和时间选择性平均功率测量内置归零和自动校准功能可以节省测量时间，降低测量不确定度仪器现在内置 BenchVue 软件许可证（BV0007B）。 BenchVue 让连接和控制仪器以及自动执行测试序列变得非常简单

U2061XA 10 MHz 至 6 GHz USB 宽动态范围峰值功率和平均功率传感器 -70至+26dBm|是德/KEYSIGHT (在产)

频率范围：10 MHz – 6 GHz
USB 连通性及宽广的动态范围（-70 至 +26 dBm），适用于小信号测量
50,000 读数/秒的快速实时测量
1 MSa/s 的可变采样率和 1 MSa 的数据存储器支持长时间采样
以零静寂时间进行实时测量，可确保对每一个连续脉冲都加以测量
平均模式时间选择性功能能够利用整个动态范围执行平均功率测量和时间选择性平均功率测量
内置归零和自动校准功能可以节省测量时间，降低测量不确定度
仪器现在内置 BenchVue 软件许可证（BV0007B）。 BenchVue 能帮助您轻松连接和控制仪器，自动执行测试序列

参考价格： US$ 8,807

厂家：是德|KEYSIGHT （收录204个产品）

产地：美国

厂家官网

产品官网

产品描述

详细指标

软件和手册|白皮书

购买渠道

选件

问大家

视频

测评

口碑

系统与解决方案

Keysight U2061XA 是一款快速、准确且动态范围宽达 10 MHz – 6 GHz 的 USB 峰值功率传感器。

特点

频率范围：10 MHz – 6 GHz
USB 连通性及宽广的动态范围（-70 至 +26 dBm），适用于小信号测量
50,000 读数/秒的快速实时测量
1 MSa/s 的可变采样率和 1 MSa 的数据存储器支持长时间采样
以零静寂时间进行实时测量，可确保对每一个连续脉冲都加以测量
平均模式时间选择性功能能够利用整个动态范围执行平均功率测量和时间选择性平均功率测量
内置归零和自动校准功能可以节省测量时间，降低测量不确定度
仪器现在内置 BenchVue 软件许可证（BV0007B）。 BenchVue 能帮助您轻松连接和控制仪器，自动执行测试序列

Keysight U/L2050/60 X 系列宽动态范围功率传感器能够准确测量各种调制信号。这些 USB/LAN 功率传感器拥有 -70 至 +26 dBm 的宽广动态范围，可对各种调制信号执行高度准确和可重复的功率测量，其测量速度高达 50,000 读数/秒，可以实现更高的生产吞吐量。内置归零和校准功能有助于用户节省测量时间和降低测量不确定度。 U/L2050/60 X 系列功率传感器得到了 Keysight BenchVue 软件的支持。使用 BenchVue 软件，您无需编程便可轻松控制功率计记录数据，并以各种形式显示测量结果。只需将这个传感器连接到安装有 BenchVue BV0007B 功率计/传感器控制与分析应用软件的个人电脑，便可执行平均功率测量和分析。

详细了解是德科技 LAN 和 USB 功率传感器

X-Series Power Sensors Comparison Table

USB model	LAN model	Description	Frequency range	Power range	Connector type
U2051XA	L2051XA	Wide dynamic range average power sensor	10 MHz to 6 GHz	−70 to +26 dBm	N-type (male)
U2061XA	L2061XA	Wide dynamic range peak and average power sensor
U2052XA	L2052XA	Wide dynamic range average power sensor	10 MHz to 18 GHz	−70 to +26 dBm
U2062XA	L2062XA	Wide dynamic range peak and average power sensor
U2053XA	L2053XA	Wide dynamic range average power sensor	10 MHz to 33 GHz	−70 to +26 dBm	3.5 mm (male)
U2063XA	L2063XA	Wide dynamic range peak and average power sensor
-	U2049XA	Wide dynamic range peak and average power sensor	10 MHz to 33 GHz	−70 to +20 dBm
U2054XA	L2054XA	Wide dynamic range average power sensor	10 MHz to 40 GHz	−70 to +20 dBm	2.92 mm (male)
U2064XA	L2064XA	Wide dynamic range peak and average power sensor
U2055XA	L2055XA	Wide dynamic range average power sensor	10 MHz to 50 GHz 10 MHz to 53 GHz (Option 053)	−70 to +20 dBm (10 MHz to 50 GHz) −70 to 0 dBm (> 50 GHz to 53 GHz)¹	2.4 mm (male)
U2065XA	L2065XA	Wide dynamic range peak and average power sensor
U2056XA	L2056XA	Wide dynamic range average power sensor	10 MHz to 54 GHz	−70 to +20 dBm (10 MHz to 50 GHz) −70 to +15 dBm (> 50 GHz to 54 GHz)	1.85 mm (male)
U2066XA	L2066XA	Wide dynamic range peak and average power sensor
U2057XA	L2057XA	Wide dynamic range average power sensor	10 MHz to 67 GHz	−70 to +20 dBm (10 MHz to 50 GHz) −70 to +15 dBm (> 50 GHz to 54 GHz) −70 to +10 dBm (> 54 GHz to 67 GHz
U2067XA	L2067XA	Wide dynamic range peak and average power sensor
Thermal Vacuum Compliance Power Sensor
-	U2049XA (Option TVA)	Wide dynamic range peak and average power sensor with thermal vacuum option	10 MHz to 33 GHz	−70 to +20 dBm	3.5 mm (male)
-	L2065XT	Wide dynamic range peak and average power sensor with thermal vacuum compliance	10 MHz to 53 GHz	−70 to +20 dBm (10 MHz to 50 GHz) −70 to 0 dBm (> 50 GHz to 53 GHz)	2.4 mm (male)
-	L2066XT	Wide dynamic range peak and average power sensor with thermal vacuum compliance	10 MHz to 54 GHz	−70 to +20 dBm (10 MHz to 50 GHz) −70 to +15 dBm (> 50 GHz to 54 GHz)	1.85 mm (male)
-	L2067XT	Wide dynamic range peak and average power sensor with thermal vacuum compliance	10 MHz to 67 GHz	−70 to +20 dBm (10 MHz to 50 GHz) −70 to +15 dBm (> 50 GHz to 54 GHz) −70 to +10 dBm (> 54 GHz to 67 GHz)

关键词:

技术资料

U2049XA (Option TVA) and U/L2050/60 X-Series USB/LAN Wide Dynamic Range Peak and Average Power (.pdf 2.74 MB)

This document contains the product specification of U2049XA and U/L2050/60 X-Series USB/LAN Peak and Average power sensors.

2024-08-15

技术支持: U2061XA 10 MHz 至 6 GHz USB 宽动态范围平均功率/峰值功率传感器 - 是德科技Keysight

参考指南

U2051XA/U2052XA/U2061XA/U2062XA USB Power Sensor 3D Model, STEP Format (.zip 2.06 MB)

This is a STEP format 3D Model of the U2051XA/U2052XA/U2061XA/U2062XA Power Sensor.

2022-10-07

参考指南

U2051/61XA and U2052/62XA Power Sensor 2D Drawing (.pdf 91.29 KB) (.pdf 96.47 KB)

This is a PDF format 2D Drawing of the U2051/61XA and U2052/62XA Power Sensor.

2020-11-25

版本说明

Firmware Update Procedure (.pdf 114.88 KB)

2007-12-01

安装指南

U/L2050/60 X-Series Firmware Upgrade Procedure (.pdf 115.40 KB)

Describes the firmware upgrade procedure for U/L2050/60 X-Series Power Sensors

2021-03-30

技术资料

U2049XA (Option TVA) and U/L2050/60 X-Series USB/LAN Wide Dynamic Range Peak and Average Power (.pdf 2.74 MB)

This document contains the product specification of U2049XA and U/L2050/60 X-Series USB/LAN Peak and Average power sensors.

2024-08-15

其他资源

U2050/60 and L2050/60 X-Series USB and LAN Power Sensors Uncertainty Calculator (.xlsx 92.10 KB)

Measurement Uncertainty Calculator for U2050/60 and L2050/60 X-Series USB and LAN Wide Dynamic Range Power Sensors

2022-09-14

应用指南

An RF Power Measurement Solution for Multi-Antenna MIMO Transmissions (.pdf 1.88 MB)

In this paper, new RF power measurement solution for EN 300 328 v1.8.1 & EN 301 893 v.1.7.1 requirements will be discussed using Keysight USB Peak Power Sensor & USB Modular Data Acquisition.

2023-11-23

用户手册

Keysight 2050/60 X-Series User’s Guide (.pdf 3.95 MB)

Keysight 2050/60 X-Series User’s Guide

2024-02-05

编程指南

Keysight 2050/60 X-Series Programming Guide (.pdf 6.76 MB)

Keysight 2050/60 X-Series Programming Guide

2023-09-14

服务手册

Keysight 2050/60 X-Series Service Guide (.pdf 788.25 KB)

Keysight 2050/60 X-Series Service Guide

2021-10-27

应用指南

Simplifying Multi-Channel Power Measurement Synchronization (.pdf 695.56 KB)

Learn how to set up multi-channel power measurements using the U2020 X-Series USB peak power sensors and P-Series power meter. Read more.

2014-08-03

手册

Peak Power Solutions for Radar and Wireless Applications (.pdf 2.98 MB)

This peak power solutions brochure cover various radar and wireless applications. Get a summary of applications in this brochure and learn where to download the application note and videos accordingly.

2023-11-30

应用指南

Wide Dynamic Range Multi-Channel Power Measurements (.pdf 1.30 MB)

Achieve fast and accurate multi-channel power measurements over a wide dynamic range with Keysight’s X-Series USB/LAN wide dynamic range power sensors.

2021-10-26

应用指南

U2040/50/60 and L2050/60 X-Series (.pdf 3.95 MB)

This demonstration guide explains how some of the most frequently-made measurements obtained using the Keysight Technologies, Inc. U2040XA Series power sensors can be analyzed using the Keysight BenchVue software Power Meter App.

2019-12-02

应用指南

Top Five Reasons Why U2040/50/60 and L2050/60 X-Series Power Sensors are Ideal (.pdf 1.52 MB)

This application note details the top five reasons why the U2040 X-Series wide dynamic range power sensors are the ideal solution for wireless chipset manufacturing tests.

2019-11-22

产品快报

U2040 & U/L2050/60 X-Series Wide Dynamic Range Power Sensors (.pdf 410.73 KB)

This product fact sheet details the key features, specifications and ordering information for the U2040 X-Series wide dynamic range power sensors, which includes USB and LAN models.

2024-09-19

应用指南

Compatibility of USB Power Sensors with Keysight Instruments (.pdf 2.97 MB)

This application note explains how Keysight USB power sensors are compatible with Keysight network analyzers to perform source power calibration. Learn more!

2023-11-23

应用指南

Migrating to the Latest Keysight Software for Power Meters and Power Sensors (.pdf 336.46 KB)

Compare the new software features and enhancements available for Keysight power meters and power sensors.

2023-11-27

应用指南

Power Sensor Electrical Overstress (EOS) Failure Verification Guideline (.pdf 1.07 MB)

Learn the measurement technique of Time Domain Reflectometry (TDR) to verify power sensor failure due to overpowering.

2023-11-27

宣传单

Reach Higher in RF—with Confidence (.pdf 777.62 KB)

Portfolio of RF products sold thru distribution.

2017-07-20

手册

Power Meters and Power Sensors (.pdf 3.71 MB)

This brochure covers features, applications, specifications and selection guide for Keysight's power measurement solutions.

2023-10-30

采购产品（是德直销）

联系我们了解价格、库存、升级信息、答疑解惑、下订单、获取订单状态或加速订单。 Keysight 可能会使用授权销售合作伙伴来更好地满足您的需求。

免费:400-810-0189（手机）

热线传真:800-820-2816

工作时间:周一到周五 8:30am-5:30pm

地址:是德科技（中国）有限公司北京市朝阳区望京北路3号中国

其它销售渠道 :

授权销售合作伙伴

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

分销商

特别推荐

租赁

特别推荐

租赁

特别推荐

分销商

特别推荐

分销商

分销商

北京东方中科集成科技股份有限公司科技租赁事业部

租赁

分销商

分销商

分销商

租赁

租赁

分销商

U2061XA-1A7	Calibration + Uncertainties + Guardbanding (Not Accredited)
U2061XA-UK6	Commercial calibration certificate with test data
U2061XA-A6J	ANSI Z540-1-1994 Calibration

U2061XA-100

Type-N (male) connector

U2000A-204	USB/LAN power sensors soft carrying pouch (210 mm Long x 150 mm Width x 70 mm Height)
U2000A-201	USB/LAN power sensors hard transit case (500 mm Long x 399 mm Width x 138 mm Height)
U2000A-202	Power meter and power sensor soft carrying case (backpack) (405 mm Long x 270 mm Width x 175 mm Height)
U2000A-203	Power sensor holster (104 mm Long x 50 mm Width x 39 mm Height)

U2032A	Trigger cable BNC male to SMB female 50ohm, 1.5meter length
U2031B	Power Sensor cable; 10-ft (3m)
U2031C	Power Sensor cable; 16.4-ft (5m)
U2031A	Power Sensor cable; 5-ft (1.5m)

U2000A-301	Power sensor cable; 5-ft (1.5m)
U2000A-303	Power sensor cable; 16.4-ft (5m)
U2000A-302	Power sensor cable; 10-ft (3m)
