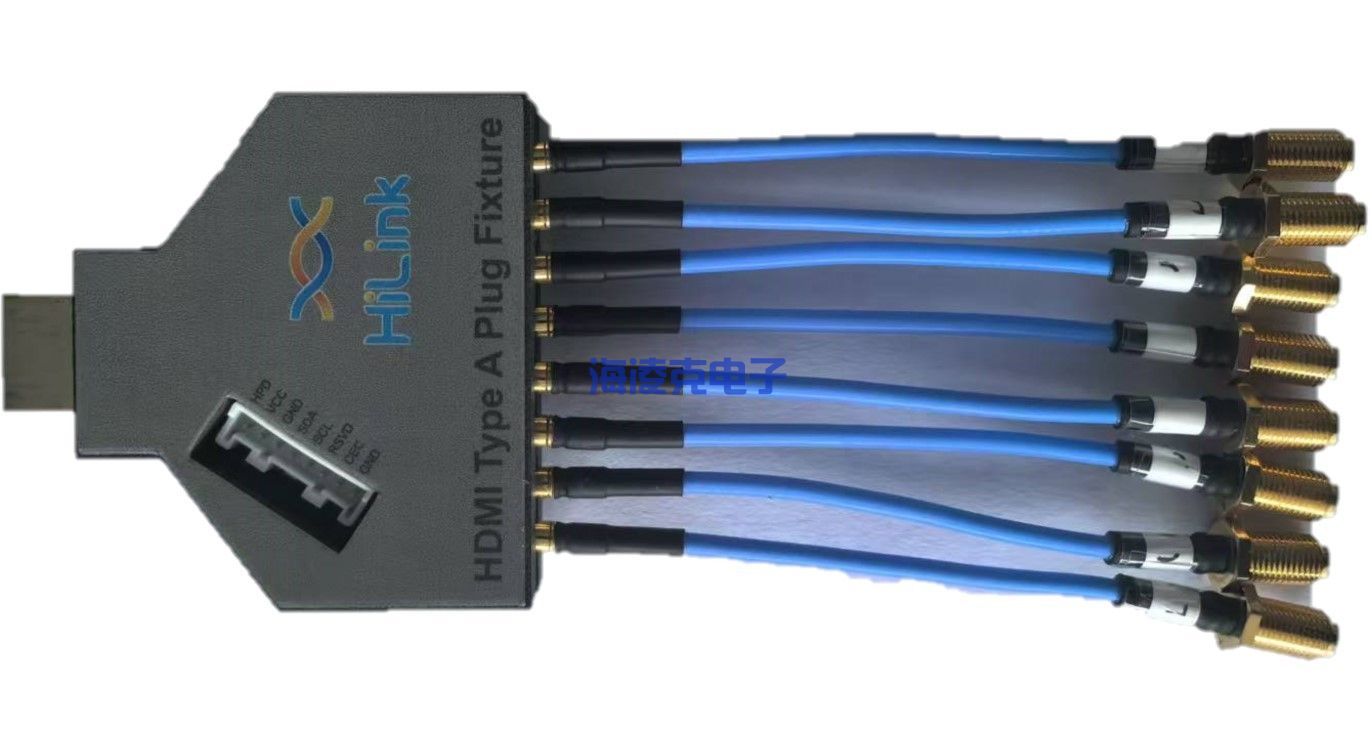

HDMI测试夹具
支持HDMI 2.0协议；板载GPPO同轴接口，标配10cmGPPO到SMA相位匹配电缆；通道skew差异小于+/-2ps；所有低速信号均引出至2mm连接器；
同厂商产品
Wilder Technologies 增强型 DisplayPort™ 和 miniDisplayPort™ 测试适配器支持根据 DP2.1 规范进行主机和设备测试。 Wilder 的灯具支持提高数据速率（UHBR10、UHBR13.5 和 UHBR20）以驱动 8k 显示器和更高的刷新率，为预一致性和一致性测试提供了一个平台。

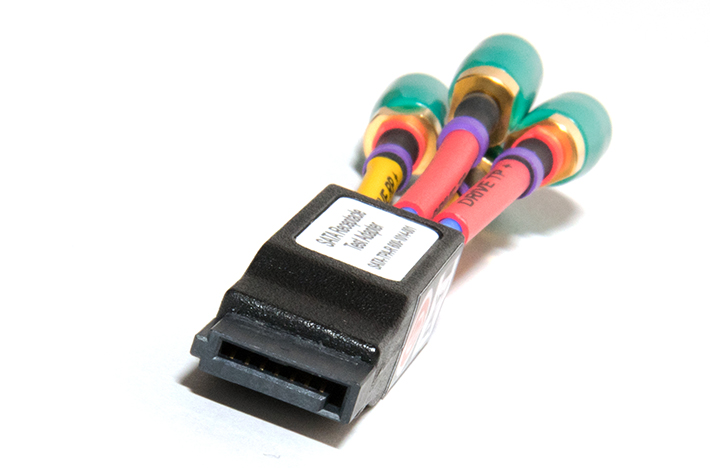

SATA M.2-TPA-PR测试适配器或测试夹具套件有助于对主机和设备进行SATA M.2源和接收器一致性测试。SATA测试适配器和测试夹具套件促进源和汇合规测试。
Gen4 Mini-SAS HD 适配器套件将有助于对 SAS-4 主机、设备和电缆进行合规性测试。左手和右手版本的插头适配器设计用于并排测试。
- «
- 1
- »
HDMI测试适配器和测试夹具套件|Wilder (在产)
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
HDMI

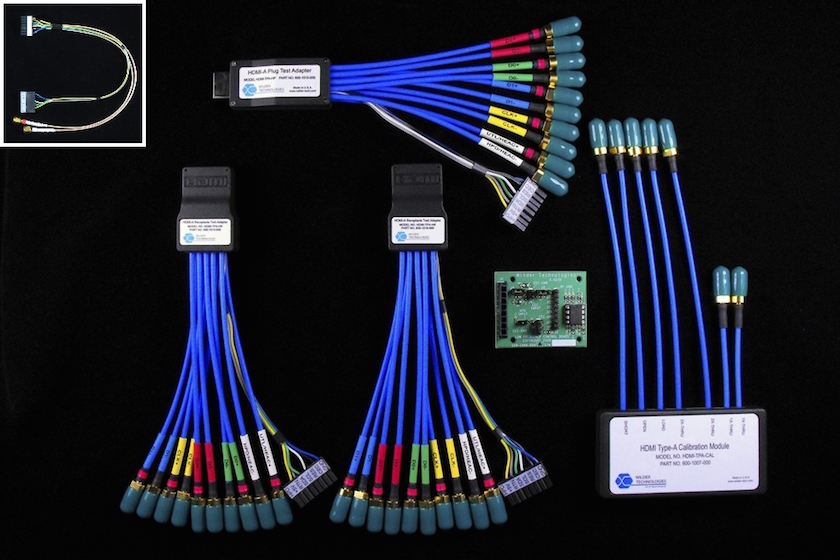

HDMI测试适配器和测试夹具套件促进源和汇合规测试和HDMI电缆测试。我们的产品用于认证测试CEA 1.3b, 1.4a, 2.0和2.1的标准。支持1080p和4K格式。我们提供A和D型插头和插座连接器，公和母SMA引线，带和不带HEAC通道。
HDMI
HDMI Type-A V2.1
HDMIA2.1-TPA-PPRT測試適配器用於HDMI 2.1 CTS信號源(TX) 、接收器(RX) 和Cat2 / Cat3 電纜測試。
购物车 HDMI Type-A V2.1
HDMI

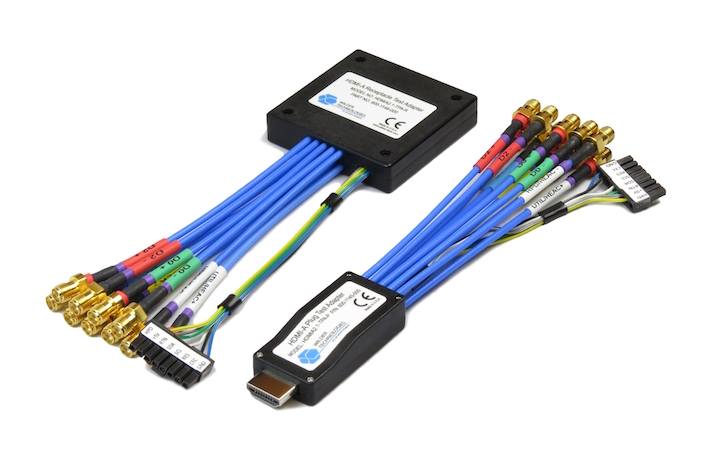

HDMI Type-A V2.0
The HDMIA-TPA-PRRE test adapter kit or test fixture kit facilitate HDMI Source and Sink compliance testing. The fixture kit also facilitates HDMI cable testing.
购物车 HDMI Type-A V2.0
HDMI
HDMI Type-A HEAC
The HDMIA-TPA-HPRRCE test adapter kit or test fixture kit facilitate HDMI v1.4 CTS Source and Sink compliance testing. The fixture kit also facilitates HDMI cable testing.
购物车 HDMI Type-A HEAC
HDMI

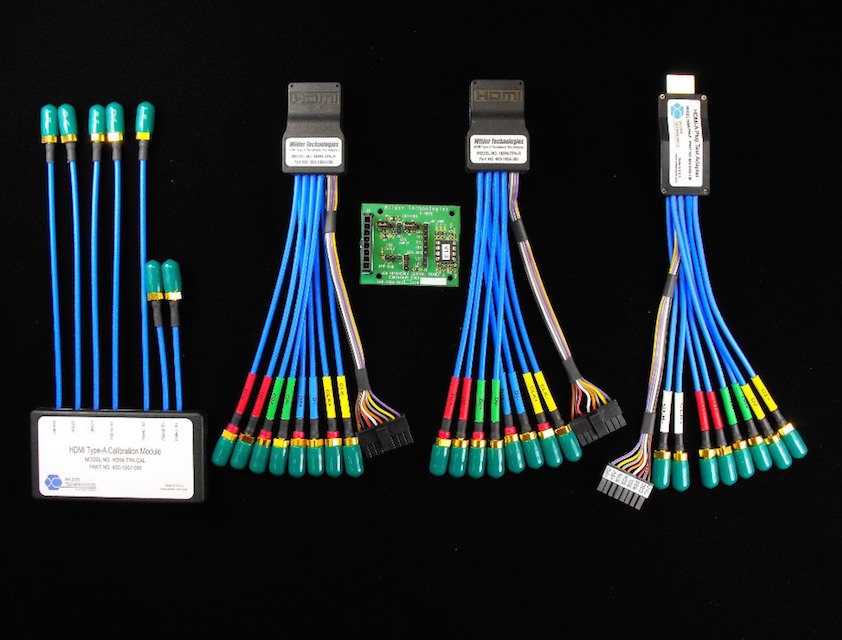

HDMI Type-A V1.3
The HDMIA-TPA-PRRCE test adapter kit or test fixture kit facilitate HDMI v1.3 CTS Source and Sink compliance testing. The fixture kit also facilitates HDMI cable testing.
购物车 HDMI Type-A V1.3
HDMI

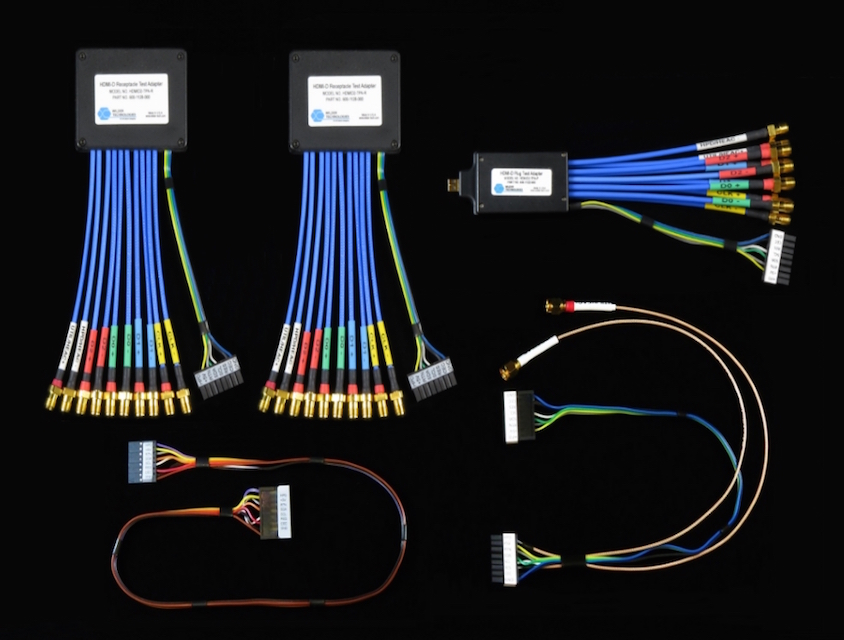

HDMI Type-D V2.0
The HDMID2-TPA-PRR test adapter or test fixture kit facilitate HDMI CTS Source and Sink compliance testing. The fixture kit also facilitates HDMI-D 2.0 cable testing.
购物车 HDMI Type-D V2.0
HDMI
HDMI FRL/EDID V2.1

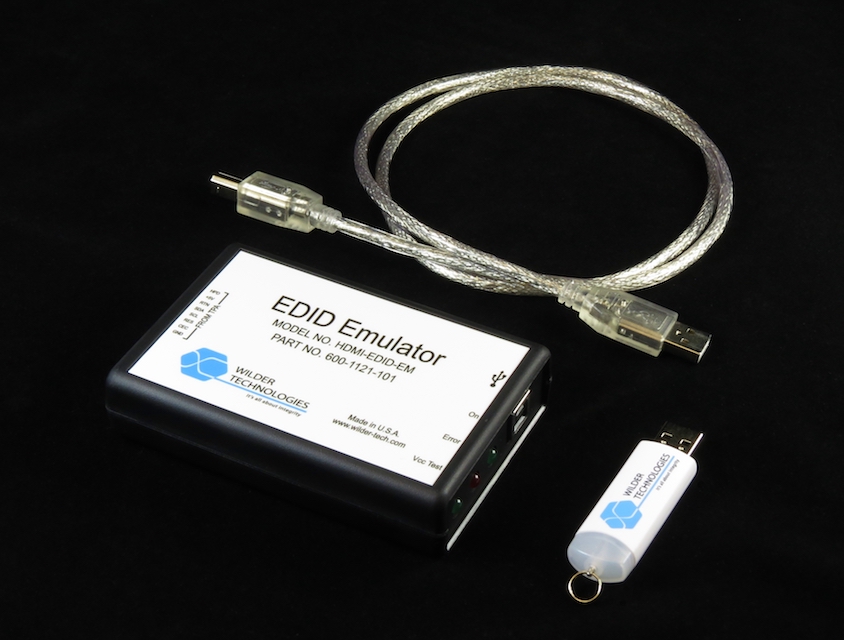

With ever-growing performance and accuracy required by HDMI® 2.1 solutions, Wilder offers a robust source and sink emulator to support comprehensive EDID testing. Our unique solution supports SCDC source and sink emulation including the 2.1 addition of FRL mode. Product includes Windows-based UI and API.
购物车 HDMI FRL/EDID V2.1
关键词:
操作手册和数据手册
机械结构图
中国区授权代理：
1、昆山大隽电子
地址：江苏省昆山市人民南路1168号2号楼613室
电话（Tel）：0512-5737 5152
邮箱（Mail）Service@dgtek.com.cn
2、苏州创显电子科技有限公司
电话：18550213169
邮箱：soong@szpodar.cn
地址：苏州工业园区中新大道西128号加城大厦9楼A-15室
3、筑波网络科技(苏州)有限公司 中国总部
苏州办公室:
联络窗口: 杨小姐 Yuki Yang
电话: 0512 89188620
传真: 0512 89188630
电邮: sales@acesolution.com.cn
地址: 江苏省苏州市工业园区苏雅路388号新天翔商业广场2幢1602室, 215021
网址: www.acesolution.com.cn
地图: 如何到新天翔商业广场
深圳办公室:
联络窗口: 林小姐 Linh Lin
电话: 0755 29351095#804
传真: 0755 29474450
18923751783 蔡小姐 Mandy Cai
WeChat ID：AceSolutionTec 行销部
电邮: sales@acesolution.com.cn
地址: 广东省深圳市南山区高新南六路泰邦科技大厦9楼906室
网址: www.acesolution.com.cn
筑波科技股份有限公司
联络窗口: 李先生 Peter Lee
电话: +886 3 5500909 ext.3801 /+886 983139307
电邮: service@acesolution.com.tw
地址: 新竹县竹北市生医二路66号 筑波医电大楼(新竹生医园区); 30261
网址: www.acesolution.com.tw
型号
HDMI-TPA-T
零件号
640-0408-000
Qty. 1 - HDMI Termination Module
Qty. 1 - 3FT USB Type-A to Type-B Cable (p/n 420-0001-000)
$1,288.00
型号
HDMIA2.1-TPA-P
零件号
640-0860-000
Qty. 1 - HDMI Type-A 2.1 Plug Adapter
10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
1 - 8 Position Low Speed Cable and Connector
Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000)
$5,305.00
型号
HDMIA2.1-TPA-12MP
零件号
640-0860-300
Qty. 1 - HDMI Type-A 2.1 Plug Adapter
10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs
1 - 8 Position Low Speed Cable and Connector
Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000)
$5,305.00
型号
HDMIA2.1-TPA-R
零件号
640-0861-000
Qty. 1 - HDMI Type-A 2.1 Receptacle Adapter
10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
1 - 8 Position Low Speed Cable and Connector
$4,742.00
型号
HDMIA2.1-TPA-12MR
零件号
640-0861-300
Qty. 1 - HDMI Type-A 2.1 Receptacle Adapter
10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs
1 - 8 Position Low Speed Cable and Connector
$4,742.00
型号
HDMIA2.1-TPA-PR
零件号
640-0862-000
Qty. 1 - HDMI Type-A 2.1 Plug Adapter
10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
1 - 8 Position Low Speed Cable and Connector
Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000)
Qty. 1 - HDMI Type-A 2.1 Receptacle Adapter
10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
1 - 8 Position Low Speed Cable and Connector
$9,947.00
型号
HDMIA2.1-TPA-12MPR
零件号
640-0862-300
Qty. 1 - HDMI Type-A 2.1 Plug Adapter
10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs
1 - 8 Position Low Speed Cable and Connector
Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000)
Qty. 1 - HDMI Type-A 2.1 Receptacle Adapter
10 - High Performance Phase Aligned 12" Adapter Coaxial Cables w/ Male SMAs
1 - 8 Position Low Speed Cable and Connector
$9,947.00
型号
HDMIA2.1-TPA-PRR
零件号
640-0863-000
Qty. 1 - HDMI Type-A 2.1 Plug Adapter
10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
1 - 8 Position Low Speed Cable and Connector
Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000)
Qty. 2 - HDMI Type-A 2.1 Receptacle Adapter
10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
1 - 8 Position Low Speed Cable and Connector
$14,530.00
型号
HDMIA2.1-TPA-RR
零件号
640-0864-000
Qty. 2 - HDMI Type-A 2.1 Receptacle Adapter
10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
1 - 8 Position Low Speed Cable and Connector
$9,389.00
型号

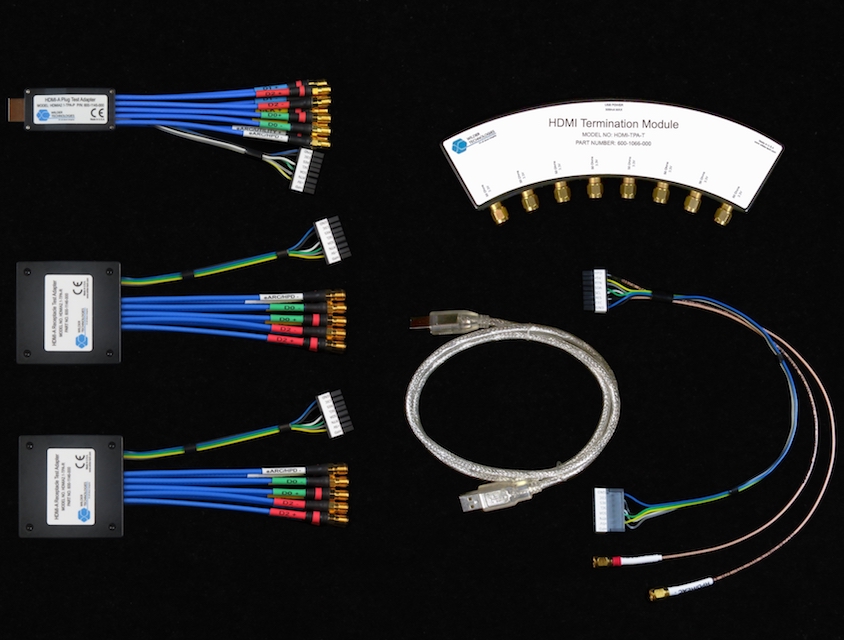

HDMIA2.1-TPA-PRRT
零件号
640-0865-000
Qty. 1 - HDMI Type-A 2.1 Plug Adapter
10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
1 - 8 Position Low Speed Cable and Connector
Cable Assy, Adapter, HDMI-A HEAC to EDID (415-0028-000)
Qty. 2 - HDMI Type-A 2.1 Receptacle Adapter
10 - High Performance Phase Aligned 6" Adapter Coaxial Cables w/ Female SMAs
1 - 8 Position Low Speed Cable and Connector
Qty. 1 - HDMI Termination Board
Qty. 1 - 3FT USB Type-A to Type-B Cable (p/n 420-0001-000)
$15,766.00
