MS27100A 9kHz至6GHz频谱监测模块|安立 (在产)

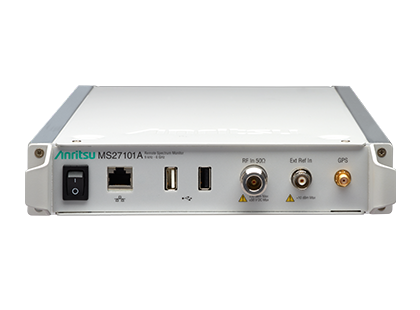

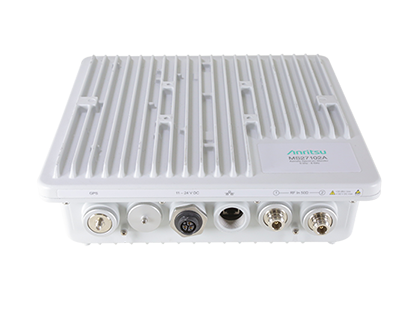

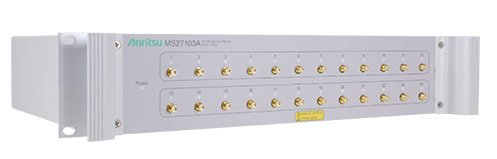

Specifications MS27100A

Remote Spectrum Monitor

Frequency

• Frequency Range: 9 kHz to 6 GHz (tunable to 0 Hz)

• Tuning Resolution: 1 Hz

• Frequency Reference Accuracy: ±1.5 ppm (25 °C ± 25 °C), ±1.0 ppm/year aging, < ±50 ppb with GPS on

• Frequency Span: 10 Hz to 6 GHz

Sweep Speed

• Typical (full span FFT mode): 10 kHz RBW 5 GHz/s, 30 kHz RBW 12 GHz/s, 3 MHz RBW 24 GHz/s

Bandwidth Resolution

• Bandwidth (RBW): 10 Hz to 3 MHz in 1–3 sequence (–3 dB bandwidth)

• Video Bandwidth (VBW): 10 Hz to 3 MHz in 1–3 sequence (–3 dB bandwidth) (auto or manually selectable)

Spectral Purity

• SSB Phase Noise: @ 1 GHz (–98 dBc/Hz) @ 10 kHz offset (–98 dBc/Hz) @ 100 kHz offset

Amplitude Ranges

• Dynamic Range: >106 dB at 2.4 GHz), 2/3 (TOI-DANL) in 1 Hz RBW

• Measurement Range: DANL to Maximum Continuous Input Reference Level Range

• Attenuator Range: 0 dB to 50 dB in 5 dB steps

• Amplitude Units: Log Scale Modes: dBm, dBµV

Amplitude Accuracy

• Attenuation ≤ 40 dB, preamp off for frequencies less than 100 kHz 9 kHz to 6.0 GHz ± 2.5 dB

Displayed Average Noise Level (DANL)

• RBW normalized to 1 Hz, 0 dB attenuation




• 		Preamp Off,Reference Level -20 dBm                           Preamp  On,Reference  Level-50  dBm Max(dBm)                            Typical (dBm)                       Max(dBm)                            Typical (dBm)
  10 MHz to 3.3 GHz      -145                    -150                     -162                     -165
  >3.3 GHz to 4.1 GHz     -140                     -145                     -159                     -162
  >4.1 GHzto 5 GHz      -138                    -143                     -156                     -160
  	>5 GHz to 6GHz      -128                     -136                     -146                     -154

Spurs

• Typical Residual Spurious (< –80 dBm) RF input terminated, 0 dB input attenuation, preamp off, > 10 MHz (< –95 dBm) RF input terminated, 0 dB input attenuation, preamp on, > 10 MHz (< –88 dBm) RF input terminated, 0 dB input attenuation, preamp on, 16 MHz to 18 MHz

• Input-Related Spurious < –60 dBc, 0 dB attenuation, –30 dBm input, carrier offset > 5 MHz

Second Harmonic Distortion

• Typical; 0 dB attenuation, –30 dBm input 50 MHz (–50 dBc) > 50 MHz to 200 MHz < –60 dBc > 200 MHz to 3000 MHz < –60 dBc

Third-Order Intercept (TOI)

• Typical; preamp off, –20 dBm tones 100 kHz apart, 0 dB attenuation, reference level –20 dBm 800 MHz (+7 dBm) 2400 MHz (+17 dBm) 200 to 2200 MHz (+10 dBm) > 2.2 GHz to 5.0 GHz (+8 dBm) > 5.0 GHz to 6.0 GHz (+14 dBm)

Maximum Continuous Input

• 100 MHz to 6 GHz, ≥ 10 dB attenuation +30 dBm, ±50 VDC

• a. For lower frequencies, derate maximum continuous input by 6 dB per decade

• 300 kHz to 6 GHz, < 10 dB attenuation +10 dBm, ±50 VDC 9 kHz to 6 GHz, preamp on –10 dBm, ±50 VDC

Preamp

• Off, Reference Level –20 dBm

• On, Reference Level –50 dBm

• 10 MHz to 3.3 GHz > 3.3 GHz to 4.1 GHz > 4.1 GHz to 5 GHz > 5 GHz to 6 GHz

• Max (dBm) –145 –140 –138 –128

• Typical (dBm) –150 –145 –143 –136

VSWR

• < 2.5:1 typical

Signal Processing

• Data Types: I/Q time series: 8, 10, 16 or 24 bit resolution, Spectrum trace: 100 to 4000 points

• Data Transfer Modes: I/Q time series or spectrum trace in streaming or block mode

• I/Q Data Streaming Rate: Gapless on 100Base-T network, Up to 2.6 MHz signal bandwidth

• I/Q Data Time Stamp Resolution: 8.7 ns

I/Q Recording Time

• Typical

Output Data Rate

General Specifications

• Setup Parameters

  • System Status: Temperature, Serial Number, Firmware Version, Options Installed, Self Test, Application Self Test, GPS System Options: Name, Date and Time, Reset (Factory Defaults, Master Reset, Update Firmware)

  • Directory Management: Sort Method (Name/Type/Date), Ascend/Descend, Internal/USB, Copy Internal Trace/Setup Memory: 4 GB internal memory available for storing files

  • Mode Switching: Automatically stores/recalls most recently used setup parameters in the mode

• Connectors

  • RF In: One type N, female port, 50 Ω; Two, four, or six type N, female ports, 50 Ω (Option 402, 404, or 406)

  • External Power: 11 W, 11 V to 24 V, 3-pin IP67 power connector

  • Ethernet: 1 RJ45 connector for Gbit LAN (ruggedized and weatherproof)

  • GPS: SMA(f)

• Regulatory Compliance

  • European Union: EMC 2014/30/EU, EN 61326:2013, CISPR 11/EN 55011, IEC/EN 61000-4-2/3/4/5/6/8/11, Low Voltage Directive 2014/35/EU, Safety EN 61010-1:2010

  • RoHS Directive 2011/65/EU applies to instruments with CE marking placed on the market after July 22, 2017

  • Australia and New Zealand: RCM AS/NZS 4417:2012

  • South Korea: KCC-REM-A21-0004

  • Canada: ICES-1(A)/NMB-1(A)

• Environmental

  • MIL-PRF-28800F Class 2

  • Operating Temperature Range: –40 ºC to 55 ºC

  • Storage Temperature Range: –51 ºC to 71 ºC

  • Maximum Relative Humidity: 95 % RH at 30 ºC, non-condensing

  • Vibration: Sinusoidal 5 Hz to 55 Hz, Random 10 Hz to 500 Hz Half Sine

  • Shock: 30 gn

  • Altitude: 4600 meters, operating and non-operating

  • Explosive Atmosphere: MIL-PRF-28800F, Section 4.5.6.3, MIL-STD-810G, Method 511.5, Procedure 1

  • ESD RF Input Pin: Withstands up to ±4 kV

• Size and Weight

• • Weight: 0.93 kg (15.2 lb)

• Warranty

  • Instrument: Standard three-year warranty
