    Matsusada Precision Inc. · 电子负载

    EGS 可编程直流电子负载

    18 V / 36 V / 60 V · 2 A / 5 A / 10 A · 75 W
    18 V / 36 V / 60 V
    电压
    2 A / 5 A / 10 A
    电流
    75 W
    功率
    产品定位

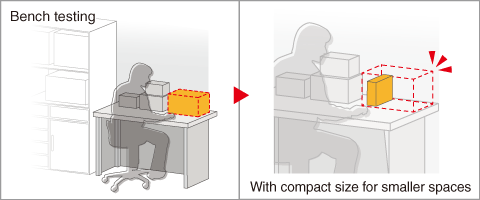

    The EGS series is an ultra-compact DC electronic load featuring a slim 35 mm width,

    making it ideal for space-constrained benchtop and automated test system environments. This compact profile allows for high-density mounting of up to 10 units in a standard 19-inch rack. Combined with a master-slave function for synchronized control of up to 16 units,

    you can build space-saving and efficient multi-channel test systems. Equipped with Constant Current (CC),

    Constant Resistance (CR), and Constant Voltage (CV) modes, it flexibly supports a wide range of applications,

    including DC/DC converter and battery evaluation. Support your cutting-edge R&D with the quality and reliability of a product Made in Japan.

    核心参数
    · EGS75W-18V
    – Rated voltage：18 V
    – Rated current：10 A
    – Rated power：75 W
    · EGS75W-36V
    – Rated voltage：36 V
    – Rated current：5 A
    · EGS75W-60V
    – Rated voltage：60 V
    – Rated current：2 A
    ·
    – Standard ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    功能与特点
    · Master-slave function allows synchronized control of up to 16 units
    · High-resolution settings with 1 mA increments (depending on the model)
    · Four operation modes: Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), and CC + CV
    典型应用
    · 电源测试
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 EGS-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 电子负载

    EGS 可编程直流电子负载 · 详细指标

    18 V / 36 V / 60 V · 2 A / 5 A / 10 A · 75 W
    产品简介

    The EGS series is an ultra-compact DC electronic load featuring a slim 35 mm width,

    making it ideal for space-constrained benchtop and automated test system environments. This compact profile allows for high-density mounting of up to 10 units in a standard 19-inch rack. Combined with a master-slave function for synchronized control of up to 16 units,

    完整技术指标
    · EGS75W-18V
    – Rated voltage：18 V
    – Rated current：10 A
    – Rated power：75 W
    · EGS75W-36V
    – Rated voltage：36 V
    – Rated current：5 A
    · EGS75W-60V
    – Rated voltage：60 V
    – Rated current：2 A
    ·
    – Standard ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。
