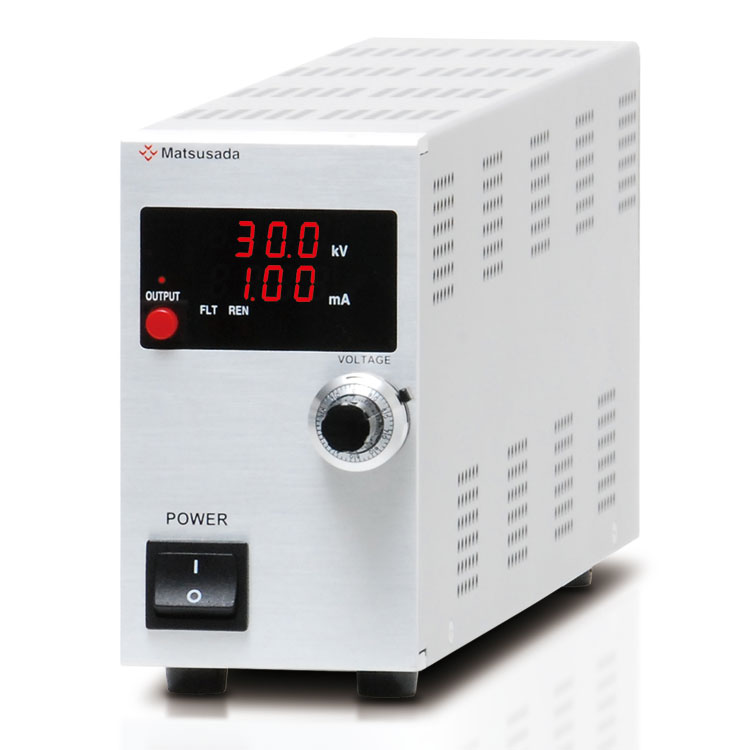

    The EPR series is a line of compact, high-power, high-voltage power supplies delivering up to 30 kV and 150 W from a slim 84 mm wide form factor. For enhanced reliability in noisy environments, optional fiber optic interfaces prov。
    • «
    • 1

    EP PMT 高压 电源|松田精密 (在产)

    The EP series is a high-performance high-voltage power supply designed for Photomultiplier Tubes (PMT) and electron multipliers. Despite its compact width of just 212 mm (8.35 inches), the unit integrates a high-voltage output wit。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    EP PMT 高压电源

    2 to 5 kV · 1 to 2 mA
    产品定位

    The EP series is a high-performance high-voltage power supply designed for Photomultiplier Tubes (PMT) and electron multipliers. Despite its compact width of just 212 mm (8.35 inches),

    the unit integrates a high-voltage output with preamplifier power outputs (±15 V and ±5 V). With ultra-low ripple noise down to 15 mVp-p on the high-voltage output,

    the EP series ensures stable performance for precision applications. Additionally,

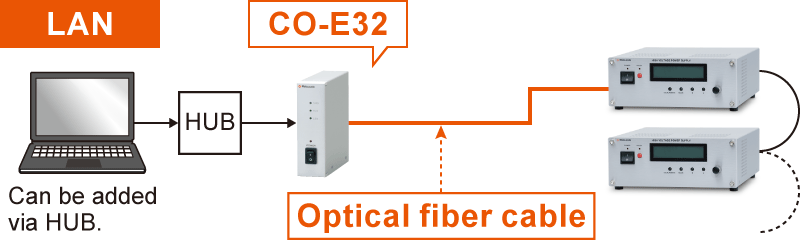

    isolated digital control is available by selecting the optical interface option (-LGob).

    核心参数
    · ：Model ｜Maximum Output ｜Ripple
    · ：Voltage；Current
    · EP-2P2：0 to +2 kVdc；2 mA；15 mVp-p
    · EP-5P1：0 to +5 kVdc；1 mA；50 mVp-p
    · ：Model ｜Maximum Output ｜Ripple
    · ：Voltage；Current
    · EP-2N2：0 to -2 kVdc；2 mA；15 mVp-p
    · EP-5N1：0 to -5 kVdc；1 mA；50 mVp-p
    ·
    – Standard ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE3 (for the input of 200 V)
    – 250 V/10 A
    – 2.5 meters Fixed length
    功能与特点
    · Integrated preamplifier power outputs (±15 V, ±5 V)
    · Compact, space-saving benchtop design
    · Ultra-compact design, leading in its class
    · Large 4-digit digital display
    · Comprehensive protection circuits
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 EP-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    EP PMT 高压电源 · 详细指标

    2 to 5 kV · 1 to 2 mA
    产品简介

    The EP series is a high-performance high-voltage power supply designed for Photomultiplier Tubes (PMT) and electron multipliers. Despite its compact width of just 212 mm (8.35 inches),

    the unit integrates a high-voltage output with preamplifier power outputs (±15 V and ±5 V). With ultra-low ripple noise down to 15 mVp-p on the high-voltage output,

    完整技术指标
    · ：Model ｜Maximum Output ｜Ripple
    · ：Voltage；Current
    · EP-2P2：0 to +2 kVdc；2 mA；15 mVp-p
    · EP-5P1：0 to +5 kVdc；1 mA；50 mVp-p
    · ：Model ｜Maximum Output ｜Ripple
    · ：Voltage；Current
    · EP-2N2：0 to -2 kVdc；2 mA；15 mVp-p
    · EP-5N1：0 to -5 kVdc；1 mA；50 mVp-p
    ·
    – Standard ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE3 (for the input of 200 V)
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE4 (for the input of 200 V)
    – 250 V/10 A
    – 2.5 meters Fixed length
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。

    全部



    松田精密官方渠道


    厂家联系方式

    公司：Matsusada Precision Inc.（松田精密株式会社）

    国际/日本：TEL +81-6-6150-5088　FAX +81-6-6150-5089

    美国（北卡罗来纳）：TEL (704) 496-2644　FAX (704) 496-2643
