    K7 0 至 10 kV高压电源|松田精密 (在产)

    The K7 series is a compact, chassis-mount high-voltage power supply module engineered for ultra-low noise and exceptional stability. With a 7 W output, it is an ideal choice for precision applications such as Scanning Electron Mic。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

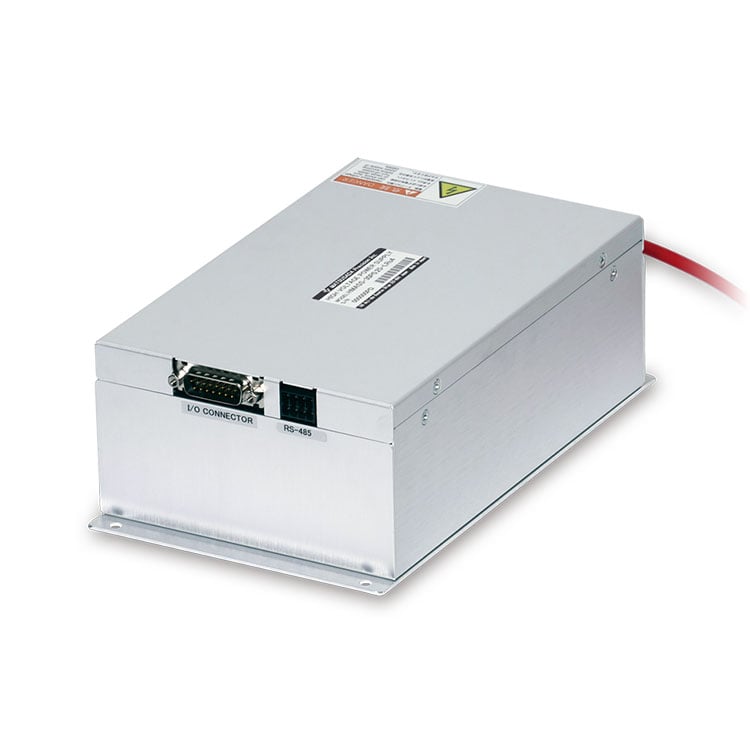

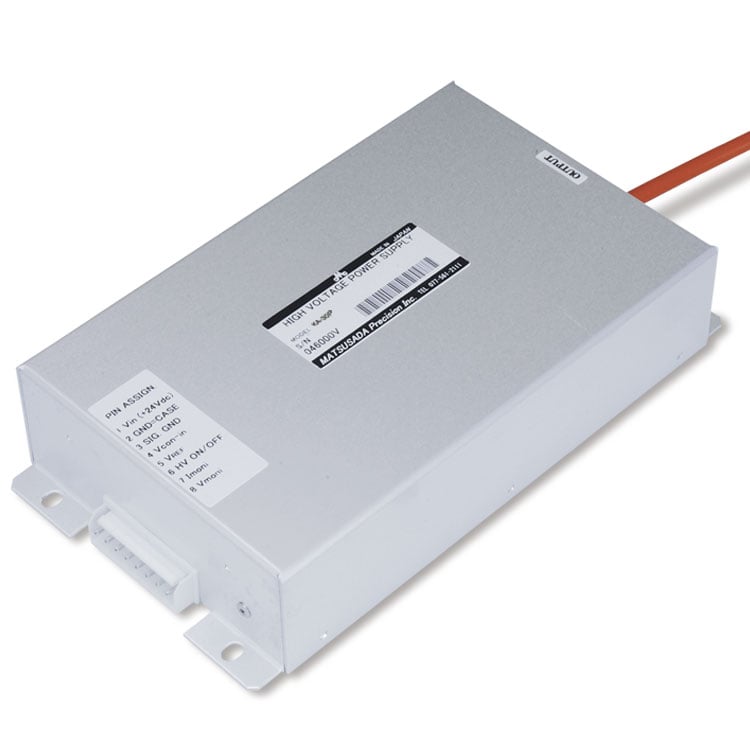

    K7 高压电源

    250 µA to 700 µA · 7 W
    产品定位

    The K7 series is a compact,

    chassis-mount high-voltage power supply module engineered for ultra-low noise and exceptional stability. With a 7 W output,

    it is an ideal choice for precision applications such as Scanning Electron Microscopy (SEM) and Mass Spectrometry (MS). The series ensures stable performance for biasing,

    deflecting, and focusing electron and ion beams, supporting high-resolution analysis and inspection.

    核心参数
    · K7-10P
    – Output voltage [kV]：0 to 10 kV
    – Output current [µA]：700 µA
    – Ripple [p-p]：100 mV
    · K7-15P
    – Output voltage [kV]：0 to 15 kV
    – Output current [µA]：450 µA
    – Ripple [p-p]：150 mV
    · K7-20P
    – Output voltage [kV]：0 to 20 kV
    – Output current [µA]：350 µA
    – Ripple [p-p]：200 mV
    · K7-30P
    – Output voltage [kV]：0 to 30 kV
    – Output current [µA]：250 µA
    – Ripple [p-p]：300 mV
    · K7-10N
    – Output voltage [kV]：0 to 10 kV
    – Output current [µA]：700 µA
    – Ripple [p-p]：100 mV
    · K7-15N
    – Output voltage [kV]：0 to 15 kV
    – Output current [µA]：450 µA
    – Ripple [p-p]：150 mV
    · K7-20N
    – Output voltage [kV]：0 to 20 kV
    – Output current [µA]：350 µA
    – Ripple [p-p]：200 mV
    · K7-30N
    – Output voltage [kV]：0 to 30 kV
    – Output current [µA]：250 µA
    – Ripple [p-p]：300 mV
    功能与特点
    · Optimized for Precision Instruments: Ideal for Scanning Electron Microscopes (SEM) and Mass Spectrometry (MS).
    · High Stability: 0.001% / 5 min (after warm-up).
    · Ultra-Low Noise: 0.001% p-p ripple performance.
    · Monitoring Functions: Equipped with output voltage and output current monitoring.
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 K7-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    K7 高压电源 · 详细指标

    250 µA to 700 µA · 7 W
    产品简介

    The K7 series is a compact,

    chassis-mount high-voltage power supply module engineered for ultra-low noise and exceptional stability. With a 7 W output,

    完整技术指标
    · K7-10P
    – Output voltage [kV]：0 to 10 kV
    – Output current [µA]：700 µA
    – Ripple [p-p]：100 mV
    · K7-15P
    – Output voltage [kV]：0 to 15 kV
    – Output current [µA]：450 µA
    – Ripple [p-p]：150 mV
    · K7-20P
    – Output voltage [kV]：0 to 20 kV
    – Output current [µA]：350 µA
    – Ripple [p-p]：200 mV
    · K7-30P
    – Output voltage [kV]：0 to 30 kV
    – Output current [µA]：250 µA
    – Ripple [p-p]：300 mV
    · K7-10N
    – Output voltage [kV]：0 to 10 kV
    – Output current [µA]：700 µA
    – Ripple [p-p]：100 mV
    · K7-15N
    – Output voltage [kV]：0 to 15 kV
    – Output current [µA]：450 µA
    – Ripple [p-p]：150 mV
    · K7-20N
    – Output voltage [kV]：0 to 20 kV
    – Output current [µA]：350 µA
    – Ripple [p-p]：200 mV
    · K7-30N
    – Output voltage [kV]：0 to 30 kV
    – Output current [µA]：250 µA
    – Ripple [p-p]：300 mV
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
