    SignalPro信号生成软件是集射频／中频／基带（RF/IF/IQ）信号生成和编辑于一体的高集成度、全信号类型并支持复杂电磁环境生成的软件工具。现代通信、雷达、复杂电磁环境、跳频系统、导航设备在研发过程中都需要产生复杂的调制信号、脉冲信号、复杂电磁环境信号来进行系统的性能验证和测试，SignalPro通过填表式生成各类复杂调制信号——用户无需了解信号机理，只需填入所需信号的基本参数信息即可方便快捷一键式生成所需波形。

    同厂商产品

    The DigiCon series is a remote control software designed to manage Matsusada Precision power supplies via LAN connectivity. It enables the centralized control of multiple units simultaneously or individually streamlining operation。

    PSS2en 自动化测试软件|松田精密 (在产)

    The PSS2en series allows for intuitive yet powerful sequence programming for Matsusada Precision power supplies, electronic loads, and digital controllers. Designed to integrate multiple units, the software enables synchronized co。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 软件定制与开发

    PSS2en 自动化测试软件

    Following Models are all supported. · R4K-36 series · R4K-80 series
    Following Models are all supported.
    PSS2en-DCPS
    R4K-36 series
    PSS2en-R4K36
    R4K-80 series
    PSS2en-R4K80
    RK-80 series * 1
    PSS2en-RK80
    R4G/R4GN series * 1
    PSS2en-R4G
    R4GT series * 1
    PSS2en-R4GT
    产品定位

    The PSS2en series allows for intuitive yet powerful sequence programming for Matsusada Precision power supplies,

    electronic loads, and digital controllers. Designed to integrate multiple units,

    the software enables synchronized control across different product families,

    making it ideal for comprehensive system testing.

    This software is suitable for aging tests of electronic components, accelerated life testing, burn-in,

    withstand voltage testing, dielectric breakdown testing, endurance testing,

    and various simulation cycles for automotive electrical components.

    核心参数
    · ：Model No. of PSS2en series ｜Models supported
    · ：Model No. of PSS2en series ｜Models supported
    · PSS2en-DCPS：Following Models are all supported.
    · PSS2en-R4K36：R4K-36 series
    · PSS2en-R4K80：R4K-80 series
    · PSS2en-RK80：RK-80 series * 1
    · PSS2en-R4G：R4G/R4GN series * 1
    · PSS2en-R4GT：R4GT series * 1
    · PSS2en-RK：RK series
    · PSS2en-TB：TB series
    功能与特点

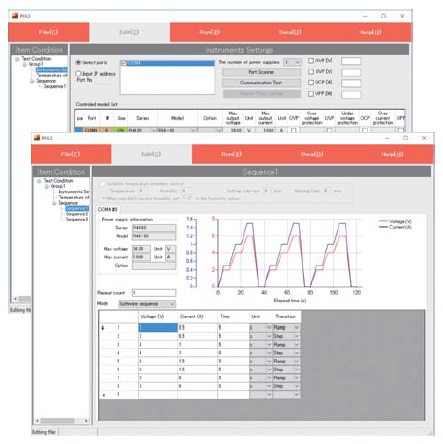

    · Simple settings of different operation modes enable various sequence programming.

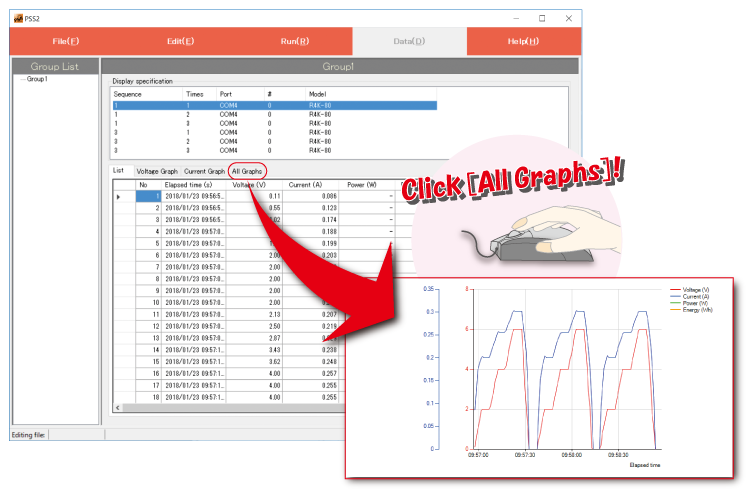

    · The Monitoring function allows real-time storage of log data.
    · Group control on 512 units and individual control by sequence programming.
    · Environmental testing in conjunction with ESPEC's temperature chambers allows for continuous variation of the DUT's (Device Under Test) temperature and humidity.
    · Group control on multiple types of power supplies and electronic loads is available in the single application software.

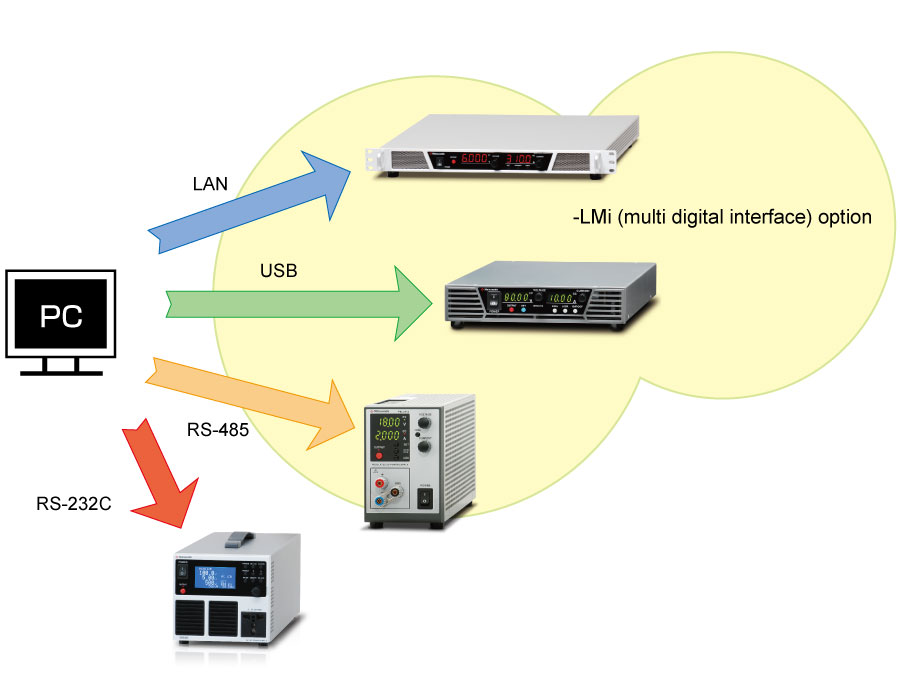

    · Supports communication interface via not only RS-232C but also LAN, USB, and RS-485
    · Remote and direct control of the output voltage and current of power supplies is available.
    典型应用
    · 自动化测试软件
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 PSS2en-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 软件定制与开发

    PSS2en 自动化测试软件 · 详细指标

    Following Models are all supported. · R4K-36 series · R4K-80 series
    产品简介

    The PSS2en series allows for intuitive yet powerful sequence programming for Matsusada Precision power supplies,

    electronic loads, and digital controllers. Designed to integrate multiple units,

    完整技术指标
    · ：Model No. of PSS2en series ｜Models supported
    · ：Model No. of PSS2en series ｜Models supported
    · PSS2en-DCPS：Following Models are all supported.
    · PSS2en-R4K36：R4K-36 series
    · PSS2en-R4K80：R4K-80 series
    · PSS2en-RK80：RK-80 series * 1
    · PSS2en-R4G：R4G/R4GN series * 1
    · PSS2en-R4GT：R4GT series * 1
    · PSS2en-RK：RK series
    · PSS2en-TB：TB series
    · PSS2en-REKJ：REKJ series
    · PSS2en-REK：REK series
    · PSS2en-PVCE：PVCE series
    · PSS2en-RKT：RKT series
    · PSS2en-RE：RE series * 1
    · PSS2en-REH：REH series * 1
    · PSS2en-VOL：VOL series (discontinued)
    · ：Model No. of PSS2en series ｜Models supported
    · PSS2en-DCEL：Following Models are all supported.
    · PSS2en-EGS：EGS series
    · PSS2en-EGD：EGD series
    · PSS2en-EZD：EZD series
    · PSS2en-EHD：EHD series (discontinued)
    · ：Model No. of PSS2en series ｜Models supported
    · PSS2en-ACPS：Following Models are all supported.
    · PSS2en-DRJ：DRJ series * 1
    · PSS2en-DRS：DRS series
    · PSS2en-DRK * 2：DRK series * 1
    · ：Model No. of PSS2en series ｜Models supported
    · PSS2en-HVPS：Following Models are all supported.
    · PSS2en-EPR：EPR series * 1
    · PSS2en-AES * 2：AESS series
    · ：Model No. of PSS2en series ｜Models supported

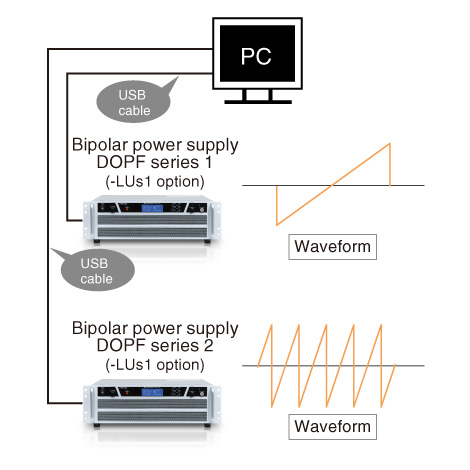

    · PSS2en-AMP：Following Models are all supported.
    · PSS2en-DJOPF：DJOPF series * 1
    · PSS2en-DOPF：DOPF series * 1
    · PSS2en-DOSF：DOSF series * 1
    · PSS2en-DOKF：DOKF series
    · PSS2en-DOEF：DOEF series (discontinued) * 1
    · ：Model No. of PSS2en series ｜Models supported

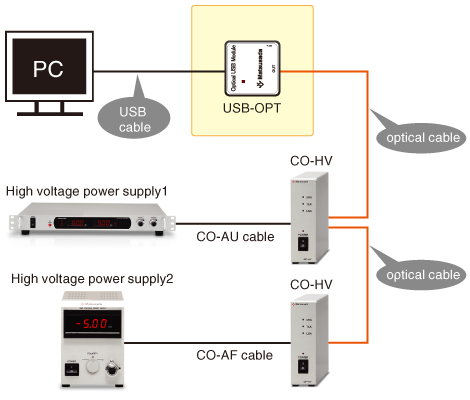

    · PSS2en-CO：Following Models are all supported.
    · PSS2en-CORG：RG series (discontinued) * 3
    · PSS2en-COHV：ES series * 1 * 3
    · ：AU series * 3
    · ：AUH series * 3
    · ：AE series * 1 * 3
    · ：AK series * 1
    · ：AKP series * 1
    · ：Model No. of PSS2en series ｜Models supported
    · PSS2en-COMS
    – All power supplies integrated with the CO-MS controller. CO-MS * 4
    Discontinued models
    · ：Model No. of PSS2en series ｜Models supported
    · PSS2en-ESLD Discontinued：AC Electronic Loads；ESLD series
    Operating Environment
    ·
    – OS * ｜Windows 11 (32/64 bit), 10 (32/64 bit), 8.1 (32/64bit), 8 (32/64bit) * We conducted the evaluation of the operating environment on Windows 10 Pro (Version 1909). The other operating systems have been checked, but we cannot guarantee their operation of them.
    · Language：English
    · CPU：Pentium 4 or higher
    · RAM：1 GB and larger
    · HDD：500 MB and larger free space
    · Display：1024 pixels x 768 pixels and higher resolution
    · Protection for software
    – 1 port or more (Connected USB Security Key is required.)
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。

    全部



    松田精密官方渠道


    厂家联系方式

    公司：Matsusada Precision Inc.（松田精密株式会社）

    国际/日本：TEL +81-6-6150-5088　FAX +81-6-6150-5089

    美国（北卡罗来纳）：TEL (704) 496-2644　FAX (704) 496-2643
