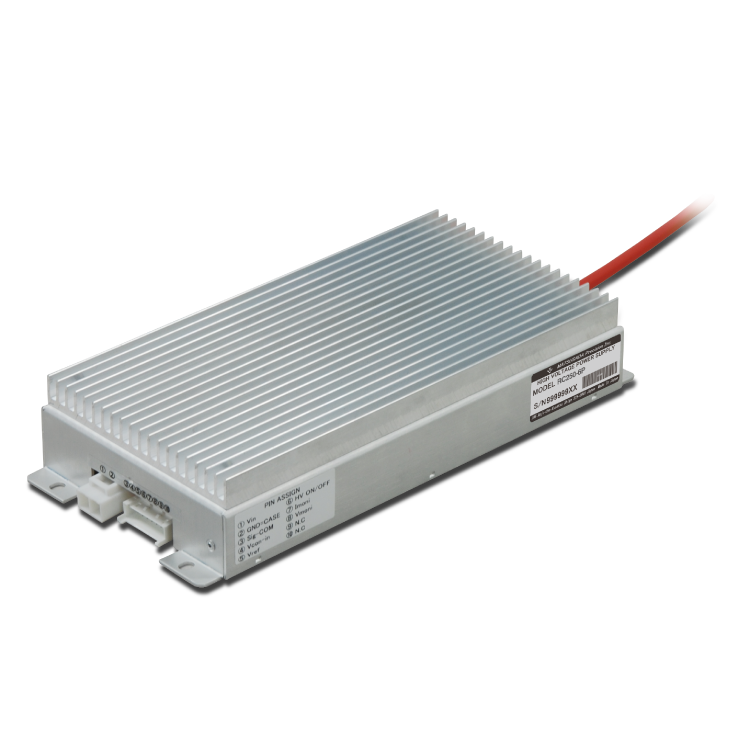

    The RC series is a high-performance high-voltage power supply module capable of delivering up to 250 W with low ripple. Despite its high power output, the series features a remarkably compact design, contributing to equipment mini。
    The RA/RB series is a line of compact, chassis-mount high-voltage power supply modules designed for high stability and low ripple. The series includes the RB model (low ripple) and the RA model (ultra-low ripple), allowing users t。
    The R4K-80 series is a programmable DC power supply designed for high precision and space efficiency. It features a newly added 4-digit digital meter and high-resolution D/A and A/D converters for precise setting and readback accu。
    • «
    • 1

    R4K-36 0 至 2 V / 0 至 0.1 A直流电源|松田精密 (在产)

    The R4K-36 series offers a high power density of 36 W in a compact, space-saving design. Despite its small footprint, this series delivers high performance and multifunctionality. With a current setting resolution of 0.1 mA, the R。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    R4K-36 直流电源

    0.2 W to 36 W
    产品定位

    The R4K-36 series offers a high power density of 36 W in a compact,

    space-saving design. Despite its small footprint,

    this series delivers high performance and multifunctionality. With a current setting resolution of 0.1 mA,

    the R4K-36 is ideal for applications requiring precise current control,

    such as the evaluation of LEDs and OLEDs.

    All models feature 4-digit voltage and current meters for precise monitoring. A standard digital interface enables easy integration into quality assurance systems and production lines.

    核心参数
    ·
    – Model ｜Output ｜Ripple *1 ｜Minimum setting unit *2 ｜AC input
    ·
    – Voltage [V]
    – Current [A]
    – Power [W]
    – Voltage [mVrms]
    – Current [mArms]
    – Voltage [mV]
    – Current [mA]
    – Voltage
    – Current [typ.]
    · ：115 V；230 V *3
    · R4K2-0.1
    – 0 to 2 V；0 to 0.1 A；0.2 W；1 mV；1 mA；1 mV；0.1 mA；115 V ±10% 230 V ±10% *3 50/60 Hz single-phase；0.1 A；0.05 A
    · R4K36-0.1
    – 0 to 36 V；0 to 0.1 A；3.6 W；2 mV；1 mA；10 mV；0.1 mA；0.5 A；0.25 A
    · R4K8-3
    – 0 to 8 V；0 to 3 A；24 W；4 mV；4 mA；1 mV；1 mA；1 A；0.5 A
    · R4K6-4
    – 0 to 6 V；0 to 4 A；24 W；5 mV；8 mA；1 mV；1 mA；1 A；0.5 A
    · R4K40-0.6
    – 0 to 40 V；0 to 0.6 A；24 W；3 mV；1 mA；10 mV；0.1 mA；1 A；0.5 A
    · R4K36-1
    – 0 to 36 V；0 to 1 A；36 W；5 mV；5 mA；10 mV；1 mA；1 A；0.5 A
    · R4K18-2
    – 0 to 18 V；0 to 2 A；36 W；5 mV；5 mA；10 mV；1 mA；1 A；0.5 A
    功能与特点
    · Compact and light-weight space-saving design
    · Output current controlling in units of 0.1mA
    · Excellent quietness with natural air-cooling system
    · Unique low noise power conversion technology for research application

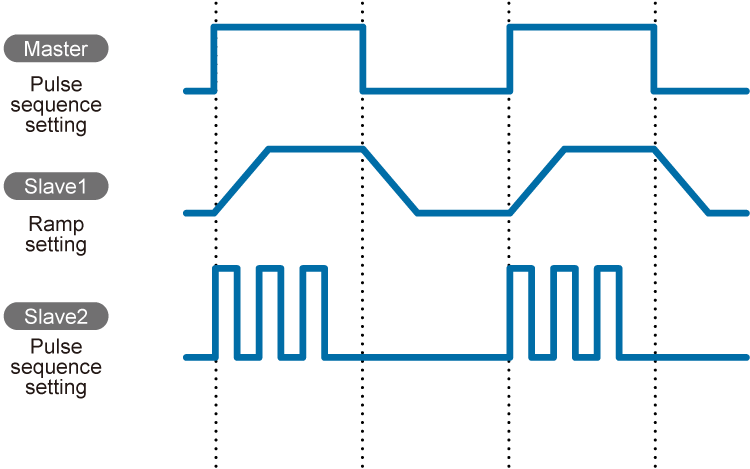

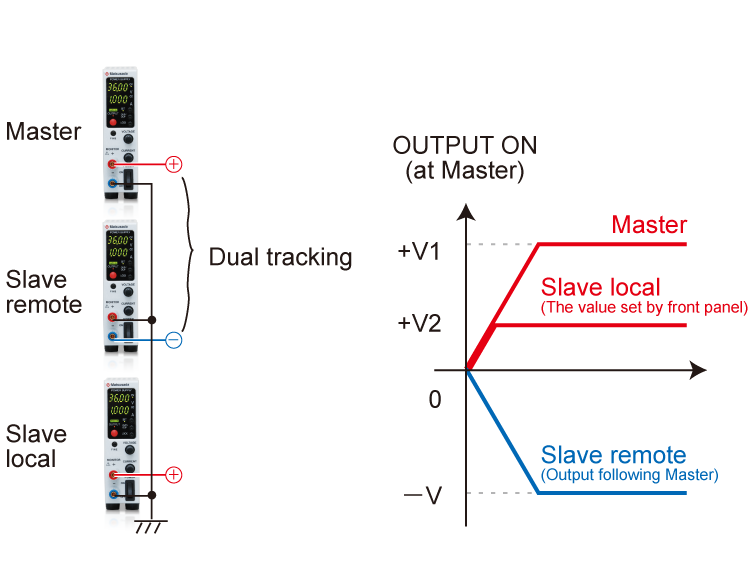

    · Multiple units operation with master-slave and digital interface
    · Very quiet due to the adopting natural air-cooling system without a cooling fan Suitable for applications requiring quietness
    · Four-digit meter
    · High resolution D/A, A/D converter integrated
    典型应用
    · 实验室供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 R4K-36-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    R4K-36 直流电源 · 详细指标

    0.2 W to 36 W
    产品简介

    The R4K-36 series offers a high power density of 36 W in a compact,

    space-saving design. Despite its small footprint,

    完整技术指标
    ·
    – Model ｜Output ｜Ripple *1 ｜Minimum setting unit *2 ｜AC input
    ·
    – Voltage [V]
    – Current [A]
    – Power [W]
    – Voltage [mVrms]
    – Current [mArms]
    – Voltage [mV]
    – Current [mA]
    – Voltage
    – Current [typ.]
    · ：115 V；230 V *3
    · R4K2-0.1
    – 0 to 2 V；0 to 0.1 A；0.2 W；1 mV；1 mA；1 mV；0.1 mA；115 V ±10% 230 V ±10% *3 50/60 Hz single-phase；0.1 A；0.05 A
    · R4K36-0.1
    – 0 to 36 V；0 to 0.1 A；3.6 W；2 mV；1 mA；10 mV；0.1 mA；0.5 A；0.25 A
    · R4K8-3
    – 0 to 8 V；0 to 3 A；24 W；4 mV；4 mA；1 mV；1 mA；1 A；0.5 A
    · R4K6-4
    – 0 to 6 V；0 to 4 A；24 W；5 mV；8 mA；1 mV；1 mA；1 A；0.5 A
    · R4K40-0.6
    – 0 to 40 V；0 to 0.6 A；24 W；3 mV；1 mA；10 mV；0.1 mA；1 A；0.5 A
    · R4K36-1
    – 0 to 36 V；0 to 1 A；36 W；5 mV；5 mA；10 mV；1 mA；1 A；0.5 A
    · R4K18-2
    – 0 to 18 V；0 to 2 A；36 W；5 mV；5 mA；10 mV；1 mA；1 A；0.5 A
    Various Digital Control Functions
    · ：Control function ｜Output ON/OFF setting
    ·
    – Status output (fault/output/OVP/OCP/OT/ACF/reversible sense connection)

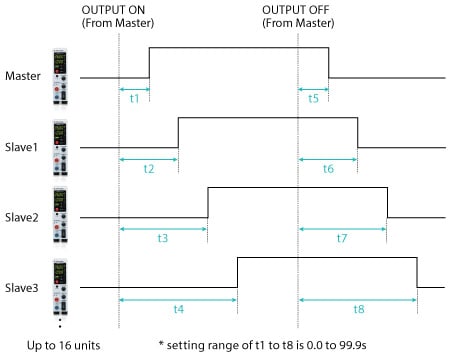

    · ：Maximum 16 units digital control
    · ：Collective control function for multiple units
    · Write function
    – Output voltage setting Output current setting；Percent mode (100.00%) * voltage current value mode (maximum rated voltage and current value)
    ·
    – OVP setting OCP setting；Percent mode (100.0%) voltage current value mode (overvoltage/overcurrent protection value)
    · Reading function
    – Output voltage reading Output current reading；Percent mode (100.00%) *voltage current value mode (maximum rated voltage and current value)
    ·
    – Output voltage setting Output current setting；Percent mode (100.00%) *voltage current value mode (maximum rated voltage and current value)
    ·
    – OVP setting/OCP setting；Percent mode (100.0%) voltage current value mode (overvoltage/overcurrent protection value)
    ·
    – Standard ｜CABLE TYPE1 ｜125 V / 10 A ｜2.5 meters
    · -L(200V)/-L(230V) option
    – CABLE TYPE3
    – 250 V / 10 A
    – 2.5 meters
    · Sold separately
    – CABLE TYPE4
    – 250 V / 10 A
    – 2.5 meters
    · Sold separately
    – CABLE TYPE13
    – 250 V / 10 A
    – 2.5 meters
    · Sold separately
    – CABLE TYPE20
    – 250 V / 10 A
    – 2.5 meters
