    SEM 高压 电源|松田精密 (在产)

    The SEM Series is a multi-output high-voltage power supply engineered specifically for electron guns in Scanning Electron Microscopes (SEMs). The compact module integrates outputs for the accelerator, extractor, suppressor, and fi。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    SEM SEM 高压电源

    0 to -30 kV
    产品定位

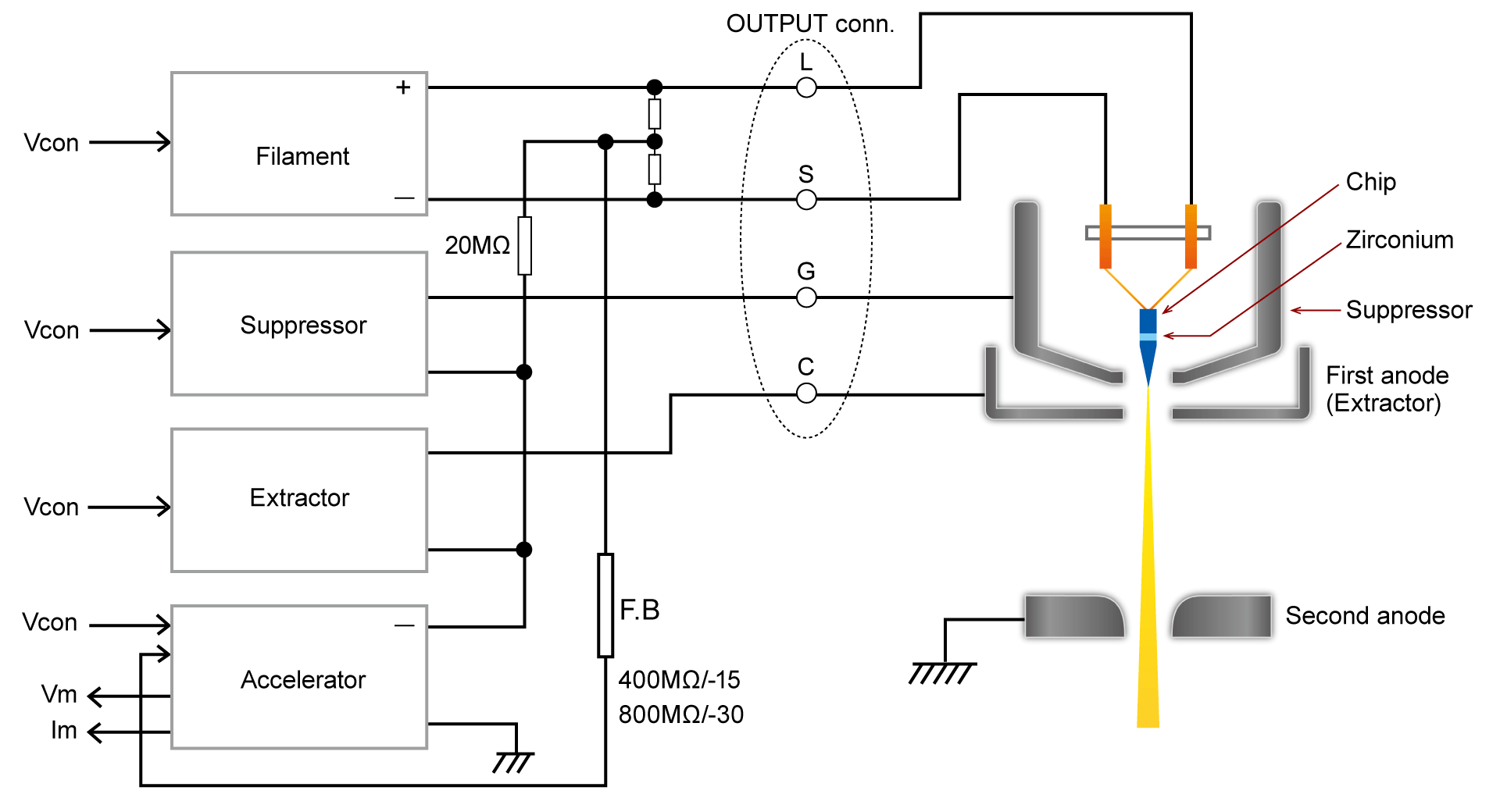

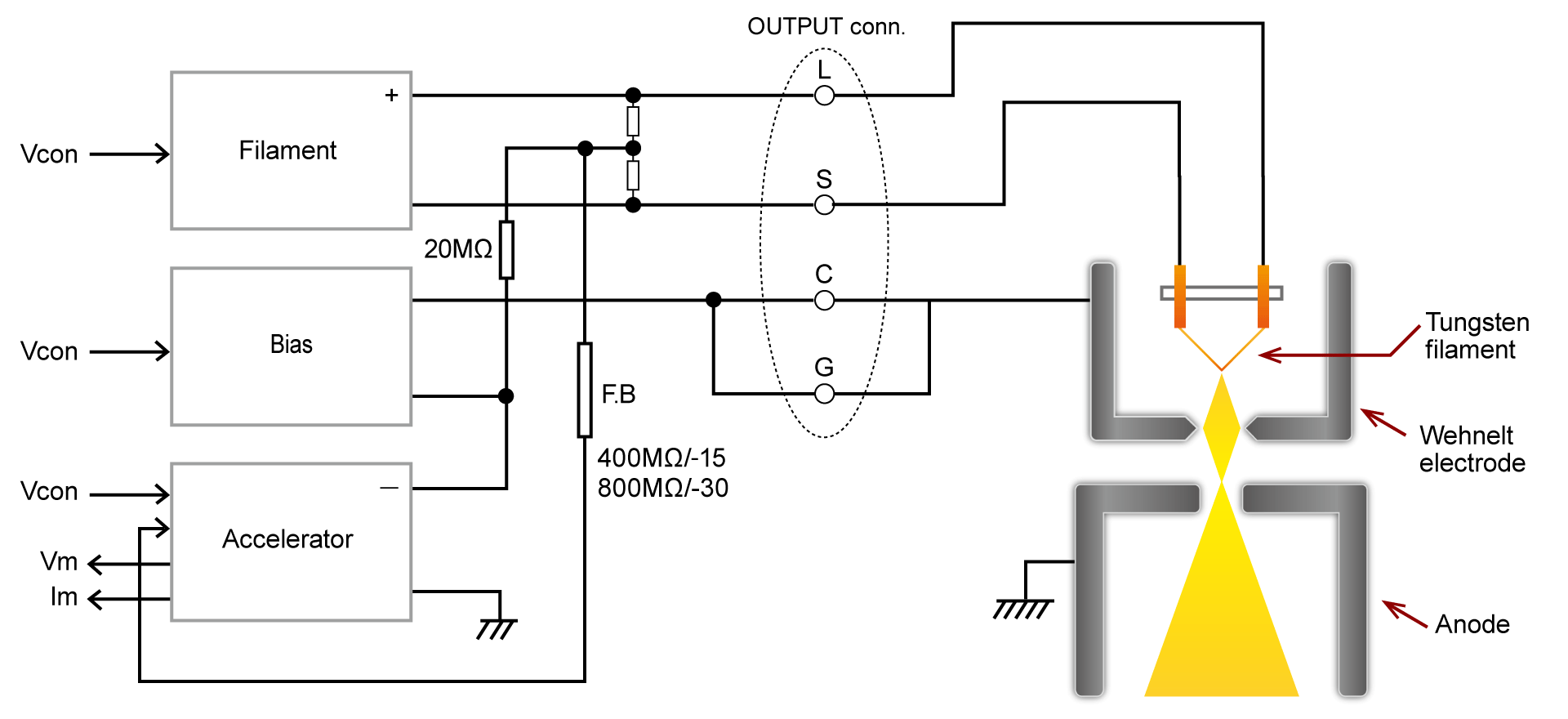

    The SEM Series is a multi-output high-voltage power supply engineered specifically for electron guns in Scanning Electron Microscopes (SEMs). The compact module integrates outputs for the accelerator,

    extractor, suppressor,

    and filament. It supports standard Tungsten hairpin and Lanthanum Hexaboride (LaB6) emitters. Additionally,

    an optional suppressor output enables compatibility with Schottky field emission guns,

    making the series suitable for high-resolution semiconductor wafer inspection systems,

    such as CD-SEMs and review SEMs. We also offer customization services to meet specific electron gun configurations for OEM integration. Please feel free to contact us.

    核心参数
    · ：Model ｜Output voltage
    ·
    – Accelerating power supply
    – Biasing (Extractor) power supply
    – Power supply for suppressor S03 (option)
    – Filament power supply
    · SEM-15
    – 0 to -15 kV
    – 0 to +3.5 kV
    – 0 to -300 V
    – 5 V max
    · SEM-30：0 to -30 kV
    ADDITIONAL ACCESSORIES
    · -LS03 option selected
    – CN-SEM4P：CN-SEM4P-S03
    – Output cable with plug (flying lead)：Output cable with plug (flying lead)
    – 1.5 meters length：1.5 meters length
    功能与特点
    · Ultra-low ripple noise with 5 ppm high stability output
    · Compact footprint ideal for system integration
    · Contributes to high-resolution SEM imaging
    · Includes overcurrent and output short-circuit protection
    · Available customization for your electron gun configuration
    · Integrates acceleration, bias, and filament outputs in a single unit
    · Optional output available for suppressor
    · Supports Schottky emission electron guns (optional)
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 SEM-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    SEM SEM 高压电源 · 详细指标

    0 to -30 kV
    产品简介

    The SEM Series is a multi-output high-voltage power supply engineered specifically for electron guns in Scanning Electron Microscopes (SEMs). The compact module integrates outputs for the accelerator,

    extractor, suppressor,

    完整技术指标
    · ：Model ｜Output voltage
    ·
    – Accelerating power supply
    – Biasing (Extractor) power supply
    – Power supply for suppressor S03 (option)
    – Filament power supply
    · SEM-15
    – 0 to -15 kV
    – 0 to +3.5 kV
    – 0 to -300 V
    – 5 V max
    · SEM-30：0 to -30 kV
    ADDITIONAL ACCESSORIES
    · -LS03 option selected
    – CN-SEM4P：CN-SEM4P-S03
    – Output cable with plug (flying lead)：Output cable with plug (flying lead)
    – 1.5 meters length：1.5 meters length
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。

    全部



    松田精密官方渠道


    厂家联系方式

    公司：Matsusada Precision Inc.（松田精密株式会社）

    国际/日本：TEL +81-6-6150-5088　FAX +81-6-6150-5089

    美国（北卡罗来纳）：TEL (704) 496-2644　FAX (704) 496-2643
