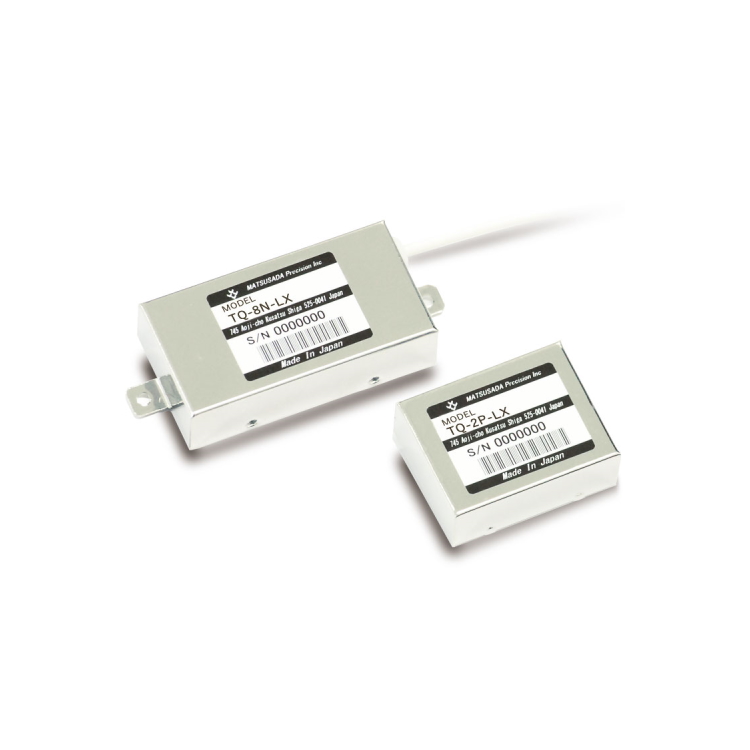

    The TQ series consists of ultra-compact, PCB-mount DC-DC high-voltage power supplies designed for precision applications. With an output range of 0.2 kV to 8 kV, these modules feature six-sided metal shielding to ensure low ripple。
    The TP series consists of high-performance DC-DC converters designed specifically for biasing Avalanche Photodiodes (APDs) and photodetectors. With an ultra-compact footprint and lightweight design, these modules are easy to integ。
    The TN series is a PCB-mount high-voltage power supply module designed for precision applications. Balancing a compact form factor with high performance, the series delivers outputs up to 5 kV and 2 W. Its small footprint makes it。
    • «
    • 1

    TM 0 至 0.8 kV高压电源|松田精密 (在产)

    The TM series is a compact, high-stability high-voltage power supply module ideal for OEM integration and laboratory applications. With ultra-low ripple and well-regulated output, it ensures precision performance for sensitive equ。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    TM 高压电源

    0.5 to 2 mA · 1.5 W
    产品定位

    The TM series is a compact,

    high-stability high-voltage power supply module ideal for OEM integration and laboratory applications. With ultra-low ripple and well-regulated output,

    it ensures precision performance for sensitive equipment. The module features full metal shielding to suppress electromagnetic noise. Additionally,

    all models are equipped with arc and continuous short-circuit protection for safe and reliable operation.

    核心参数
    · ：Model ｜Output ｜Ripple [mVp-p]
    ·
    – Voltage [kVdc]
    – Current [mA]
    – Minimum load * [MΩ]
    · TM-0.8P：0 to 0.8 kV；2 mA；0.2 MΩ；2 mVp-p
    · TM-1.1P
    – 0 to 1.1 kV
    – 1.5 mA
    – 0.37 MΩ
    · TM-1.5P：0 to 1.5 kV；1 mA；0.75 MΩ；3 mVp-p
    · TM-2P
    – 0 to 2 kV
    – 0.8 mA
    – 1.25 MΩ
    – 7 mVp-p
    · TM-3P：0 to 3 kV；0.5 mA；3 MΩ；20 mVp-p
    · ：Model ｜Output ｜Ripple [mVp-p]
    ·
    – Voltage [kVdc]
    – Current [mA]
    – Minimum load * [MΩ]
    · TM-0.8N：0 to -0.8 kV；2 mA；0.2 MΩ；2 mVp-p
    功能与特点
    · Compact PCB-mount design
    · Low ripple, high stability, and well-regulated output
    · Low noise performance with full metal shielding
    · Wide input voltage range (11 V to 16 V DC)
    · Output control via external potentiometer or control voltage
    · Enhanced reliability with continuous short-circuit and arc protection
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 TM-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    TM 高压电源 · 详细指标

    0.5 to 2 mA · 1.5 W
    产品简介

    The TM series is a compact,

    high-stability high-voltage power supply module ideal for OEM integration and laboratory applications. With ultra-low ripple and well-regulated output,

    完整技术指标
    · ：Model ｜Output ｜Ripple [mVp-p]
    ·
    – Voltage [kVdc]
    – Current [mA]
    – Minimum load * [MΩ]
    · TM-0.8P：0 to 0.8 kV；2 mA；0.2 MΩ；2 mVp-p
    · TM-1.1P
    – 0 to 1.1 kV
    – 1.5 mA
    – 0.37 MΩ
    · TM-1.5P：0 to 1.5 kV；1 mA；0.75 MΩ；3 mVp-p
    · TM-2P
    – 0 to 2 kV
    – 0.8 mA
    – 1.25 MΩ
    – 7 mVp-p
    · TM-3P：0 to 3 kV；0.5 mA；3 MΩ；20 mVp-p
    · ：Model ｜Output ｜Ripple [mVp-p]
    ·
    – Voltage [kVdc]
    – Current [mA]
    – Minimum load * [MΩ]
    · TM-0.8N：0 to -0.8 kV；2 mA；0.2 MΩ；2 mVp-p
    · TM-1.1N
    – 0 to -1.1 kV
    – 1.5 mA
    – 0.37 MΩ
    · TM-1.5N：0 to -1.5 kV；1 mA；0.75 MΩ；3 mVp-p
    · TM-2N
    – 0 to -2 kV
    – 0.8 mA
    – 1.25 MΩ
    – 7 mVp-p
    · TM-3N：0 to -3 kV；0.5 mA；3 MΩ；20 mVp-p
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。

    全部



    松田精密官方渠道


    厂家联系方式

    公司：Matsusada Precision Inc.（松田精密株式会社）

    国际/日本：TEL +81-6-6150-5088　FAX +81-6-6150-5089

    美国（北卡罗来纳）：TEL (704) 496-2644　FAX (704) 496-2643
