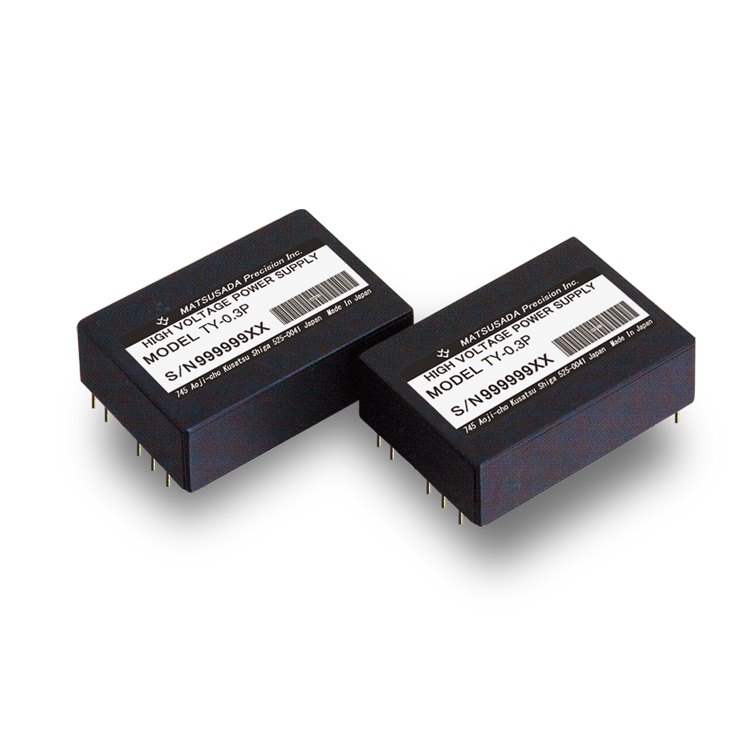

    The TY Series consists of high-voltage DC-DC converters designed specifically for biasing Avalanche Photodiodes (APDs). The compact, PCB-mountable design facilitates integration into high-density electronic systems.
    The TU-M Series is an ultra-compact high-voltage power supply module designed to convert a 5 Vdc input into an output of up to 1.2 kV. Engineered for high reliability and low noise, this series is optimized for Photomultiplier Tub。
    The TS series is an ultra-compact, PCB-mount high-voltage power supply optimized for Avalanche Photodiode (APD) reverse bias applications. This regulated DC-DC converter accepts a 12 Vdc input and provides a stable output of up to。
    • «
    • 1

    TR 高压电源|松田精密 (在产)

    The TR series is a PCB-mount high-voltage power supply module designed specifically for biasing Avalanche Photodiodes (APD) and PIN photodiodes. It features a built-in temperature compensation circuit to ensure stable gain (multip。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    TR 高压电源

    0.2 to 1 mA · 0.05 to 3 W
    产品定位

    The TR series is a PCB-mount high-voltage power supply module designed specifically for biasing Avalanche Photodiodes (APD) and PIN photodiodes. It features a built-in temperature compensation circuit to ensure stable gain (multiplication factor) performance,

    even in environments with fluctuating temperatures. Avalanche Photodiodes are highly sensitive to temperature changes. The TR series addresses this by applying temperature compensation to the bias voltage,

    stabilizing the APD's multiplication factor. The module delivers low ripple and high stability,

    making it ideal for precision measurements. Output voltage can be adjusted via an external control voltage or a potentiometer.

    核心参数
    · TR-0.05P
    – Max. Output Voltage [Vdc]：50 V
    – Rated load [kΩ]：50 kΩ
    – Ripple [mVp-p]：Less than 10 mVp-p，Input Voltage [Vdc]：5 V，Input Current [mA]：50 mA
    · TR-0.1P
    – Max. Output Voltage [Vdc]：100 V
    – Rated load [kΩ]：100 kΩ
    – Input Current [mA]：65 mA
    · TR-0.2P
    – Max. Output Voltage [Vdc]：200 V
    – Rated load [kΩ]：200 kΩ
    – Input Current [mA]：90 mA
    · TR-0.3P
    – Max. Output Voltage [Vdc]：300 V
    – Rated load [kΩ]：300 kΩ
    – Input Current [mA]：120 mA
    · TR-0.5P
    – Max. Output Voltage [Vdc]：500 V
    – Rated load [kΩ]：1000 kΩ
    – Ripple [mVp-p]：Less than 20mVp-p，Input Current [mA]：150 mA
    · TR-0.7P
    – Max. Output Voltage [Vdc]：700 V
    – Rated load [kΩ]：3500 kΩ
    – Input Current [mA]：150 mA
    · TR-0.8P
    – Max. Output Voltage [Vdc]：800 V
    – Rated load [kΩ]：4000 kΩ
    – Input Current [mA]：150 mA
    · TR-0.05N
    – Max. Output Voltage [Vdc]：-50 V
    – Rated load [kΩ]：50 kΩ
    – Ripple [mVp-p]：Less than 10 mVp-p，Input Voltage [Vdc]：5 V，Input Current [mA]：50 mA
    · TR-0.1N
    – Max. Output Voltage [Vdc]：-100 V
    – Rated load [kΩ]：100 kΩ
    – Input Current [mA]：65 mA
    · TR-0.2N
    – Max. Output Voltage [Vdc]：-200 V
    – Rated load [kΩ]：200 kΩ
    – Input Current [mA]：90 mA
    功能与特点
    · Ultra-compact size: Minimizes required PCB mounting area.
    · Temperature compensation: Stabilizes APD multiplication factor against temperature drifts.
    · Versatile control: Supports output voltage adjustment via external voltage or potentiometer.
    · High performance: Low ripple and high stability output.
    · Easy integration: 5 Vdc input operation and PCB-mountable design.
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 TR-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    TR 高压电源 · 详细指标

    0.2 to 1 mA · 0.05 to 3 W
    产品简介

    The TR series is a PCB-mount high-voltage power supply module designed specifically for biasing Avalanche Photodiodes (APD) and PIN photodiodes. It features a built-in temperature compensation circuit to ensure stable gain (multiplication factor) performance,

    even in environments with fluctuating temperatures. Avalanche Photodiodes are highly sensitive to temperature changes. The TR series addresses this by applying temperature compensation to the bias voltage,

    完整技术指标
    · TR-0.05P
    – Max. Output Voltage [Vdc]：50 V
    – Rated load [kΩ]：50 kΩ
    – Ripple [mVp-p]：Less than 10 mVp-p，Input Voltage [Vdc]：5 V，Input Current [mA]：50 mA
    · TR-0.1P
    – Max. Output Voltage [Vdc]：100 V
    – Rated load [kΩ]：100 kΩ
    – Input Current [mA]：65 mA
    · TR-0.2P
    – Max. Output Voltage [Vdc]：200 V
    – Rated load [kΩ]：200 kΩ
    – Input Current [mA]：90 mA
    · TR-0.3P
    – Max. Output Voltage [Vdc]：300 V
    – Rated load [kΩ]：300 kΩ
    – Input Current [mA]：120 mA
    · TR-0.5P
    – Max. Output Voltage [Vdc]：500 V
    – Rated load [kΩ]：1000 kΩ
    – Ripple [mVp-p]：Less than 20mVp-p，Input Current [mA]：150 mA
    · TR-0.7P
    – Max. Output Voltage [Vdc]：700 V
    – Rated load [kΩ]：3500 kΩ
    – Input Current [mA]：150 mA
    · TR-0.8P
    – Max. Output Voltage [Vdc]：800 V
    – Rated load [kΩ]：4000 kΩ
    – Input Current [mA]：150 mA
    · TR-0.05N
    – Max. Output Voltage [Vdc]：-50 V
    – Rated load [kΩ]：50 kΩ
    – Ripple [mVp-p]：Less than 10 mVp-p，Input Voltage [Vdc]：5 V，Input Current [mA]：50 mA
    · TR-0.1N
    – Max. Output Voltage [Vdc]：-100 V
    – Rated load [kΩ]：100 kΩ
    – Input Current [mA]：65 mA
    · TR-0.2N
    – Max. Output Voltage [Vdc]：-200 V
    – Rated load [kΩ]：200 kΩ
    – Input Current [mA]：90 mA
    · TR-0.3N
    – Max. Output Voltage [Vdc]：-300 V
    – Rated load [kΩ]：300 kΩ
    – Input Current [mA]：120 mA
    · TR-0.5N
    – Max. Output Voltage [Vdc]：-500 V
    – Rated load [kΩ]：1000 kΩ
    – Ripple [mVp-p]：Less than 20 mVp-p，Input Current [mA]：150 mA
    · TR-0.7N
    – Max. Output Voltage [Vdc]：-700 V
    – Rated load [kΩ]：3500 kΩ
    – Input Current [mA]：150 mA
    · TR-0.8N
    – Max. Output Voltage [Vdc]：-800 V
    – Rated load [kΩ]：4000 kΩ
    – Input Current [mA]：150 mA
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
