    Matsusada Precision Inc. · 直流电源

    XKG X-Ray 电源

    0.21 to 67 mA · 15 to 4000 W
    产品定位

    The XKg series is a highly stable,

    low-ripple positive-polarity power supply designed for X-ray tubes. It features an integrated filament supply to ensure consistent X-ray output. Comprehensive safety features,

    including interlocks, are built-in for reliable operation. Digital control via LAN, USB, GPIB, RS-232C,

    and RS-485 is supported when used with our optical communication adapter.

    核心参数
    · ：Model ｜Output
    · ：Voltage；Current；Power
    · XKg-30P0.5：30 kV；0.5 mA；15 W
    · XKg-30P1：1 mA；30 W
    · XKg-30P2：2 mA；60 W
    · XKg-30P3.3：3.3 mA；100 W
    · XKg-40P0.5：40 kV；0.5 mA；20 W
    · XKg-40P0.75：0.75 mA；30 W
    · XKg-40P1.5：1.5 mA；60 W
    · XKg-40P2.5：2.5 mA；100 W
    功能与特点
    · Ideal for X-Ray Fluorescence (XRF) analysis and Non-Destructive Testing (NDT)
    · Maximum output power: 4 kW
    · Designed for cathode-grounded X-ray tubes
    · Integrated filament power supply
    · Low ripple and high stability
    · Digital interface support
    · Constant voltage/current operation with comprehensive protection circuits
    · Closed-loop emission control
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 XKG-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    XKG X-Ray 电源 · 详细指标

    0.21 to 67 mA · 15 to 4000 W
    产品简介

    The XKg series is a highly stable,

    low-ripple positive-polarity power supply designed for X-ray tubes. It features an integrated filament supply to ensure consistent X-ray output. Comprehensive safety features,

    完整技术指标
    · ：Model ｜Output
    · ：Voltage；Current；Power
    · XKg-30P0.5：30 kV；0.5 mA；15 W
    · XKg-30P1：1 mA；30 W
    · XKg-30P2：2 mA；60 W
    · XKg-30P3.3：3.3 mA；100 W
    · XKg-40P0.5：40 kV；0.5 mA；20 W
    · XKg-40P0.75：0.75 mA；30 W
    · XKg-40P1.5：1.5 mA；60 W
    · XKg-40P2.5：2.5 mA；100 W
    · XKg-40P3.75：3.75 mA；150 W
    · XKg-50P0.6：50 kV；0.6 mA；30 W
    · XKg-50P1.2：1.2 mA；60 W
    · XKg-50P2：2 mA；100 W
    · XKg-50P3：3 mA；150 W
    · XKg-50P4：4 mA；200 W
    · XKg-60P0.5：60 kV；0.5 mA；30 W
    · XKg-60P1：1 mA；60 W
    · XKg-60P1.6：1.6 mA；100 W
    · XKg-60P2.5：2.5 mA；150 W
    · XKg-60P50：50 mA；3000 W
    · XKg-60P67：67 mA；4000 W
    · XKg-80P0.37：80 kV；0.37 mA；30 W
    · XKg-80P0.75：0.75 mA；60 W
    · XKg-80P1.25：1.25 mA；100 W
    · XKg-80P1.87：1.87 mA；150 W
    · XKg-80P40：40 mA；3200 W
    · XKg-80P50：50 mA；4000 W
    · XKg-100P0.3：100 kV；0.3 mA；30 W
    · XKg-100P0.6：0.6 mA；60 W
    · XKg-100P1：1 mA；100 W
    · XKg-100P1.5：1.5 mA；150 W
    · XKg-100P3：3 mA；300 W
    · XKg-120P0.25：120 kV；0.25 mA；30 W
    · XKg-120P0.5：0.5 mA；60 W
    · XKg-120P0.83：0.83 mA；100 W
    · XKg-120P1.25：1.25 mA；150 W
    · XKg-120P2.5：2.5 mA；300 W
    · XKg-140P0.21：140 kV；0.21 mA；30 W
    · XKg-140P0.42：0.42 mA；60 W
    · XKg-140P0.71：0.71 mA；100 W
    · XKg-140P1.07：1.07 mA；150 W
    · XKg-140P2.14：2.14 mA；300 W
    · XKg-160P0.62：160 kV；0.62 mA；100 W
    · XKg-160P0.93：0.93 mA；150 W
    · XKg-160P1.87：1.87 mA；300 W
    · Standard 15 W to 300 W model
    – Cable Type：CABLE TYPE1
    – Rated Voltage：125 V/10 A
    – Rated Maximum：2.5 meters Fixed length
    · Standard 15 W to 300 W model -L(200V) option
    – Cable Type：CABLE TYPE3
    – Rated Voltage：250 V/10 A
    – Rated Maximum：2.5 meters Fixed length
    · Sold separately 15 W to 300 W model -L(200V) option
    – Cable Type：CABLE TYPE5
    – Rated Voltage：300 V/25 A
    – Rated Maximum：2.5 meters
    · Sold separately 3000 W to 4000 W model
    – Cable Type：CABLE TYPE6
    – Rated Voltage：600 V/25 A
    – Rated Maximum：2.5 meters
    ·
    – Standard 30 kV model ｜CN-30-MHVP ｜2.5 meters (Specified length available)
    · Standard 40 kV model
    – CN-45-MHVP；2.5 meters (Specified length available)
    · Standard 50 kV and 60 kV model
    – CN-60-MHVP；2.5 meters (Specified length available)
    · Standard 80 kV to 120 kV model
    – CN-120AR-MHVP；2.5 meters (Specified length available)
    ·
    – Sold separately 40 kV and 160 kV model ｜CNXK-160-3P(5), CNXK-160-3P(10) ｜cable length (5): 5 meters (10): 10 meters
    ·

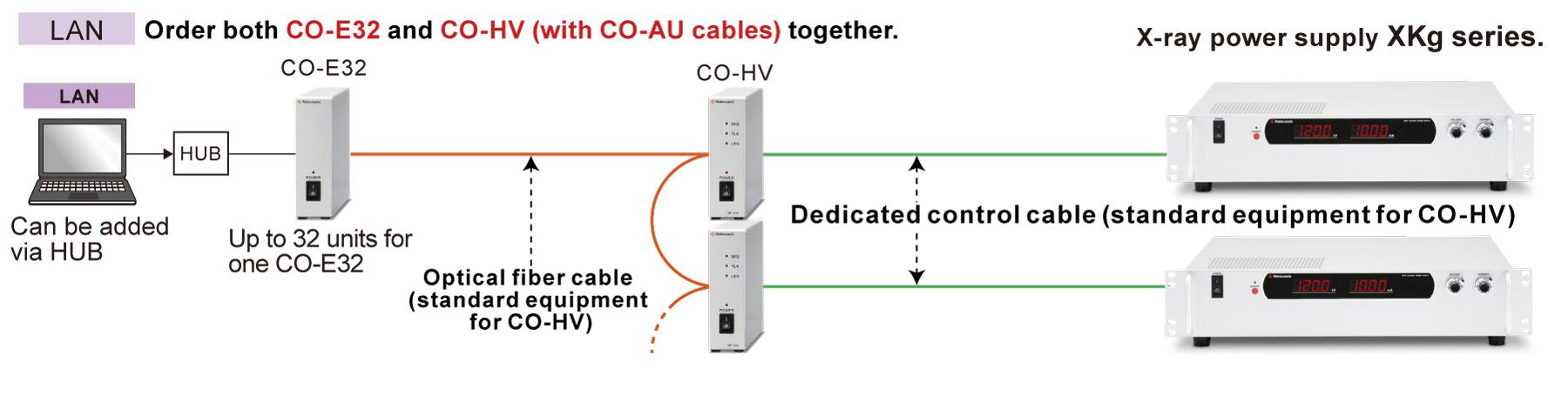

    – Application ｜Control of high voltage power supplies via LAN, USB, RS-232C, RS-485, or GPIB.
    · Connection
    – Using fiber optical cables, the adapter for each interface is connected to CO-HV units. With the dedicated control cable, the CO-HV units are connected to a high-voltage power supply AU series.
    · Number of unit
    – Up to 32 pairs with CO-HV unit and high voltage power supply are available. With GPIB, by setting the address, you can connect a maximum of 448 high-voltage power supply units (14 addresses × 32 units).
    · Features
    – The communication system is well suited for such situations where there is a distance between the computer and the high voltage power supply or noisy environments. Also, it is especially ideal for use in combination with DC power supplies. The standard cable length is two meters, and it can be optionally extended up to 40 meters.
