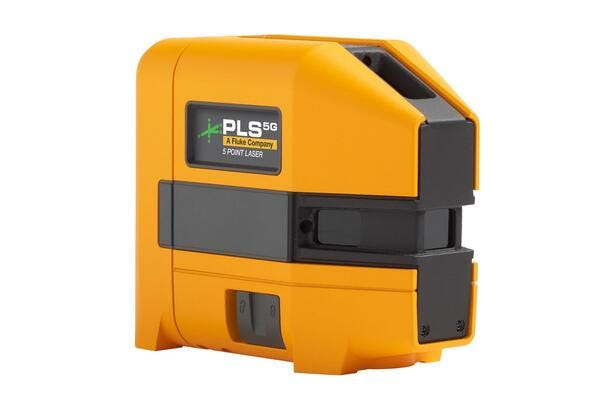

    The new PLS 5G green laser levels offer the durability and precision you expect from PLS, a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settl。
    • «
    • 1

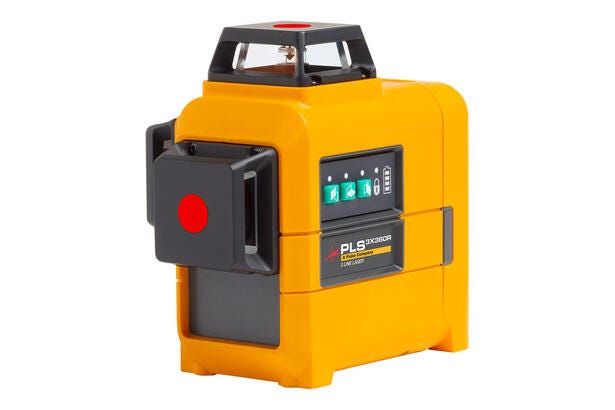

    PLS 3X360R 20 m激光标线仪|福禄克 (在产)

    Lighten your toolbelt with the 3×360 red laser level. This versatile combination laser level features best-in-class accuracy as well as a rechargeable battery pack with charging adapter and a pendulum lock for added protection dur。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 激光测量仪

    PLS 3X360R 激光标线仪

    360° · 360° · 360° · 20 m (65 ft.) · 50 m (165 ft.) · Automatic, Pendulum
    360°
    Horizontal
    360°
    Vertical
    360°
    Side Vertical
    20 m (65 ft.)
    Without Line Detector
    50 m (165 ft.)
    With Line Detector
    Automatic, Pendulum
    System
    产品定位

    Lighten your toolbelt with the 3×360 red laser level. This versatile combination laser level features best-in-class accuracy as well as a rechargeable battery pack with charging adapter and a pendulum lock for added protection during transportation.

    First PLS laser with 3-beam laser technology integrated to automatic pendulum

    核心参数
    技术规格
    · Battery：Lithium-Ion, 3.6V, 5200 mh (RBP5)
    · Battery Life, Continuous Use
    – 3 beams：≥ 9 hours
    – 1 beam：≤ 30 hours
    Line Fan Angle
    · Horizontal：360°
    · Vertical：360°
    · Side Vertical：360°
    Working Range
    · Without Line Detector：20 m (65 ft.)
    · With Line Detector：50 m (165 ft.)
    功能与特点
    · Plumb, level, and square with one tool
    · Battery pack, magnetic L-bracket, elevation and micro-adjustment
    · Accuracy：5/64 in @ 33 ft (2 mm @ 10 M)
    · Pendulum lock
    · Out-of-level warning
    典型应用
    · 旋转机械对中
    · 建筑测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 3x360r-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 激光测量仪

    PLS 3X360R 激光标线仪 · 详细指标

    360° · 360° · 360° · 20 m (65 ft.) · 50 m (165 ft.) · Automatic, Pendulum
    产品简介

    Lighten your toolbelt with the 3×360 red laser level. This versatile combination laser level features best-in-class accuracy as well as a rechargeable battery pack with charging adapter and a pendulum lock for added protection during transportation.

    完整技术指标
    技术规格
    · Battery：Lithium-Ion, 3.6V, 5200 mh (RBP5)
    · Battery Life, Continuous Use
    – 3 beams：≥ 9 hours
    – 1 beam：≤ 30 hours
    Line Fan Angle
    · Horizontal：360°
    · Vertical：360°
    · Side Vertical：360°
    Working Range
    · Without Line Detector：20 m (65 ft.)
    · With Line Detector：50 m (165 ft.)
    Laser Leveling
    · System：Automatic, Pendulum
    · Range
    – Self-leveling: ≤ 4°; Out of self-levelling: > 6°
    温度
    · Operating：-10 °C to 50 °C (14 °F to 122 °F)
    Storage
    · With Batteries：-18 °C to 50 °C (-0.4 °F to 122 °F)
    · Without Batteries：-20 °C to 70 °C (-13 °F to 158 °F)
    · Relative Humidity：0 % to 90 % (0 °C to 35 °C)
    · Relative Humidity：0 % to 75 % (35 °C to 40 °C)
    · Relative Humidity：0 % to 45 % (40 °C to 50 °C)
    · IP Rating：IP 54
    · Drop Test：(1 M) 3.28 ft
    · Size (H x W x L) with Battery
    – 5.12 in x 3.58 in x 5.25 in (13 cm x 9.09 cm x 13.33 cm)
    · Weight with Battery：1.76 lbs (0.8 kg)
    · Safety：IEC 61010-1: Pollution Degree 2
    · Laser：IEC 60825-1:2014 Class 2
    · Light Source：Semiconductor laser diode
    · Max Output Power：< 1 mW
    Wavelength
    · Red：635 nm ± 10 nm
    Electromagnetic compatibility (EMC)
    · International
    – IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class B
    · Korea (KCC)
    – Class B Equipment (Broadcast communications equipment for home)
    · USA (FCC)
    – 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
