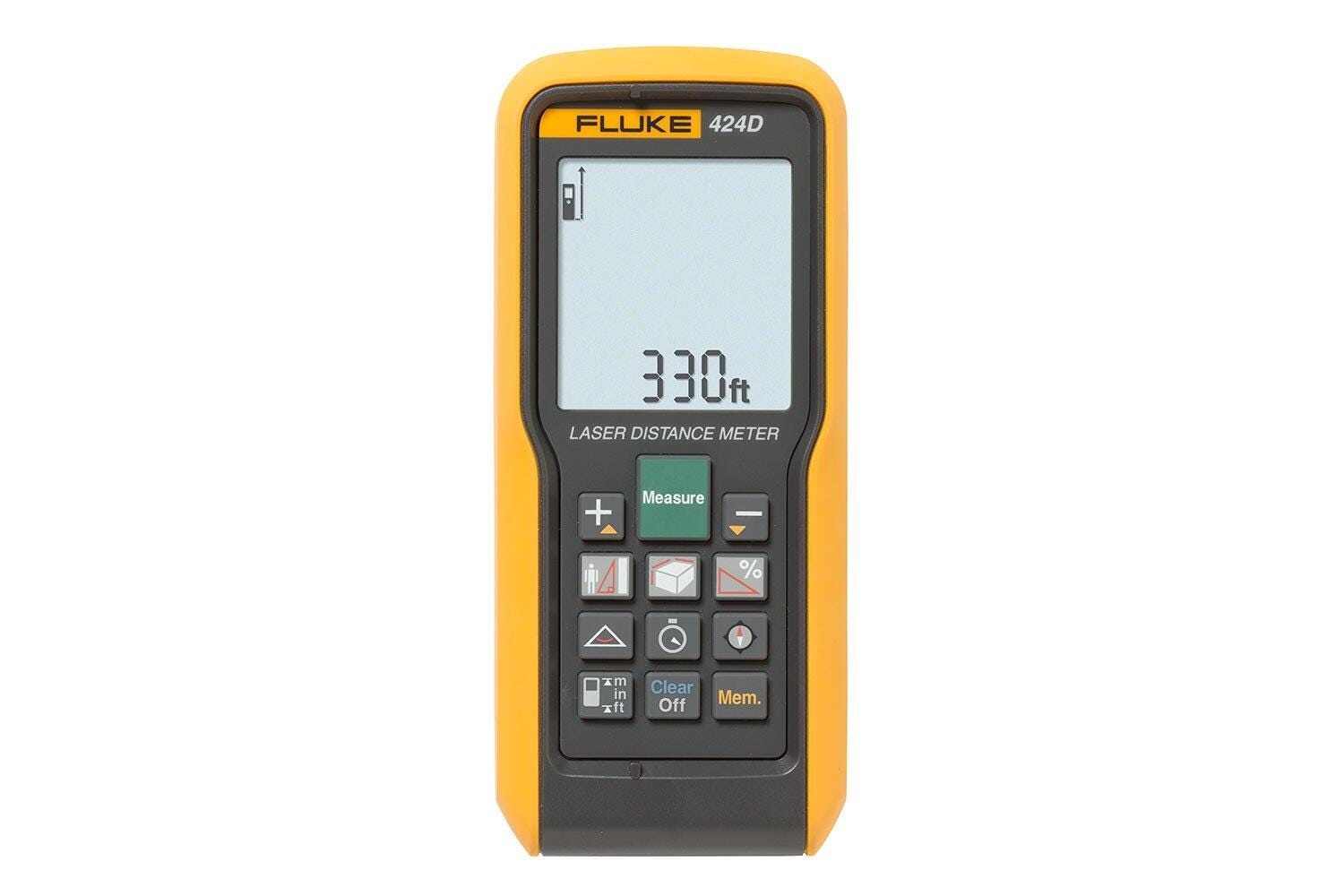

    Fluke 424D Laser Distance Meter delivers a full measure of sophisticated features The Fluke 424D is our most sophisticated laser distance meter packed with versatile features to save you more time in more situations and reduce err。

    417D -25 °C to 70 °C激光测距仪|福禄克 (在产)

    The Fluke 417D is accurate, durable, and easy to use—just point and shoot. The simple design and easy, one-button measurement operation allows you to minimize time spent measuring and maximize the reliability of measurements. Thre。

    参考价格 ：

    厂家：福禄克|Fluke （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 激光测量仪

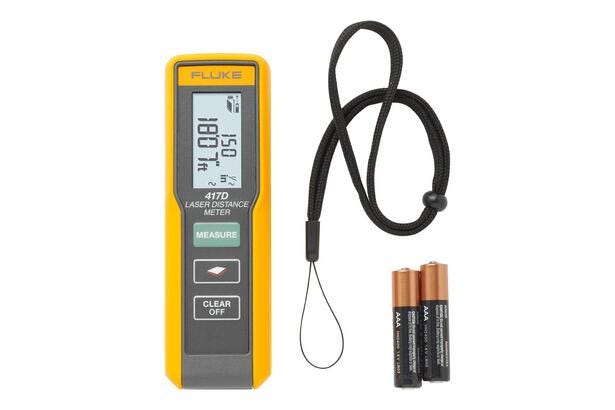

    417D 激光测距仪

    ± 3.0 mm/0.12 in *** · ± 2 mm · 2 line/1 mm/1/32 in · Yes
    ± 3.0 mm/0.12 in ***
    Maximum measuring tolerance [2]
    ± 2 mm
    Accuracy up to 10m (+/-)
    2 line/1 mm/1/32 in
    Display
    Yes
    Display illumination
    6/30/60 mm (10/40/100 m)
    Laser point at distance
    Yes
    Area
    产品定位

    The Fluke 417D is accurate, durable, and easy to use—just point and shoot. The simple design and easy,

    one-button measurement operation allows you to minimize time spent measuring and maximize the reliability of measurements.

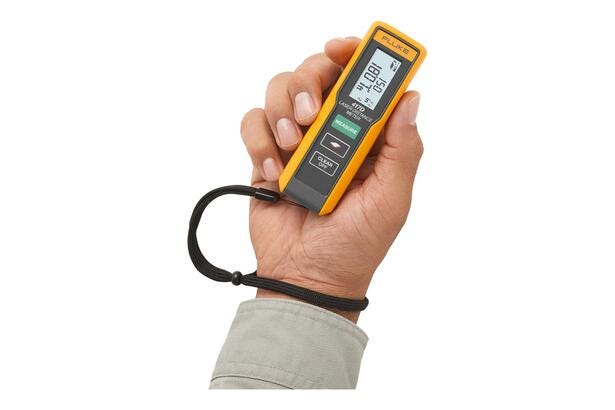

    Three different measurement tasks can be completed quickly and easily with one hand.

    核心参数
    技术规格
    · Typical measuring tolerance* [1]：2.0 mm ± 1.5 mm/± 0.06 in ***
    · Maximum measuring tolerance [2]：± 3.0 mm/0.12 in ***
    · Accuracy up to 10m (+/-)：± 2 mm
    · Display：2 line/1 mm/1/32 in
    · Display illumination：Yes
    · Laser point at distance：6/30/60 mm (10/40/100 m)
    · Area：Yes
    · Units setting (smallest units displayed)：0, 000m, 0' 00'' 1/32, 0 in 1/32
    · Auto laser switch off：90 sec
    功能与特点
    · The Fluke 417D laser meter is accurate, durable, and easy to use—just point and shoot
    · Instantly measure up to 40 m (131 ft.) with 1-button point-and-click
    · Continuous measurement capable：adjusting as you move closer and farther from your target
    · Quickly calculate area (sq feet/meters)
    · 1-meter drop tested and IP54 rated: built to withstand rainy or dusty conditions
    · Great for interior and exterior applications
    典型应用
    · 建筑测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 417d-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 激光测量仪

    417D 激光测距仪 · 详细指标

    ± 3.0 mm/0.12 in *** · ± 2 mm · 2 line/1 mm/1/32 in · Yes
    产品简介

    The Fluke 417D is accurate, durable, and easy to use—just point and shoot. The simple design and easy,

    one-button measurement operation allows you to minimize time spent measuring and maximize the reliability of measurements.

    完整技术指标
    技术规格
    · Typical measuring tolerance* [1]：2.0 mm ± 1.5 mm/± 0.06 in ***
    · Maximum measuring tolerance [2]：± 3.0 mm/0.12 in ***
    · Accuracy up to 10m (+/-)：± 2 mm
    · Display：2 line/1 mm/1/32 in
    · Display illumination：Yes
    · Laser point at distance：6/30/60 mm (10/40/100 m)
    · Area：Yes
    · Units setting (smallest units displayed)：0, 000m, 0' 00'' 1/32, 0 in 1/32
    · Auto laser switch off：90 sec
    · Auto power switch off：180 sec
    一般规格
    · Laser class：II
    · Laser type：635 nm, < 1 mW
    · Protection class：IP54
    · Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03：Up to 3, 000 measurements
    · Size (Hx W x D)：11.9 x 3.8 x 2.6 cm
    · Drop test：1 meter
    · Weight (with batteries)：95g (3.35 oz)
    · Temperature range: Storage：-25 °C to 70 °C (-13 °F to 158 °F)
    · Temperature range: Operation：-10 °C to 50 °C (14 °F to 122 °F)
    · Calibration cycle：Not applicable
    · Maximum relative humidity：85 % @ 20°F to 120 °F (-7 °C to 50 °C)
    · Safety
    – CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)
    · EMC：61326-1:2006
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。
