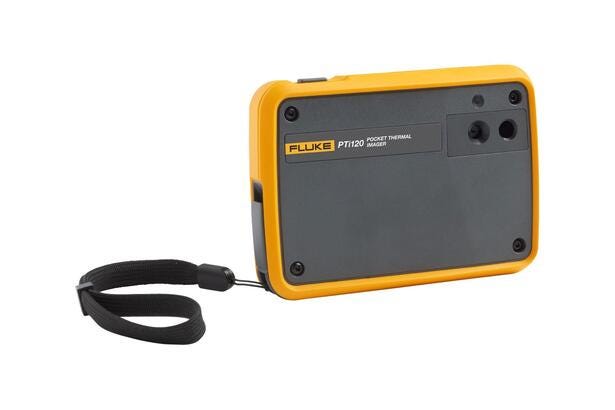

    PTi120 120 x 90手持红外热像仪|福禄克 (在产)

    The bigger the problem, the faster you need to solve it. The Fluke Pocket Thermal Camera puts the power to minimize downtime in everyone’s hands. The first line of defense for easy troubleshooting. Stop fighting fires on the job, 。
    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 红外热像仪

    PTi120 手持红外热像仪

    7.6 mRad · 120 x 90 (10, 800 pixels) · 50° H x 38° V · 130:1 · Yes
    7.6 mRad
    IFOV (spatial resolution)
    120 x 90 (10, 800 pixels)
    Infrared resolution
    50° H x 38° V
    Field of view
    130:1
    Distance to spot
    Yes
    Wifi
    Continuous 0% to 100%
    AutoBlend mode
    产品定位

    The bigger the problem,

    the faster you need to solve it. The Fluke Pocket Thermal Camera puts the power to minimize downtime in everyone’s hands. The first line of defense for easy troubleshooting. Stop fighting fires on the job,

    start preventing them.

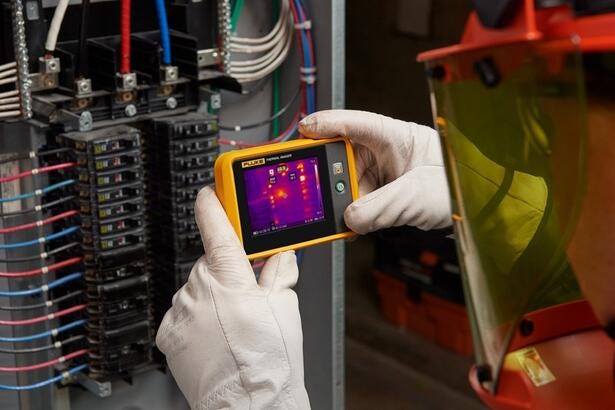

    A camera small enough to carry every day without worry. Always at hand. Stands up to dirt and water. Can survive a 1-meter drop. IP 54 enclosure rating. Now enhanced infrared inspections are right in your pocket for quick temperature scans of electrical equipment,

    machinery and other assets.

    核心参数
    Key Features
    · IFOV (spatial resolution)：7.6 mRad
    · Infrared resolution：120 x 90 (10, 800 pixels)
    · Field of view：50° H x 38° V
    · Distance to spot：130:1
    · Temperature measurement range (not calibrated below -10 °C)：-20 °C to +400 °C and -20 °C to +150 °C models
    · Focus system：Fixed focus, minimum focus distance 22.8 cm
    · USB：Mini USB used to transfer image to PC
    · Wifi：Yes
    Image quality
    功能与特点
    · Automatically organize and file thermal images with Fluke Connect Asset Tagging
    · Fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels)
    · 3.5” LCD touchscreen display for easy troubleshooting
    · -20 °C to +400 °C and -20 °C to 150 °C temperature measurement range models
    · Six color palettes
    典型应用
    · 电气设备检测
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 pocket-pti120-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 红外热像仪

    PTi120 手持红外热像仪 · 详细指标

    7.6 mRad · 120 x 90 (10, 800 pixels) · 50° H x 38° V · 130:1 · Yes
    产品简介

    The bigger the problem,

    the faster you need to solve it. The Fluke Pocket Thermal Camera puts the power to minimize downtime in everyone’s hands. The first line of defense for easy troubleshooting. Stop fighting fires on the job,

    完整技术指标
    Key Features
    · IFOV (spatial resolution)：7.6 mRad
    · Infrared resolution：120 x 90 (10, 800 pixels)
    · Field of view：50° H x 38° V
    · Distance to spot：130:1
    · Temperature measurement range (not calibrated below -10 °C)：-20 °C to +400 °C and -20 °C to +150 °C models
    · Focus system：Fixed focus, minimum focus distance 22.8 cm
    · USB：Mini USB used to transfer image to PC
    · Wifi：Yes
    Image quality
    · AutoBlend mode：Continuous 0% to 100%
    · Touchscreen display：3.5’’ (landscape), 320 x 240 LCD
    · Rugged, ergonomic design：Yes
    · Thermal sensitivity (NETD)：60 mK
    · Frame rate：9 Hz
    Data storage and image capture
    · Memory：2GB internal flash memory
    · Image file formats
    – Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files
    · Software
    – Fluke Connect desktop software—full analysis and reporting software with access to the Fluke Connect system
    · Export file formats with software：JPG, IS2
    · Measurement range：-20 °C to +400 °C and -20 °C to +150 °C models
    电池
    · Battery life：≥ 2 hours continuous (without WiFi)
    · Battery charging time：≤ 1.5 hours
    · Battery charging system：Mini USB cord from product to PC
    · AC operation
    – With separate AC to USB adapter. Not included in box.
    · Power saving
    – Automatic Shutdown: 5, 10, 15 and 20 minutes or never
    Temperature measurement
    · Temperature measurement range (not calibrated below -10 °C)：-20 °C to +400 °C and -20 °C to +150 °C models
    · On-screen emissivity correction：Yes
    · On-screen reflected background temperature compensation：Yes
    Color palettes
    · Standard palettes
    – 6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale
    一般规格
    · Infrared spectral band：8 μm to 14 μm (long wave)
    · Operating temperature：-10 °C to +50 °C (14 °F to 122 °F)
    · Storage temperature：-40 °C to +70 °C (-40 °F to 158 °F)
    · Relative humidity：95% non-condensing
    · Center-point temperature：Yes
    · Spot temperature：Hot and cold spot markers
    · Safety
    – EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery)
    · Electromagnetic compatibility：EN301 489-1 V2.1.1 EN301489-17 V3.1.1
    · US FCC：CFR, Part 15C
    · Vibration and shock：2G, IEC 68-2-6 and 25G, IEC 68-2-29
    · Drop：1 meter
    · Size (H x W x L)
    – 8.9 cm x 12.7 cm x 2.5 cm (3.5 in x 5.0 in x 1.0 in)
    · Weight (battery included)：0.233 kg (0.514 lb)
    · Enclosure rating：IP54
    · Warranty：Two-years
    · Supported languages
    – Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
