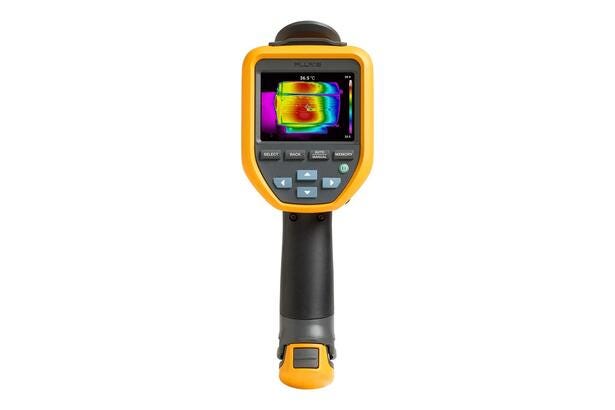

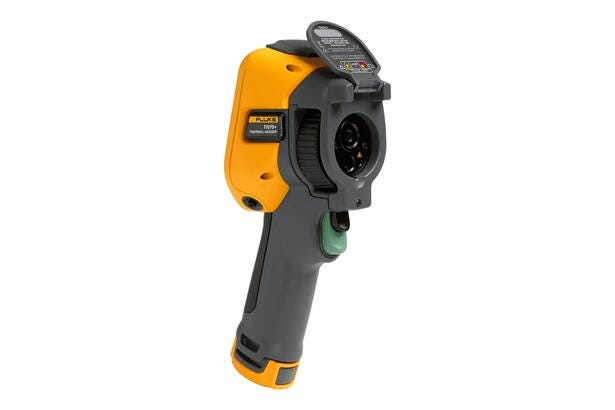

    TiS75+ 384 x 288手持红外热像仪|福禄克 (在产)

    Take your plan for a proactive maintenance (PM) program and turn it into reality. To get started, you need features that make it easy to set up your image organization and inspection routines. With the TiS75+ you’re well on your w。
    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 红外热像仪

    TiS75+ 手持红外热像仪

    1.91 mRad · 42° x 30° · 0.15 m · Manual focus · Yes · 40mk
    1.91 mRad
    IFOV
    42° x 30°
    Field of view
    0.15 m
    Minimum focus distance
    Manual focus
    Focus system
    Yes
    Picture-InPicture (PIP)
    40mk
    Thermal sensitivity
    产品定位

    Take your plan for a proactive maintenance (PM) program and turn it into reality. To get started,

    you need features that make it easy to set up your image organization and inspection routines. With the TiS75+ you’re well on your way to implementing a successful PM program.

    Scanning the QR code on each asset creates a timeline of your inspections.

    核心参数
    技术规格
    · Infrared resolution：384 x 288 (110, 592 pixels)
    · IFOV：1.91 mRad
    · Field of view：42° x 30°
    · Minimum focus distance：0.15 m
    · Focus system：Manual focus
    · Wireless connectivity
    – Yes, to PC, iPhone and iPad (iOS 4s and later), Android 4.3 and up, and WiFi and LAN (where available)
    · Fluke Connect app compatible
    – Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
    · Fluke Connect Assets optional software
    – Yes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location
    · Asset Tagging
    – Scan a QR code to automatically organize and file thermal images with Fluke Connect
    功能与特点
    · 384 x 288 infrared resolution
    · Asset Tagging
    · Touchscreen IR Fusion
    · IS3 and AVI video recording
    · Measure up to 550 °C
    · Dew-point calculation
    典型应用
    · 电气设备检测
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 tis75plus-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 红外热像仪

    TiS75+ 手持红外热像仪 · 详细指标

    1.91 mRad · 42° x 30° · 0.15 m · Manual focus · Yes · 40mk
    产品简介

    Take your plan for a proactive maintenance (PM) program and turn it into reality. To get started,

    you need features that make it easy to set up your image organization and inspection routines. With the TiS75+ you’re well on your way to implementing a successful PM program.

    完整技术指标
    技术规格
    · Infrared resolution：384 x 288 (110, 592 pixels)
    · IFOV：1.91 mRad
    · Field of view：42° x 30°
    · Minimum focus distance：0.15 m
    · Focus system：Manual focus
    · Wireless connectivity
    – Yes, to PC, iPhone and iPad (iOS 4s and later), Android 4.3 and up, and WiFi and LAN (where available)
    · Fluke Connect app compatible
    – Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
    · Fluke Connect Assets optional software
    – Yes*, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location
    · Asset Tagging
    – Scan a QR code to automatically organize and file thermal images with Fluke Connect
    · IR-Fusion technology
    – AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image
    · Picture-InPicture (PIP)：Yes
    · Display
    – 3.5" (8.9 cm landscape) touchscreen 640 x 480 LCD

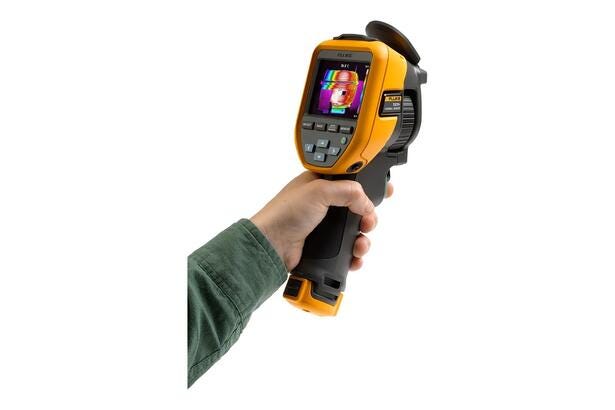

    · Ergonomic design：Designed for one-handed use
    · Thermal sensitivity：40mk
    · Level and span：Smooth auto and manual scaling
    · Fast auto-rescale in manual mode：Yes
    · Minimum span (in manual mode)：3° °C (4.5 °F)
    · Minimum span (In auto mode)：5°C (9.0 °F)
    · Built-in digital camera (visible light)：640 x 480
    · Frame rate：9 Hz or 27 Hz models
    · Dew point calculation：Yes
    Data storage and image capture
    · External memory：≥4 GB SD card (>1000 images)
    · Image capture, review, save mechanism
    – One-handed image capture, review, and save capability
    · Image file formats
    – Non-radiometric BMP or JPEG or fully-radiometric is2
    · Memory review：Yes
    · Software
    – Fluke Connect software—full analysis and reporting software with access to the Fluke Connect
    · Analyze and store radiometric data on a PC：Yes
    · Export file formats with Fluke Connect software：is2, BMP, GIF, JPEG, PNG, TIFF
    · Voice annotation
    – Yes, 60 second maximum audio recording via Bluetooth Audio Headset Profile (HSP) connection to external device.
    · IR-PhotoNotes
    – Yes. Up to 3 extra user-selectable visible light image capture to be included in IS2 file.
    · Text annotations
    – After IS2 capture, user can type in a note using on-screen keyboard.
    · Video recording and formats
    – Standard and radiometric video. Up to 5 minute recording length. avi and is3
    · Remote control operations：No
    · Auto capture (temperature and interval)
    – Yes. User-selectable time interval for capturing IS2 or Jpeg files.
    电池
    · Battery life
    – ≥3.5 hours continuous without WiFi (Actual life depends on settings and usage)
    · Battery charging time：≤2.5 hours to full charge
    · Battery charging system
    – Ti SBC3B Two-Bay Battery Charger or in-Imager charging.
    · AC operation
    – AC operation with included power supply, universal adapters included Output: 15 VDC, 2 A
    · Power saving：User-selectable sleep and power off
    Temperature measurement
    · Temperature range (not calibrated below -10 °C)：-20 °C to 550°C (not calibrated below -10 °C)
    · Accuracy
    – ±2 °C or 2 % (whichever is greater) at 25 °C ambient temperature
    · On-screen emissivity correction
    – Yes, “top ten” material list plus numerical adjustment between 0.01 and 1.00
    Color palettes
    · Standard palettes：6
    一般规格
    · Color alarms
    – Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature.
    · Operating temperature：-10 °C to 50 °C (14 °F to 122 °F)
    · Storage temperature
    – -20 °C to 50 °C (-4 °F to 122 °F) without batteries
    · Relative humidity：10 % to 95 % non-condensing
    · Spot temperature：Center spot (unmovable)
    · User-definable spot markers
    – Yes, 5 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker.
    · User defined measurement boxes
    – Yes, 5 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off for each marker.
    · Hard case
    – Rugged hard carrying case with soft transport bag, including adjustable strap
    · Safety standards：IEC 61010-1: Pollution Degree 2
    · Electromagnetic combability
    – IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A
    · Australian RCM：RCM IEC 61326-1
    · US FCC
    – 47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249
    · Vibration：10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6
    · Shock：30 g, 11 ms, IEC 60068-2-27
    · Drop：Engineered to withstand 2m drop
    · Sized (H x W x L)
    – ∼(26.7 cm x 10.1 cm x 14.5 cm) ∼ (10.5 in x 4.0 in x 5.7 in)
    · Weight (battery included)：0.885 kg (1.95 lbs)
    · Enclosure rating：IP54
    · Warranty：Two-years (standard)
    · Recommended calibration cycle
    – Two-years (assumes normal operation and normal aging)
    · Supported languages
    – Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
    · RoHS compliant：Yes
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
