完整技术指标
Key features
· Infrared resolution：640 x 480 (307, 200 pixels)
· SuperResolution：No
· IFOV with standard lens (spatial resolution)：0.93 mRad, D:S 1065:1
· Field of view：34 °H x 24 °V
· Minimum focus distance：15 cm (approx. 6 in)
· MultiSharp Focus：No
· LaserSharp Auto Focus
– Yes, for consistently in-focus images. Every. Single. Time.
· Laser distance meter
– Yes, calculates distance to the target for precisely focused images and displays distance on screen
· Advanced manual focus：Yes
· Wireless connectivity
– Yes, to PC, iPhone and iPad (iOS 4s and later), Android 4.3 and up, and WiFi to LAN (where available)
· Fluke Connect app compatible
– Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
· Fluke Connect Assets
– Future**, Automatically assign images to assets, easily compare measurement types in one location and create reports through a cloud-based system.
· Fluke Connect instant cloud upload
– Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
· Fluke Connect instant server upload：Yes**
· IR-Fusion technology
– Yes, adds the context of the visible details to your infrared image
· Ruggedized touchscreen display：5.7 inch (14.4 cm) landscape, 640 x 480 LCD

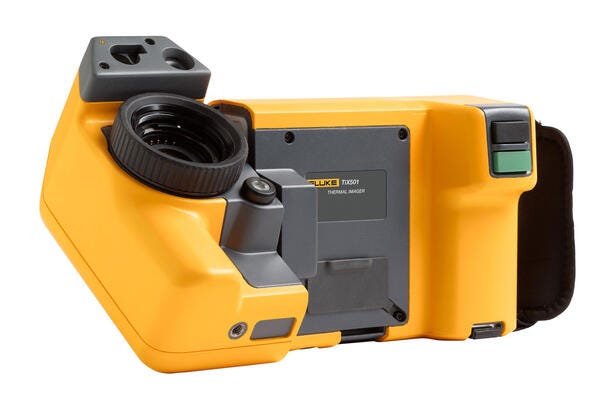

· Ergonomic design：240° rotatable (articulating) lens
· Thermal sensitivity (NETD)**：≤0.075 °C at 30 °C target temp (75 mK)
· Level and span：Smooth auto and manual scaling
· Touchscreen adjustable level/span
– Yes. Span and level can be easily and quickly set by simply touching the screen
· Fast auto toggle between manual and auto modes：Yes
· Fast auto-rescale in manual mode：Yes
· Minimum span (in manual mode)：2.0 °C (3.6 °F)
· Minimum span (in auto mode)：3.0 °C (5.4 °F)
· Built-in digital camera (visible light)：5 MP
· Frame rate：60 Hz or 9 Hz versions
· Laser pointer：Yes
· LED light (torch)：Yes
· Digital zoom：2x
Data storage and image capture
· Extensive memory options
– Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload for permanent storage
· Image file formats：bmp, jpeg, is2, is3, AVI
· Memory review：Thumbnail and full screen review
· Software
– Full analysis and reporting software with access to the Fluke Connect system
· Analyze and store radiometric data on a PC：Yes
· Export file formats with Fluke Connect software：Bitmap (.bmp), GIF, JPEG, PNG, TIFF
· Voice annotation
– 60 seconds maximum recording time per image; reviewable playback on camera, optional Bluetooth headset available but not required
· IR-PhotoNotes：Yes - 2 images
· Text annotations
– Yes. Including standard shortcuts as well as user programmable options
· Video recording and formats：Standard
· Remote control operations：Remote display through Fluke Connect
· Auto capture (temperature and interval)：No
· MATLAB and LabVIEW tool boxes
– Integrate camera data, infrared video and images into software to support R&D analysis
电池
· Battery life
– 2-3 hours per battery (actual life varies depending on settings and usage)
· Battery charging time：2.5 hours to full charge
· Battery charging system
– Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
· AC operation
– AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
· Power saving：User selectable sleep and power off modes
Temperature measurement
· Temperature measurement range (not calibrated below -10 °C)：-20 °C to +650 °C (-4 °F to +1, 202 °F)
· Accuracy
– ±2 °C or 2 % (at 25 °C nominal, whichever is greater)
· On-screen reflected background temperature compensation：Yes
· On-screen transmission correction：Yes
· Line temperature graph：No
Color palettes
· Ultra Contrast palettes
– 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
Smart Lenses
· Macro-25 micron lens: 25 MAC2：Yes
· 2 x telephoto lens: TELE 2：Yes
· 4 x telephoto lens: TELE4：Yes
· Wide angle lens: WIDE 2：Yes
一般规格
· Infrared spectral band：7.5 μm to 14 μm (long wave)
· Operating temperature：-10 °C to +50 °C (+14 °F to +122 °F)
· Storage temperature：-20 °C to +50 °C (-4 °F to +122 °F)
· Relative humidity：10 % to 95 % non-condensing
· Center-point temperature measurement：Yes
· Spot temperature
– Hot and cold spot markers, individually enabled
· User-definable spot markers：2 user-definable spot markers
· User defined measurement boxes
– 1 expandable-contractible measurement box with MIN-MAX-AVG temp display
· Hard case
– Rugged, IP 67 rated, airtight hardcase with custom foam insert
· Safety
– IEC 61010-1: Overvoltage category II, Pollution Degree 2
· Electromagnetic compatibility
– IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
· Australian RCM：IEC 61326-1
· US FCC：CFR 47, Part 15 Subpart B
· Vibration：0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
· Shock：25 g, IEC 68-2-29
· Drop
– Engineered to withstand 1 meter (3.3 feet) drop with standard lens
· Size (H x W x L)：27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in)
· Weight (battery included)：1.54 kg (3.4 lb)
· Enclosure rating
– IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
· Warranty
– Two-years (standard), extended warranties are available
· Recommended calibration cycle
– Two-years (assumes normal operation and normal aging)
· Supported languages
– Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
· RoHS compliant：Yes
以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
