频率范围：9 kHz 至9 GHz
4/6端口
灵活的高性能紧凑型 VNA
提供广泛的测量应用软件任您选择，对射频测试结果进行深入分析
与是德科技高性能 PNA 拥有同样直观的图形用户界面
支持是德科技所有电子校准件（ECal），可以快速完成校准
测量速度：13 ms（201 点，全 2 端口校准，1MHz IFBW）
动态范围：> 140 dB @ 3 GHz；> 132 dB @ 20 GHz（10 Hz IFBW）
迹线噪声：< 0.0015 dBrms（10 kHz IFBW）
ONETEST 欢迎您
登录|注册
购物车
微信公众号
仪器资源库
类似产品
频率范围：100kHz至20 GHz宽输出功率范围：-60 dBm 至 +10 dBm动态范围：135 dB（10 Hz IF 带宽）典型值。每点测量时间：每点 12 µs，最小典型值16 个逻辑通道，每个通道最多 16 条迹线。使用 LabVIEW、Python 进行自动化编程，MATLAB、.NET 等4 端口，兼容频率扩展模块包括时域和门控转换夹具模拟频率偏移模式，包括矢量混频器、校准测量多达 500,001 个测量点多种精密校准方法和自动校准
ME7838E4X 4 端口 70 kHz — 110 GHzME7838A4X 4 端口 70 kHz — 125 GHzME7838D4 4 端口 70 kHz — 145/150 GHzME7838G4 4 端口 70 kHz — 220 GHz可以对系统进行配置，使频段毫米波模块的频率高达 1.1 THz业界最佳校准与测量稳定性：0.1 dB vs 0.6 dB，24 小时。系统还支持 3744x-Rx 接收器，以测量最高 125 GHz 的噪音指数紧凑、轻便的毫米波模块提供低成本安装和业界最佳性能
同厂商产品
频率范围：9 kHz 至6.5 GHz4/6端口灵活的高性能紧凑型 VNA提供广泛的测量应用软件任您选择，对射频测试结果进行深入分析与是德科技高性能 PNA 拥有同样直观的图形用户界面支持是德科技所有电子校准件（ECal），可以快速完成校准测量速度：13 ms（201 点，全 2 端口校准，1MHz IFBW）动态范围：> 140 dB @ 3 GHz；> 132 dB @ 20 GHz（10 Hz IFBW）迹线噪声：< 0.0015 dBrms（10 kHz IFBW）
频率范围：9 kHz 至14 GHz4/6端口灵活的高性能紧凑型 VNA提供广泛的测量应用软件任您选择，对射频测试结果进行深入分析与是德科技高性能 PNA 拥有同样直观的图形用户界面支持是德科技所有电子校准件（ECal），可以快速完成校准测量速度：13 ms（201 点，全 2 端口校准，1MHz IFBW）动态范围：> 140 dB @ 3 GHz；> 126 dB @ 20 GHz（10 Hz IFBW）迹线噪声：< 0.0015 dBrms（10 kHz IFBW）
P5022A 9kHz至9GHz 精简系列 4/6端口USB 矢量网络分析仪|是德/KEYSIGHT (在产)
参考价格 ：
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
下载技术资料

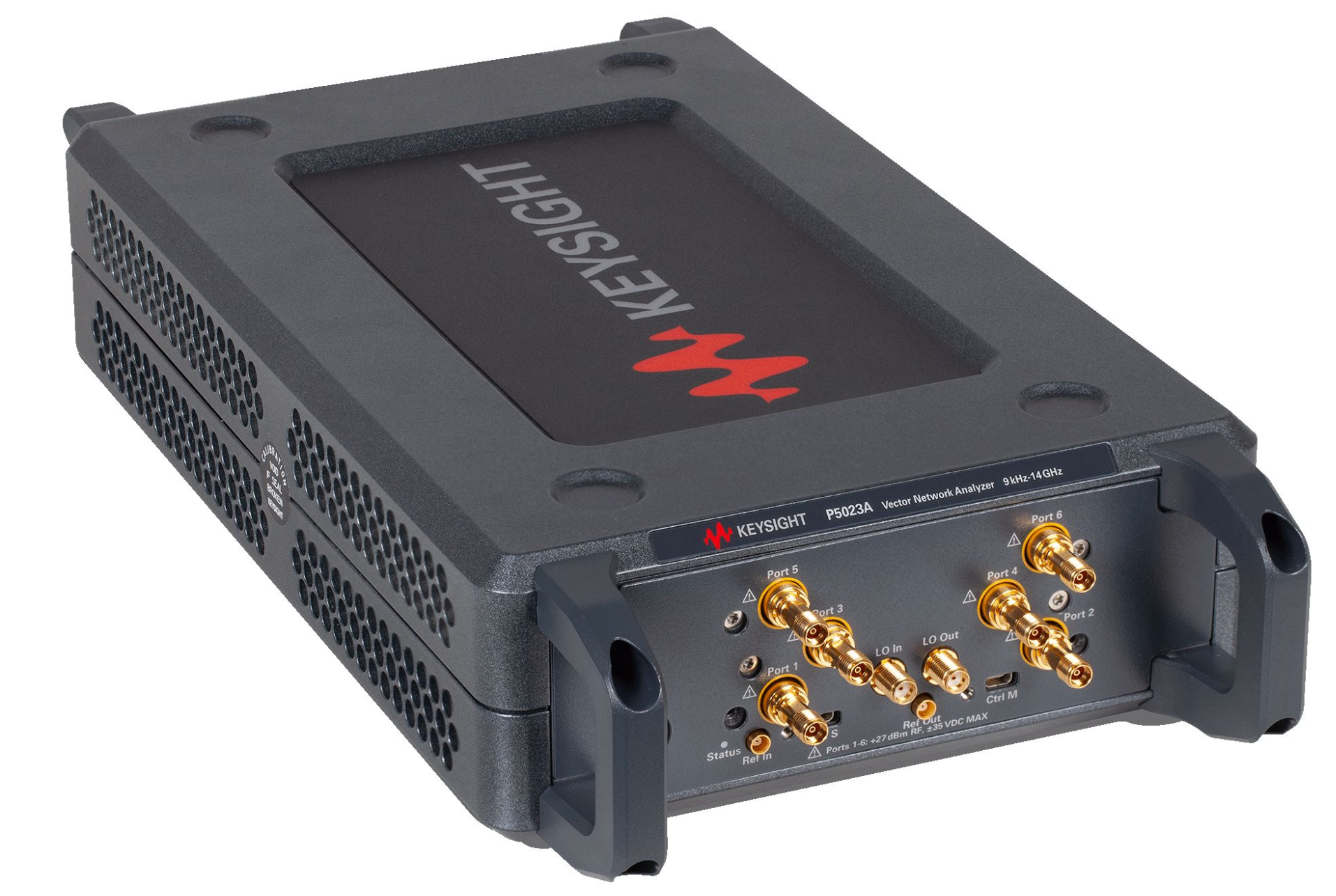

紧凑型、无面板的 USB 矢量网络分析仪（VNA）。灵活的四或六端口 VNA，可以大幅减小测试所需的空间。高达 9 GHz。
HIGHLIGHTS
频率范围：9 kHz 至 9 GHz
灵活的高性能紧凑型 VNA
提供广泛的测量应用软件任您选择，对射频测试结果进行深入分析
与是德科技高性能 PNA 拥有同样直观的图形用户界面
支持是德科技所有电子校准件（ECal），可以快速完成校准
包括的内容:
快速入门指南
USB 3.0 电缆组件
电源、外置交流-直流适配器
电源线
校准证书
关键词:
技术支持: P5022A 是德科技精简系列 USB 矢量网络分析仪，9 GHz - 是德科技Keysight
快速入门指南
Information on setting up your Rackmount Kit
2019-01-31
快速入门指南
This guide documents system requirements, hardware requirements and how to install P5000A Series USB-Vector Network Analyzer.
2024-03-18
宣传单
The integrated Modular VNA and Signal Routing Platform is based on the P500xA / P502xA Streamline USB Vector Network Analyzer and the L8990M Modular Signal Routing Solution. This platform provides a simple and flexible test solution for RF signal routing and monitoring.
2022-06-29
其他资源
Downloadable STEP of the P50xxA mechanical drawing. (P5000A/01A/02A/03A/04A: P5004A-200.stp) (P5020A/21A/22A/23A/24A:P5024A-400.stp, P5024A-600.stp) (P5005A/06A/07A/08A: P5008A-200.stp) (P5025A/26A/27A/28A: P5028A-400.stp)
2020-12-22
解决方案概述
This website gives access to public Keysight information related to product regulatory affairs.
2021-01-21
帮助文件
Download and install the simulator from www.keysight.com/find/pxiusbvna-firmware. The CHM file is located under C:\Program Files\Keysight\Network Analyzer\Help. The help file does not show if it is saved in remote directory. You can copy it on different place in the local HDD. If you encounter a...
2023-10-02
技术资料
This literature describes the technical specifications for Keysight P50xxA Streamline Series Vector Network Analyzers (A-models).
2024-04-16
宣传单
Save up to 25% on eligible Network Analyzers, Signal Analyzers, and Signal Generators
2024-05-16
参考指南
Downloadable jpg files of the P50xxA/B mechanical drawing.
2020-12-22
配置指南
This configuration guide describes standard configurations, options, accessories, upgrade kits and compatible peripherals for Keysight P937xA and P50xxA Streamline Series Vector Network Analyzers (A-models).
2024-08-12
解决方案概述
EM Labs Inc.
2020-05-18
参考指南
This document describes Host PC requirements, Recommended PC list, Troubleshooting tips for connecting VNA and Host PC for Keysight P93xxA/B and P50xxA/B.
2024-08-01
参考指南
This document describes the procedure on LAN (TCPIP) Remote Communication for P50xxA, P50xxB, P937xA and P93xxB.
2022-04-01
帮助文件
USB Chassis Soft Front Panel Help File
2018-07-10
产品目录
Market-leading Keysight network analyzers help you characterize passive devices to leading-edge microwave designs. Find out which hardware and software best meet your needs.
2023-04-07
帮助文件
This browser based help system can be accessed through internet. This includes the information of Quick Start, Specification, Operation and Programming.
2021-12-09
参考指南
This document describes instrument security features and the steps to declassify an instrument through memory clearing, sanitization or removal.
2022-12-08
参考指南
This document describes instrument security features and the steps to declassify an instrument through memory clearing, sanitization or removal.
2022-12-05
宣传单
Save up to 25% on eligible Oscilloscopes, Network Analyzers, Signal Analyzers, and Signal Generators! Unlock savings and enhance your instrument capabilities with superior bandwidth for unparalleled value. For a limited time, take advantage of up to 25% o
2024-03-01
应用指南
This application note covers calibration standard definitions, calibration kit content, and the structure requirements for Keysight's vector network analyzers.
2024-08-21
采购产品
联系我们了解价格、库存、升级信息、答疑解惑、下订单、获取订单状态或加速订单。 Keysight 可能会使用授权销售合作伙伴来更好地满足您的需求。
Calibration documentation
| P5022A-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) | |
| P5022A-A6J | ANSI Z540-1-1994 Calibration |
Standard hardware configurations
| P5022A-400 | 4-port, 9 kHz to 9 GHz | |
| P5022A-600 | 6-port, 9 kHz to 9 GHz | |
| P5022A-402 | 4-port, 9 kHz to 9 GHz with second source |
Additional hardware
| P5022A-021 | Add pulse modulator to internal 1st source | |
| P5022A-090 | Spectrum analysis hardware | |
| P5022A-022 | Add pulse modulator to internal 2nd source | |
| P5022A-190 | Vector signal analysis hardware |
Software
| S97024B | Basic pulsed-RF measurements lite for P50xxA | |
| S97551B | Multiple instruments/modules measurements | |
| S97088B | Source phase control | |
| S97553B | Multiport calibrated measurements with switch instruments | |
| S97083B | Vector and scalar mixer/converter measurements | |
| S97007B | Automatic fixture removal | |
| S97089B | Differential and I/Q devices measurements | |
| S97090B | Spectrum analysis | |
| S97029B | Noise figure measurements with vector correction | |
| S97015B | Real-time S-Parameter and Power Measurement Uncertainty | |
| S97010B | Time domain analysis | |
| S97025B | Basic pulsed-RF measurements | |
| S97086B | Gain-compression measurements | |
| S97552B | Multiport calibration assistant | |
| S97084B | Embedded LO capability | |
| S97460B | True-mode stimulus | |
| S97011B | Enhanced time domain analysis with TDR | |
| S97082B | Scalar mixer/converter measurements | |
| S97560B | Operation with N5252AW VDI frequency extenders | |
| S97111B | Active hot parameters, restricted to 50 GHz | |
| S97087B | Intermodulation distortion measurements |
Accessories
| U8481A | Power Sensor; USB average thermocouple, 10MHz-18GHz | |
| Y1700A | Rack mount kit for USB instruments | |
| Y1701A | Multiple USB instruments configuration kit | |
| Y1710A | Transit Case for Keysight Streamline USB modular products |
