频率范围：直流/10 MHz 至 50 GHz
这款热电偶传感器拥有超过 900 个读数/秒的超快测量速度（自由运行/快速缓冲模式）
出色的功率线性度：小于 0.8%
宽广的动态范围：-35 dBm 至 +20 dBm
实时测量不确定度（MU）特性
S 参数和伽马校正功能
准确校准，可追溯至美国国家标准与技术研究所（NIST）或英国国家物理实验室（NPL）
仪器现在内置 BenchVue 软件许可证（BV0007B）。 BenchVue 让连接和控制仪器以及自动执行测试序列变得非常简单
ONETEST 欢迎您
厂商登录 | 入驻
登录 | 注册 购物车 微信公众号厂商登录
同厂商产品
特别宽广的频率范围：直流至 120 GHz这款热电偶传感器拥有超过 900 个读数/秒的超快测量速度（自由运行/快速缓冲模式）出色的功率线性度：小于 0.6 %宽广的动态范围：-35 dBm 至 +20 dBm实时测量不确定度（MU）特性S 参数和伽马校正功能仪器现在内置 BenchVue 软件许可证（BV0007B）。 BenchVue 能帮助您轻松连接和控制仪器，自动执行测试序列
频率范围：直流/10MHz 至 33 GHz这款热电偶传感器拥有超过 400 个读数/秒的超快测量速度（自由运行/快速缓冲模式）出色的功率线性度：小于 0.8%宽广的动态范围：-35 dBm 至 +20 dBm准确校准，可追溯至美国国家标准与技术研究所（NIST）或英国国家物理实验室（NPL）仪器现在内置 BenchVue 软件许可证（BV0007B）。 BenchVue 能帮助您轻松连接和控制仪器，自动执行测试序列
U8480系列U8487A DC/10 MHz至 50GHz USB 热电偶功率传感器 -35至+20dBm|是德/KEYSIGHT (在产)
参考价格 ： US$ 8,331
产品描述
详细指标
软件和手册|白皮书
购买渠道
选件
问大家
视频
测评
口碑
系统与解决方案
是德科技|KEYSIGHT
直流/10 MHz – 50 GHz USB 热电偶功率传感器
USB和LAN电源传感器
产品简介
U8480 系列是一款速度极快的 USB 热电偶传感器，采用紧凑的 USB 外形设计，并继承了传统 8480/N8480 系列热电偶传感器在业界广受赞誉的功率线性度。
核心参数

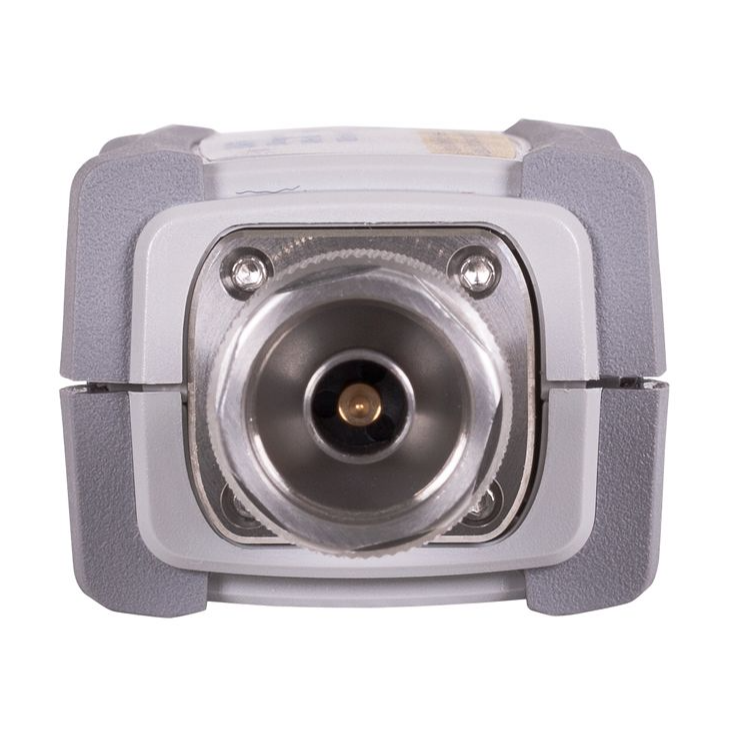

• 接头类型：2.4 mm (m)
• 频率范围：DC 至 50 GHz
• 功率范围：-35 至 +20 dBm
• 连接方式：USB
功能特性
• 产品亮点
频率范围：直流/10 MHz 至 50 GHz
这款热电偶传感器具有超过 900 次/秒的超快测量速度（自由运行/快速缓冲模式）
出色的功率线性度：小于 0.8%
宽广的动态范围：-35 dBm 至 +20 dBm
实时测量不确定度（MU）特性
S 参数和伽马校正功能
精确校准，可追溯至美国国家标准与技术研究院（NIST）或英国国家物理实验室（NPL）
该仪器现已内置BenchVue 软件许可证（BV0007B）。
BenchVue 使连接和控制仪器以及自动执行测试序列变得非常简单
资源下载
以上内容与指标均取自是德科技（KEYSIGHT）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库
是德科技 | KEYSIGHT
U8480系列U8487A DC/10 MHz至 50GHz USB 热电偶功率传感器 -35至+20dBm 详细指标
USB和LAN电源传感器
一、性能规格
There are two types of product specifications
条件：apply over a range of 0 to 55 °C unless otherwise noted. Warranted specifications include
• Warranted specifications are specifications which are covered by the product warranty and
measurement uncertainty calculated with a
95% confidence.
• Characteristic specifications are specifications that are not warranted. They describe product
performance that is useful in the application of the product. These characteristic specifications
are shown in italics
条件：types of characteristic specifications. They can be divided into two groups.
‘nominal’. These two terms are most widely used when describing a product’s ‘attributes’.
The second group describes ‘statistically’ the aggregate performance of the population of products.
for in the specification. These specifications are referred to as ‘typical’.
Characteristic information is representative of the product. In many cases, it may also be supplemental
to a warranted specification. Characteristics specifications are not verified on all units. There are several
One group of characteristic types describes ‘attributes’ common to all products of a given model or
option. Examples of characteristics that describe ‘attributes’ are the product weight and ’50-Ω input
Type-N connector’. In these examples, product weight is an ‘approximate’ value and a
50-Ω input is
These characteristics describe the expected behavior of the population of products. They do not
guarantee the performance of any individual product. No measurement uncertainty value is accounted
条件：For optimum performance aligned with its specification, use a power sensor.
• Stored for a minimum of two hours at a stable temperature within the operating temperature
range, and turned on for at least
30 minutes
• Calibrated within its recommended calibration period, and
• In accordance with the information provided in the User’s Guide.
二、主要指标
条件：1. After zeroing and calibration at room temperature. Power Linearity is negligible below -1 dBm. Linearity
2. RH is the abbreviation for relative humidity.
3. Tested at 50 MHz . After the sensor has been turned on for a minimum of 1 hour. Number of averages at 256.
4. The U8480 Series is equipped with an internal calibration capability, which means that it does not require a 1 mW
power reference for calibration. This specification applies for the 50 MHz frequency.
Frequency range U8481A Option 100
10 MHz to 18 GHz
U8481A Option
200 DC to 18 GHz
U8485A Option 100
10 MHz to 33 GHz
U8485A Option
200 DC to 33 GHz
U8487A Option 100
10 MHz to 50 GHz
U8487A Option
200 DC to 50 GHz
U8488A Option
100
10 MHz to 67 GHz
>67 GHz to 70 GHz
U8488A Option
200
DC to 67 GHz
>67 GHz to 70 GHz
U8489A Option
200 DC to 120 GHz
Power range
–35 dBm to 20 dBm
Power linearity1 ≤+15 dBm ± 0.50% (25 °C
± 10 °C)
± 0.55% (0 to 55 °C)
>+15 to +20 dBm ± 0.55% (25 °C
± 10 °C)
± 0.60% (0 to 55 °C)
Zero set (20% to 70% RH)2
± 25 nW3
± 35nW3 (U8489A)
Internal calibration accuracy4 ± 0.52% (25
± 10 °C)
± 0.59% (0 to 55 °C)
Zeroing duration
16 s
Internal calibration duration
1.5 s
External calibration duration
9 s
Damage level AC coupled (option 100) 25 dBm (average power)
50 V (DC)
15 W (2 μs duration) (peak power)
DC coupled (option 200) 25 dBm (average power)
4 V (DC)
15 W (2 μs duration) (peak power)
specifications do not include zero set, zero noise or measurement noise that dominantly contribute to the
measurement uncertainty at the power levels within
10 dB of the lowest measurable power. Typical performance
is given in Figure
1.
适用型号 U8485A
条件：1. Only applicable for Option 200
25 ºC ± 10 ºC 0 ºC to 55 ºC 25 ºC ± 10 ºC
0 ºC to 55 ºC
DC to < 10 MHz1 1.11 1.14 DC to < 10 MHz1 1.07
1.07
10 MHz to 30 MHz 1.37 1.57 10 MHz to 50 MHz 1.33
1.53
>30 MHz to 50 MHz 1.14 1.16 >50 MHz to 100 MHz 1.08
1.11
>50 MHz to 2 GHz 1.08 1.11 >100 MHz to 2 GHz 1.05
1.07
>2 GHz to 12.4 GHz 1.16 1.16 >2 GHz to 12.4 GHz 1.14
1.14
>12.4 GHz to 18 GHz 1.23 1.25 >12.4 GHz to 18 GHz 1.19
1.20
— — — >18 GHz to 26.5 GHz 1.26
1.28
— — — >26.5 GHz to 33 GHz 1.37
1.45
适用型号 U8488A
25 ºC ± 10 ºC 0 ºC to 55 ºC 25 ºC ± 10 ºC
0 ºC to 55 ºC
DC to < 10 MHz1 1.05 1.05 DC to < 10 MHz1 1.06
1.17
10 MHz to 50 MHz 1.35 1.64 10 MHz to 100 MHz 1.06
1.06
>50 MHz to 100 MHz 1.08 1.10 >100 MHz to 2.4 GHz 1.06
1.07
>100 MHz to 2 GHz 1.05 1.07 >2.4 GHz to 12.4 GHz 1.13
1.14
>2 GHz 12.4 GHz 1.10 1.10 >12.4 GHz to 18 GHz 1.14
1.14
>12.4 GHz to 18 GHz 1.16 1.16 >18 GHz to 26.5 GHz 1.20
1.20
>18 GHz to 26.5 GHz 1.22 1.22 >26.5 GHz to 40 GHz 1.25
1.25
>26.5 GHz to 40 GHz 1.30 1.30 >40 GHz to 67 GHz 1.42
1.43
>40 GHz to 50 GHz 1.34 1.33 >67 GHz to 70 GHz 1.36
1.41
适用型号 U8489A
25 ºC ± 10 ºC
0 ºC to 55 ºC
DC to < 10 MHz 1.06
1.17
10 MHz to 100 MHz 1.06
1.06
>100 MHz to 2 GHz 1.05
1.05
>2 GHz to 12.4 GHz 1.10
1.10
>12.4 GHz to 18 GHz 1.11
1.12
>18 GHz to 26. 5 GHz 1.14
1.14
>26.5 GHz to 40 GHz 1.21
1.21
>40 GHz to 67 GHz 1.42
1.41
>67 GHz to 80 GHz 1.49
1.50
>80 GHz to 95 GHz 1.57
1.58
>95 GHz to 110 GHz 1.73
1.74
>110 GHz to 120 GHz 1.76
1.77
>120 GHz to 125 GHz 1.71
1.72
Zero drift 和测量噪声
条件：Conditions (RH)2 Zero drift3, 4 Measurement noise3, 5
1. Only applicable for Option 200
2. RH is the abbreviation for relative humidity.
3. Zero drift and measurement noise specifications are tested at 50 MHz.
4. Within 1 hour of warm up and after zeroing, at a constant temperature, taken over a period of 4 hours of the total
measurement time. This drift is calculated based on the average of hourly drifts.
5. The number of averages at 16 for the normal mode, 32 for the ×2 mode, and 512 for the fast mode, at a constant
temperature, measured over a 1- minute interval and two standard deviations.
up to 70% ± 5.5 nW
± 45 nW
Noise multiplier
Number of averages 1 2 4 8 16 32 64 128 256 512
1024
Normal mode 3.17 2.62 2.02 1.54 1.00 0.82 0.60 0.50 0.37 0.27
0.15
×2 mode 4.55 3.76 3.00 2.25 1.59 1.00 0.85 0.63 0.47 0.42
0.23
Fast mode 46.88 33.06 24.00 17.19 12.24 8.39 4.93 4.11 2.48 1.00
0.83
测量速度模式测量速度
条件：1. To reduce sensor- dependent delay time, use the measurement buffer by setting the trigger count > 1.
2. The measurement is taken with the averaging state set to off.
Normal
20 readings/s
Double
40 readings/s
Fast1
900 readings/s2
建立时间
条件：1. Manual filter, 10 dB decreasing power step.
2. Noise measurement in fast mode fluctuates at lower power. Although the averaging count (filter) is initially set to
calibration certificate is the expanded uncertainty with a 95% confidence level and a coverage factor of 2.
Labs. For the exact uncertainty, refer to the individual sensor calibration report.
1. The characterized calibration factor should not deviate between periodic calibrations by more than the specified
equal to √2 times the specified maximum uncertainty . √2 ∗UUUUUUUU with a reference calibration factor of 100%.
2. Only applicable for Option 200
1. The characterized calibration factor should not deviate between periodic calibrations by more than the specified
equal to √2 times the specified maximum uncertainty. √2∗ UUUUUUUU with a reference calibration factor of 100%.
2. Only applicable for Option 200
1. The characterized calibration factor should not deviate between periodic calibrations by more than the specified
equal to √2 times the specified maximum uncertainty. √2∗ UUUUUUUU with a reference calibration factor of 100%.
Number of averages 1 2 4 8 16 32 64 128 256 512
1024
Settling time(s) (Normal mode)1 0.10 0.15 0.25 0.45 0.85 1.63 3.20 6.36 12.6 25.2
50.4
Settling time(s) (×2 mode)1 0.08 0.10 0.15 0.25 0.45 0.89 1.63 3.20 6.35 12.6
25.2
Settling time(s) (Fast mode)1,2 0.003 0.005 0.007 0.011 0.020 0.036 0.069 0.134 0.265 0.528
1.053
256, if any of the 256 measurement samples taken are higher than
–30 dBm, the firmware automatically changes
the averaging count to 128.
Figure 8. Auto-filter, default resolution
10 dB decreasing power step
Calibration factor (CF) relative uncertainty1
Maximum relative uncertainties of the CF data are listed in the following table. The uncertainty analysis for
the calibration data was done in accordance with the ISO Guide. The uncertainty data reported on the
Note: The CF uncertainty is dependent on the calibration standard’s uncertainty provided by Calibration
U8481A frequency band 25 ºC ± 3 ºC 25 ºC ± 10 ºC
0 ºC to 55 ºC
DC to < 10 MHz2 1.57% 2.24%
2.38%
10 MHz to 30 MHz 1.00% 1.20%
2.30%
>30 MHz to 500 MHz 0.87% 0.91%
1.12%
>500 MHz to 1.2 GHz 0.82% 0.91%
0.91%
>1.2 GHz to 6 GHz 0.96% 1.15%
1.56%
>6 GHz to 14 GHz 1.16% 1.37%
1.94%
>14 GHz to 18 GHz 1.47% 1.84%
2.27%
U8485A frequency band 25 ºC ± 3 ºC 25 ºC ± 10 ºC
0 ºC to 55 ºC
DC to < 10 MHz2 1.75% 2.18%
2.26%
10 MHz to 30 MHz 1.17% 1.29%
1.71%
>30 MHz to 500 MHz 0.95% 1.04%
1.56%
>500 MHz to 1.2 GHz 0.98% 1.24%
1.79%
>1.2 GHz to 6 GHz 1.18% 1.51%
2.23%
>6 GHz to 14 GHz 1.58% 2.18%
2.91%
>14 GHz to 18 GHz 1.69% 2.33%
3.21%
>18 GHz to 26.5 GHz 2.25% 3.33%
4.28%
>26.5 GHz to 33 GHz 2.63% 4.10%
5.72%
maximum relative uncertainty. Compliance is confirmed by the relative deviation being less than or
Calibration factor (CF) relative uncertainty1 (continued)
U8487A frequency band 25 ºC ± 3 ºC 25 ºC ± 10 ºC
0 ºC to 55 ºC
DC to < 10 MHz2 1.87% 2.43%
2.47%
10 MHz to 30 MHz 1.11% 1.51%
3.47%
>30 MHz to 500 MHz 1.10% 1.22%
1.56%
>500 MHz to 1.2 GHz 1.10% 1.29%
1.65%
>1.2 GHz to 6 GHz 1.23% 1.47%
1.89%
>6 GHz to 14 GHz 1.61% 2.00%
2.26%
>14 GHz to 18 GHz 1.81% 2.27%
2.62%
>18 GHz to 26.5 GHz 2.31% 2.97%
3.45%
>26.5 GHz to 33 GHz 2.89% 3.58%
4.15%
>33 GHz to 34 GHz 2.85% 3.56%
4.29%
>34 GHz to 35 GHz 3.14% 3.87%
4.58%
>35 GHz to 40 GHz 3.73% 5.10%
5.76%
>40 GHz to 45 GHz 4.00% 4.85%
5.70%
>45 GHz to 50 GHz 4.04% 5.07%
6.04%
U8488A frequency band 25 ºC ± 3 ºC 25 ºC ± 10 ºC
0 ºC to 55 ºC
DC to < 10 MHz2 1.89% 2.44%
2.49%
10 MHz to 50 MHz 1.32% 1.42%
1.44%
>50 MHz to 100 MHz 1.72% 1.83%
1.83%
>100 MHz to 2 GHz 1.76% 1.96%
2.14%
>2 GHz to 12.4 GHz 1.94% 2.61%
3.37%
>12.4 GHz to 18 GHz 2.07% 2.84%
3.71%
>18 GHz to 26.5 GHz 2.42% 2.99%
3.79%
>26.5 GHz to 40 GHz 3.03% 3.86%
5.02%
>40 GHz to 50 GHz 4.82% 5.65%
6.81%
>50 GHz to 67 GHz 5.18% 6.10%
7.52%
>67 GHz to 70 GHz 6.80% 9.24%
10.26%
maximum relative uncertainty. Compliance is confirmed by the relative deviation being less than or
Calibration factor (CF) relative uncertainty1 (continued)
U8489A frequency band 25 ºC ± 3 ºC 25 ºC ± 10 ºC
0 ºC to 55 ºC
DC to < 10 MHz 0.69% 1.16%
2.88%
10 MHz to 100 MHz 1.32% 1.79%
3.51%
>100 MHz to 2 GHz 1.60% 2.63%
3.96%
>2 GHz to 12.4 GHz 2.06% 3.01%
5.08%
>12.4 GHz to 18 GHz 2.08% 3.39%
5.39%
>18 GHz to 26.5 GHz 2.43% 3.97%
5.35%
>26.5 GHz to 50 GHz 4.28% 5.86%
7.94%
>50 GHz to 67 GHz 5.81% 7.33%
9.69%
>67 GHz to 80 GHz 6.46% 7.24%
11.96%
>80 GHz to 95 GHz 6.41% 9.02%
14.32%
>95 GHz to 110 GHz 7.63% 8.97%
11.97%
>110 GHz to 120 GHz 7.85% 9.19%
11.62%
maximum relative uncertainty. Compliance is confirmed by the relative deviation being less than or
Environmental compliance
High >
1.9 V
Low <
1.1 V
Latency1 11 μs
± 2 μs
Minimum trigger pulse width
35 ns
Minimum trigger repetition period
80 ns
Impedance
50 Ω or 1 MΩ
触发延迟
条件：1. External trigger latency is defined as the delay between the applied trigger crossing the trigger level and the U8480
Range
0 s to 1 s
Resolution
10 μs
三、通用规格
Analog-to-digital converter (ADC) sampling rate
192 kHz
ADC resolution
24 bits
Integration time1
1.024 ms
条件：1. Integration time is the period during which the U8480 Series ADC samples the signal input for a measurement.
Current requirement
400 mA (approximately)
U8481A N-Type (m)
50 Ω
U8485A 3.5 mm (m)
50 Ω
U8487A 2.4 mm (m)
50 Ω
U8488A 1.85 mm (m)
50 Ω
U8489A 1.0 mm (m)
50 Ω
Cable USB
2.0 Type A to 5-pin Mini-B
Interface USB
2.0 interface, USB-TMC compliant
Programmability SCPI, Keysight VEE, LabVIEW, Microsoft Visual Basic
Recommendation calibration interval
1 year
典型值 plot
The following typical plot is intended to provide additional information, useful in applying the U8480
Series by giving typical but not warranted performance parameters.
Figure
9. Typical calibration factor (CF) and SWR vs. frequency
四、通用规格
法规符合性
条件：thermocouple power sensor complies with the following EMC requirements:
The U8480 Series USB
IEC61326-1:2012 / EN61326-1:2013
EN55011:2009/CISPR11:2009
Canada ICES/NMB-001: Issue 4, June
2006
Australia/New Zealand AS/NZS CISPR11:2011
外形尺寸 (Length × Width ×
Height) in mm with +/-
1 mm
U8481A: 145 × 46 ×
35.90
U8485A: 136.50 × 46 ×
35.90
U8487A: 127.70 x 46 x
35.90
U8488A: 128.50 x 46 x
35.90
U8489A: 125.75 × 46 ×
35.90
Net weight in kg U8481A
0.256
U8485A
0.25
U8487A
0.22
U8488A
0.22
U8489A
0.20
Shipping weight in kg U8481A
1.35
U8485A
1.402
U8487A
1.37
U8488A
1.37
U8489A
0.97
USB
2.0, with the following cable
Option 301
1.5 m
Option 302
3 m
Option 303
5 m
Pollution Degree
2
五、机械规格
条件：performance. At no time should the pin depth of the connector be protruding.
BenchVue software license (BV0007B) is now included with your instrument.
Mechanical characteristics such as center conductor protrusion and pin depth are not performance
specifications. They are, however, important supplemental characteristics related to electrical
Using the U8480 Series with the BenchVue Software
Keysight BenchVue software for the PC accelerates testing by providing intuitive, multiple instrument
measurement visibility and data capture with no programming necessary. You can derive answers
faster than ever by easily viewing, capturing, and exporting measurement data and screenshots. The
Compact 模式显示
Graph functions Single marker (up to 5 markers per graph)
Dual marker (up to 2 sets of markers per graph)
Graph zooming
Instrument settings Save and recall instrument state including graph settings
Gamma and S-parameters tables
条件：Full instrumentation control includes frequency/average/trigger settings, zero and calibration, etc.
Limit and alert function Sensors Limit and alert notification
Alert summary
Export data or screen shots Data logging (HDF5/MATLAB/Microsoft Excel/Microsoft Word/CSV)
PC 操作系统
Windows 11, 10 and 8 Windows 11
64-bit
Windows 10
32-bit and 64-bit (Professional, Enterprise, Education, Home versions)
Windows
32-bit and 64-bit (Core, Professional, Enterprise)
Computer hardware Professor
1 GHz or faster (2 GHz or greater recommended)
RAM
1 GB (32-bit) or 2 GB (64-bit) (3 GB or greater recommended)
Interfaces USB, GPIB, LAN, RS-232
Display resolution 1024 x 768 minimum for single instrument view (higher resolutions are recommended for multiple
Additional requirements
Software: Keysight BenchVue requires a VISA (Keysight or National Instruments) when used to connect
to physical instruments. Keysight IO Libraries, which contains the necessary VISA, will be installed
订货信息
U8481A USB thermocouple power sensor (Type-N)
U8481A-100 Standard option – 10 MHz to 18 GHz
U8481A-200 DC coupled option – DC to 18 GHz
U8485A USB thermocouple power sensor (3.5 mm)
U8485A-100 Standard option – 10 MHz to 33 GHz
U8485A-200 DC coupled option – DC to 33 GHz
U8487A USB thermocouple power sensor (2.4 mm)
U8487A-100 Standard option – 10 MHz to 50 GHz
U8487A-200 DC coupled option – DC to 50 GHz
U8488A USB thermocouple power sensor (1.85 mm)
U8488A-100 Standard option – 10 MHz to 67 GHz
U8488A-200 DC coupled option – DC to 67 GHz
U8489A USB thermocouple power sensor (1.0 mm)
U8489A-200 DC coupled option - DC to 120 GHz
U8489A-501
1.0 mm (f) to N-Type (m) adapter
Standard shipped items
- Power sensor cable
5 ft (1.5 m), default cable length
- Trigger cable, BNC male to SMB female, 50 Ω
1.5 m
- Certificate of calibration
条件：1. Not applicable to U8481A
please contact your local Keysight office. The complete list is available at:
- U8485A
3.5 mm (f) to N-Type (m) adapter1
- U8487A/88A
2.4 mm (f) to N-Type (m) adapter1
This information is subject to change without notice. © Keysight Technologies, 2018 - 2026, Published in USA, April 23, 20 26, 5991
-1410EN
For more information on Keysight Technologies’ products, applications or services,
Travel kits
U2000A-201 Transit case
Cables (selectable during sensor purchase)
U2000A-301 Power sensor cable
5 ft (1.5 m)
U2000A-302 Power sensor cable
10 ft (3 m)
U2000A-303 Power sensor cable
16.4 ft (5 m)
U2031A Power sensor cable
5 ft (1.5 m)
U2031B Power sensor cable
10 ft (3 m)
U2031C Power sensor cable
16.4 ft (5 m)
U2032A BNC male to SMB female trigger cable, 50 Ω
1.5 m
U848xA-1A7 ISO
17025 compliant calibration and test data
U848xA-A6J ANSI
540 compliant calibration and test data
U848xA-UK6 Commercial calibration certificate with test data
BV0007B BenchVue power meter/sensor control and analysis app license
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
全部
是德科技官方渠道
官方渠道（官网 / 热线 / 邮箱）
• 销售服务热线
800-810-0189（座机）／400-810-0189（手机） 工作时间 周一至周五 8:30-17:30
• 热线传真
800-820-2816（座机）／400-820-3863（手机）
• 亚洲区支持邮箱 tm_asia@keysight.com
• 服务与支持邮箱
instruments_services@keysight.com
• 官网
www.keysight.com（中国站 www.keysight.com.cn）
全国办事处
• 北京总部
是德科技（中国）有限公司 北京市朝阳区望京北路3号
电话：(010) 64397888
传真：(010) 64390278
邮编：100102
• 上海分公司
上海市虹口区四川北路1350号中信泰富申虹广场5楼、16-19楼
电话：(021) 36127688
传真：(021) 36127188
邮编：200080
• 广州分公司
广州市天河北路233号中信广场66层07-08室
电话：(020) 38113988
传真：(020) 86695074
邮编：510613
• 深圳分公司
深圳市福田中心区福华一路六号免税商务大厦3楼
电话：(0755) 83079588
传真：(0755) 82763181
邮编：518048
• 成都分公司
成都高新区南部园区天府四街116号
电话：(028) 83108888
传真：(028) 85330830
邮编：610041
• 西安分公司
西安市碑林区南关正街88号长安国际大厦D座5/F
电话：(029) 88867770
传真：(029) 88861330
邮编：710068
• 中国香港
是德科技香港有限公司 中国香港北角电气道169号25楼
电话：(852) 31977777
传真：(852) 25069292 香港热线 800-938-693
• 维修 / 校准服务中心
中国大陆 北京 / 成都 / 苏州 服务热线 800-810-0189 / 400-810-0189
授权分销商
• 上海信果电子科技有限公司（上海）
上海市沪闵路8075号虹梅商务大厦6楼609室
邮编：200233
电话：021-64518399
传真：021-54560890
邮箱：jason.wu@signalgroup.com.tw
• 上海精测电子有限公司（上海）
上海市北京东路668号西楼15E
邮编：200001
电话：13916371522
传真：021-53086102
邮箱：yangzhen@jingce.com
• 北京东方中科集成科技股份有限公司（北京）
北京市海淀区复兴路69号院12号楼2层、7层 邮政编码：100039
邮编：100039
电话：400-650-5566
传真：010-68728001
邮箱：zhangzp@oimec.com.cn
官网：www.dfzk.com/br_keysight.html
• 北京千聚科技发展有限公司（北京）
北京市海淀区西三旗花园雪梨澳乡A区23-4号
邮编：100085
电话：010-82907162
邮箱：zhuqihui@qianjukeji.com.cn
• 北京金龙翌阳科技发展有限公司（北京）
北京市海淀区大柳树路17号富海大厦2001室
邮编：100086
电话：010-62167379/6213538
邮箱：zhy@yy17.com
官网：www.yy17.com
• 厦门同昌源电子有限公司（厦门）
厦门市湖里区悦华路215号综合楼二楼C单元
邮编：361000
电话：0592-5663715
传真：0592-2236795
邮箱：tcydz@xmtcy.com
• 合肥新普仪测科技有限公司（合肥）
安徽省合肥市长江路53号长江大厦1102室
邮编：230001
电话：+86(0551)65177518 ext:
传真：+86(0551)6260 7155
邮箱：hfsimple@mail.hf.ah.cn
• 品展国际贸易(上海)有限公司（上海）
上海外高桥保税区泰谷路18号1号楼1105A室
邮编：200003
电话：+86(0512) 6808 6023
传真：+86(0512) 6808 6025
邮箱：melody@chtek.com.tw
官网：chtek.com.tw
• 广州康祺科技发展有限公司（广州）
广州市天河区华强路1号珠控国际中心8层06单元
邮编：510623
电话：020-38295200
传真：020-38295122
邮箱：baobao@kontchi.com
• 广州科欣仪器有限公司（广州）
广州市黄埔区黄埔大道933号209室
邮编：510700
电话：86-20-38699788
传真：86-20-34395932
邮箱：cs@gzkexin.com.cn
• 成都安诚迅飞电子科技有限公司（成都）
成都市武侯区人民南路四段27号1栋1单元 24层3号
邮编：610041
电话：028-86027579
邮箱：jincai.he@ancentest.com
• 新亚制程（浙江）股份有限公司（深圳）
深圳市福田区中康路卓越城梅林中心广场（北区）一期1栋3楼
邮编：518035
电话：0755-23818536
传真：0755-23818625
邮箱：wangrongbin@sunyes.cn
• 无锡市邦达测量科技有限公司（无锡）
江苏省无锡市新区长江北路112号
邮编：214028
电话：0510-85258521 ext:
邮箱：bdyiqi@bdyiqi.com
• 武汉力德仪测科技有限公司（武汉）
武汉市光谷大道54号国际企业中心四期A座501室
邮编：430074
电话：027-85481090 ext:
邮箱：liuyang@leader-e.com
• 苏州工业园区贝奇仪器有限公司（苏州）
苏州工业园区通园路398号海逸大厦A402室
邮编：215006
电话：0512-62883832
邮箱：szbeiqi@szbeiqi.net
• 青岛鲁芯仪器有限公司（青岛）
青岛市福州北路135号鼎都1号写字楼328室
邮编：266007
电话：15953279543
传真：0532-80669058-830
邮箱：gaochangyuan@qdluxin.com
• Avnet Electronics Marketing（Phoenix）
2211 South 47th Street
邮编：85034
电话：+65 6289 9164
邮箱：Josephine.Cheong@avnet.com
官网：OnlineSupportAsia@Avnet.com
• RFMW, Ltd.（San Jose）
188 Martinvale Lane
邮编：95119
电话：#09-129
邮箱：sales@rfmw.asia
官网：www.rfmw.com
• 沈阳实拓科技有限公司（沈阳）
沈阳市和平区三好街35号8层
邮编：110004
电话：024-23843636
传真：024-23905232
邮箱：lf@shituokeji.cn
• 領先科儀有限公司（香港）
新界荃灣海盛路3號TML廣場21樓B5室
邮编：.
电话：852-31523600
传真：852-31523608
邮箱：allenma@advanceinst.com
租赁合作伙伴
• 深圳君鉴科技股份有限公司（深圳市）
光明街道观光路华强创意产业园3栋B座12楼光明新区
邮编：518107
电话：400-860-3035
邮箱：shichang@chrent.com
• 益莱储（北京）检测设备租赁有限公司（北京市）
来广营高科技产业园区4号楼3层301朝阳区
邮编：100102
电话：400-819-2800
邮箱：jim.chen@electrorent.com
• 北京东方中科集成科技股份有限公司科技租赁事业部（北京市）
北京市海淀区阜成路67号银都大厦12层
邮编：100142
电话：400-650-5566
传真：010-68728001
邮箱：wangml@oimec.com.cn
• 客而禧设备租赁（上海）有限公司（Shanghai）
徐汇区古美路1515号19号楼903室
邮编：201102
电话：021-54453166
邮箱：krc@krcchina.com
• 深圳市瑞普高电子有限公司（深圳市）
天安云谷产业园一期3栋D座1505-1506龙岗区
邮编：518129
电话：0755-29050100
邮箱：rickluo@ruipugao.com
• 苏州锦凡精密仪器科技有限公司（苏州）
苏州市高新区滨河路625号创业大厦5幢505
邮编：215011
电话：18914031336
邮箱：18914031336@jfsz.net
解决方案合作伙伴
• Tokyo Weld Co., Ltd.（Ota-ku）
2-28-1 Kitamagome
邮编：143-0021
电话：81-3-3775-4331
传真：81-3-3775-4359
邮箱：d-imai@tokyoweld.com
• 上海恒榉电子科技有限公司（Shanghai）
上海市奉贤区南桥镇西闸公路1036号3栋2层
邮编：201401
电话：18112779808
邮箱：salesvalue@everise-hj.com
• 佳燁科技股份有限公司(Ghiatek)（桃園市龜山區）
光明街243巷2號
邮编：33372
电话：+886-3-350-9960
传真：+886-3-320-3475
邮箱：support@ghiatek.com
• 华美博科技（北京）有限公司（北京市）
蓝靛厂东路2号金源时代商务中心C座9A2海淀区
邮编：100097
电话：010-88598732
邮箱：sino@sino-microtech.com
• 和创联合科技（北京）有限公司（北京市）
中关村东路18号财智国际大厦A座1612海淀区
邮编：100083
电话：400 650 7802
邮箱：info@hisuntest.com
• 昆山捷得立电子有限公司（昆山市）
登云路288号海创大厦C座25楼
邮编：215316
电话：0512-36831748
邮箱：sales@jiedeli-china.com
• 深圳市捷泰普科技有限公司（深圳市）
宝安区西乡街道前进二路桃源居南面深圳市智汇创新中心A座216室
邮编：518126
电话：0755-83908488
邮箱：sales@jtptech.cn
• 深圳市易捷测试技术有限公司（深圳市）
福虹路9号世贸广场C座1203室福田区
邮编：518033
电话：0755-83698930
邮箱：dongni.zhang@gbit.net.cn
官网：gbit.net.cn
• 深圳市泰仕捷科技有限公司（深圳市）
松岗大道7号汉海达大厦616室宝安区
邮编：518105
电话：0755-27128586
邮箱：riky.gua@tesijet.com
• 深圳市蓉声科技有限公司（深圳市）
福中路海连大厦连天阁 1103 室福田区
邮编：518033
电话：13828880571
邮箱：jiang.qian@radiation-test.com
• 苏州伊欧陆系统集成有限公司（苏州）
星湖街218号生物纳米园A7楼305室苏州工业园区
邮编：215000
电话：4008808776
邮箱：info@eoulu.com
• EM Labs Inc.（Kobe）
1-4-13 Mizukasadori, Nagata
邮编：653-0842
电话：+81-50-5370-0262
邮箱：info@emlabs.jp
• MPI Corporation（Chupei）
No. 155 Chungho Street
邮编：302
电话：+886-3-555-1771
传真：+886-3-551-8381
邮箱：info@mpi-corporation.com
官网：www.mpi-corporation.com/ast
• NOFFZ（Tönisvorst）
Vorster Strasse 238
邮编：47918
电话：+49 2151-99878-0
邮箱：info@noffz.com
• Power Technology Solutions（Santa Clara）
3048 Scott Blvd
邮编：95054
电话：650-308-8091 ext:
传真：408-727-0827
邮箱：inquiries@pwrts.com
• Resillion（Hasselt）
Kempische Steenweg 303
邮编：3500
电话：+32 498 92 01 71
邮箱：global-ci-sales@resillion.com
• Suzhou Link Ways Tech Co., Ltd.（Suzhou）
16F, Block B, Jin Shi Wang Hu Building, No. 18, Jia Rui alley, SIP
邮编：215021
电话：+86 512 6602 8998
• 上海凌测电子科技有限公司（上海）
峨山路91弄120号陆家嘴软件园8号楼401A室浦东新区
邮编：200127
电话：021-61090608
邮箱：yue.lin@merlintest.com.cn
• 上海北汇信息科技有限公司（上海市）
秀路100号虹桥总部1号4号楼3C闵行区紫
邮编：201103
电话：021-34716271
邮箱：info@polelink.com
官网：polelink.com
• 上海怿星电子科技有限公司（上海市）
钦州北路1199号智汇园87号楼5F室徐汇区
邮编：200233
电话：021-64955659
邮箱：biz@e-planet.cn
• 东昇电磁兼容技术(深圳)有限公司（深圳市）
福田中心区26-3路中国凤凰大厦2栋25G
邮编：518026
电话：0755-82792411
邮箱：sales@jstoyo.cn
• 南京派格测控科技有限公司（南京市）
建邺区建邺人才服务大厦16楼
邮编：210019
电话：4008920858
邮箱：sales@pgtec.cn
官网：pgtec.cn
• 南京纳特通信电子有限公司（南京市）
江宁开发区临淮街20号
邮编：210012
电话：025-84471796
邮箱：sales@rflight.cn
• 深圳市研辰科技有限公司（深圳市）
益田路3008号皇都广场C座2815室福田区
邮编：518048
电话：0755-82828703
邮箱：roger_huang@ascentest.com
原厂翻新与二手仪器
• 是德科技原厂二手仪器商城（Keysight Certified Pre-Owned）：www.keysight.com/used/cn/zh/
• 原厂翻新仪器经与新品相同的最终测试与校准，原厂保修最长 5 年；享 40%–90% 折扣，另有线上 5% / 教育 15% 优惠
| W4100-3MW | Warranty, 3mth for included accessories |
| U2032A | Trigger cable BNC male to SMB female 50ohm, 1.5meter length | |
| U2031C | Power Sensor cable; 16.4-ft (5m) | |
| U2031B | Power Sensor cable; 10-ft (3m) | |
| U2031A | Power Sensor cable; 5-ft (1.5m) |
| U2000A-303 | Power sensor cable; 16.4-ft (5m) | |
| U2000A-302 | Power sensor cable; 10-ft (3m) | |
| U2000A-301 | Power sensor cable; 5-ft (1.5m) |
| U2000A-204 | USB/LAN power sensors soft carrying pouch (210 mm Long x 150 mm Width x 70 mm Height) | |
| U2000A-203 | Power sensor holster (104 mm Long x 50 mm Width x 39 mm Height) | |
| U2000A-202 | Power meter and power sensor soft carrying case (backpack) (405 mm Long x 270 mm Width x 175 mm Height) | |
| U2000A-201 | USB/LAN power sensors hard transit case (500 mm Long x 399 mm Width x 138 mm Height) |
| U8487A-200 | Connector 2.4MM (DC Couple) DC to 50GHZ | |
| U8487A-100 | Connector 2.4MM, (DC Block) 10MHZ-50GHZ |
| U8487A-A6J | ANSI Z540-1-1994 Calibration | |
| U8487A-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) | |
| U8487A-UK6 | Commercial calibration certificate with test data |
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
