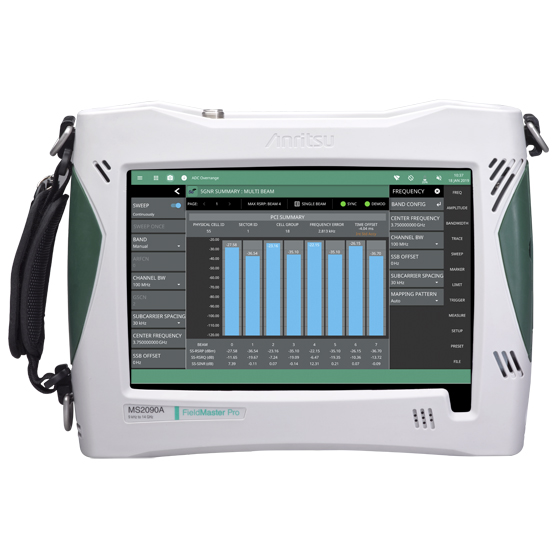

MS2090A 无线通信频谱分析仪
手持式频谱分析仪，频率连续覆盖最高 54 GHz，实时频谱分析带宽最高 150 MHz，DANL 为 -164 dBm（带前置放大器），支持 5G NR 与 LTE 解调及干扰源查找。
产品简介
频率范围：9 kHz 至 9/14/20/26.5/32/43.5/54 GHz
Field Master Pro MS2090A具有从9 kHz到54 GHz的连续频率覆盖范围，专门设计用于应对当今使用的其他各种无线技术的测试挑战，这些技术包括：5G，LTE，无线回传，航空航天/国防，卫星系统。

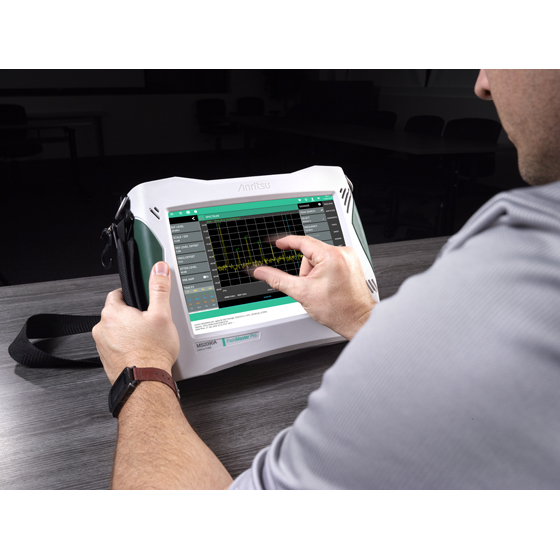

Field Master Pro MS2090A 是一款手持式触摸屏频谱分析仪，可提供最高水平的射频性能；该设备的显示平均噪声电平 (DANL) 为 -164 dBm，三阶交调 (TOI) 为 +20 dBm（典型值）。该设备可使频谱清理、无线电调准、谐波和失真等测量比以往更准确。对于在数字系统上进行调制测量，150 MHz 的调制带宽及业界最佳相噪性能可最大程度地提高测量精度，同时 ±0.5 dB 的典型振幅精度可让您信心十足地测试发射器功率和杂波。

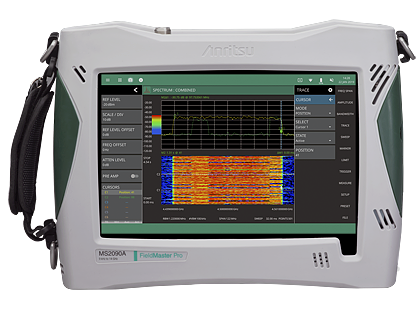

针对现场使用进行了加固处理，所有版本均配有各种用于加速和简化测量以及提高可用性的功能。20 MHz（标准）~ 150 MHz（可选）的 RTSA 范围使蜂窝干扰监控能够执行全 ISM 频带信号分析。除了作为全范围扫描调节频谱分析仪外，所有版本均配有频谱图显示器，有助于监控射频频谱的间歇或干扰信号。集成式信道功率和占用带宽测量可简化常用无线电传输的测量和特征识别。5G 帧的 IQ 数据采集功能可采集和保存 IQ 数据，以便利用标准数据分析工具在计算机上进行离线处理。
核心特点
• 9 kHz 至 9/14/20/26.5/32/43.5/54 GHz
• DANL：-164 dBm（带前置放大器）
• TOI：+20 dBm（典型值）
• 分析带宽：150 MHz
• 振幅范围：DANL 至 +30 dBm
• 1 GHz 下的相噪：-110 dBc/Hz，100 kHz 偏差（典型值）
• Demodulation: 5GNR, LTE FDD/TDD, RF, and modulation quality plus SSB signal analysis
• 分辨率带宽 (RBW)：1 Hz 至 10 MHz
• Sweep Speed: 40 GHz/second (full span)
• RTSA 带宽：22, 55, 120, 150 MHz (option dependent)
• 振幅精度：<14 GHz ± 1.3 dB（± 0.5 dB，典型值）
• Zero span with 60 ns minimum span
• IQ capture and streaming
• AM/FM modulation quality measurements
• Built-in PDF/HTML report generation
• EMF Measurements
型号与主要参数
• 频率范围：MS2090A-0709 9 kHz 至 9 GHz；MS2090A-0714 9 kHz 至 14 GHz；MS2090A-0720 9 kHz 至 20 GHz；MS2090A-0726 9 kHz 至 26.5 GHz；MS2090A-0732 9 kHz 至 32 GHz；MS2090A-0743 9 kHz 至 43.5 GHz；MS2090A-0754 9 kHz 至 54 GHz
• DANL（带前置放大器）：-164 dBm
• TOI：+20 dBm
• 分析带宽：150 MHz
• 解调：5GNR, LTE FDD, RF, and modulation quality plus SSB signal analysis
• 振幅范围：DANL 至 +30 dBm
• 1 GHz 下的相噪：-110 dBc/Hz，100 kHz 偏差（典型值）
• 分辨率带宽 (RBW)：1 Hz 至 10 MHz
功能与结构

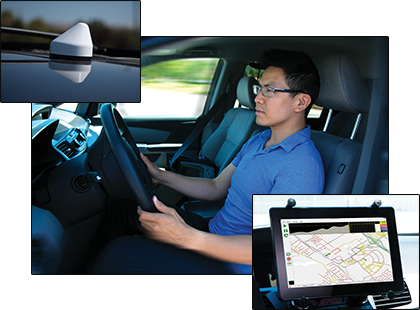

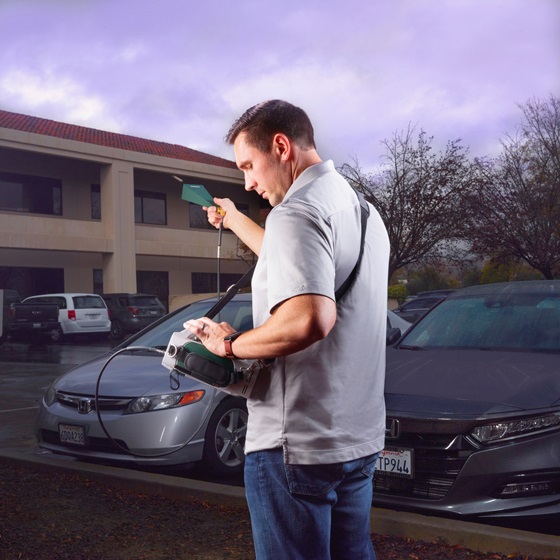

Mobile InterferenceHunter
Anritsu Mobile Interference Hunting System — Quick. Reliable. Multi-Emitter.
Anritsu’s Mobile InterferenceHunter MX280007A is a quick and reliable way to find single or multiple sources of interference. The ability to work with multiple signal sources, reflections, RF shadows, drifting signals, bursty signals, and multi-path distinguish the Mobile InterferenceHunter MX280007A from more expensive solutions targeted at single fixed frequency interference sources.
The Mobile InterferenceHunter’s post-capture analysis capability allows users to modify search parameters without re-driving the route. This allows re-analysis of the captured data as well as consulting with experts.
The Mobile InterferenceHunter works with the broad array of Anritsu’s handheld spectrum analyzers, providing interference hunting and spectrum clearing capability from 9 kHz 至 54 GHz. The Mobile InterferenceHunter is a quick, reliable, and multi-emitter enabled solution to your interference hunting and spectrum clearing needs.
Mobile InterferenceHunter

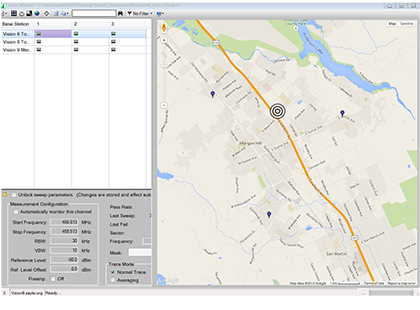

Vision Software
Vision™ is a software application which runs on a PC/laptop using the Windows operating system (Windows 7/8/10/11). It can optionally be used for monitoring, identifying, and locating interference signals.
Vision Monitor
Vision Monitor is the visible user interface for monitoring remote spectrum activity. Measurement data is provided in a variety of formats including spectrum trace data, spectrograms, tables and plots. Real-time spectrum measurements can be accessed from anywhere in the network where multiple monitors are deployed.
The Vision Monitor application is fully automated. Measurements can be captured and periodically uploaded to a database for further processing. Depending on need and storage capacity, users can store spectrum history over many months or years. Typically in a system with 1,000 probes with each probe uploading spectrum data every 15 minutes, a 30 day spectral history would require about 1 TB of storage capacity.
Vision Remote Spectrum Monitoring Software

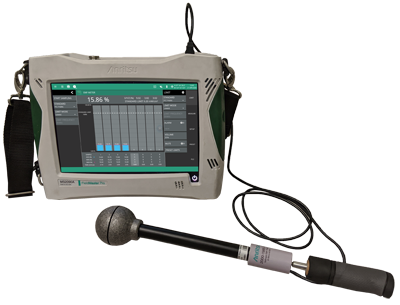

Isotropic EMF Probe
2000-1985-R Isotropic EMF Probe for use with Option 445
The 2000-1985-R Isotropic EMF Probe, in conjunction with MS2090A Option 445 EMF Meter, offers a broadband EMF measurement from 20 MHz 至 40 GHz with excellent accuracy and speed. Simply connect the probe to a USB port on the Field Master Pro, open the EMF Meter application (requires Option 445) and easily measure the EMF energy as a percentage of FCC public, FCC technician, ICNIRP public, or ICNIRP public limits.

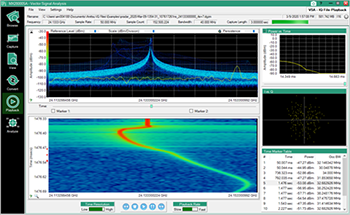

IQ Capture and Analysis
PC based IQ analysis software for use with IQ data captured from a Remote Spectrum Analyzer
IQ Signal Master MX280005A Vector Signal Analysis Software provides a comprehensive suite of measurements that deliver post processing and analysis of IQ data files captured on the Field Master Pro spectrum analyzers. The software is designed to bring together all the essential tools required to capture IQ data files and then gain critical insights into the nature of the captured signals. Modes within the application, support the ability to capture or stream IQ data into the PC memory, perform modulation quality measurements, playback IQ data with high frequency and time resolution, view LTE and 5G frame resource blocks and playback IQ spectrograms from up to four analyzers in parallel.
A file conversion mode allows IQ data captured on the supported analyzers to be converted to the format required for playback using a Vector Signal Generator MG3710E further enhancing the overall capability.
The software is designed for national RF spectrum regulators, security agencies and defense electronics companies who need to gain critical insight into RF signals that have been captured in the field. It is also suitable for organizations that need to monitor and protect RF spectrum from unlicensed operators or unintended sources of interference
IQ Signal Master MX280005A Vector Signal Analysis Software

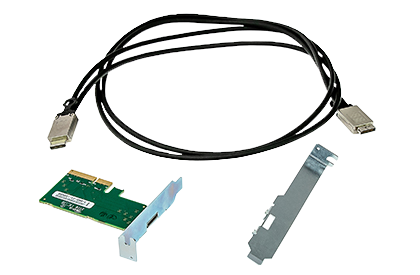

IQ Data can be captured or streamed to a PC via USB, Ethernet, or PCIe interface using the MA25101A IQ Streaming PCIe kit.
行业
卫星通信
Webinars
Webinars
The 5G Evolution of Indoor Wireless Networks for Smart Buildings and Manufacturing Facilities
5G technology has introduced some exciting possibilities for in-building functions. The “smart” buildings and manufacturing facilities of tomorrow will include new functions such as IoT, factory automation, machine learning devices, and cloud compute applications. To handle these new features, network architectures will change, frequency bands will be added, and new network features will be introduced. In this webinar, we will examine how the indoor wireless networks will evolve as we move to 5G, and the challenges in managing these complex networks to ensure performance and reliability for both commercial as well as the public safety networks.
Understanding Real-Time Spectrum Analysis
Real-time spectrum analysis (RTSA) provides signal insight previously only available in high-end lab and benchtop solutions. RTSA allows gapless capture and display of rapidly changing and highly intermittent signals. The digital nature of RTSA also makes a variety of analysis and display technologies possible that traditionally required multiple hardware platforms.
技术
Coverage and Interference Mapping

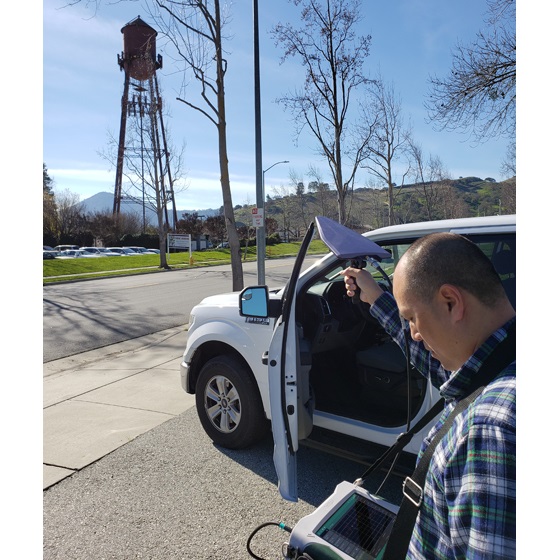

Interference Hunting
典型应用
• Field Master Pro MS2090A 是一款手持式射频频谱分析仪，可提供最高水平的工作性能，为现场工程师和技术人员带来之前仅限于台式设备的前所未有的测量精度。
• 干扰源查找和频谱 清理网络 – 快速扫描速度、低失真前端和频谱图显示器，有助于高效地部署新网络，进而确保频谱清晰，验证所有旧用户是否已停止全部传输。
• 广播发射器分析 – a comprehensive range of transmitter measurements – including: AM/FM modulation quality measurements, harmonic, spurious, occupied bandwidth, channel power, and adjacent channel power – ensures conformity to regulatory requirements.

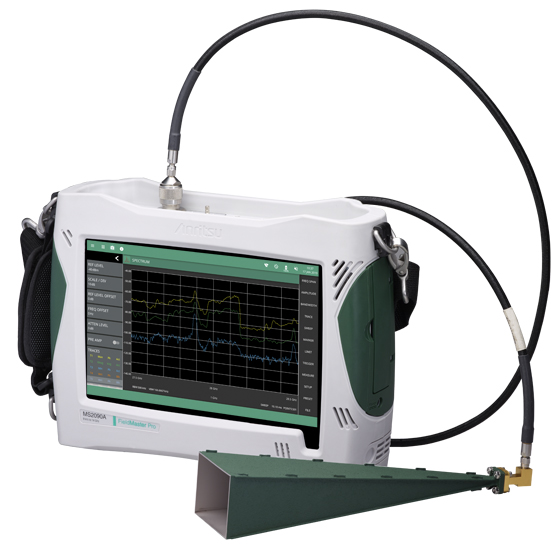

• 微波无线电链路 – 凭借高达 54 GHz 的频率选项和非凡的抛物面天线调准灵敏性，可在利用波导喇叭天线执行安装和维护测试的过程中验证功率和调制带宽。
• 卫星系统监控 – 特别适合监控下行链路信号，以搜索干扰和噪声
• LTE base station measurements – OTA or direct connect measurements in single or multi channel configurations
• Cell ID, Sector ID, Cell Group
• Frequency Error and Time Offset
• PBCH, RS, and SS Power
• Signal Quality (EVM)
• MIMO Antenna Power and Time Alignment Error (TAE)
• Channel Power and Occupied Bandwidth
• TDD Frame Power
• ACLR and Spectral Emissions Masks
• Time Alignment Error
• Resource Block Usage
• OFDM Symbol Transmit Power (OSTP)
• Time gated Uplink interference measurements
型号与选件
• MS2090A-0709：9 kHz 至 9 GHz
• MS2090A-0714：9 kHz 至 14 GHz
• MS2090A-0720：9 kHz 至 20 GHz
• MS2090A-0726：9 kHz 至 26.5 GHz
• MS2090A-0732：9 kHz 至 32 GHz
• MS2090A-0743：9 kHz 至 43.5 GHz
• MS2090A-0754：9 kHz 至 54 GHz
• MS2090A-0003：Time Domain Reflectometry (TDR) Measurement (Requires option 331)
• MS2090A-0006：Remove Wi-Fi and Bluetooth
• MS2090A-0007：Secure Data
• MS2090A-0017：Secure Communication
• MS2090A-0019：High-Accuracy Power Meter (Requires USB power sensor, sold separately)
• MS2090A-0024：Interference Finder (Option 31 and directional antenna recommended, sold separately)
• MS2090A-0027：Channel Scanner
• MS2090A-0031：GNSS 接收器（需要 GNSS 天线，单独出售）
• MS2090A-0089：Zero span IF output
• MS2090A-0090：Gated Sweep
• MS2090A-0103：55 MHz 分析带宽
• MS2090A-0104：120 MHz 分析带宽
• MS2090A-0105：150 MHz Analysis Bandwidth
• MS2090A-0124：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set)
• MS2090A-0125：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (Requires option 124)
• MS2090A-0126：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set) (Non Export Controlled)
• MS2090A-0127：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (Requires option 126, Non Export Controlled)
资源下载
• MS2090A 无线通信频谱分析仪 详细指标见 MS2090A 无线通信频谱分析仪 详细指标页。
• 官方资料：Anritsu RF and Microwave Handheld Analyzers Product Selection Matrix（产品手册）、IQ Signal Master MX280005A Vector Signal Analysis Software Product Brochure（产品手册）、C-RAN In The City Poster（产品手册）、Anritsu's RF and Microwave Test and Measurement Solutions Product Brochure（产品手册）、Field Master Pro MS2090A Product Brochure（产品手册）、5G Solutions Catalog（产品手册）
注：以上内容与指标取自安立官网该产品详情页。
安立 · onetest 仪器资源库
安立
MS2090A 无线通信频谱分析仪 详细指标
手持式频谱分析仪，频率连续覆盖最高 54 GHz，实时频谱分析带宽最高 150 MHz，DANL 为 -164 dBm（带前置放大器），支持 5G NR 与 LTE 解调及干扰源查找。
详细指标
• 频率范围：MS2090A-0709 9 kHz 至 9 GHz；MS2090A-0714 9 kHz 至 14 GHz；MS2090A-0720 9 kHz 至 20 GHz；MS2090A-0726 9 kHz 至 26.5 GHz；MS2090A-0732 9 kHz 至 32 GHz；MS2090A-0743 9 kHz 至 43.5 GHz；MS2090A-0754 9 kHz 至 54 GHz
• DANL（带前置放大器）：-164 dBm
• TOI：+20 dBm
• 分析带宽：150 MHz
• 解调：5GNR, LTE FDD, RF, and modulation quality plus SSB signal analysis
• 振幅范围：DANL 至 +30 dBm
• 1 GHz 下的相噪：-110 dBc/Hz，100 kHz 偏差（典型值）
• 分辨率带宽 (RBW)：1 Hz 至 10 MHz
• 输入 SWR：1.5
• 振幅精度：< 14 GHz ±1.3 dB（±0.5 dB，典型值）
• RTSA 带宽：22, 55, 120, 150 MHz (option dependent)
型号与选件
• MS2090A-0709：9 kHz 至 9 GHz
• MS2090A-0714：9 kHz 至 14 GHz
• MS2090A-0720：9 kHz 至 20 GHz
• MS2090A-0726：9 kHz 至 26.5 GHz
• MS2090A-0732：9 kHz 至 32 GHz
• MS2090A-0743：9 kHz 至 43.5 GHz
• MS2090A-0754：9 kHz 至 54 GHz
• MS2090A-0003：Time Domain Reflectometry (TDR) Measurement (Requires option 331)
• MS2090A-0006：Remove Wi-Fi and Bluetooth
• MS2090A-0007：Secure Data
• MS2090A-0017：Secure Communication
• MS2090A-0019：High-Accuracy Power Meter (Requires USB power sensor, sold separately)
• MS2090A-0024：Interference Finder (Option 31 and directional antenna recommended, sold separately)
• MS2090A-0027：Channel Scanner
• MS2090A-0031：GNSS 接收器（需要 GNSS 天线，单独出售）
• MS2090A-0089：Zero span IF output
• MS2090A-0090：Gated Sweep
• MS2090A-0103：55 MHz 分析带宽
• MS2090A-0104：120 MHz 分析带宽
• MS2090A-0105：150 MHz Analysis Bandwidth
• MS2090A-0124：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set)
• MS2090A-0125：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (Requires option 124)
• MS2090A-0126：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set) (Non Export Controlled)
• MS2090A-0127：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (Requires option 126, Non Export Controlled)
• MS2090A-0128：Enable Vector Signal Analysis (Requires Option 124 or 126)
• MS2090A-0199：实时频谱分析仪
• MS2090A-0331：Enable S331P Site Master (Requires S331P, sold separately)
• MS2090A-0400：Enable Vision Monitor
资源下载
• MS2090A 无线通信频谱分析仪 产品介绍见 MS2090A 无线通信频谱分析仪 产品介绍页。
• 官方资料：Anritsu RF and Microwave Handheld Analyzers Product Selection Matrix（产品手册）、IQ Signal Master MX280005A Vector Signal Analysis Software Product Brochure（产品手册）、C-RAN In The City Poster（产品手册）、Anritsu's RF and Microwave Test and Measurement Solutions Product Brochure（产品手册）、Field Master Pro MS2090A Product Brochure（产品手册）、5G Solutions Catalog（产品手册）
注：以上内容与指标取自安立官网该产品详情页。
