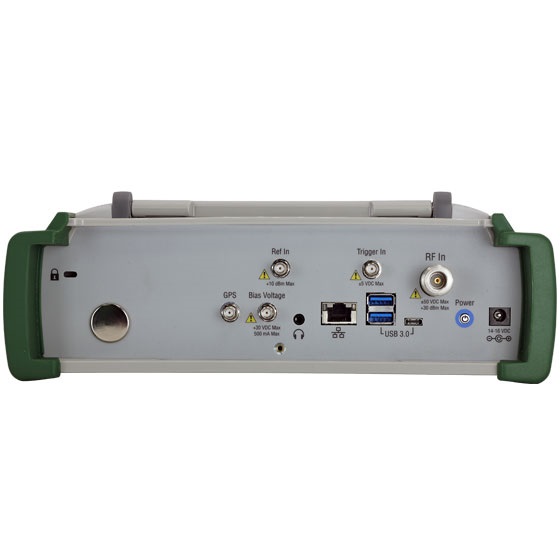

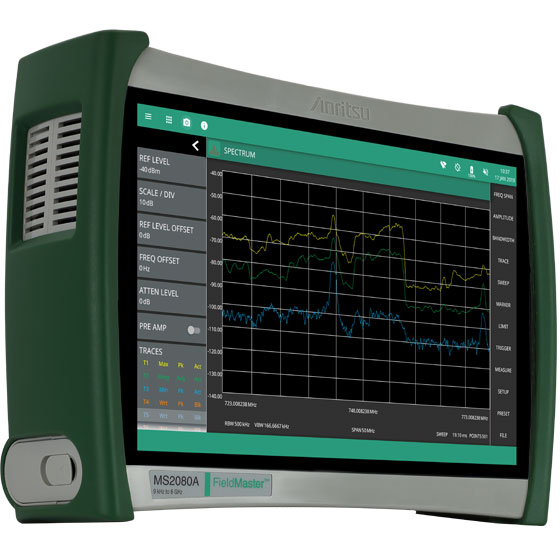

MS2080A Field Master 手持式频谱分析仪
4 GHz 与 6 GHz 手持式射频频谱分析仪，可选实时频谱（RTSA）、跟踪发生器、电缆与天线分析仪、干扰捕获以及 5G/LTE 基站测试。
产品简介
MS2080A 延续安立在严苛环境射频测量上的积累，整机重量不足 9 磅，兼具现场便携与台式使用的便利。
现场查找干扰信号时，45 GHz/s 的快速扫描速度配合 AM/FM 解调与射频信号源，可快速识别并定位干扰源；跟踪发生器选件可测试电缆与滤波器插入损耗，并具备偏置跟踪功能用于变频器件的转换损耗测量。
LTE 与 5G 基站测量选件支持运营商与工程承包商在安装或优化网络时完成必要的测量项目。
核心特点
• 频谱分析仪

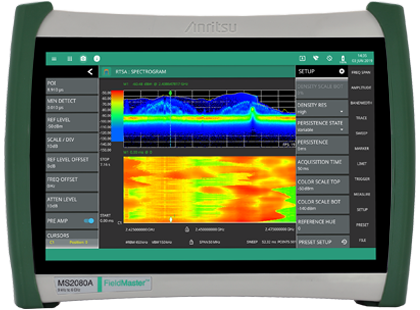

• 实时频谱分析（RTSA）
• 干扰分析仪
• 真功率计
• 电缆与天线分析仪
• 跟踪发生器
• AM/FM 调制质量测量
• LTE FDD/TDD 分析仪
• 5G NR FR1 分析仪
• 覆盖图（Coverage Mapping）
• 内置 PDF/HTML 报告生成
• 安全数据模式
型号与主要参数
• Frequency range：9 kHz 至 4 GHz (Option 704) 9 kHz 至 6 GHz (Option 706)
• Sweep speed：45 GHz/s
• Phase noise：-95 dBc/Hz @ 1 GHz freq and 100 kHz offset
• DANL：< -165 dBm (with pre amp)
• Maximum input signal：+30 dBm
• Dynamic range：>105 dB minimum at 2.4 GHz, 2/3 (TOI-DANL) in 1 Hz RBW
• Amplitude range：DANL to +30 dBm
• Tracking Generator：–45 dBm 至 +9 dBm, Tracking, Offset Tracking, CW
功能与结构
Industries
Satellite communications

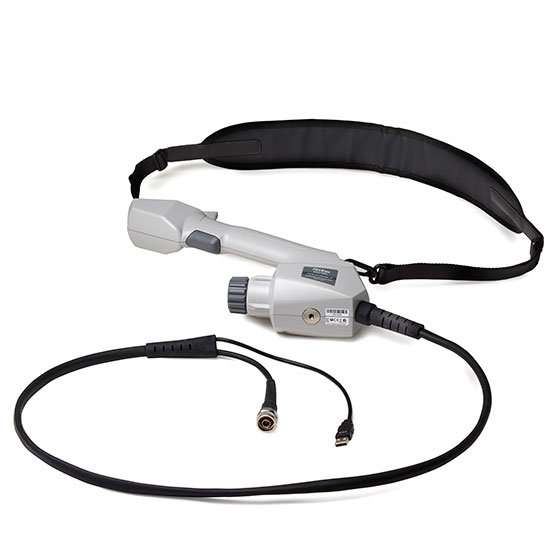

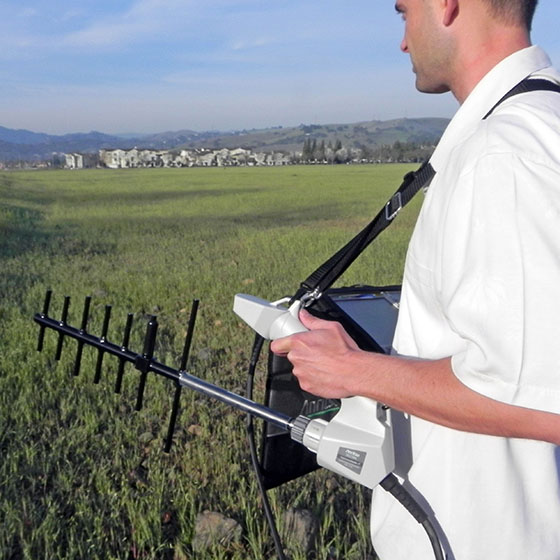

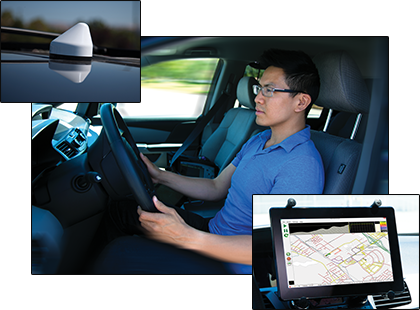

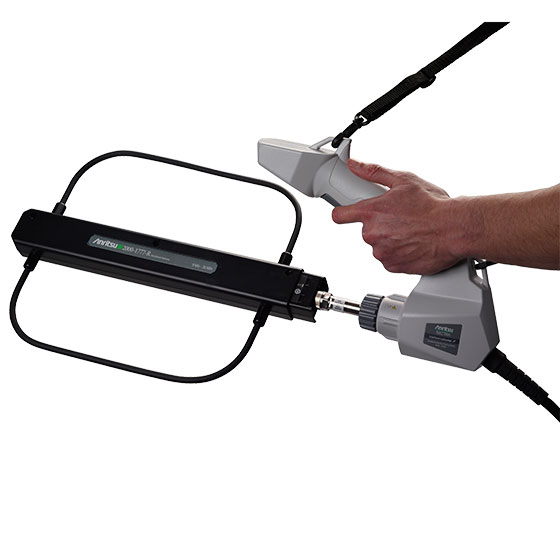

Mobile InterferenceHunter
Anritsu Mobile Interference Hunting System — Quick. Reliable. Multi-Emitter.
Anritsu’s Mobile InterferenceHunter MX280007A is a quick and reliable way to find single or multiple sources of interference. The ability to work with multiple signal sources, reflections, RF shadows, drifting signals, bursty signals, and multi-path distinguish the Mobile InterferenceHunter MX280007A from more expensive solutions targeted at single fixed frequency interference sources.
The Mobile InterferenceHunter’s post-capture analysis capability allows users to modify search parameters without re-driving the route. This allows re-analysis of the captured data as well as consulting with experts.
The Mobile InterferenceHunter works with the broad array of Anritsu’s handheld spectrum analyzers, providing interference hunting and spectrum clearing capability from 9 kHz 至 54 GHz. The Mobile InterferenceHunter is a quick, reliable, and multi-emitter enabled solution to your interference hunting and spectrum clearing needs.
Mobile InterferenceHunter
Vision Software
Vision™ is a software application which runs on a PC/laptop using the Windows operating system (Windows 7/8/10/11). It can optionally be used for monitoring, identifying, and locating interference signals.

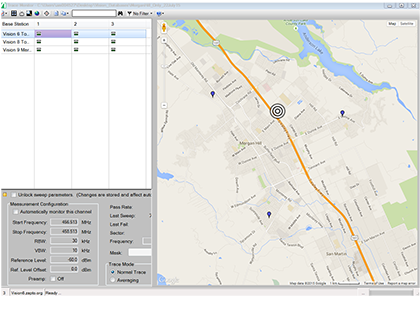

Vision Monitor
Vision Monitor is the visible user interface for monitoring remote spectrum activity. Measurement data is provided in a variety of formats including spectrum trace data, spectrograms, tables and plots. Real-time spectrum measurements can be accessed from anywhere in the network where multiple monitors are deployed.
The Vision Monitor application is fully automated. Measurements can be captured and periodically uploaded to a database for further processing. Depending on need and storage capacity, users can store spectrum history over many months or years. Typically in a system with 1,000 probes with each probe uploading spectrum data every 15 minutes, a 30 day spectral history would require about 1 TB of storage capacity.
Vision Remote Spectrum Monitoring Software

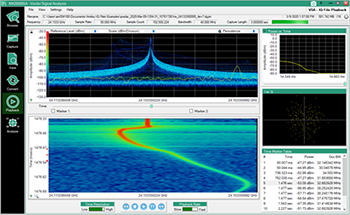

IQ Capture and Analysis
PC based IQ analysis software for use with IQ data captured from a Remote Spectrum Analyzer
IQ Signal Master MX280005A Vector Signal Analysis Software provides a comprehensive suite of measurements that deliver post processing and analysis of IQ data files captured on the Field Master Pro spectrum analyzers. The software is designed to bring together all the essential tools required to capture IQ data files and then gain critical insights into the nature of the captured signals. Modes within the application, support the ability to capture or stream IQ data into the PC memory, perform modulation quality measurements, playback IQ data with high frequency and time resolution, view LTE and 5G frame resource blocks and playback IQ spectrograms from up to four analyzers in parallel.
A file conversion mode allows IQ data captured on the supported analyzers to be converted to the format required for playback using a Vector Signal Generator MG3710E further enhancing the overall capability.
The software is designed for national RF spectrum regulators, security agencies and defense electronics companies who need to gain critical insight into RF signals that have been captured in the field. It is also suitable for organizations that need to monitor and protect RF spectrum from unlicensed operators or unintended sources of interference
IQ Signal Master MX280005A Vector Signal Analysis Software
技术
Interference Hunting
Coverage and Interference Mapping
C-band Deployment and Testing
LTE
典型应用
• 干扰查找与频谱清理
• 广播发射机分析
• 5G NR 基站测量：频率误差、时间偏移、小区/扇区 ID、SSB 的 RSRP/RSRQ/SINR/RSSI、调制质量 EVM 等
• 电缆与滤波器插入损耗测试
型号与选件
• MS2080A-0704：9 kHz 至 4 GHz Spectrum Analyzer
• MS2080A-0706：9 kHz 至 6 GHz Spectrum Analyzer
• MS2080A-0003：Time Domain Reflectometry (TDR) Measurement (Requires S331P, sold separately)
• MS2080A-0006：Remove Wi-Fi and Bluetooth
• MS2080A-0007：Secure Data
• MS2080A-0704-0020：Tracking Generator
• MS2080A-0706-0020：Tracking Generator
• MS2080A-0017：Secure Communication
• MS2080A-0019：High Accuracy Power Meter (Requires USB power sensor, sold separately)
• MS2080A-0024：Interference Finder (Option 31 and directional antenna recommended, sold separately)
• MS2080A-0027：Channel Scanner
• MS2080A-0031：GNSS Receiver (requires GNSS antenna, sold separately)
• MS2080A-0090：Gated Sweep
• MS2080A-0102：40 MHz Analysis Bandwidth
• MS2080A-0126：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set)
• MS2080A-0127：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (requires option 126)
• MS2080A-0128：Enable Vector Signal Analysis (Requires Option 126)
• MS2080A-0199：Real-time Spectrum Analysis (RTSA)
• MS2080A-0400：Enable Vision Monitor
• MS2080A-0407：Enable Vision High-Speed Port Scanner
• MS2080A-0431：Coverage Mapping (Requires Option 31, cannot be ordered with Option 9031)
• MS2080A-0444：EMF Measurement (Requires Anritsu isotropic antenna, sold separately)
• MS2080A-0509：AM/FM Modulation Measurements
• MS2080A-0871：WCDMA FDD Measurements (Requires Option 31)
资源下载
• MS2080A Field Master 手持式频谱分析仪 详细指标见 MS2080A Field Master 手持式频谱分析仪 详细指标页。
• 官方资料：Anritsu RF and Microwave Handheld Analyzers Product Selection Matrix（产品手册）、C-RAN In The City Poster（产品手册）、Field Master Handheld RF Spectrum Analyzer MS2080A Product Brochure（产品手册）、Field Master Handheld RF Spectrum Analyzer MS2080A Quick Fact Sheet（产品手册）、Field Master Handheld RF Spectrum Analyzer MS2080A Technical Data Sheet（技术指标）、EU Declaration of Conformity for the Field Master MS2080A（技术指标）
注：以上内容与指标取自安立官网该产品详情页。
安立 · onetest 仪器资源库
安立
MS2080A Field Master 手持式频谱分析仪 详细指标
4 GHz 与 6 GHz 手持式射频频谱分析仪，可选实时频谱（RTSA）、跟踪发生器、电缆与天线分析仪、干扰捕获以及 5G/LTE 基站测试。
详细指标
• 频率范围：9 kHz 至 4 GHz（选件 704）；9 kHz 至 6 GHz（选件 706）
• 扫描速度：45 GHz/s
• 相位噪声：-95 dBc/Hz @ 1 GHz 频率、100 kHz 频偏
• DANL：< -165 dBm（开前置放大器）
• 最大输入信号：+30 dBm
• 动态范围：2.4 GHz 处最小 >105 dB
• 幅度范围：DANL to +30 dBm
• 跟踪发生器：–45 dBm 至 +9 dBm，支持跟踪、偏置跟踪、CW
• 输入损坏电平：5 W
• 频率准确度：老化 ±1.0×10⁻⁶/年；准确度 ±0.28×10⁻⁶（-10 ℃ 至 +55 ℃）加老化
• 幅度准确度：±1 dB（典型 ±0.5 dB）
• 扫频模式分辨率带宽：1 Hz 至 5 MHz
• 零扫宽模式分辨率带宽：10 Hz 至 20 MHz
• RTSA 带宽：40 MHz
• 解调：5G NR 基站、LTE 基站、AM/FM 调制质量
型号与选件
• MS2080A-0704：9 kHz 至 4 GHz Spectrum Analyzer
• MS2080A-0706：9 kHz 至 6 GHz Spectrum Analyzer
• MS2080A-0003：Time Domain Reflectometry (TDR) Measurement (Requires S331P, sold separately)
• MS2080A-0006：Remove Wi-Fi and Bluetooth
• MS2080A-0007：Secure Data
• MS2080A-0704-0020：Tracking Generator
• MS2080A-0706-0020：Tracking Generator
• MS2080A-0017：Secure Communication
• MS2080A-0019：High Accuracy Power Meter (Requires USB power sensor, sold separately)
• MS2080A-0024：Interference Finder (Option 31 and directional antenna recommended, sold separately)
• MS2080A-0027：Channel Scanner
• MS2080A-0031：GNSS Receiver (requires GNSS antenna, sold separately)
• MS2080A-0090：Gated Sweep
• MS2080A-0102：40 MHz Analysis Bandwidth
• MS2080A-0126：IQ Waveform Capture (Includes MX280005A IQ Signal Master base feature set)
• MS2080A-0127：IQ Waveform Streaming (Includes MX280005A IQ Signal Master base feature set) (requires option 126)
• MS2080A-0128：Enable Vector Signal Analysis (Requires Option 126)
• MS2080A-0199：Real-time Spectrum Analysis (RTSA)
• MS2080A-0400：Enable Vision Monitor
• MS2080A-0407：Enable Vision High-Speed Port Scanner
• MS2080A-0431：Coverage Mapping (Requires Option 31, cannot be ordered with Option 9031)
• MS2080A-0444：EMF Measurement (Requires Anritsu isotropic antenna, sold separately)
• MS2080A-0509：AM/FM Modulation Measurements
• MS2080A-0871：WCDMA FDD Measurements (Requires Option 31)
• MS2080A-0883：LTE FDD/TDD Measurements (Requires Option 31)
• MS2080A-0888：5G NR Downlink Measurements (Requires Option 31)
• MS2080A-xxxx-0097：Accredited Calibration to ISO17025 and ANSI/NCSL Z540-1 (xxxx is the frequency option number)
• MS2080A-xxxx-0098：Standard Calibration to ISO17025 and ANSI/NCSL Z540-1 (xxxx is the frequency option number)
资源下载
• MS2080A Field Master 手持式频谱分析仪 产品介绍见 MS2080A Field Master 手持式频谱分析仪 产品介绍页。
• 官方资料：Anritsu RF and Microwave Handheld Analyzers Product Selection Matrix（产品手册）、C-RAN In The City Poster（产品手册）、Field Master Handheld RF Spectrum Analyzer MS2080A Product Brochure（产品手册）、Field Master Handheld RF Spectrum Analyzer MS2080A Quick Fact Sheet（产品手册）、Field Master Handheld RF Spectrum Analyzer MS2080A Technical Data Sheet（技术指标）、EU Declaration of Conformity for the Field Master MS2080A（技术指标）
注：以上内容与指标取自安立官网该产品详情页。
