COR-10B2 放大器
Constant Voltage and Constant Current High Voltage Amplifier 10V / 2A / 20W
产品简介
COR-10B2 是松田精密（Matsusada Precision）COR 系列的一款放大器，最大输出电压 10V，最大输出电流 2A，最大输出功率 20W。
The COR-10B2 is a bipolar, high-speed, high-voltage amplifier developed based on our extensive experience in high-voltage power supply technology. It delivers superior performance and reliability through cutting-edge semiconductor technology and innovative circuit design.
IMPORTANT: For applications involving capacitive loads or electrical discharge, please refer to " For capacitive loads and discharge loads "

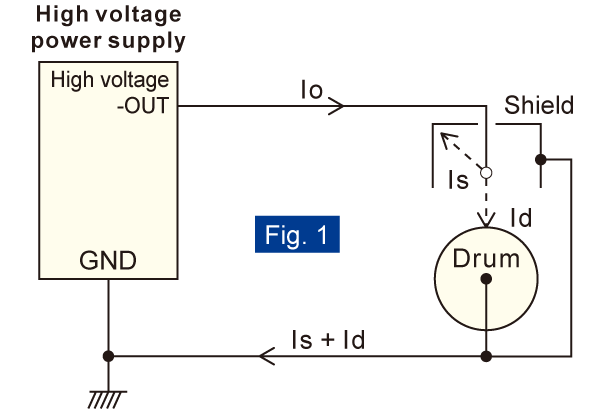

In applications such as charging a photosensitive drum, precise control of the target current (drum current: Id) is critical. Conventional high-voltage power supplies can only regulate the total output current, which is the sum of the drum current (Id) and the leakage current to the shield (Is). This makes it difficult to accurately control the current applied to the target (Fig. 1). The COR-10B2 high-voltage amplifier features a dedicated return (RTN) terminal, enabling the amplifier to isolate and precisely control only the true drum current (Id), regardless of whether the drum is grounded (Fig. 2) or floating (Fig. 3). This function ensures superior process repeatability and reliability.
核心参数
• 输出电压：-10 to +10 kVdc
• 电流：-2 to +2 mA
• Max power：20 W
• Slew rate：≥30V/µs
• Frequency response (-3 dB)
Typical value at sine wave：DC to 1kHz
• 输入电压：115 Vac ±10% （103.5 to 126.5 Vac）, 50/60 Hz, Single-phase
230 Vac ±10% （207 to 253 Vac）, 50/60 Hz, Single-phase (option)
• 输出控制：Constant Voltage mode/Constant Current mode
External control voltage -10 to +10 V (DC or peak AC)
• -L(230V)：Input voltage 230 Vac
230 Vac ±10% single-phase
• -L(5m)：High voltage output cable 5 meters length
Please note that using the 5 meters length cable may decrease slew rate, response time, and distort output waveforms.
" For capacitive loads and discharge loads ” for details.
• 交流输入电缆：The COR series comes with one AC power cord.
The length of each cable is 2.5 meters. (Please see CABLE series catalog for details)
Standard
CABLE TYPE1
125 V/10 A
2.5 meters Fixed length
-L(230V) option
CABLE TYPE3
250 V/10 A
2.5 meters Fixed length
Sold separately [with -L(230V) option]
CABLE TYPE4
250 V/10 A
2.5 meters Fixed length
• 输出电缆：The COR series comes with one 1.5m high voltage cable.
This can be changed to a 5m cable as an option.
Standard
CN-40-AHVP
High voltage output cable 1.5 meters length
-L(5m) option
CN-40-AHVP(5)
-->
High voltage output cable 5 meters length
功能特性
• Output Range：High-voltage amplifiers are typically equipped with a current sink function, allowing for constant voltage operation regardless of whether the load is capacitive, inductive, or resistive. With its fast response time, the COR series is an ideal choice for applications requiring AC output. It is a bipolar amplifier capable of full four-quadrant operation (sourcing and sinking current across positive
资源下载
以上内容与指标均取自Matsusada Precision 官网产品页与官方数据手册，未标注口径的为厂家公布值。
松田精密（Matsusada Precision） · onetest 仪器资源库
松田精密|Matsusada Precision Inc.
COR-10B2 放大器 详细指标
Constant Voltage and Constant Current High Voltage Amplifier 10V / 2A / 20W
详细指标
以下指标取自松田精密（Matsusada Precision）官网 COR 系列产品页的「Models / Specifications / Options / Dimensions」区块，其中「型号输出参数」为该型号在官方型号表中的原始列值；官方原文为英文，此处按原文保留。详细规格与测试条件以官方数据手册为准。
型号输出参数
• 输出电压：-10 to +10 kVdc
• 电流：-2 to +2 mA
• Max power：20 W
• Slew rate：≥30V/µs
• Frequency response (-3 dB)
Typical value at sine wave：DC to 1kHz
系列共用规格
• 输入电压：115 Vac ±10% （103.5 to 126.5 Vac）, 50/60 Hz, Single-phase
230 Vac ±10% （207 to 253 Vac）, 50/60 Hz, Single-phase (option)
• 输出控制：Constant Voltage mode/Constant Current mode
External control voltage -10 to +10 V (DC or peak AC)
• -L(230V)：Input voltage 230 Vac
230 Vac ±10% single-phase
• -L(5m)：High voltage output cable 5 meters length
Please note that using the 5 meters length cable may decrease slew rate, response time, and distort output waveforms.
" For capacitive loads and discharge loads ” for details.
• 交流输入电缆：The COR series comes with one AC power cord.
The length of each cable is 2.5 meters. (Please see CABLE series catalog for details)
Standard
CABLE TYPE1
125 V/10 A
2.5 meters Fixed length
-L(230V) option
CABLE TYPE3
250 V/10 A
2.5 meters Fixed length
Sold separately [with -L(230V) option]
CABLE TYPE4
250 V/10 A
2.5 meters Fixed length
• 输出电缆：The COR series comes with one 1.5m high voltage cable.
This can be changed to a 5m cable as an option.
Standard
CN-40-AHVP
High voltage output cable 1.5 meters length
-L(5m) option
CN-40-AHVP(5)
-->
High voltage output cable 5 meters length
选件 / 附件
• -L(230V)：Input voltage 230 Vac
230 Vac ±10% single-phase
• -L(5m)：High voltage output cable 5 meters length
Please note that using the 5 meters length cable may decrease slew rate, response time, and distort output waveforms.
" For capacitive loads and discharge loads ” for details.
• 交流输入电缆：The COR series comes with one AC power cord.
The length of each cable is 2.5 meters. (Please see CABLE series catalog for details)
Standard
CABLE TYPE1
125 V/10 A
2.5 meters Fixed length
-L(230V) option
CABLE TYPE3
250 V/10 A
2.5 meters Fixed length
Sold separately [with -L(230V) option]
CABLE TYPE4
250 V/10 A
2.5 meters Fixed length
• 输出电缆：The COR series comes with one 1.5m high voltage cable.
This can be changed to a 5m cable as an option.
Standard
CN-40-AHVP
High voltage output cable 1.5 meters length
-L(5m) option
CN-40-AHVP(5)
-->
High voltage output cable 5 meters length
资源下载
以上规格取自松田精密（Matsusada Precision）官网 COR 系列产品页（https://www.matsusada.com/product/high-voltage-amplifiers/high-voltage-amplifiers/cor/）。
松田精密（Matsusada Precision） · onetest 仪器资源库
