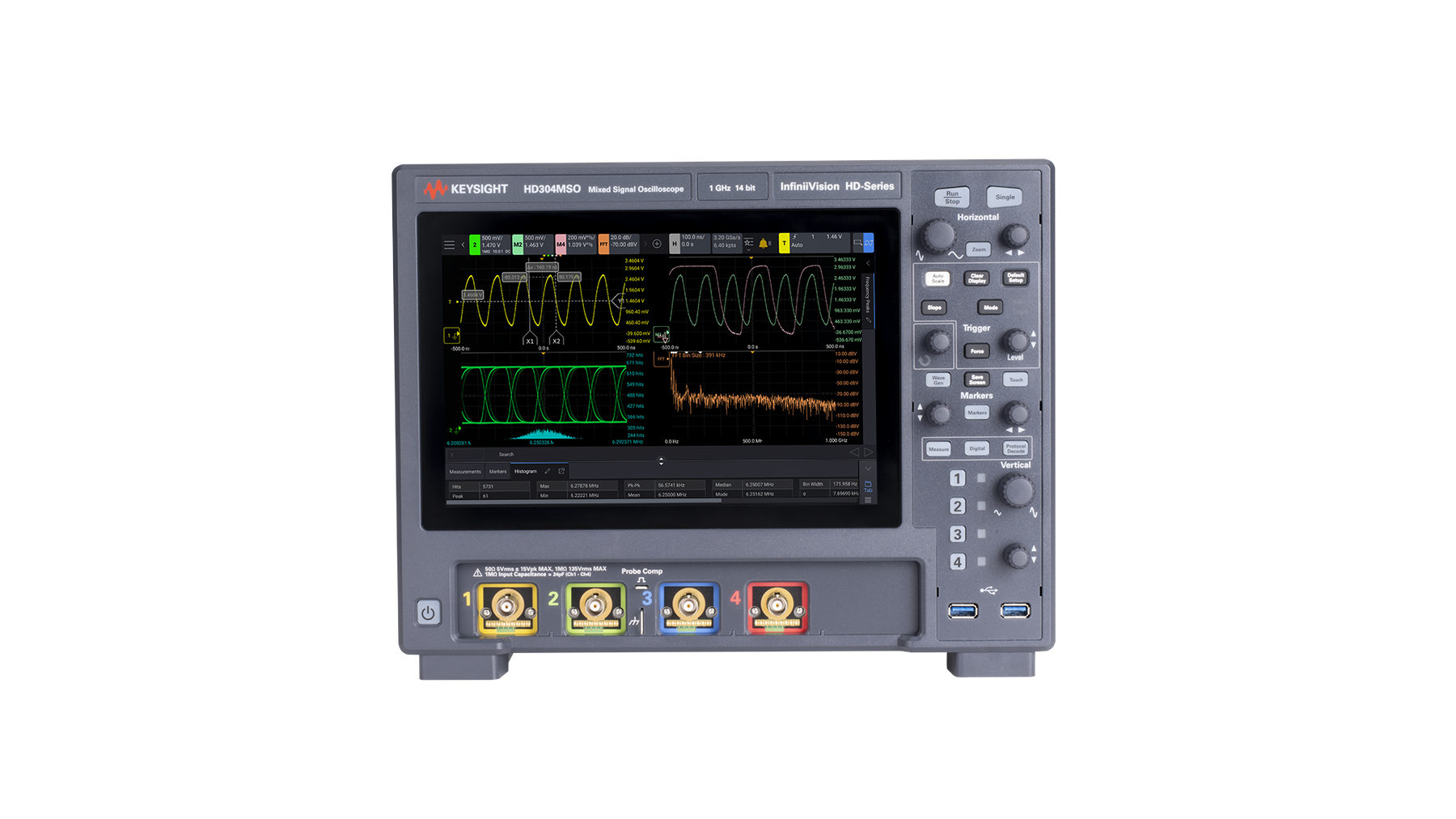

HD系列HD302MSO 示波器 200MHz 详细指标
Benchtop Oscilloscopes
HD3 Series Specification Overview
Bandwidth1 (-3 dB) 200 MHz 350 MHz 500 MHz
1 GHz
Calculated rise time (10 to 90%) ≤ 2.0 ns ≤ 1.3 ns ≤ 900 ps ≤
450 ps
Maximum sample rate
3.2 GSa/s per channel
Maximum memory depth
100 Mpts per channel
Display size and type
10.1-inch capacitive touch gesture-enabled display
Waveform update rate Uncompromised >
1,300,000 waveforms per second
Hardware bandwidth limits 20, 40, 50, 100, 200
350 MHz (selectable), per-channel
5, 10, 20, 40, 50, 100, 200
350 MHz (selectable), global
Input impedance 50 Ω
± 1.5%2
Input sensitivity range 50 Ω 100 uV/div to 1 V/div 1 MΩ
100 uV/div to 10 V/div
Vertical resolution
14 bits (16 bits using bandwidth limits)
Maximum input voltage
1 MΩ:
135 Vrms, 190 Vpk. Derate at 20dB/decade from 250 kHz to 10 MHz. Above 10 MHz
5Vrms
50 Ω:
> 104 mV/div: 5 Vrms
15 Vpk
When using Keysight PP0001A, PP0002A, or PP0003A probes, input voltages at the oscilloscope are ≤
30 Vrms
For the 1MΩ input, probing technology allows testing of higher voltages (for example, the included N2843A
10:1
probe supports testing up to 300Vrms).
Use this instrument only for measurements within its specified measurement category (not rated for CAT II, III,
No transient overvoltage allowed
条件：(measured with same V/div and coupling on channels)
Noise density Measured at 101 MHz, span 1 MHz and 15 kHz RBW
DC vertical gain accuracy1
±1.5% full scale3
DC voltage measurement accuracy Dual cursor: ± [(DC gain accuracy) +
0.16% full scale]1
Single cursor: ± [(DC gain accuracy) + (offset accuracy) +
0.08% full scale]
DC vertical offset accuracy ± 0.1 div ± 1 mV
± 1.5% of offset setting
Channel-to-channel isolation > 100:1 from DC to maximum specified bandwidth of each model
Offset range 50Ω: 100uV/div to 100mV/div
±1.5V
> 100mV/div to 1V/div
±5V
1MΩ:
100uV/div to 100mV/div
±1.5V
> 100mV/div to 1V/div
±15V
> 1V/div to 10V/div
±150V
Range (dBM): Noise Density (dBm/Hz)
条件：from firmware calibration temperature 2 Valid for input voltage within ±8 divisions from offset setting. 3 Full scale is defined as 8 vertical divisions. 100 uV/div and 1 mV/div are a magnification of 2 mV/div setting. For vertical accuracy calculations, use full scale of 16 mV for 500 uV/div and 1 mV/div.
Signal-to-noise dynamic range 96 dB (0 dBm 100 MHz input carrier, 0 dBm input range (80 mV/div), 100 MHz CF, 50 MHz span
15 kHz RBW
measurement at +15 MHz from CF)
Spurious Free Dynamic Range (SFDR) 79 dB (0 dBm 100 MHz input carrier, 0 dBm input range (80 mV/div), 500 MHz span, 300 MHz CF
150 kHz RBW)
Amplitude accuracy
±0.3 dB (0 to 1 GHz)
Deviation from linear phase
10° (0 to 1 GHz)
1 Denotes warranted specifications, all others are typical. Specifications are valid after a
30- minute warm -up period and ±10 °C
Digital input channels 16 digital (D0 to D15. pod 1: D3 ~ D0, Pod 2: D7 ~ D4, Pod 3: D11 ~ D8, Pod
4: D15 ~ D12)
Thresholds Threshold per pod
Threshold selections TTL (+1.4 V)
5 V CMOS (+2.5 V), ECL (–1.3 V), user-defined (selectable by pod)
User-defined threshold range
± 8.0 V in 10 mV steps
Maximum input voltage
± 40 V peak
Threshold accuracy1 ± (100 mV +
3% of threshold setting)
Maximum input dynamic range
± 10 V about threshold
Minimum voltage swing
500 mVpp
Input impedance 100 kΩ
± 2% at probe tip
RMS Noise Floor (VRMS AC) on
50 Ω Inputs
Vertical Setting 20 MHz 100 MHz 200 MHz 350 MHz 500 MHz
1 GHz
500 uV/div, 2 mV/div 13 u 20 u 26 u 30 u 35 u
48 u
5 mV/div 16 u 25 u 33 u 38 u 44 u
59 u
10 mV/div 24 u 35 u 49 u 56 u 67 u
87 u
20 mV/div 44u 63 u 89 u 104 u 124 u
159 u
50 mV/div 92 u 141 u 202 u 239 u 286 u
366 u
100 mV/div 189 u 278 u 399 u 474 u 568 u
723 u
200 mV/div 442 u 638 u 898 u 1.06 m 1.26 m
1.60 m
500 mV/div 942 u 1.41 m 2.03 m 2.41 m 2.88 m
3.66 m
1 V/div 1.78 m 2.82 m 4.04 m 4.79 m 5.74 m
7.26 m
RMS Noise Floor (VRMS AC) on
1M Ω Inputs
Vertical Setting 20 MHz 100 MHz 200 MHz 350 MHz
500 MHz
500 uV/div, 2 mV/div 21 u 34 u 50 u 76 u
96 u
5 mV/div 24 u 37 u 53 u 80 u
100 u
10 mV/div 31 u 46 u 64 u 92 u
112 u
20 mV/div 51 u 72 u 97 u 132 u
154 u
50 mV/div 150 u 146 u 198 u 263 u
295 u
100 mV/div 204 u 280 u 330 u 505 u
560 u
200 mV/div 454 u 686 u 947 u 1.29 m
1.51 m
500 mV/div 926 u 1.42 m 1.95 m 2.60 m
2.92 m
1 V/div 1.96 m 2.77 m 3.78 m 5.01 m
5.58 m
2 V/div 4.42 m 6.76 m 9.42 m 13.0 m
15.1 m
5 V/div 9.63 m 14.2 m 19.5 m 26.1 m
29.2 m
10 V/div 20.2 m 27.9 m 38.0 m 50.3 m
55.9 m
ENOB (Normal Sample Mode, 100 mV/div) on a 10 MHz
90% Full-Screen Sine Wave
Input 20 MHz 50 MHz 100 MHz 200 MHz 350 MHz 500 MHz
1 GHz
50 Ω 10.7 9.8 9.4 8.8 8.6 8.4
8.1
1M Ω 10.5 9.6 9.3 8.8 8.5
8.4 N/A
Horizontal System Analog Channels
Time base range
500 ps/div to 50 s/div
Time base accuracy1 ±1.6 ppm + aging factor (1 year: ±0.5 ppm, 2 years: ±0.7 ppm, 5 years: ±1.5 ppm, 10 years
±2.0 ppm)
Pre-trigger Maximum of 20M/sample rate, no more than
200s
Post-trigger Up to 500 sec
Channel-to-channel deskew range
±100 ns
Δ Time accuracy (using cursors) Same channel: ± (time base accuracy x reading) ± (0.0016 x screen width)
±50 ps
Channel-to-channel: ± (time base accuracy x reading) ± (0.0016 x screen width)
±100 ps
Modes Main, zoom, roll, XY
XY On channels 1 and 2 only. Z blanking on ext trigger input
1.4V threshold
Minimum detectable pulse width
5 ns
Channel-to-channel skew 2 ns (typical)
3 ns (maximum)
条件：to 16 bits for high definition. To adjust bandwidth, use the Channel Setup menu.
Maximum analog channels sample rate
3.2 GSa/s all channel
Maximum analog channels record length every channel 20 Mpt with standard license
50 Mpt with 50 Mpt memory license
100 Mpt with 100 Mpt memory license
Maximum digital channels sample rate
1.6 GSa/s all pods
Maximum digital channels record length
20 Mpt
High Resolution As bandwidth is decreased using the built-in per-channel or global bandwidth filters, resolution increases up
Acquisition 模式正常 Default 模式
Peak detect Capture glitches as narrow as
156.25 ps at all timebase settings
Averaging Selectable from 2, 4, 8, 16
64, ... to 65,536
Segmented Segmented memory optimizes available memory for data streams that have long dead times between
activity. Maximum segments =
2000. Re-arm time – 700 ns (minimum time between trigger events)
Manual Allows independent selection of sample rate and memory depth
Trigger sources Analog channel (1 ~
4), digital channel (D0 ~ D15), line, external
Trigger modes Normal (triggered): Requires trigger event for scope to trigger
Auto: Triggers automatically in absence of trigger event
Single: Triggers only once on a trigger event, press [Single] again for scope to find another trigger event, or
press [Run] to trigger continuously in either Auto or Normal mode
AC: AC coupled trigger, cutoff frequency: <
10 Hz (internal)
LF reject: Low frequency reject, cutoff frequency ~
50 kHz
HF reject: High frequency reject, cutoff frequency ~
50 kHz
Noise reject: Selectable OFF or ON, decreases sensitivity
2x
Trigger holdoff range
60 ns to 10.00 s
Internal (noise reject off) 50Ω 1 LSB resolution, subject to the noise floor of the measurement
1MΩ 1 LSB resolution, subject to the noise floor of the measurement
External1
200 mVpp from DC to 100 MHz
350 mVpp
100 MHz to 500 MHz
Any channel
±6 div from center screen
Zone (HW zone qualifier) Trigger on user-defined zones drawn on the display. Up to four zones. A single zone can apply to any one analog channel at
a time. Specify zones as either “must intersect” or “must not intersect.” >
300,000 scans/sec update rate
Supported 模式: 正常, 峰值 detect
Also works simultaneously with the serial trigger and mask limit test
Edge Trigger on a rising, falling, alternating or either edge of any source
Edge-then-Edge Trigger when the trigger edge occurs after an arming edge within the minimum and maximum delay times without any
intervening arming or triggering edges (an edge followed by another edge)
Pulse width Trigger on a pulse on a selected channel, whose time duration is less than a value, greater than a value, or inside a time
Minimum duration setting: 1 ns (500 MHz, 1 GHz), 4 ns (350 MHz), 6 ns (200 MHz)
10 ns (100 MHz)
Maximum duration setting
10 s
Range difference minimum
5 ns
Runt Trigger on a positive runt pulse that fails to exceed a high-level threshold. Trigger on a negative runt pulse that fails to exceed
a low-level threshold. Runt triggering can also be time-qualified (< or >) with a minimum time setting of 1 ns and maximum
time setting of 10 s
Minimum time setting: 1 ns (500 MHz, 1 GHz), 4 ns (350 MHz)
6 ns (200 MHz)
10 ns (100 MHz)
Setup and hold Trigger and clock/data setup and/or hold time violation. Setup time can be set from 0 to 10 s. Hold time can be set from 0 s to
10 S. Setup and hold window can be
3ns minimum.
Rise/fall time Trigger on rise-time or fall-time edge speed violations (< or >) based on user-selectable threshold
Select 从 (< 或 >) 和时间设置范围 between
条件：[entered | exited]. Pattern must have stabilized for a minimum of 2 ns to qualify as a valid trigger condition
I2C (optional) Trigger at a start/stop condition or user defined frame with address and/or data values. Also trigger on missing acknowledge,
Select framing as well as clock Idle framing and user-specified number of bits per frame.
Minimum: 500 ps (500 MHz, 1 GHz), 2 ns (350 MHz), 3 ns (200 MHz)
5 ns (100 MHz)
Pattern Trigger when a specified pattern of high, low, and don’t care levels on any combination of analog, digital, or trigger channe ls is
Minimum duration setting: 1 ns (500 MHz, 1 GHz), 4 ns (350 MHz), 6 ns (200 MHz)
10 ns (100 MHz)
Maximum duration setting
10 s
Range difference minimum
5 ns
Or Trigger on any selected edge across multiple analog or digital channels
Window Trigger on entering/exiting voltage range and inside/outside voltage range
address with no ack, restart, EEPROM read, and 10-bit write
SPI (optional) Trigger on SPI (Serial Peripheral Interface) data pattern during a specific framing period. Supports positive and negative Chip
Supports MOSI and MISO data
RS-232/422/485/UART
Trigger on Rx or Tx start bit, stop bit or data content or parity error
CAN, CAN FD, CAN XL (optional)
Trigger on CAN (controller area network) version 2.0A 2.0B, and CAN-FD (Flexible Data-rate) signals. Trigger on the Start of
Frame (SOF), the end of frame (EOF), data frame ID, data frame ID and data (non-FD), data frame ID and data (FD), remote
frame ID, remote or data frame ID, error frame, acknowledge error, from error, stuff error, CRC error, spec error (ack or form
or stuff or CRC), all errors, BRS Bit (FD), CRC delimiter bit (FD), ESI bit active (FD), ESI bit passive (FD), overload frame.,
message, message and signal (non-FD), message and signal (FD, first
8 bytes only)
LIN (optional) Trigger on LIN (Local Interconnect Network) sync break, sync frame ID, or frame ID and data, parity error,
checksum error, frame (symbolic), frame and signal (symbolic)
SENT (optional) Trigger on SENT bus. Trigger on start of fast channel message, start of slow channel message, fast channel SC and data,
slow channel message ID, slow channel message ID and data, tolerance violation, fast channel CRC error, slow channel CRC
error, all CRC errors, pulse period error, successive sync pulses error (1/64)
Ethernet (optional) Trigger on Ethernet. Trigger on any ethernet packet, ethernet errors, generic packet, generic payload, Arp, IPv4, IPv6
802.1Q
802.ad
Single Marker accuracy: ± [DC vertical gain accuracy + DC vertical offset accuracy +
0.08% full scale]
Dual Marker accuracy: ± [DC vertical gain accuracy + 0.16% full scale]
4
Units: Seconds(s), Hz (1/s), phase (degrees), ratio (%)
Modes: Manual, Measure, Track Waveform, Binary, Hex
Types: X1, X2, Y1, Y2, ΔX, ΔY
Measurements continuously updated with statistics. Cursors track last selected measurement. Select up to ten
Vertical: Peak-to-peak, maximum, minimum, amplitude, top, base, overshoot, pre-shoot, average- N cycles, average-
full screen, DC RMS- N cycles, DC RMS- full screen, AC RMS- N cycles, AC RMS- full screen (std deviation), ratio- N
cycle, ratio- full screen, Y at X
Time: Period, frequency, counter, T at edge, + width, - width, burst width, +duty cycle, -duty cycle, bit rate, rise time,
下降时间, 延迟, 相位, X · 最小 Y, X · 最大 Y
Count: Positive pulse count, negative pulse count, rising edge count, falling edge count
Mixed: Area- N cycles, area- full screen, slew rate
Power: Channel power, occupied bandwidth, adjacent power ratio, total harmonic distortion
Built-in frequency counters – independent of acquisition state (Run/Stop/Single)
Source: On any analog or digital channel or Trigger Qualified Event (non-Edge Trigger Modes)
Resolution
12 digits/second
Add, subtract, multiply, divide, differentiate, integrate, FFT, Ax + B, squared, square root, absolute value, common
logarithm, natural logarithm, exponential, base
10 exponential, low pass filter, high pass filter, averaged value
smoothing, envelope, magnify, max hold, min hold, measurement trend
Record size Up to 64 kpts resolution default, can be extended to 32 Mpts
Window types Hanning, Flat Top, Rectangular, Blackman-Harris, Bartlett
波形 FFT, 最大 hold, 最小 hold, average
Peak search Max
15 peaks, threshold and excursion control
Search, Navigate, and Lister
Type Edge, pulse width, rise/fall, runt, frequency peak, serial bus 1, serial bus
2
Control Results 阶 · 频率或幅度
Result display Event lister or navigation. Manual or auto scroll via navigation or touch event lister entry to jump to a specific event
Display 10.1-inch color
1280x800 (WXGA, TFT-LCD)
Resolution 1280 (H) x
800 (V) pixel format (screen area)
Format YT, color-graded XY, roll, and Bode
Graticules 8 vertical divisions by
10 horizontal divisions with intensity controls
Maximum waveform update rate >
1,300,000 waveforms/sec
Persistence Off, infinite, variable persistence (100 ms to 60 s)
Intensity gradation
256 intensity levels
4 500 uV/div and 1 mV/div is a magnification of 2 mV/div setting. For vertical accuracy calculations, use full scale of 16 mV for
500 uV/div and 1 mV/div.
WaveGen – Built-In Function/Arbitrary Waveform Generator (Typical)
WaveGen out 后面板-面板 BNC 连接器
Waveforms Sine, Square, Ramp, Pulse, DC, Noise, Sine Cardinal (Sinc), Exponential Rise, Exponential Fall, Cardiac, Gaussian
Modulation source: internal (no external modulation capability)
Modulation frequency
1 Hz to 20 kHz
Modulation frequency
1 Hz to 20 kHz
Minimum carrier frequency
10 Hz
Deviation
1 Hz to carrier frequency or (2e12 / carrier frequency), whichever is smaller
Sine Frequency range
0.01 Hz to 100 MHz
Amplitude flatness
±0.5 dB (relative to 1 kHz)
Harmonic distortion
–40 dBc
Spurious (non-harmonics)
–40 dBc
Total harmonic distortion
1%
SNR (50 Ω load, 500 MHz BW): 40 dB (Vpp > = 0.1 V); 30 dB (Vpp <
0.1 V)
Square wave/pulse Frequency range
0.01 Hz to 50 MHz
Duty cycle resolution: Larger of 1% or 10 ns
Rise/fall time
2.5 ns (10 to 90%)
Pulse width resolution
5 ns
Asymmetry (at 50% DC): ±1%
±5 ns
Ramp/triangle wave Frequency range
0.3 Hz to 5 MHz
Variable symmetry
0 to 100%
DC Precise (-1 to 1V) Hi Z
Wide Range (-8 to 8V)
Noise Bandwidth
150 MHz typical
Sine Cardinal (Sinc) Frequency range
0.3 Hz to 5 MHz
Exponential Rise/Fall Frequency range
0.3 Hz to 5 MHz
Cardiac Frequency range
0.3 Hz to 200.0 kHz
Gaussian pulse Frequency range
0.3 Hz to 5.0 MHz
Arbitrary Waveform length
2 to 8,192 points
Amplitude resolution
14 bits (including sign bit)5
Repetition rate
0.3 Hz to 12 MHz
Frequency Sine wave accuracy: Timebase accuracy
±1 ppm
2 mVpp to 10 Vpp into Hi-Z
6,7
1 mVpp to 5 Vpp into 50 Ω
6,7
Resolution
100 μV or 3 digits, whichever is higher
Accuracy: 2% (frequency =
1 kHz)
DC offset Range: ±8 V into Hi-Z 6,7, ±4 V into 50 Ω
6,7
Resolution
100 μV or 3 digits, whichever is higher
触发输出触发输出 available 开 Aux Out BNC
Main output Impedance
50 Ω typical
Single shot (arbitrary, sine, ramp, sine cardinal, exp rise/fall, cardiac, Gaussian pulse)
5 Full resolution is not available at output due to internal attenuator stepping.
6 Gaussian Pulse, Sin, Cardiac: 4 Vpp maximum into Hi- Z; 2 Vpp maximum into
50 Ω.
7 Maximum high level of 8V and minimum low level of -8V into Hi- Z (4V and -4V into
50 Ω) of combined signal amplitude and
Functions ACrms, DC, DCrms
Resolution ACV/DCV
4.5 digits
Measuring rate
100 times/second
Autoranging Automatic adjustment of vertical amplification to maximize the dynamic range of measurements
Range meter Graphical display of most recent measurement, plus extrema over the previous
3 seconds
Source Any analog channel or trigger qualified event (non-edge trigger modes)
Resolution
12 digits/second maximum
Max frequency
1 GHz (any analog channel)
Trig qual events 1/ (trigger hold off time) for trigger qualified events (max
25 MHz, minimum dead time of 40 ns)
Number of Counters Up to 5 independent counters
Totalizer Counter size
64-bit
One USB
2.0 hi-speed device port on rear panel. Supports USBTMC protocol
Two USB 3.0 super-speed host ports, front and rear panel. Support memory devices, mouse, and keyboards
LAN (10/100/1000Base-T)
Aux out BNC connector on the rear panel. Supported modes: triggers, mask, and waveform generator sync pulse
Power line consumption Max
275 W
Power voltage range 100 to 120 V, 50/60/400 Hz; 100 to 240 V
50/60 Hz
Environmental rating
0 to 50 °C with 3000m max
Operating
80% RH, non-condensing, up to +40 °C
Non-operating
95% RH, non-condensing, up to +40 °C; decreasing linearly to 50% RH at +65 °C
Electromagnetic compatibility Meets EMC directive (2004/108/EC), meets or exceeds IEC 61326-1:2012/EN
61326-1:2013
IEC 61000-4-2/EN
61000-4-2
IEC 61000-4-3/EN
61000-4-3
IEC 61000-4-4/EN
61000-4-4
IEC 61000-4-5/EN
61000-4-5
IEC 61000-4-6/EN
61000-4-6
IEC 61000-4-11/EN
61000-4-11 Canada: ICES-001:2004
Australia/New Zealand: AS/NZS
Safety ANSI/UL Std. No. 61010-1:2012; CAN/CSA-C22.2 No.
61010-1-12
ANSI/UL Std. No. 61010-2-030:2012; CAN/CSA-C22.2 No.
61010-2-030-12
Vibration Meets IEC60068-2-6 and MIL-PRF-28800; class
3 random
Shock Meets IEC 60068-2-27 and MIL-PRF-28800; class 3 random; (Operating 30 g, ½ sine.
11 ms duration
3 shocks/axis along major axis, total of 18 shocks)
Dimensions (W x H x D) 33.5 cm (13.2 in) x 26.2 cm (10.3 in) x
16.8 cm (6.6 in)
Weight Net
5.25 kg (11.6 lbs)
Reference waveform display Two internal waveforms or USB thumb drive.
Setup/image Setup (*.scp 24-bit Bitmap image (*.bmp), PNG
24-bit image (*.png)
Waveform data CSV data (*.csv), ASCII XY data (*.csv), Binary data (*.bin), Lister data (*.csv), Reference waveform data
(*.h5), multi-channel waveform data (*.h5), Arbitrary Waveform data (*.csv)
Application data Mask (*.msk)
条件：Internal data storage Up to 10 GB open for data storage of oscilloscope files.
Analysis results (*.csv) Cursor data, measurement results, mask test statistics, search, segmented timestamps
Max USB flash drive size Supports industry standard flash drives
Secure Erase and save control are available with HD3SECURE
Included Standard with Oscilloscope
Calibration Soft copy of Certificate of Calibration (CoC) downloadable from
N2843A Passive probe 500 MHz 10:1 attenuation
1 per channel
Interface and built-in help language support English, Chinese (simplified), Chinese (traditional), French, German, Italian, Japanese, Korean
Localized overlay English, Chinese (simplified), Chinese (traditional), French, German, Italian, Japanese, Korean
Bandwidth Upgrade Model Number 2 channel HD302MSO from 200 MHz to 350 MHz HD3BW-001 2 channel HD302MSO from 200 MHz to 500 MHz HD3BW-002
2 channel HD302MSO from 200 MHz to 1 GHz HD3BW-003
2 channel HD302MSO from 350 MHz to 500 MHz HD3BW-004
2 channel HD302MSO from 350 MHz to 1 GHz HD3BW-005
2 channel HD302MSO from 500 MHz to 1 GHz HD3BW-006
4 channel HD304MSO from 200 MHz to 350 MHz HD3BW-007
4 channel HD304MSO from 200 MHz to 500 MHz HD3BW-008
4 channel HD304MSO from 200 MHz to 1 GHz HD3BW-009
4 channel HD304MSO from 350 MHz to 500 MHz HD3BW-010
4 channel HD304MSO from 350 MHz to 1 GHz HD3BW-011
4 channel HD304MSO from 500 MHz to 1 GHz HD3BW-012
Embedded software package I2C, SPI, UART (RS232/422/485) serial trigger and decode HD300EMBA
Automotive software package CAN, CAN FD, CAN XL, LIN (symbolic with .ldf file), SENT and 10Base-T1S HD300AUTB
Aerospace and defense software package MIL-STD 1553 and ARINC
429 triggering and analysis HD300AERA
Enhanced security Add more stringent security features, including disabling non-volatile memory, disabling
USB and LAN ports, disabling firmware upgrades, and password protection HD3SECURE
Power analysis software package Power quality, current harmonics, switching loss, turn-on/off time, transient response, loop
response, PSRR, & more HD300PWRA
USB analysis software package USB 2.0 and USB PD trigger, decode, and search. USB
2.0 supports low-, full-, and hi-
speed signaling rates HD300USBA
Quick jitter analysis software package Jitter analysis and clock recovery HD300QJTA
Ethernet protocol analysis software package 10Base-T
100Base-T, and 10Base-T1S serial trigger and decode HD300ETHA
HD3MEM-050 Memory Upgrade
20 Mpts to 50 Mpts/Channel
HD3MEM-100 Memory Upgrade
20 Mpts to 100 Mpts/Channel
HD3MEM-101 Memory Upgrade
50 Mpts to 100 Mpts/Channel
Download Your Next Insight
条件：deliver the tools your team needs to accelerate from data to information to actionable insight.
Keysight software is downloadable expertise. From first simulation through first customer shipment, we
Keysight enables innovators to push the boundaries of engineering by quickly solving
design, emulation, and test challenges to create the best product experiences. Start your
This information is subject to change without notice. © Keysight Technologies, 2024 - 202
6
Published in USA, July 23 , 202 6, 3124
-1567 .EN
See What You’ve Been Missing
The HD3 Series brings Keysight’s industry-leading capabilities from high-performance oscilloscopes to
the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware
technology from the UXR Series, the HD3 boasts impressive resolution with four times the vertical
accuracy with a
14-bit ADC and half the noise floor. Paired with our fast, uncompromised waveform
update rate and twenty-five times more memory, the HD3 Series can capture small signals with high
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
客服
粤公网安备44030902003758
