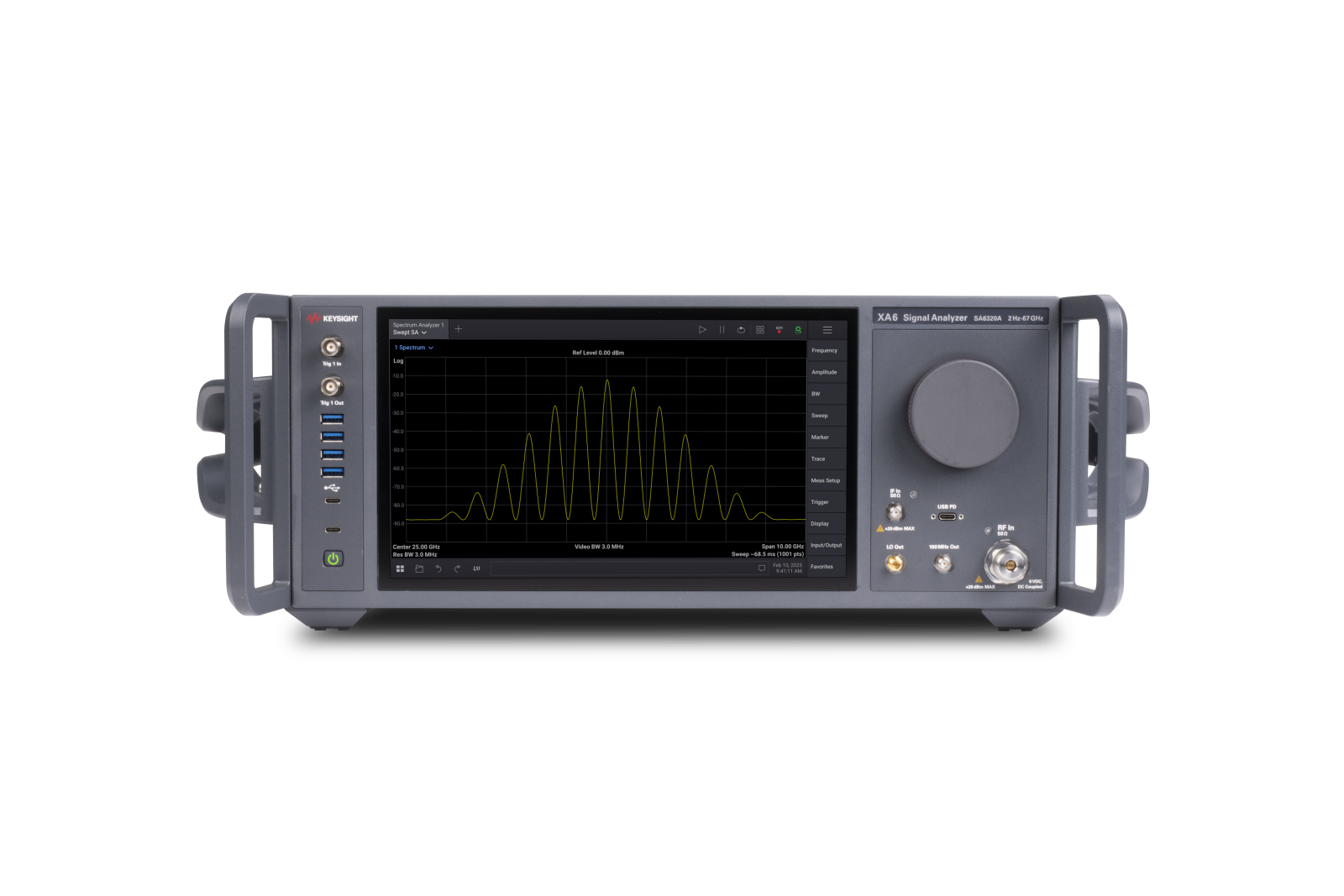

XA5 系列信号分析仪，32 GHz，最大分析带宽 2 GHz，双通道
台式信号与频谱分析仪
产品简介
Keysight Expert XA5 SA6210A 凭借高性能射频、快速扫描测量速度和双通道架构，提供无与伦比的信号洞察力，帮助您更准确、更快速地完成更多测量
核心参数
• 1 GHz 显示平均噪声电平：-171 dBm
• 最大分析带宽：2 GHz
• 最高频率：32 GHz
• 1 GHz 相位噪声（10 kHz 偏移）：-132 dBc/Hz
• 实时频谱分析：否
功能特性
• 产品亮点
使用我们的 Expert XA5 SA6210A 信号分析仪，为 5G、WLAN、UWB、汽车雷达和通用无线应用执行快速、可信的射频信号分析。
XA5 SA6210A 结合双通道分析、快速扫频测量和强大的 EVM 性能，帮助简化测试工作流程、
简化 MIMO 和 ccEVM 分析、更早发现信号问题，并自信地验证复杂无线设计
更深入地洞察您的信号
凭借 2 GHz 分析带宽和 80 MHz 分辨率带宽，在一台仪器中完成更多一致性测试
凭借高性能射频分析，检测靠近强载波或淹没在噪声中的低电平杂散、谐波或干扰
通过更大的显示屏和全新用户界面，一次查看更多数据并优化任务
更快完成更多测试
凭借创新的宽带预选滤波器架构，以快速扫频测量速度捕获更多杂散
凭借卓越的测量精度和同类最佳的 EVM 性能，实现更好的测试裕量
通过单机 MIMO 和 ccEVM 能力简化工作流程
SCPI 兼容传统 X 系列信号分析仪
资源下载
以上内容与指标均取自是德科技（KEYSIGHT）官网该产品详情页与官方产品资料，未标注口径的为厂家公布值。
是德科技|KEYSIGHT · onetest 仪器资源库
是德科技 | KEYSIGHT
XA5系列SA6210A 32GHz 信号分析仪 详细指标
Benchtop Signal and Spectrum Analyzers
一、频率与时间规格
| Frequency | Option | Frequency | Range |
|---|---|---|---|
| 532 | 2 Hz to | 32 GHz, RF | 1 |
| 632 | 2 Hz to | 32 GHz, RF | 2 |
“Allow Direct Path” ON “Allow Direct Path” OFF
PA OFF 2 Hz
10 MHz
PA ON, Low 2 Hz
10 MHz
PA ON, High 1 MHz
10 MHz
Swept Spectrum Analysis (These Bands are Not Applicable to Wide-Bandwidth IQ Analysis)
扫描频段本振倍频次数 (N) 频率范围
Direct (not using an LO for frequency conversion) N/A 2 Hz to 30 MHz 0 1 > 30 MHz to 8.4 GHz 1 2 >
8.4 to 9.5 GHz (STD or MPB)
> 8.4 to 12.5 GHz (WPR)
2 2 >
9.5 to 32 GHz (STD or MPB)
> 12.5 to 32 GHz (WPR)
频率参考
Accuracy (total) ± [(Initial accuracy) + (aging rate x time since last adjustment) + (temperature
Aging rate ±5 x
10-7 / year
Temperature stability, full temperature range ±1 x
10-7
Achievable initial calibration accuracy ±3.1 x
10-8
Example frequency reference accuracy
1 year after last adjustment
= ± (5 ×10-7 + 1 ×10-7 + 3.1 x
10-8
= ± 6.31 x
10-7
残余调频
条件：≤ (0.25 Hz x N) p-p in 20 ms nominal
Center frequency =
1 GHz
10 Hz RBW
10 Hz VBW
(N = 本振倍频次数, 见频段 table above)
条件：Marker Frequency Counter, Nominal
Frequency Span (FFT and swept mode), nominal
Frequency Readout Accuracy (Start, Stop, Center, Marker) ± (marker frequency x frequency reference accuracy + 0.10% x span + 5% x RBW + 2 Hz +
0.5 x horizontal resolution) where horizontal resolution is Span/(Sweep Points-1)
Accuracy ± (marker frequency x frequency reference accuracy +
0.100 Hz)
Delta counter accuracy ± (delta frequency x frequency reference accuracy +
0.141 Hz)
Counter resolution
0.001 Hz
Range 0 Hz (zero span)
10 Hz to maximum frequency of instrument
Resolution
2 Hz
精度 (标称值)
Stepped/Swept ± (0.1% x span + horizontal resolution) where horizontal resolution is
span/(sweep points
-1)
FFT ± (0.1% x span + horizontal resolution) where horizontal resolution is
span/(sweep points
-1)
扫描时间与触发
Range Span = 0 Hz
1 μs to 6000 s
Span ≥ 10 Hz
1 ms to 4000 s
条件：Span ≥ 10 Hz, swept ±0.01% nominal
Span ≥ 10 Hz, FFT
±40% nominal
Span = 0 Hz
±0.01% nominal
触发延迟
Span = 0 Hz or FFT
–150 to +500 ms
Span ≥ 10 Hz, swept
0 to 500 ms
Resolution
0.1 μs
Gate methods Gated LO; gated video; gated FFT
条件：Gate delay jitter 33.3 ns p-p nominal
Gate length range (except method = FFT)
1 μs to 5.0 s
Gate delay range
0 to 100.0 s
扫描 (迹线) Point 范围
All spans
3 to 100,001
分辨率带宽 (RBW) (见 Also IQ 分析 Section)
Range (with
–3.01 dB bandwidth)
1 Hz to 10 MHz (step resolution of 3 digits)
1 Hz to 40 MHz (step resolution of 3 digits; requires N90EMWR1B)
1 Hz to 80 MHz (step resolution of 3 digits; requires N90EMWR2B, IVL)
带宽精度 (功率)
条件：RBW Range Accuracy, Nominal 1 Hz to 100 kHz ±0.01 dB
RBW Range Accuracy, Nominal 1 Hz to 1.3 MHz ± 1 %
> 100 kHz to 1 MHz (<
8.4 GHz center
frequency)
±0.01 dB
> 1 to 2 MHz (< 8.4 GHz center frequency)
±0.03 dB
> 2 to 3 MHz (< 8.4 GHz center frequency)
±0.03 dB
4, 5, 6, 8,10 MHz (<
8.4 GHz center
frequency)
±0.20 dB
20, 28, 30, 40 MHz (>
50 MHz to 8.4 GHz
center frequency)
±0.20 dB
50, 80 MHz (>
50 MHz to 8.4 GHz center
frequency)
±0.20 dB
Bandwidth Accuracy (-3.01 dB)
> 1.3 to 3 MHz
± 1 %
4, 5, 6, 8,10 MHz
± 4 %
20, 28, 30, 40 MHz
± 3 %
50, 80 MHz
± 3 %
Selectivity (-60 dB/-3 dB) < 5
1
预选器带宽
条件：Center Frequency Mean Bandwidth (-4 dB), Nominal
The preselector can have a significant passband ripple. To avoid ambiguous results, the
-4 dB bandwidth is characterized
10 GHz
52 MHz
15 GHz
53 MHz
20 GHz
55 MHz
25 GHz
56 MHz
30 GHz
59 MHz
视频带宽 (VBW) 滤波器
Range
1 Hz to 100 MHz
Accuracy
±6%, nominal
检波方式
Normal, peak, sample, negative peak, log power average, RMS average, and voltage average
Free run Y Y
条件：Jitter up to ~33 ns p-p (nominal)
External
1 Y Y Y
External
2 Y Y Y
External
3 Y Y Y
External
4 Y Y Y
External
5
(Precision) Y Valid when the input port is set to RF
1 In and IF Path is
set to 1 GHz or 2 GHz; requires option R10 or R20
External
6
(Precision) Y
Valid when the input port is set to RF
2 In and IF Path is
set to 1 GHz or 2 GHz; requires option S10 or S20, and
option
002
RF burst Y Y Y Digital RF Burst trigger (filtered ADC trigger)
Video (IF Mag) Y Y ADC trigger is similar
条件：ADC Y Similar to Video, but operates digitally on mag[I,Q], prior to decimation, filtering, and corrections.
Periodic Y Y Y Repetitive “frame” trigger, at precise interval, following
Video (Independent of Display
Scaling and Reference Level) Specifications Supplemental Information
Minimum settable level
-170 dBm Useful range limited by noise
扫描类型 = 扫描
Detector = Normal, Peak, Sample or Negative peak Triggers on the signal before detection, which is similar to the displayed signal
Detector = Average Triggers on the signal before detection, but with a single-pole filter added to give similar
smoothing to that of the average detector
Sweep type = FFT Triggers on the signal envelope in a bandwidth wider than the FFT width
规格补充信息
Level range
−40 to −10 dBm plus attenuation
Noise will limit trigger level range at high frequencies, such as above
15 GHz
电平精度
条件：With positive slope trigger. Trigger level with negative slope is nominally 1 to 4 dB lower than positive slope.
Absolute ±2 dB + absolute amplitude accuracy (nominal)
Relative
±2 dB (nominal)
二、幅度精度与量程规格
Amplitude characteristics vary by user-selectable front-end path. Swept SA measurements are
normally made with the preselector on (in circuit). These settings impact amplitude accuracy and
Allow RF
Gain Adjust Description
1a
Off Off
Requires Option YF3/SY3;
Settings provide lowest internally-generated distortion with degradation to DANL. Suitable for harmonics, IMD, spurious in presence of large signals, etc. unless noise-limited.
1b Off On
Requires Option YF3/SY3;
Default selection following power-on, boot-up, or PRESET
Settings provide best dynamic range and lower DANL, compared to
(1a).
1c On, Low N/A
Requires Option YF3/SY3 and P32/Q32.
Settings provide lower DANL, compared to (1b), while preserving very
good dynamic range. Suitable for distortion measurements (harmonics, IMD, etc.) when a lower noise floor is needed.
1d On, High N/A
Requires Option YF3/SY3 and P32/Q32;
Settings provide lowest DANL, compared to (1c). Best for finding low-
level spurs, oscillations, etc. near the noise floor. Operates down to 1
MHz.
2a
Wideband preselector path (WPR)
Off Off Settings provide lower internally-generated distortion with degradation
to DANL, compared to (2b).
2b Off On
Default selection following power-on, boot-up, or PRESET when
YF3/SY3 is not applicable. Settings provide very fast sweep speeds
and equivalent dynamic range, with slightly reduced out-of-band
rejection, compared to (1b). Suitable for wideband digitizer and FFT
measurements up to 1 GHz analysis bandwidth.
2c On, Low N/A
Requires Option P32/Q32.
Settings provide lower DANL, compared to (2b), while preserving very
good dynamic range. Suitable for distortion measurements (harmonics, IMD, etc.) when a lower noise floor is needed.
2d On, High N/A
Requires Option P32/Q32.
Settings provide lowest DANL, compared to (2c). Best for finding low-
level spurs, oscillations, etc. near the noise floor. Operates down to 1
MHz.
3a
Off Off
Bypasses preselector. Settings provide lower internally-generated
distortion with degradation to DANL, compared to (3b). Provides good
EVM floor at mid-to-high input power region. 3b Off On Bypasses preselector. Suitable for wideband digitizer and FFT measurements wider than 1 GHz analysis bandwidth.
3c On, Low N/A
Bypasses preselector. Requires Option P32/Q32.
Settings provide best EVM at low input power region for wideband
digitizer and FFT measurements wider than
1 GHz analysis bandwidth.
3d On, High N/A
Bypasses preselector. Requires Option P32/Q32.
Settings provide best EVM floor at very low input power region for
wideband digitizer and FFT measurements wider than
1 GHz analysis
测量范围
Displayed average noise level (DANL) to +30 dBm, PA off
DANL to +24 dBm, PA on, Low
DANL to +4 dBm, PA on, High
Input attenuator range (2 Hz to 32 GHz)
0 to 46 dB in 2 dB steps
最大安全输入电平 (最大 Applied 至 RF 输入连接器)
Average total power, Input attenuator ≥ 10 dB
+30 dBm (1 W)
Average total power (with preamp), Input attenuator < 10 dB
+20 dBm (0.1 W)
Peak pulse power (< 10 μs pulse width, <
1% duty cycle, and input attenuation
≥ 30 dB)
+50 dBm (100 W)
DC Volts
DC coupled
± 0.2 Vdc
显示范围
Log scale
0.1 to 1 dB/division in 0.1 dB steps
1 to 20 dB/division in 1 dB steps (10 display)
Linear scale
10 divisions
频率响应
条件：Note: Frequency response specifications are given as absolute amplitude accuracy.
10 dB Input Attenuation, Preselector Centering Applied for Band 2, Nominal
1a. STD Frequency Response (Allow RF Gain Adjust OFF, Swept, Preselector ON, PA OFF)
Frequency RBW ≤ 10 MHz RBW >
10 MHz
2 Hz to 30 MHz
± 0.20 dB
> 30 MHz to 8.4 GHz ± 0.20 dB
± 0.50 dB
> 8.4 to 9.5 GHz ± 0.20 dB
± 1.20 dB
> 9.5 to 13.6 GHz ± 0.25 dB
± 0.50 dB
> 13.6 to 32 GHz ± 0.40 dB
± 0.50 dB
1b. STD Frequency Response (Allow RF Gain Adjust ON, Swept, Preselector ON, PA OFF)
10 dB Input Attenuation, Preselector Centering Applied for Band
2
Frequency RBW ≤
10 MHz, full
RBW ≤ 10 MHz
20
to 30 °C
RBW ≤
10 MHz
条件：nominal 2 Hz to < 9 kHz ± 0.20 dB (nominal) 9 kHz to 30 MHz ± 0.80 dB ± 0.70 dB ± 0.25 dB
10 dB Input Attenuation, Preselector Centering Applied for Band 2, Nominal
RBW >
10 MHz
> 30 MHz to 3.6 GHz ± 0.85 dB ± 0.60 dB ± 0.30 dB
± 0.50 dB
> 3.6 to 8.4 GHz ± 1.50 dB ± 1.00 dB ± 0.50 dB
± 0.50 dB
> 8.4 to 9.5 GHz ± 1.70 dB ± 1.20 dB ± 0.50 dB
± 1.25 dB
> 9.5 to 13.6 GHz ± 1.80 dB ± 1.30 dB ± 0.50 dB
± 0.50 dB
> 13.6 to 26.5 GHz ± 1.90 dB ± 1.40 dB ± 0.60 dB
± 0.50 dB
> 26.5 to 32.0 GHz ± 2.30 dB ± 1.80 dB ± 0.80 dB
± 0.50 dB
1c. STD Frequency Response (Swept, Preselector ON, PA on Low Gain)
Frequency RBW ≤ 10 MHz RBW >
10 MHz
2 Hz to 30 MHz
± 0.20 dB
> 30 MHz to 8.4 GHz ± 0.20 dB
± 0.50 dB
> 8.4 to 9.5 GHz ± 0.25 dB
± 1.25 dB
> 9.5 to 13.6 GHz ± 0.25 dB
± 0.50 dB
> 13.6 to 26.5 GHz ± 0.40 dB
± 0.50 dB
> 26.5 to 32.0 GHz ± 0.50 dB
± 0.50 dB
1d. STD Frequency Response (Swept, Preselector ON, PA on High Gain)
10 dB Input Attenuation, Preselector Centering Applied for Band
2
Frequency RBW ≤
10 MHz, full
RBW ≤ 10 MHz
20
to 30 °C
RBW ≤
10 MHz
条件：nominal 1 to 30 MHz ± 0.80 dB ± 0.68 dB ± 0.40 dB
10 dB Input Attenuation, Nominal
RBW >
10 MHz
> 30 MHz to 3.6 GHz ± 0.80 dB ± 0.70 dB ± 0.40 dB
± 1.00 dB
> 3.6 to 8.4 GHz ± 1.50 dB ± 1.00 dB ± 0.60 dB
± 1.00 dB
> 8.4 to 9.5 GHz ± 1.70 dB ± 1.20 dB ± 0.60 dB
± 1.25 dB
> 9.5 to 13.6 GHz ± 2.10 dB ± 1.40 dB ± 0.70 dB
± 0.30 dB
> 13.6 to 26.5 GHz ± 2.50 dB ± 2.00 dB ± 0.90 dB
± 0.40 dB
> 26.5 to 32.0 GHz ± 3.60 dB ± 2.80 dB ± 1.40 dB
± 0.80 dB
2a. WPR Frequency Response (Allow RF Gain Adjust OFF, Swept, Wideband Preselector ON, PA OFF)
Frequency RBW ≤ 10 MHz RBW >
10 MHz
2 Hz to < 30 MHz
± 0.20 dB
> 30 MHz to 8.4 GHz ± 0.20 dB
± 0.50 dB
> 8.4 to 12.5 GHz ± 0.20 dB
± 1.20 dB
> 12.5 to 26.5 GHz ± 0.20 dB
± 0.50 dB
> 26.5 to 32.0 GHz ± 0.30 dB
± 0.50 dB
2b. WPR Frequency Response (Allow RF Gain Adjust ON, Swept, Wideband Preselector ON, PA OFF)
10 dB Input Attenuation
Frequency RBW ≤
10 MHz, Full
RBW ≤ 10 MHz
20 to
30 °C
RBW ≤
10 MHz
条件：nominal 2 Hz to < 9 kHz ± 0.20 dB (nominal) 9 kHz to 30 MHz ± 0.80 dB ± 0.70 dB ± 0.25 dB
10 dB Input Attenuation, Nominal
10 dB Input Attenuation, Nominal
Setting, Nominal 1b. STD 2b. WPR
attenuation, < 10 MHz 1.08:1 (nominal)
attenuation, < 10 MHz 1.27:1 (nominal)
RBW >
10 MHz
> 30 MHz to 3.6 GHz ± 0.85 dB ± 0.60 dB ± 0.30 dB
± 0.50 dB
> 3.6 to 8.4 GHz ± 1.50 dB ± 1.00 dB ± 0.50 dB
± 0.50 dB
> 8.4 to 12.5 GHz ± 1.60 dB ± 1.10 dB ± 0.50 dB
± 1.20 dB
> 12.5 to 13.6 GHz ± 1.60 dB ± 1.10 dB ± 0.60 dB
± 0.50 dB
> 13.6 to 26.5 GHz ± 1.80 dB ± 1.30 dB ± 0.60 dB
± 0.50 dB
> 26.5 to 32.0 GHz ± 2.00 dB ± 1.50 dB ± 0.80 dB
± 0.50 dB
2c. WPR Frequency Response (Swept, Wideband Preselector On, PA on Low Gain)
Frequency RBW ≤ 10 MHz RBW >
10 MHz
2 Hz to 30 MHz
± 0.20 dB
> 30 MHz to 8.4 GHz ± 0.20 dB
± 0.50 dB
> 8.4 to 12.5 GHz ± 0.30 dB
± 1.20 dB
> 12.5 to 13.6 GHz ± 0.30 dB
± 0.50 dB
> 13.6 to 32.0 GHz ± 0.40 dB
± 0.50 dB
2d. WPR Frequency Response (Swept, Wideband Preselector On, PA on High Gain)
Frequency RBW ≤ 10 MHz RBW >
10 MHz
1 to 30 MHz
± 0.40 dB
> 30 MHz to 8.4 GHz ± 0.25 dB
± 1.00 dB
> 8.4 to 12.5 GHz ± 0.30 dB
± 1.30 dB
> 12.5 to 26.5 GHz ± 0.30 dB
± 0.50 dB
> 26.5 to 32.0 GHz ± 0.40 dB
± 0.50 dB
Attenuator Switching Uncertainty (Allow RF Gain Adjust ON, PA OFF)
Attenuation Alignment Reference at 10 MHz, 100 MHz, 8.4 GHz
9.6 GHz, and 27 GHz, Relative to 10 dB Reference
Attenuation > 40 dB ± 0.05 dB
± 0.07 dB
Attenuation 22 to 40 dB ± 0.05 dB
± 0.07 dB
Attenuation 12 to 20 dB ± 0.05 dB
± 0.05 dB
Attenuation 2 to 8 dB ± 0.06 dB
± 0.08 dB
Attenuation 0 dB ± 0.09 dB
± 0.09 dB
VSWR (Voltage Standing Wave Ratio) at RF Input (95th Percentile, unless Stated Otherwise)
Standard path
10 dB input
Standard path
0 dB input
Center Frequency
1b. Std (10 dB Input
Attenuation)
1d. Std (0 dB Input
Attenuation)
2b. WPR (10 dB Input
Nominal
2d. WPR (0 dB Input
条件：Nominal 10 to 100 MHz 1.08 1.16 1.05 1.08 100 MHz to 3.6 GHz 1.10 1.33 1.04 1.17 3.6 to 8.4 GHz 1.14 1.41 1.07 1.22
the details, such as the frequencies of the peaks and valleys, will shift.
20, 28, 30, 40 MHz ± 0.20 dB (nominal); requires Option N90EMWR1B or N90EMWR2B
50, 80 MHz ± 0.20 dB (nominal); requires Option N90EMWR2B
8.4 to 13.6 GHz 1.16 1.65 1.08
1.20
13.6 to 26.5 GHz 1.26 1.52 1.12
1.23
26.5 to 32 GHz 1.42 2.08 1.22
1.43
The magnitude of the mismatch over the range of frequencies will be very similar between MPB and non-MPB operation, but
VSWR Plots (Options
532/632)
Figure 1. VSWR vs. frequency (0 to 3.6 GHz), 1b. standard path, 10 dB attenuation, measured on
3 units
Figure 2. VSWR vs. frequency (3.6 to 13.6 GHz), 1b. standard path, 10 dB attenuation, measured on
3 units
Figure 3. VSWR vs. frequency (13.6 to 32 GHz), 1b. standard path, 10 dB attenuation, measured on
3 units
Figure 4. VSWR vs. frequency (0 to 3.6 GHz), 1d. standard path, 0 dB attenuation, measured
3 units
Figure 5. VSWR vs. frequency (3.6 to 13.6 GHz), 1d. standard path, 0 dB attenuation, measured on
3 units
Figure 6. VSWR vs. frequency (13.6 to 32 GHz), 1d. standard path, 0 dB attenuation, measured on
3 units
Resolution Bandwidth Switching Uncertainty (Relative to 30 kHz RBW)
1 Hz to 1.5 MHz
± 0.04 dB
> 1.5 to 3 MHz
± 0.05 dB
4, 5, 6, 8, 10 MHz
± 0.10 dB
Log scale
–170 to +30 dBm in 0.01 dB steps
Linear scale
707 pV to 7.07 V with 0.11% (0.01 dB) resolution
Accuracy (Only affects the display, not the measurement, so it causes no additional error in measurement results from trace data or markers.)
0 dB
PA ON, Low Gain PA ON, High Gain
条件：Noise figure 6 to 20 dB (nominal) 4 to 8 dB (nominal)
Gain 15 dB (nominal) 20 dB (nominal)
Option P32/Q32 2 Hz to 32 GHz
1 MHz to 32 GHz
三、动态范围规格
1 dB Gain Compression
条件：how large an interfering signal must be in order to cause a 1 dB change in an on-screen signal.
• At tone spacings smaller than 70 MHz (nominal), ADC clipping may occur at a level lower than
measurement results can change with RL changes when the input attenuation is set to auto.
• Mixer power level (dBm) = total power at the input (dBm) − input attenuation (dB).
• Total power at the preamp (dBm) = total power at the input (dBm) − input attenuation (dB).
PA OFF, Nominal 2b. WPR, Allow RF Gain Adjust ON,
• Large signals, even at frequencies not shown on the screen, can cause the analyzer to
mismeasure on-screen signals because of two-tone gain compression. This specification tells
the
1 dB compression point.
• Reference level and off-screen performance: The Reference Level (RL) behavior differs from
some earlier analyzers in a way that makes this analyzer more flexible. In other analyzers, the
RL controlled how the measurement was performed as well as how it was displayed. Because
the logarithmic amplifier in these analyzers had both range and resolution limitations, this
behavior was necessary for optimum measurement accuracy. The logarithmic amplifier in this
signal analyzer, however, is implemented digitally such that the range and resolution greatly
exceed other instrument limitations. Because of this, the analyzer can make measurements
largely independent of the setting of the RL without compromising accuracy. Because the RL
becomes a display function, not a measurement function, a marker can read out results that
are off-screen, either above or below, without any change in accuracy. The only exception to
the independence of RL and the way in which the measurement is performed is in the input
attenuation setting: When the input attenuation is set to auto, the rules for the determination of
the input attenuation include dependence on the reference level. Because the input
attenuation setting controls the tradeoff between large signal behaviors (third-order
intermodulation, compression, and display scale fidelity) and small signal effects (noise), the
1 dB Gain Compression (Swept, Preselector ON)
Center Frequency
1b. STD, Allow RF Gain Adjust ON
PA OFF, 标称值
Band 0 +5 dBm
+5 dBm
Band 1 +10 dBm
+10 dBm
Band 2 +10 dBm
+15 dBm
平均显示噪声电平 (DANL)
条件：Frequency RBW ≤ 10 MHz, Nominal RBW > 10 MHz, Nominal
Input terminated, sample or average detector, averaging type set to Log, IF gain = high, normalized
to 1 Hz resolution bandwidth
0 dB input attenuation, NFE off
1a. STD (Swept, Preselector ON, Allow RF Gain Adjust OFF, PA OFF)
2 to 10 Hz
-80 dBm
> 10 to 100 Hz
-110 dBm
> 100 Hz to 1 kHz
-120 dBm
> 1 to 9 kHz
-130 dBm
> 9 to 100 kHz
-138 dBm
> 100 kHz to 1 MHz
-144 dBm
> 1 to 30 MHz
-151 dBm
> 30 MHz to 1.2 GHz -154 dBm
-152 dBm
> 1.2 to 2.1 GHz -152 dBm
-154 dBm
> 2.1 to 3.6 GHz -150 dBm
-152 dBm
> 3.6 to 6.6 GHz -148 dBm
-149 dBm
> 6.6 to 8.4 GHz -146 dBm
-147 dBm
> 8.4 to 9.5 GHz -145 dBm
-145 dBm
> 9.5 to 13.6 GHz -143 dBm
-142 dBm
> 13.6 to 18.0 GHz -140 dBm
-139 dBm
> 18.0 to 22.55 GHz -137 dBm
-136 dBm
> 22.55 to 26.5 GHz -135 dBm
-134 dBm
> 26.5 to 30 GHz -131 dBm
-130 dBm
> 30 to 32 GHz -130 dBm
-130 dBm
1b. STD (Swept, Preselector ON, Allow RF Gain Adjust ON, PA OFF)
Frequency RBW ≤
10 MHz
Full Range
RBW ≤
10 MHz
20 to 30 °C
RBW ≤
10 MHz
条件：Nominal 2 to 10 Hz -90 dBm (nominal)
> 10 to 100 Hz -110 dBm (nominal)
> 100 Hz to 1 kHz -120 dBm (nominal)
> 1 to 9 kHz -130 dBm (nominal)
Frequency Nominal 500 Hz to < 100 kHz -144 dBm 100 kHz to < 10 MHz -160 dBm 10 to 30 MHz -162 dBm
RBW >
10 MHz
> 9 to 100 kHz -135 dBm -135 dBm
-138 dBm
> 100 kHz to 1 MHz -142 dBm -142 dBm
-145 dBm
> 1 to 5 MHz -148 dBm -148 dBm
-150 dBm
> 5 to 30 MHz -147 dBm -148 dBm
-151 dBm
> 30 MHz to 1.2 GHz -150 dBm -151 dBm -154 dBm
-156 dBm
> 1.2 to 2.1 GHz -148 dBm -149 dBm -152 dBm
-154 dBm
> 2.1 to 3.6 GHz -146 dBm -147 dBm -150 dBm
-152 dBm
> 3.6 to 6.6 GHz -144 dBm -145 dBm -148 dBm
-149 dBm
> 6.6 to 8.4 GHz -142 dBm -143 dBm -146 dBm
-147 dBm
> 8.4 to 9.5 GHz -144 dBm -146 dBm -149 dBm
-151 dBm
> 9.5 to 13.6 GHz -147 dBm -149 dBm -154 dBm
-154 dBm
> 13.6 to 18.0 GHz -148 dBm -150 dBm -152 dBm
-151 dBm
> 18.0 to 22.55 GHz -143 dBm -146 dBm -149 dBm
-148 dBm
> 22.55 to 26.5 GHz -141 dBm -144 dBm -146 dBm
-146 dBm
> 26.5 to 30 GHz -137 dBm -139 dBm -143 dBm
-142 dBm
> 30 to 32 GHz -136 dBm -139 dBm -142 dBm
-141 dBm
1c. STD, PA ON (Swept, Preselector ON, PA Low)
> 30 MHz to 1.2 GHz
-167 dBm
> 1.2 to 2.1 GHz
-168 dBm
> 2.1 to 3.6 GHz
-167 dBm
> 3.6 to 6.6 GHz
-165 dBm
> 6.6 to 8.4 GHz
-164 dBm
> 8.4 to 9.5 GHz
-163 dBm
> 9.5 to 13.6 GHz
-163 dBm
> 13.6 to 18.0 GHz
-161 dBm
> 18.0 to 22.55 GHz
-160 dBm
> 22.55 to 26.5 GHz
-158 dBm
> 26.5 to 30 GHz
-155 dBm
> 30 to 32 GHz
-154 dBm
1d. STD, PA ON (Swept, Preselector ON, PA High)
Frequency RBW ≤
10 MHz
Full Range
RBW ≤
10 MHz
20 to 30 °C
RBW ≤
10 MHz
条件：Nominal 10 to 30 MHz -161 dBm -163 dBm -166 dBm
Frequency RBW ≤ 10 MHz, Nominal RBW > 10 MHz, Nominal
RBW >
10 MHz
> 30 MHz to 1.2 GHz -168 dBm -168 dBm -171 dBm
-171 dBm
> 1.2 to 2.1 GHz -168 dBm -169 dBm -172 dBm
-171 dBm
> 2.1 to 3.6 GHz -168 dBm -168 dBm -171 dBm
-170 dBm
> 3.6 to 6.6 GHz -166 dBm -167 dBm -170 dBm
-169 dBm
> 6.6 to 8.4 GHz -165 dBm -166 dBm -169 dBm
-169 dBm
> 8.4 to 9.5 GHz -165 dBm -165 dBm -169 dBm
-167 dBm
> 9.5 to 13.6 GHz -163 dBm -164 dBm -167 dBm
-167 dBm
> 13.6 to 18.0 GHz -162 dBm -163 dBm -167 dBm
-167 dBm
> 18.0 to 22.55 GHz -161 dBm -162 dBm -165 dBm
-165 dBm
> 22.55 to 26.5 GHz -160 dBm -162 dBm -165 dBm
-164 dBm
> 26.5 to 32 GHz -158 dBm -159 dBm -163 dBm
-162 dBm
2a. WPR, PA OFF
2 to 10 Hz
-80 dBm
> 10 to 100 Hz
-110 dBm
> 100 Hz to 1 kHz
-120 dBm
> 1 to 9 kHz
-130 dBm
> 9 to 100 kHz
-138 dBm
> 100 kHz to 1 MHz
-144 dBm
> 1 to 30 MHz
-151 dBm
> 30 MHz to 1.2 GHz -154 dBm
-152 dBm
> 1.2 to 2.1 GHz -152 dBm
-154 dBm
> 2.1 to 3.6 GHz -150 dBm
-151 dBm
> 3.6 to 6.6 GHz -148 dBm
-148 dBm
> 6.6 to 8.4 GHz -146 dBm
-147 dBm
> 8.4 to 9.5 GHz -145 dBm
-145 dBm
> 9.5 to 12.5 GHz -142 dBm
-146 dBm
> 12.5 to 18.0 GHz -135 dBm
-134 dBm
> 18.0 to 22.55 GHz -132 dBm
-131 dBm
> 22.55 to 26.5 GHz -136 dBm
-135 dBm
> 26.5 to 30 GHz -134 dBm
-133 dBm
> 30 to 32 GHz -131 dBm
-131 dBm
2b. WPR (Allow RF Gain Adjust ON, PA OFF)
Frequency RBW ≤
10 MHz
Full Range
RBW ≤
10 MHz
20 to 30 °C
RBW ≤
10 MHz
条件：Nominal 2 to 10 Hz -90 dBm (nominal)
> 10 to 100 Hz -110 dBm (nominal)
> 100 Hz to 1 kHz -120 dBm (nominal)
> 1 to 9 kHz -130 dBm (nominal)
Frequency Nominal 500 Hz to < 100 kHz -144 dBm 100 kHz to < 10 MHz -160 dBm 10 to 30 MHz -162 dBm
Frequency Nominal 10 to 30 MHz -166 dBm
RBW >
10 MHz
> 9 to 100 kHz -135 dBm -135 dBm
-138 dBm
> 100 kHz to 1 MHz -142 dBm -143 dBm
-145 dBm
> 1 to 5 MHz -148 dBm -148 dBm
-150 dBm
> 5 to 30 MHz -147 dBm -148 dBm
-150 dBm
> 30 MHz to 1.2 GHz -150 dBm -151 dBm -154 dBm
-156 dBm
> 1.2 to 2.1 GHz -148 dBm -149 dBm -152 dBm
-154 dBm
> 2.1 to 3.6 GHz -146 dBm -147 dBm -150 dBm
-151 dBm
> 3.6 to 6.6 GHz -143 dBm -144 dBm -148 dBm
-149 dBm
> 6.6 to 8.4 GHz -141 dBm -143 dBm -146 dBm
-148 dBm
> 8.4 to 9.5 GHz -144 dBm -146 dBm -150 dBm
-151 dBm
> 9.5 to 12.5 GHz -138 dBm -139 dBm -143 dBm
-146 dBm
> 12.5 to 13.6 GHz -144 dBm -146 dBm -149 dBm
-147 dBm
> 13.6 to 18.0 GHz -143 dBm -145 dBm -147 dBm
-147 dBm
> 18.0 to 22.55 GHz -139 dBm -141 dBm -145 dBm
-144 dBm
> 22.55 to 26.5 GHz -142 dBm -144 dBm -145 dBm
-147 dBm
> 26.5 to 30 GHz -140 dBm -142 dBm -146 dBm
-145 dBm
> 30 to 32 GHz -138 dBm -140 dBm -143 dBm
-143 dBm
2c. WPR, PA ON (PA Low)
> 30 MHz to 1.2 GHz
-168 dBm
> 1.2 to 2.1 GHz
-168 dBm
> 2.1 to 3.6 GHz
-167 dBm
> 3.6 to 6.6 GHz
-165 dBm
> 6.6 to 8.4 GHz
-163 dBm
> 8.4 to 9.5 GHz
-163 dBm
> 9.5 to 12.5 GHz
-160 dBm
> 12.5 to 13.6 GHz
-160 dBm
> 13.6 to 18.0 GHz
-159 dBm
> 18.0 to 22.55 GHz
-156 dBm
> 22.55 to 26.5 GHz
-158 dBm
> 26.5 to 30 GHz
-155 dBm
> 30 to 32 GHz
-155 dBm
2d. WPR, PA ON (PA High)
> 30 MHz to 1.2 GHz
-171 dBm
> 1.2 to 2.1 GHz
-171 dBm
> 2.1 to 3.6 GHz
-171 dBm
> 3.6 to 6.6 GHz
-170 dBm
> 6.6 to 8.4 GHz
-168 dBm
> 8.4 to 9.5 GHz
-168 dBm
> 9.5 to 12.5 GHz
-167 dBm
> 12.5 to 13.6 GHz
-167 dBm
> 13.6 to 18.0 GHz
-167 dBm
> 18.0 to 22.55 GHz
-166 dBm
> 22.55 to 26.5 GHz
-165 dBm
> 26.5 to 30 GHz
-165 dBm
> 30 to 32 GHz
-163 dBm
Residuals, Images, and Spurious Responses
条件：Zero span or FFT or other frequencies -100 dBm (nominal)
200 kHz to 32 GHz (swept) -100 dBm (nominal)
Zero span or FFT or other frequencies -100 dBm (nominal)
> 26.5 to 32 GHz f±0.3 GHz -88 dBc (nominal)
> 26.5 to 32 GHz f±2.7 GHz -93 dBc (nominal)
> 26.5 to 32 GHz f-9.3 GHz -85 dBc (nominal)
Mixer Level Tuned Frequency (f) Excitation Frequency Nominal
Residual Responses (input Terminated, 0 dB Attenuation
1b. STD, PA OFF, Allow RF Gain Adjust ON)
200 kHz to 30 MHz (swept)
-100 dBm
30 MHz to 7 GHz (swept)
-90 dBm
7 to 32 GHz (swept)
-100 dBm
Residual Responses (Input Terminated, 0 dB Attenuation
2b. WPR, PA OFF, Allow RF Gain Adjust ON)
Image Responses (1b. STD, PA OFF, Allow RF Gain Adjust ON)
Mixer Level Tuned Frequency (f) Excitation Frequency Full Range Typical
-10 dBm
10 MHz to 9.5 GHz f±0.3 GHz -76 dBc
-83 dBc
> 9.5 to 26.5 GHz f±0.3 GHz -80 dBc
-110 dBc
10 MHz to 8.4 GHz f±2.7 GHz -69 dBc
-86 dBc
> 8.4 to 26.5 GHz f±2.7 GHz -80 dBc
-101 dBc
10 MHz to 8.4 GHz f+21.9 GHz -76 dBc
-87 dBc
> 8.4 to 9.5 GHz f+31.5 GHz -80 dBc
-100 dBc
> 9.5 to 23 GHz f+9.3 GHz -74 dBc
-80 dBc
> 23 to 26.5 GHz f+9.3 GHz -65 dBc
-74 dBc
-30 dBm
Image Responses (2b. WPR, PA OFF, Allow RF Gain Adjust ON)
-10 dBm
10 MHz to 26.5 GHz f±0.3 GHz
-85 dBc
10 MHz to 26.5 GHz f±2.7 GHz
-85 dBc
10 MHz to 8.4 GHz f+21.9 GHz
-90 dBc
8.4 to 12.5 GHz f+31.5 GHz
-95 dBc
12.5 to 24.0 GHz f+9.3 GHz
-85 dBc
> 24.0 to 26.5 GHz f+9.3 GHz
-75 dBc
-30 dBm
> 26.5 to 32 GHz f±0.3 GHz
-85 dBc
> 26.5 to 32 GHz f±2.7 GHz
-85 dBc
> 26.5 to 32 GHz f-9.3 GHz
-75 dBc
Other Spurious Responses (Input-Related
1b. STD, PA OFF, Allow RF Gain Adjust ON)
N is the LO multiplication factor. Refer to earlier table for the N value versus frequency ranges. Performance is nominally
Mixer 电平 Response, 标称值
First RF Order (f ≥
10 MHz from Carrier)
Carrier frequency ≤ 26.5 GHz -10 dBm -80 dBc +
20*log(N) including IF
feedthrough, LO harmonic mixing responses
Carrier frequency > 26.5 GHz -30 dBm
-100 dBc
Higher RF Order (f ≥
10 MHz from Carrier)
Carrier frequency ≤ 26.5 GHz -40 dBm -90 dBc +
20*log(N) including higher order
mixer responses
条件：Nominally –40 dBc under large magnetic (0.38 Gauss rms) or vibrational (0.21 g rms) environmental stimuli.
Carrier frequency > 26.5 GHz -30 dBm
-110 dBc
LO-Related Spurious Responses 200 Hz ≤ f < 10 MHz from carrier -10 dBm -100 dBc + 20*log(N) 45 Hz ≤ f < 200 MHz from carrier -10 dBm -100 dBc +
20*log(N) includes line-related
Other Spurious Responses (Input-Related
2b. WPR, PA OFF, Allow RF Gain Adjust ON)
N is the LO multiplication factor. Refer to earlier table for the N value versus frequency ranges. Performance is nominally
Mixer 电平 Response, 标称值
First RF Order (f ≥
10 MHz from Carrier)
Carrier frequency ≤ 26.5 GHz -10 dBm -80 dBc +
20*log(N) including IF
feedthrough, LO harmonic mixing responses
Carrier frequency > 26.5 GHz -30 dBm
-80 dBc
Higher RF Order (f ≥
10 MHz from Carrier)
Carrier frequency ≤ 26.5 GHz -40 dBm -75 dBc +
20*log(N) including higher order
mixer responses
Carrier frequency > 26.5 GHz -30 dBm
-75 dBc
LO-Related Spurious Responses 200 Hz ≤ f < 10 MHz from carrier -10 dBm -90 dBc + 20*log(N) 45 Hz ≤ f < 200 MHz from carrier -10 dBm -90 dBc +
20*log(N) includes line-related
Second-Harmonic Intercept (SHI)
1a. STD: SHI (Swept, Preselector ON, PA OFF, Allow RF Gain Adjust OFF)
Frequency of the
Fundamental Mixer Level Distortion SHI 10 MHz to 1.8 GHz -8 dBm -44 dBc
+39 dBm
> 1.8 to 4.5 GHz -8 dBm -53 dBc
+48 dBm
> 4.5 to 7.5 GHz -8 dBm -73 dBc
+68 dBm
> 7.5 to 12.5 GHz -8 dBm -63 dBc
+58 dBm
> 12.5 to 16 GHz -8 dBm -55 dBc
+50 dBm
1b. STD: SHI (swept, preselector on, PA off, Allow RF Gain Adjust on)
Frequency of the
条件：Fundamental Preamp Level Distortion, Nominal SHI, Nominal 10 MHz to 1.8 GHz -10 dBm -68 dBc +48 dBm
> 1.8 to 4.2 GHz -10 dBm -82 dBc
+62 dBm
> 4.2 to 8.0 GHz -10 dBm -60 dBc
+40 dBm
> 8.0 to 13.25 GHz -10 dBm -58 dBc
+38 dBm
> 13.25 to 16 GHz -10 dBm -53 dBc
+33 dBm
2a. WPR: SHI (Swept, Preselector ON, PA OFF, Allow RF Gain Adjust OFF)
Frequency of the
条件：Fundamental Mixer Level Distortion, Nominal SHI, Nominal 10 MHz to 1.8 GHz -8 dBm -53 dBc +48 dBm
> 1.8 to 4.2 GHz -8 dBm -67 dBc
+62 dBm
> 4.2 to 6.8 GHz -8 dBm -45 dBc
+40 dBm
> 6.8 to 13.25 GHz -8 dBm -83 dBc
+78 dBm
> 13.25 to 16 GHz -8 dBm -80 dBc
+75 dBm
2b. WPR: SHI (Swept, Preselector ON, PA OFF, Allow RF Gain Adjust ON)
Frequency of the
条件：Fundamental Preamp Level Distortion, Nominal SHI, Nominal 10 MHz to 1.8 GHz -10 dBm -68 dBc +48 dBm
Frequency Nominal 10 to 350 MHz +28 dBm
Frequency Nominal 10 to 350 MHz -2 dBm
Frequency Nominal 10 to 350 MHz -13 dBm
Frequency Nominal 10 to 350 MHz +28 dBm
Frequency Nominal 10 to 350 MHz -2 dBm
Frequency Nominal 10 to 350 MHz -13 dBm
> 1.8 to 4.2 GHz -10 dBm -82 dBc
+62 dBm
> 4.2 to 6.8 GHz -10 dBm -60 dBc
+40 dBm
> 6.8 to 13.25 GHz -10 dBm -56 dBc
+36 dBm
> 13.25 to 16 GHz -10 dBm -54 dBc
+34 dBm
Third-Order Intercept (TOI)
1a. STD: (Swept, Preselector ON, PA OFF, Allow RF Gain Adjust OFF)
Two -14 dBm tones at input mixer with tone separation ≥
100 kHz
> 350 MHz to 1.8 GHz
+20 dBm
> 1.8 to 3.0 GHz
+23 dBm
> 3.0 to 8.0 GHz
+26 dBm
> 8.0 to 10.0 GHz
+22 dBm
> 10.0 to 32.0 GHz
+30 dBm
1b. STD (swept, preselector on, PA off, Allow RF Gain Adjust on)
Two -17 dBm tones at input mixer with tone separation ≥
100 kHz
Frequency Full Range
20 to 30 °C Typical
10 to 350 MHz +23 dBm +23 dBm
+26 dBm
> 350 MHz to 1.8 GHz +11 dBm +13 dBm
+16 dBm
> 1.8 to 3.0 GHz +15 dBm +17 dBm
+20 dBm
> 3.0 to 7.1 GHz +17 dBm +20 dBm
+24 dBm
> 7.1 to 13.6 GHz +13 dBm +14 dBm
+16 dBm
> 13.6 to 21 GHz +16 dBm +17 dBm
+20 dBm
> 21 to 26.5 GHz +16 dBm +18 dBm
+21 dBm
> 26.5 to 32 GHz +17 dBm +19 dBm
+22 dBm
1c. STD (Swept, Preselector ON, PA Low)
Two -34 dBm tones at preamplifier input with tone separation ≥
100 kHz
> 350 MHz to 1.8 GHz
-2 dBm
> 1.8 to 2.6 GHz
+1 dBm
> 2.6 to 3.6 GHz
+5 dBm
> 3.6 to 13.6 GHz
0 dBm
> 13.6 to 21 GHz
+8 dBm
> 21 to 26.5 GHz
+8 dBm
> 26.5 to 32 GHz
+8 dBm
1d. STD (Swept, Preselector ON, PA High)
Two -54 dBm tones at preamplifier input with tone separation ≥
100 kHz
> 350 MHz to 1.8 GHz
-13 dBm
> 1.8 to 2.6 GHz
-13 dBm
> 2.6 to 3.6 GHz
-12 dBm
> 3.6 to 13.6 GHz
-12 dBm
> 13.6 to 21 GHz
-12 dBm
> 21 to 26.5 GHz
-11 dBm
> 26.5 to 32 GHz
-12 dBm
2a. WPR (Swept, Preselector ON, PA OFF, Allow RF Gain Adjust OFF)
Two -14 dBm tones at input mixer with tone separation ≥
100 kHz
> 350 MHz to 1.8 GHz
+20 dBm
> 1.8 to 3.0 GHz
+23 dBm
> 3.0 to 8.0 GHz
+26 dBm
> 8.0 to 12.0 GHz
+23 dBm
> 12.0 to 21.0 GHz
+30 dBm
> 21.0 to 32.0 GHz
+32 dBm
2b. WPR (Swept, Preselector ON, PA OFF, Allow RF Gain Adjust ON)
Two -17 dBm tones at input mixer with tone separation ≥
100 kHz
Frequency Full range
20 to 30 °C Typical
10 to 350 MHz +23 dBm +23 dBm
+26 dBm
> 350 MHz to 1.8 GHz +11 dBm +13 dBm
+16 dBm
> 1.8 to 3.0 GHz +15 dBm +17 dBm
+20 dBm
> 3.0 to 7.1 GHz +17 dBm +20 dBm
+24 dBm
> 7.1 to 9.0 GHz +13 dBm +14 dBm
+16 dBm
> 9.0 to 13.6 GHz +16 dBm +18 dBm
+20 dBm
> 13.6 to 21 GHz +19 dBm +20 dBm
+23 dBm
> 21 to 26.5 GHz +17 dBm +18 dBm
+21 dBm
> 26.5 to 32 GHz +17 dBm +19 dBm
+22 dBm
2c. WPR (Swept, Preselector ON, PA Low)
Two -34 dBm tones at preamplifier input with tone separation ≥
100 kHz
> 350 MHz to 1.8 GHz
-2 dBm
> 1.8 to 2.6 GHz
+1 dBm
> 2.6 to 3.6 GHz
+5 dBm
> 3.6 to 8.4 GHz
0 dBm
> 8.4 to 13.6 GHz
+1 dBm
> 13.6 to 21 GHz
+12 dBm
> 21 to 26.5 GHz
+10 dBm
> 26.5 to 32 GHz
+9 dBm
2d. WPR (Swept, Preselector ON, PA High)
Two -54 dBm tones at preamplifier input with tone separation ≥
100 kHz
> 350 MHz to 1.8 GHz
-13 dBm
> 1.8 to 2.6 GHz
-13 dBm
> 2.6 to 3.6 GHz
-12 dBm
> 3.6 to 13.6 GHz
-12 dBm
> 13.6 to 21 GHz
-10 dBm
> 21 to 26.5 GHz
-11 dBm
> 26.5 to 32 GHz
-12 dBm
相位噪声 (SSB)
Phase Noise Offset Full Range
20 to 30 °C Typical, Unless
Otherwise Stated
条件：Noise sidebands (CF = 1 GHz) 10 Hz -85 dBc/Hz (nominal) 100 Hz -107 dBc/Hz -108 dBc/Hz -111 dBc/Hz
Figure 7. Nominal phase noise at various center frequencies. RBW curves added to show impact
of analyzer phase noise in resolving two closely spaced signals for various RBW filter choices.
1 kHz -118 dBc/Hz -119 dBc/Hz
-123 dBc/Hz
10 kHz -127 dBc/Hz -128 dBc/Hz
-132 dBc/Hz
100 kHz -135 dBc/Hz -136 dBc/Hz
-138 dBc/Hz
1 MHz -142 dBc/Hz -143 dBc/Hz
-145 dBc/Hz
10 MHz -147 dBc/Hz -148 dBc/Hz
-149 dBc/Hz
100 MHz
-152 dBc/Hz (nominal)
条件：Frequency Nominal 1 MHz to 32 GHz 100 dB
Channel to Channel Isolation 1b. STD (Swept, Preselector ON, PA OFF, Allow RF Gain Adjust ON, Input Attenuator =
10 dB)
IQ 分析仪
条件：specifications apply under the following settings unless otherwise specified: preselector =
Wideband Preselector (WPR), PA off, IF gain = Auto, IF gain offset = 0 dB.
Each bandwidth option includes and enables all others with lesser bandwidth: e.g. instruments with
R20 also have R10 licenses, plus B4X, B2X, B40 and B25 paths.
25 MHz Analysis Bandwidth (Standard)
Specifications on this bandwidth apply with center frequencies of 100 MHz and higher. All
Analysis bandwidth range
10 Hz to 25 MHz
Tuning range
30 MHz to 32 GHz
< (½*BW), by image folding and LO feedthrough
IF frequency 10.95 GHz (1st IF, center frequency ≤ 8.4 GHz) 15.75 GHz (1st IF, center frequency ≤ 9.5 GHz for MPB path and ≤ 12.5 GHz for WPR path) 4.65 GHz (1st IF, center frequency ≤
32 GHz)
1.35 GHz (2nd IF)
150 MHz (Final IF)
ADC sample rate
200 MSa/sec
ADC resolution
16 bits
Final data format I & Q pairs, 32 bits each
64 bits/Sa
IQ-pair sample rate
1.25 x BW
Capture memory
2 GB
IQ Analyzer
32,000,001 sample pairs
Length (IQ sample pairs)
268.4 MSa (228 Sa) with 64-bit data packing
Maximum capture time (time record length) 8.58 sec at full
25 MHz BW with 64-bit data packing
Capture time increases linearly with decrease in bandwidth
条件：Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
IF Frequency Response (PA OFF
10 dB Attenuation):
2a. Wideband Preselector (WPR), Allow RF Gain Adjust OFF
300 MHz to 32 GHz ± 0.20 dB
0.05 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
2b. WPR, Allow RF Gain Adjust ON
Full Range
条件：Amplitude RMS (Nominal) 300 MHz to 8.4 GHz ± 0.40 dB ± 0.35 dB 0.05 dB
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
Center Frequency RMS (Nominal) 300 MHz to 32 GHz 0.15°
IF Dynamic Range (2a, 2b, 2c, 2d. WPR, IF Gain = Low) (Nominal)
Error
20 to 30 °C
> 8.4 to 12.5 GHz ± 0.50 dB ± 0.45 dB
0.05 dB
> 12.5 to 26.5 GHz ± 0.60 dB ± 0.55 dB
0.05 dB
> 26.5 to 32 GHz ± 0.70 dB ± 0.65 dB
0.05 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
3a. MPB, Allow RF Gain Adjust OFF
3b. MPB, Allow RF Gain Adjust ON
300 MHz to 32 GHz ± 0.20 dB
0.05 dB
IF Frequency Response (PA ON
0 dB Attenuation):
2c. WPR, PA Low
2d. WPR, PA High
300 MHz to 32 GHz ± 0.30 dB
0.10 dB
IF Frequency Response (PA ON
0 dB Attenuation):
3c. MPB, PA Low
3d. MPB, PA High
300 MHz to 32 GHz ± 0.30 dB
0.10 dB
IF Phase Linearity (Deviation from Linear Phase) 2a, 2b, 2c, 2d. WPR 3a, 3b, 3c
3d. MPB
SFDR (杂散-free 动态范围) (ADC related 杂散)
-95 dBc, signal at –20 dBFS, anywhere in full
IF width
条件：IF Residual Responses (Input Terminated, IF Gain = Low) (Nominal)
Center Frequency 2a, 2b, 2c, 2d. WPR; 3a, 3b, 3c
3d. MPB
100 MHz to 32 GHz
-100 dBm
TOI (3rd-Order Intermodulation Distortion in the IF, 2 Tones of Equal Level at -19 dBFS
10 MHz Tone Separation, IF Gain =
高) (标称值)
Center Frequency
2b. WPR, PA OFF
Allow RF Gain Adjust ON
3b. MPB, PA OFF
Allow RF Gain Adjust ON 100 MHz to 8.4 GHz -86 dBc
-86 dBc
> 8.4 to 9.5 GHz (MPB)
> 8.4 to 12.5 GHz (WPR) -80 dBc
-90 dBc
> 9.5 to 32 GHz (MPB)
> 12.5 to 32 GHz (WPR) -92 dBc
-90 dBc
Noise Density in IF
WPR: Noise density is nominally
2 dB higher than WPR DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
MPB: Noise density is nominally
2 dB higher than STD DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
条件：Center Frequency Nominal 100 MHz to 32 GHz -100 dBm
Spurious Responses
2b. WPR, PA OFF, Allow RF Gain Adjust ON
Residual responses (input terminated
0 dB attenuation, IF gain = low)
Image Responses
条件：Center Frequency Nominal 100 MHz to 8.4 GHz ± 0.55 dB
specifications apply under the following settings unless otherwise specified: preselector =
Wideband Preselector (WPR), PA off, IF gain = Auto, IF gain offset = 0 dB.
In practice, low end of tuning range limited to < (½*BW), by image folding and LO feedthrough.
Tuned Frequency (f) Excitation Frequency 100 MHz to 32 GHz f ± 2 * 1st IF MHz f ± 2 *
2nd IF MHz
f
± 2 * Final IF MHz
Amplitude Accuracy, Absolute
2b. WPR, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
Center Frequency Full Range
20 to 30 °C Typical
100 MHz to 8.4 GHz ± 1.50 dB ± 1.10 dB
± 0.50 dB
> 8.4 to 12.5 GHz ± 1.70 dB ± 1.30 dB
± 0.60 dB
> 12.5 to 26.5 GHz ± 1.90 dB ± 1.50 dB
± 0.80 dB
> 26.5 to 32 GHz ± 2.30 dB ± 1.80 dB
± 1.00 dB
3b. MPB, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
> 8.4 to 9.5 GHz
± 0.50 dB
> 9.5 to 26.5 GHz
± 0.50 dB
> 26.5 to 32 GHz
± 0.60 dB
40 MHz Analysis Bandwidth (Option B40)
Specifications on this bandwidth apply with center frequencies of 100 MHz and higher. All
Analysis bandwidth range
10 Hz to 40 MHz
Tuning range
30 MHz to 32 GHz
IF frequency 10.95 GHz (1st IF, center frequency ≤ 8.4 GHz) 15.75 GHz (1st IF, center frequency ≤ 9.5 GHz for MPB path and ≤
12.5 GHz for
WPR path) 4.65 GHz (1st IF, center frequency ≤ 32 GHz) 1.35 GHz (2nd IF)
150 MHz (Final IF)
ADC sample rate
200 MSa/sec
ADC resolution
16 bits
Final data format I & Q pairs, 32 bits each
64 bits/Sa
IQ-pair sample rate
1.25 x BW
Capture memory
2 GB
IQ analyzer
32,000,001 sample pairs
Length (IQ sample pairs)
268.4 MSa (228 Sa) with 64-bit data packing
Maximum capture time (time record length) 5.36 sec at full
40 MHz BW with 64-bit data packing
Capture time increases linearly with decrease in bandwidth
条件：Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
IF Frequency Response (PA OFF
10 dB Attenuation):
2a. WPR, Allow RF Gain Adjust OFF
300 MHz to 12.5 GHz ± 0.20 dB
0.06 dB
> 12.5 to 32 GHz ± 0.30 dB
0.10 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
2b. WPR, Allow RF Gain Adjust ON
误差, Full 范围
条件：Error, 20 To 30 °C Amplitude RMS (Nominal)
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
Center Frequency RMS (Nominal) 300 MHz to 32 GHz 0.15°
IF Dynamic Range (2a, 2b, 2c, 2d. WPR, IF Gain = Low) (Nominal)
300 MHz to 8.4 GHz ± 0.50 dB ± 0.45 dB
0.08 dB
> 8.4 to 12.5 GHz ± 0.60 dB ± 0.55 dB
0.06 dB
> 12.5 to 26.5 GHz ± 0.60 dB ± 0.55 dB
0.10 dB
> 26.5 to 32 GHz ± 0.80 dB ± 0.75 dB
0.10 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
3a. MPB, Allow RF Gain Adjust OFF
3b. MPB, Allow RF Gain Adjust ON
300 MHz to 9.5 GHz ± 0.20 dB
0.06 dB
> 9.5 to 32 GHz ± 0.30 dB
0.10 dB
IF frequency Response (PA ON
0 dB Attenuation):
2c
2d. WPR
3c
3d. MPB
300 MHz to 32 GHz ± 0.50 dB
0.15 dB
IF Phase Linearity (Deviation from Linear Phase) 2a, 2b, 2c, 2d. WPR 3a, 3b, 3c
3d. MPB
SFDR (杂散-free 动态范围) (ADC related 杂散)
条件：IF Residual Responses (Input Terminated, IF Gain = Low) (Nominal)
-95 dBc, signal at –20 dBFS, anywhere in full IF width
Center Frequency 2a, 2b, 2c, 2d. WPR; 3a, 3b, 3c
3d. MPB
100 MHz to 32 GHz
-100 dBm
TOI (3rd-Order Intermodulation Distortion in the IF, 2 Tones of Equal Level at -19 dBFS
10 MHz Tone Separation, IF Gain =
高) (标称值)
Center Frequency 2b. WPR, PA OFF, Allow RF Gain Adjust ON
3b. MPB, PA OFF
Allow RF Gain Adjust ON 100 MHz to 8.4 GHz -86 dBc
-86 dBc
> 8.4 to 9.5 GHz (MPB)
> 8.4 to 12.5 GHz (WPR) -80 dBc
-90 dBc
> 9.5 to 32 GHz (MPB)
> 12.5 to 32 GHz (WPR) -92 dBc
-90 dBc
Noise Density in IF
WPR: Noise density is nominally
2 dB higher than WPR DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
MPB: Noise density is nominally
2 dB higher than STD DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
条件：Center Frequency Nominal 100 MHz to 32 GHz -100 dBm
Spurious Responses
2b. WPR, PA off, Allow RF Gain Adjust ON
Residual responses (input terminated
0 dB attenuation, IF gain = low)
Image Responses
条件：Center Frequency Nominal 100 MHz to 8.4 GHz ± 0.55 dB
specifications apply under the following settings unless otherwise specified: preselector =
Wideband Preselector (WPR), PA off, IF gain = Auto, IF gain offset = 0 dB.
Tuned Frequency (f) Excitation Frequency 100 MHz to 32 GHz f ± 2 * 1st IF MHz f ± 2 *
2nd IF MHz
f
± 2 * Final IF MHz
Amplitude Accuracy, Absolute
2b. WPR, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
Center Frequency Full Range
20 to 30 °C Typical
100 MHz to 8.4 GHz ± 1.50 dB ± 1.10 dB
± 0.50 dB
> 8.4 to 12.5 GHz ± 1.70 dB ± 1.30 dB
± 0.60 dB
> 12.5 to 26.5 GHz ± 1.90 dB ± 1.50 dB
± 0.80 dB
> 26.5 to 32 GHz ± 2.30 dB ± 1.80 dB
± 1.00 dB
Amplitude accuracy, absolute
3b. MPB, PA off, Allow RF Gain Adjust on (10 dB attenuation)
> 8.4 to 26.5 GHz
± 0.50 dB
> 26.5 to 32 GHz
± 0.60 dB
255 MHz Analysis Bandwidth (Option B2X)
Specifications on this bandwidth apply with center frequencies of 500 MHz and higher. All
Analysis bandwidth range
30 kHz to 255 MHz
Tuning range
300 MHz to 32 GHz In practice, low end of tuning range limited to <
(½*BW), by image folding and LO feedthrough
IF frequency 10.5 GHz (1st IF, center frequency ≤ 8 GHz) 15.3 GHz (1st IF, center frequency ≤ 9.5 GHz for MPB path and ≤
12.5 GHz for
WPR path) 5.1 GHz (1st IF, center frequency ≤ 32 GHz)
900 MHz (Final IF)
ADC sample rate
1200 MSa/sec
ADC resolution
16 bits
Final data format I & Q pairs, 32 bits each
64 bits/Sa
IQ-pair sample rate
1.25 x BW
Capture memory
2 GB
IQ analyzer
32,000,001 sample pairs
Length (IQ sample pairs)
268.4 MSa (228 Sa) with 64-bit data packing
Maximum capture time (time record length) 0.84 sec at full
255 MHz
BW with 64-bit data
Capture time increases linearly with decrease in bandwidth
条件：Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal) 500 MHz to 8 GHz ± 0.50 dB 0.20 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
2a. WPR, Allow RF Gain Adjust OFF
> 8 to 26.5 GHz ± 0.40 dB
0.10 dB
> 26.5 to 32 GHz ± 0.50 dB
0.20 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
2b. WPR, Allow RF Gain Adjust ON
Full Range
条件：Amplitude RMS (Nominal) 500 MHz to 8 GHz ± 0.90 dB ± 0.70 dB 0.20 dB
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal) 500 MHz to 8 GHz ± 0.50 dB 0.20 dB
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal) 500 MHz to 8 GHz ± 0.50 dB 0.20 dB
Center Frequency RMS (Nominal) 500 MHz to 8 GHz 0.20°
IF Dynamic Range (2a, 2b, 2c, 2d. WPR, IF Gain = Low) (Nominal)
Amplitude Max Error
20 to 30 °C
> 8 to 26.5 GHz ± 1.00 dB ± 0.80 dB
0.10 dB
> 26.5 to 32 GHz ± 1.30 dB ± 1.10 dB
0.20 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
3a. MPB, Allow RF Gain Adjust OFF
3b. MPB, Allow RF Gain Adjust ON
> 8 to 26.5 GHz ± 0.40 dB
0.10 dB
> 26.5 to 32 GHz ± 0.50 dB
0.20 dB
IF Frequency Response (PA ON
0 dB Attenuation):
2c
2d. WPR
3c
3d. MPB
> 8 to 9.5 GHz (MPB)
> 8 to 12.5 GHz (WPR) ± 0.50 dB
0.20 dB
> 9.5 to 26.5 GHz (MPB)
> 12.5 to 26.5 GHz (WPR) ± 0.60 dB
0.20 dB
> 26.5 to 32 GHz ± 1.00 dB
0.40 dB
IF Phase Linearity (Deviation from Linear Phase) 2a, 2b, 2c, 2d. WPR 3a, 3b, 3c
3d. MPB
> 8 to 9.5 GHz (MPB)
> 8 to 12.5 GHz (WPR)
0.30°
> 9.5 to 26.5 GHz (MPB)
> 12.5 to 26.5 GHz (WPR)
0.40°
> 26.5 to 32 GHz
0.90°
SFDR (杂散-free 动态范围) (ADC related 杂散)
-88 dBc, signal at –20 dBFS, anywhere in full IF
条件：IF Residual Responses (Input Terminated, IF Gain = Low) (Nominal)
Center Frequency 2a, 2b, 2c
2d. WPR
3a, 3b, 3c
3d. MPB
500 MHz to 32 GHz
-80 dBm
TOI (3rd-Order Intermodulation Distortion in the IF, 2vTones of Equal Level at -19 dBFS
10 MHz Tone Separation, IF Gain =
高) (标称值)
Center Frequency
2b. WPR, PA OFF, Allow RF Gain Adjust ON
3b. MPB, PA OFF, Allow RF Gain Adjust ON
500 MHz to 8 GHz
-78 dBc
> 8 to 9.5 GHz (MPB)
> 8 to 12.5 GHz (WPR)
-78 dBc
> 9.5 to 32 GHz (MPB)
> 12.5 to 32 GHz (WPR)
-83 dBc
Noise Density in IF
WPR: Noise density is nominally
4 dB higher than WPR DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
MPB: Noise density is nominally
2 dB higher than STD DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
条件：Center frequency Nominal 500 MHz to 32 GHz -100 dBm
Spurious Responses
2b. WPR, PA OFF, Allow RF Gain Adjust ON
Residual responses (input terminated
0 dB attenuation, IF gain = low)
Image Responses
条件：Center Frequency Nominal 500 MHz to 8 GHz ± 0.55 dB
specifications apply under the following settings unless otherwise specified: preselector =
Wideband Preselector (WPR), PA off, IF gain = Auto, IF gain offset = 0 dB.
Tuned Frequency (f) Excitation Frequency 500 MHz to 32 GHz f ± 2 * 1st IF MHz f
± 2 * Final IF MHz
Amplitude Accuracy, Absolute
2b. WPR, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
Center Frequency Full Range
20 To 30 °C Typical
500 MHz to 8 GHz ± 1.50 dB ± 1.10 dB
± 0.50 dB
> 8 to 12.5 GHz ± 1.70 dB ± 1.30 dB
± 0.60 dB
> 12.5 to 26.5 GHz ± 1.90 dB ± 1.50 dB
± 0.80 dB
> 26.5 to 32 GHz ± 2.30 dB ± 1.80 dB
± 1.00 dB
Amplitude Accuracy, Absolute
3b. MPB, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
> 8 to 26.5 GHz
± 0.50 dB
> 26.5 to 32 GHz
± 0.60 dB
480 MHz Analysis Bandwidth (Option B4X)
Specifications on this bandwidth apply with center frequencies of 500 MHz and higher. All
Analysis bandwidth range
30 kHz to 480 MHz
Tuning range
500 MHz to 32 GHz
< (½*BW), by image folding and LO feedthrough
IF frequency 10.5 GHz (1st IF, center frequency ≤ 8 GHz) 15.3 GHz (1st IF, center frequency ≤ 9.5 GHz for MPB path and ≤
12.5 GHz for
WPR path) 5.1 GHz (1st IF, center frequency ≤ 32 GHz)
900 MHz (Final IF)
ADC sample rate
1200 MSa/sec
ADC resolution
16 bits
Final data format I & Q pairs, 32 bits each
64 bits/Sa
IQ-pair sample rate
1.25 x BW
Capture memory
2 GB
IQ analyzer
32,000,001 sample pairs
Length (IQ sample pairs)
268.4 MSa (228 Sa) with 64-bit data packing
Maximum capture time (time record length) 0.44 sec at full
480 MHz BW with 64-bit data packing
Capture time increases linearly with decrease in bandwidth
条件：Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal) 500 MHz to 8 GHz ± 0.50 dB 0.20 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
2a. WPR, Allow RF Gain Adjust OFF
> 8 to 26.5 GHz ± 0.40 dB
0.10 dB
> 26.5 to 32 GHz ± 0.60 dB
0.30 dB
IF frequency Response (PA off
10 dB Attenuation):
2b. WPR, Allow RF Gain Adjust ON
条件：Amplitude RMS (Nominal) 500 MHz to 8 GHz ± 1.00 dB ± 0.80 dB 0.20 dB
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal) 500 MHz to 8 GHz ± 0.50 dB 0.20 dB
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal) 500 MHz to 8 GHz ± 0.50 dB 0.20 dB
Center Frequency RMS (Nominal) 500 MHz to 8 GHz 0.20°
IF Dynamic Range (2a, 2b, 2c, 2d. WPR, IF Gain = Low) (Nominal)
Error
20 To 30 °C
> 8 to 26.5 GHz ± 1.20 dB ± 1.00 dB
0.10 dB
> 26.5 to 32 GHz ± 1.60 dB ± 1.40 dB
0.30 dB
IF Frequency Response (PA off
10 dB Attenuation):
3a. MPB, Allow RF Gain Adjust OFF
3b. MPB, Allow RF Gain Adjust ON
> 8 to 26.5 GHz ± 0.40 dB
0.10 dB
> 26.5 to 32 GHz ± 0.60 dB
0.30 dB
IF Frequency Response (PA ON
0 dB Attenuation):
2c
2d. WPR
3c
3d. MPB
> 8 to 9.5 GHz (MPB)
> 8 to 12.5 GHz (WPR) ± 0.50 dB
0.20 dB
> 9.5 to 26.5 GHz (MPB)
> 12.5 to 26.5 GHz (WPR) ± 0.60 dB
0.20 dB
> 26.5 to 32 GHz ± 1.00 dB
0.40 dB
IF Phase Linearity (Deviation from Linear Phase) 2a, 2b, 2c, 2d. WPR 3a, 3b, 3c
3d. MPB
> 8 to 9.5 GHz (MPB)
> 8 to 12.5 GHz (WPR)
0.30°
> 9.5 to 26.5 GHz (MPB)
> 12.5 to 26.5 GHz (WPR)
0.40°
> 26.5 to 32 GHz
0.90°
SFDR (杂散-free 动态范围) (ADC related 杂散)
-88 dBc, signal at –20 dBFS, anywhere in full
IF width
条件：IF Residual Responses (Input Terminated, IF Gain = Low) (Nominal)
Center Frequency 2a, 2b, 2c
2d. WPR
3a, 3b, 3c
3d. MPB
500 MHz to 32 GHz
-80 dBm
TOI (3rd-Order Intermodulation Distortion in the IF, 2 Tones of Equal Level at -19 dBFS
10 MHz Tone Separation, IF Gain =
高) (标称值)
Center Frequency
2b. WPR, PA OFF, Allow RF Gain Adjust ON
3b. MPB, PA OFF, Allow RF Gain Adjust ON
500 MHz to 8 GHz
-82 dBc
> 8 to 9.5 GHz (MPB)
> 8 to 12.5 GHz (WPR)
-82 dBc
> 9.5 to 32 GHz (MPB)
> 12.5 to 32 GHz (WPR)
-86 dBc
Noise Density in IF
WPR: Noise density is nominally
4 dB higher than WPR DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
MPB: Noise density is nominally
2 dB higher than STD DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
条件：Center Frequency Nominal 500 MHz to 32 GHz -100 dBm
Spurious Responses
2b. WPR, PA OFF, Allow RF Gain Adjust ON
Residual responses (input terminated
0 dB attenuation, IF gain = low)
Image responses
条件：Center Frequency Nominal 500 MHz to 8 GHz ± 0.55 dB
specifications apply under the following settings unless otherwise specified: preselector =
Wideband Preselector (WPR), PA OFF, IF gain = Auto, IF gain offset = 0 dB.
Tuned Frequency (f) Excitation Frequency 500 MHz to 32 GHz f ± 2 * 1st IF MHz f
± 2 * Final IF MHz
Amplitude Accuracy, Absolute
2b. WPR, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
Center Frequency Full Range
20 to 30 °C Typical
500 MHz to 8 GHz ± 1.50 dB ± 1.10 dB
± 0.50 dB
> 8 to 12.5 GHz ± 1.70 dB ± 1.30 dB
± 0.60 dB
> 12.5 to 26.5 GHz ± 1.90 dB ± 1.50 dB
± 0.80 dB
> 26.5 to 32 GHz ± 2.30 dB ± 1.80 dB
± 1.00 dB
Amplitude Accuracy, Absolute
3b. MPB, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
> 8 to 26.5 GHz
± 0.50 dB
> 26.5 to 32 GHz
± 0.60 dB
1 GHz Analysis Bandwidth (Option R10)
Specifications on this bandwidth apply with center frequencies of 700 MHz and higher. All
Analysis bandwidth range
1 kHz to 1 GHz
Tuning range
700 MHz to 32 GHz In practice, low end of tuning range limited to
< (½*BW), by image folding and LO feedthrough
IF frequency 10.8 GHz (1st IF, center frequency ≤ 8 GHz) 15.6 GHz (1st IF, center frequency ≤ 9.5 GHz for MPB path and ≤ 12.5 GHz for WPR path) 4.5 GHz (1st IF, center frequency ≤
32 GHz)
1.2 GHz (Final IF, center frequency ≤
12.5 GHz)
1.5 GHz (Final IF, center frequency >
12.5 GHz)
ADC sample rate
4800 MSa/sec
ADC resolution
14 bits
Final data format I & Q pairs, 32 bits each
64 bits/Sa
IQ-pair sample rate
1.2 x BW
Capture memory
16 GB
IQ analyzer
32,000,001 sample pairs
Length (IQ sample pairs)
2,147.4 MSa (231 Sa) with 64-bit data packing
Maximum capture time (time record length) 1.78 sec at full
1 GHz BW with 64- bit data packing
Capture time increases linearly with decrease in bandwidth
条件：Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
Amplitude RMS (Nominal) 700 MHz to 8 GHz ± 1.20 dB ± 0.90 dB 0.20 dB
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal) 700 MHz to 8 GHz ± 0.50 dB 0.20 dB
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal) 700 MHz to 8 GHz ± 0.50 dB 0.20 dB
Center Frequency RMS (Nominal) 700 MHz to 8 GHz 0.20°
IF Dynamic Range (2a, 2b, 2c, 2d. WPR, IF Gain = Low) (Nominal)
IF Frequency Response (PA OFF
10 dB Attenuation):
2a. WPR, Allow RF Gain Adjust OFF
700 MHz to 8 GHz ± 0.50 dB
0.20 dB
> 8 to 26.5 GHz ± 0.40 dB
0.10 dB
> 26.5 to 32 GHz ± 0.50 dB
0.20 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
2b. WPR, Allow RF Gain Adjust ON
Center Frequency Amplitude Max Error, Full Range Amplitude Max Error,
20 to 30 °C
> 8 to 26.5 GHz ± 1.50 dB ± 1.10 dB
0.10 dB
> 26.5 to 32 GHz ± 1.90 dB ± 1.40 dB
0.20 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
3a. MPB, Allow RF Gain Adjust OFF
3b. MPB, Allow RF Gain Adjust ON
> 8 to 26.5 GHz ± 0.40 dB
0.10 dB
> 26.5 to 32 GHz ± 0.50 dB
0.20 dB
IF Frequency Response (PA ON
0 dB Attenuation):
2c
2d. WPR
3c
3d. MPB
> 8 to 9.5 GHz (MPB)
> 8 to 12.5 GHz (WPR) ± 0.50 dB
0.20 dB
> 9.5 to 26.5 GHz (MPB)
> 12.5 to 26.5 GHz (WPR) ± 0.60 dB
0.20 dB
> 26.5 to 32 GHz ± 1.20 dB
0.40 dB
IF Phase Linearity (Deviation from Linear Phase) 2a, 2b, 2c, 2d. WPR 3a, 3b, 3c
3d. MPB
> 8 to 9.5 GHz (MPB)
> 8 to 12.5 GHz (WPR)
0.30°
> 9.5 to 26.5 GHz (MPB)
> 12.5 to 26.5 GHz (WPR)
0.50°
> 26.5 to 32 GHz
1.40°
SFDR (杂散-free 动态范围) (ADC related 杂散)
-70 dBc, signal at –20 dBFS, anywhere in full IF
条件：IF Residual Responses (Input Terminated, IF Gain = Low) (Nominal)
Center Frequency 2a, 2b, 2c
2d. WPR
3a, 3b, 3c
3d. MPB
700 MHz to 32 GHz
-80 dBm
TOI (3rd-Order Intermodulation Distortion in the IF, 2 Tones of Equal Level at -19 dBFS
10 MHz Tone Separation, IF Gain =
高) (标称值)
Center Frequency
2b. WPR, PA OFF, Allow RF Gain Adjust ON
3b. MPB, PA OFF, Allow RF Gain Adjust ON
700 MHz to 32 GHz
-75 dBc
Noise Density in IF
WPR: Noise density is nominally
5 dB higher than WPR DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
MPB: Noise density is nominally
5 dB higher than STD DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
条件：Center Frequency Nominal 700 MHz to 32 GHz -100 dBm
Spurious Responses
2b. WPR, PA OFF, Allow RF Gain Adjust ON
Residual responses (input terminated
0 dB attenuation, IF gain = low)
Image Responses
条件：Center Frequency Nominal 700 MHz to 8 GHz ± 0.55 dB
specifications apply under the following settings unless otherwise specified: preselector =
Microwave Preselector Bypass (MPB), PA OFF, IF gain = Auto, IF gain offset = 0 dB.
In practice, low end of tuning range limited to < (½*BW), by image folding and LO feedthrough.
Tuned Frequency (f) Excitation Frequency 30 MHz to 32 GHz f ± 2 * 1st IF MHz f
± 2 * Final IF MHz
Amplitude Accuracy, Absolute
2b. WPR, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
Center Frequency Full Range
20 to 30 °C Typical
700 MHz to 8 GHz ± 1.40 dB ± 1.10 dB
± 0.60 dB
> 8 to 12.5 GHz ± 1.70 dB ± 1.30 dB
± 0.80 dB
> 12.5 to 26.5 GHz ± 2.20 dB ± 1.80 dB
± 1.00 dB
> 26.5 to 32 GHz ± 3.00 dB ± 2.30 dB
± 1.20 dB
Amplitude Accuracy, Absolute
3b. MPB, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
> 8 to 26.5 GHz
± 0.50 dB
> 26.5 to 32 GHz
± 0.60 dB
2 GHz Analysis Bandwidth (Option R20)
Specifications on this bandwidth apply with center frequencies of 2 GHz and higher. All
Analysis bandwidth range
1 kHz to 2 GHz
Tuning range
2 GHz to 32 GHz
IF frequency 15.6 GHz (1st IF, center frequency ≤
9.5 GHz)
1.2 GHz (Final IF)
ADC sample rate
4800 MSa/sec
ADC resolution
14 bits
Final data format I & Q pairs, 32 bits each
64 bits/Sa
IQ-pair sample rate
1.2 x BW
Capture memory
16 GB
IQ analyzer
32,000,001 sample pairs
Length (IQ sample pairs)
2,147.4 MSa (231 Sa) with 64-bit data packing
Maximum capture time (time record length) 0.89 sec at full
2 GHz BW with 64-bit data packing
Capture time increases linearly with decrease in bandwidth
条件：Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
IF Frequency Response (PA OFF
10 dB Attenuation):
3a. MPB, Allow RF Gain Adjust OFF
2 to 26.5 GHz ± 0.50 dB
0.10 dB
> 26.5 to 32 GHz ± 0.50 dB
0.20 dB
IF Frequency Response (PA OFF
10 dB Attenuation):
3b. MPB, Allow RF Gain Adjust ON
Full Range
条件：Amplitude RMS (Nominal) 2 to 9.5 GHz ± 1.30 dB ± 1.00 dB 0.10 dB
Center Frequency Amplitude Max Error (Nominal) Amplitude RMS (Nominal)
Center Frequency RMS (Nominal) 2 to 9.5 GHz 0.20°
IF Dynamic Range (3a, 3b, 3c, 3d. MPB, IF Gain = Low) (Nominal)
Error
20 to 30 °C
> 9.5 to 12.5 GHz ± 1.60 dB ± 1.20 dB
0.10 dB
> 12.5 to 26.5 GHz ± 1.60 dB ± 1.20 dB
0.10 dB
> 26.5 to 32 GHz ± 2.00 dB ± 1.50 dB
0.20 dB
IF Frequency Response (PA ON
0 dB Attenuation):
3c. MPB, PA Low
3d. MPB, PA High
2 to 12.5 GHz ± 0.50 dB
0.20 dB
> 12.5 to 26.5 GHz ± 1.00 dB
0.20 dB
> 26.5 to 32 GHz ± 1.20 dB
0.40 dB
IF Phase Linearity (Deviation from Linear Phase) 3a, 3b, 3c
3d. MPB
> 9.5 to 12.5 GHz
0.30°
> 12.5 to 26.5 GHz
0.50°
> 26.5 to 32 GHz
1.40°
SFDR (杂散-free 动态范围) (ADC related 杂散)
-70 dBc, signal at –20 dBFS, anywhere in
full IF width
条件：IF Residual Responses (Input Terminated, IF Gain = Low) (Nominal)
Center Frequency 3a, 3b, 3c
3d. MPB
2 to 32 GHz
-80 dBm
TOI (3rd-Order Intermodulation Distortion in the IF, 2 Tones of Equal Level at -19 dBFS
10 MHz Tone Separation, IF Gain =
高) (标称值)
Center Frequency
3b. MPB, PA Off
Allow RF Gain Adjust ON 2 to 32 GHz
-75 dBc
Noise Density In IF
MPB: Noise density is nominally
5 dB higher than STD DANL at default IF Gain settings. The noise level in the IF will
change for frequencies away from the center of the IF
条件：Center Frequency Nominal 2 to 32 GHz -100 dBm
Spurious Responses
3b. MPB, PA OFF, Allow RF Gain Adjust ON
Residual responses (input terminated
0 dB attenuation, IF gain = high)
Image Responses
Tuned Frequency (f) Excitation Frequency 2 to 32 GHz f ± 2 * 1st IF MHz f
± 2 * Final IF MHz
Amplitude Accuracy, Absolute
3b. MPB, PA OFF, Allow RF Gain Adjust ON (10 dB Attenuation)
Center Frequency Full Range
20 to 30 °C Typical
2 to 8.0 GHz ± 1.40 dB ± 1.10 dB
± 0.60 dB
> 8.0 to 9.5 GHz ± 1.70 dB ± 1.30 dB
± 0.80 dB
> 9.5 to 26.5 GHz ± 2.20 dB ± 1.80 dB
± 1.00 dB
> 26.5 to 32 GHz ± 3.00 dB ± 2.30 dB
± 1.20 dB
四、通用规格
温度范围
Operating 0 to 55 °C (for 1-port, Option
001)
0 to 40 °C (for 2-port, Option 001
002)
Storage
-40 to +70 °C
Altitude Operating: Up to 3,000 meters (9,842 feet)
Non-operating: up to 4,600 m (approx.
15,091 feet)
Maximum relative humidity
95% up to 40 °C, non-condensing
供电要求
条件：Voltage and frequency (nominal) 100 to 240 V AC, 50/60 Hz
The instruments can operate with mains supply voltage fluctuations up to ± 10% of the nominal voltage Rated input power 900 W with C20 input connector
(maximum)
600 W with C14 input connector (maximum)
Power consumption, on 300 W (1-port, Option 001 and B40, typical) 550 W (2-port, Option 001
002, and R20, typical)
Power consumption, standby
10 W
条件：Size 400 mm (15.6 in.) diagonal (nominal) capacitive multi-touch screen
Resolution 1920 x
1080
数据存储
Internal Removable solid-state drive (≥
480 GB)
External Supports USB
3.0/2.0 compatible memory devices
CPU Intel i7, 8-core, 4.4 GHz clock
64 GB DDR4 DRAM
Operating system Windows-11, Enterprise
Height
278 mm (10.9 in)
Width
476 mm (18.7 in)
Length
523 mm (20.6 in)
类型说明连接器输出电流
USB 3.0 (2) Compatible with USB 3.0 USB Type-A female (blue) 5 V
0.9 A
USB 2.0 (2) Compatible with USB 2.0 USB Type-A female (black) 5 V
0.5 A
USB C (2) Compatible with USB Type-C USB Type-C female 5 V
0.9 A
Ref Out
条件：Connector BNC female, 50 Ω (nominal)
Output amplitude ≥ 0 dBm (nominal)
Frequency
10 MHz × (1+ frequency reference accuracy)
Other frequency x (1+ frequency reference accuracy)
Ref In
条件：Connector BNC female, 50 Ω (nominal)
Input amplitude range 0 to 10 dBm (nominal)
Input frequency 1 to 110 MHz (nominal)
Amplitude +8 dBm (nominal) sine wave
Frequency lock range ± 2 x
10-6 of specified external reference input frequency
2.4 GHz Out
连接器 SMA female
条件：Amplitude -1 to +10 dBm (nominal)
Impedance
50 Ω (nominal)
Frequency
2.4 GHz (nominal)
2.4 GHz In
连接器 SMA female
Impedance
50 Ω (nominal)
Frequency
2.4 GHz (nominal)
触发输入
条件：Connector BNC female,10 kΩ (nominal)
Connector SMA, female, 50 Ω (nominal)
Trigger level range
–5 to 5 V
Precision Trigger Input (For Wide-Bandwidth Measurements Only, Requires Option R10/S10 or R20/S20)
Trigger level range
–5 to 5 V
触发输出
条件：Connector BNC female, 50 Ω (nominal)
Trigger level range 0 to 5 V (CMOS) (nominal)
Noise Source Drive
+28 V (Pulsed)
连接器 BNC female
条件：Output voltage on 28.0 ±0.1 V (nominal)
Output voltage off <
1.0 V
USB Ports
USB
3.0 (4 Ports)
Standard Compatible with USB
3.0
连接器 USB 类型- female
Output current
0.9 A (nominal)
Device Side USB
Standard Compatible with USB
3.0
Connector DisplayPort
Resolution 1920 x
1080
Micro GPIB 接口 (选件 GPB)
Connector Micro-D
25-pin
GPIB codes SH1, AH1, T6, SR1, RL1, PP0, DC1, C1, C2, C3, C28, DT1, L4, C0
LAN TCP/IP Interface
Standard
1GBase-T x2
Connector RJ45 Ethernet connector
Option GBE (10 Gbit Ethernet)
10GBase-T x2
Connector RJ45 Ethernet connector
法规信息
This product is designed for use in INSTALLATION CATEGORY II and POLLUTION DEGREE
2 and
MEASUREMENT CATEGORY NONE
条件：has been supplied in a safe condition. The instruction documentation contains information and
This product has been designed and tested in accordance with accepted industry standards and
warnings which must be followed by the user to ensure safe operation and to maintain the product
Safety and Regulatory Markings which May be on the Product
The CE mark is a registered trademark of the European Community (if accompanied by a
year, it is the year when the design was proven). This product complies with all relevant
CAN ICES/NMB-001(A) Canada EMC label. Interference-Causing Equipment Standard for industrial, scientific
and medical (ISM) equipment. Matériel industriel, scientifique et médical (ISM)
ISM 1-A (GRP.1 CLASS A) This is a symbol of an Industrial Scientific and Medical Group
1 Class A product. (CISPR
11, Clause
4)
The CSA mark is a registered trademark of the CSA International.
The RCM mark is a registered trademark of the Australian Communications and Media
UK conformity mark is a UK government owned mark
Products showing this mark comply with all applicable UK regulations.
This symbol indicates separate collection for electrical and electronic equipment
mandated under EU law as of August 13
2005. All electric and electronic equipment are
required to be separated from normal waste for disposal (Reference WEEE Directive
2002/96/EC).
The crossed out wheeled bin symbol indicates that separate collection for waste electric
and electronic equipment (WEEE) is required, as obligated by the EU DIRECTIVE and
other National legislation
Please refer to keysight.com/go/takeback to understand your Trade in options with
Keysight in addition to product takeback instructions
China Restricted Substance Product Label. The EPUP (environmental protection use
period) number in the center indicates the time period during which no hazardous or
toxic substances or elements are expected to leak or deteriorate during normal use and
generally reflects the expected useful life of the product
Universal recycling symbol. This symbol indicates compliance with the China standard
GB 18455-2001 as required by the China RoHS regulations for paper/fiberboard
条件：South Korean Certification (KC) mark; includes the marking’s identifier code.
More than one person is required to safely lift or carry this instrument. Alternately a
mechanical lift can be used to eliminate the risk of personal injury.
This symbol indicates the presence of a class
1 Laser device
Complies with the essential requirements of the European EMC Directive and the UK
Electromagnetic Compatibility Regulations
2016 as well as current edition
以上指标摘自厂家官方数据手册，完整定义、测试条件与保证值口径以手册为准。完整指标、测试条件与定义口径请见产品页「软件和手册 | 白皮书」栏目中的官方数据手册。
是德科技 | KEYSIGHT · onetest 仪器资源库
全部
是德科技官方渠道
官方渠道（官网 / 热线 / 邮箱）
• 销售服务热线
800-810-0189（座机）／400-810-0189（手机） 工作时间 周一至周五 8:30-17:30
• 热线传真
800-820-2816（座机）／400-820-3863（手机）
• 亚洲区支持邮箱 tm_asia@keysight.com
• 服务与支持邮箱
instruments_services@keysight.com
• 官网
www.keysight.com（中国站 www.keysight.com.cn）
全国办事处
• 北京总部
是德科技（中国）有限公司 北京市朝阳区望京北路3号
电话：(010) 64397888
传真：(010) 64390278
邮编：100102
• 上海分公司
上海市虹口区四川北路1350号中信泰富申虹广场5楼、16-19楼
电话：(021) 36127688
传真：(021) 36127188
邮编：200080
• 广州分公司
广州市天河北路233号中信广场66层07-08室
电话：(020) 38113988
传真：(020) 86695074
邮编：510613
• 深圳分公司
深圳市福田中心区福华一路六号免税商务大厦3楼
电话：(0755) 83079588
传真：(0755) 82763181
邮编：518048
• 成都分公司
成都高新区南部园区天府四街116号
电话：(028) 83108888
传真：(028) 85330830
邮编：610041
• 西安分公司
西安市碑林区南关正街88号长安国际大厦D座5/F
电话：(029) 88867770
传真：(029) 88861330
邮编：710068
• 中国香港
是德科技香港有限公司 中国香港北角电气道169号25楼
电话：(852) 31977777
传真：(852) 25069292 香港热线 800-938-693
• 维修 / 校准服务中心
中国大陆 北京 / 成都 / 苏州 服务热线 800-810-0189 / 400-810-0189
授权分销商
• 上海信果电子科技有限公司（上海）
上海市沪闵路8075号虹梅商务大厦6楼609室
邮编：200233
电话：021-64518399
传真：021-54560890
邮箱：jason.wu@signalgroup.com.tw
• 上海精测电子有限公司（上海）
上海市北京东路668号西楼15E
邮编：200001
电话：13916371522
传真：021-53086102
邮箱：yangzhen@jingce.com
• 北京东方中科集成科技股份有限公司（北京）
北京市海淀区复兴路69号院12号楼2层、7层 邮政编码：100039
邮编：100039
电话：400-650-5566
传真：010-68728001
邮箱：zhangzp@oimec.com.cn
官网：www.dfzk.com/br_keysight.html
• 北京千聚科技发展有限公司（北京）
北京市海淀区西三旗花园雪梨澳乡A区23-4号
邮编：100085
电话：010-82907162
邮箱：zhuqihui@qianjukeji.com.cn
• 北京金龙翌阳科技发展有限公司（北京）
北京市海淀区大柳树路17号富海大厦2001室
邮编：100086
电话：010-62167379/6213538
邮箱：zhy@yy17.com
官网：www.yy17.com
• 厦门同昌源电子有限公司（厦门）
厦门市湖里区悦华路215号综合楼二楼C单元
邮编：361000
电话：0592-5663715
传真：0592-2236795
邮箱：tcydz@xmtcy.com
• 合肥新普仪测科技有限公司（合肥）
安徽省合肥市长江路53号长江大厦1102室
邮编：230001
电话：+86(0551)65177518 ext:
传真：+86(0551)6260 7155
邮箱：hfsimple@mail.hf.ah.cn
• 品展国际贸易(上海)有限公司（上海）
上海外高桥保税区泰谷路18号1号楼1105A室
邮编：200003
电话：+86(0512) 6808 6023
传真：+86(0512) 6808 6025
邮箱：melody@chtek.com.tw
官网：chtek.com.tw
• 广州康祺科技发展有限公司（广州）
广州市天河区华强路1号珠控国际中心8层06单元
邮编：510623
电话：020-38295200
传真：020-38295122
邮箱：baobao@kontchi.com
• 广州科欣仪器有限公司（广州）
广州市黄埔区黄埔大道933号209室
邮编：510700
电话：86-20-38699788
传真：86-20-34395932
邮箱：cs@gzkexin.com.cn
• 成都安诚迅飞电子科技有限公司（成都）
成都市武侯区人民南路四段27号1栋1单元 24层3号
邮编：610041
电话：028-86027579
邮箱：jincai.he@ancentest.com
• 新亚制程（浙江）股份有限公司（深圳）
深圳市福田区中康路卓越城梅林中心广场（北区）一期1栋3楼
邮编：518035
电话：0755-23818536
传真：0755-23818625
邮箱：wangrongbin@sunyes.cn
• 无锡市邦达测量科技有限公司（无锡）
江苏省无锡市新区长江北路112号
邮编：214028
电话：0510-85258521 ext:
邮箱：bdyiqi@bdyiqi.com
• 武汉力德仪测科技有限公司（武汉）
武汉市光谷大道54号国际企业中心四期A座501室
邮编：430074
电话：027-85481090 ext:
邮箱：liuyang@leader-e.com
• 苏州工业园区贝奇仪器有限公司（苏州）
苏州工业园区通园路398号海逸大厦A402室
邮编：215006
电话：0512-62883832
邮箱：szbeiqi@szbeiqi.net
• 青岛鲁芯仪器有限公司（青岛）
青岛市福州北路135号鼎都1号写字楼328室
邮编：266007
电话：15953279543
传真：0532-80669058-830
邮箱：gaochangyuan@qdluxin.com
• Avnet Electronics Marketing（Phoenix）
2211 South 47th Street
邮编：85034
电话：+65 6289 9164
邮箱：Josephine.Cheong@avnet.com
官网：OnlineSupportAsia@Avnet.com
• RFMW, Ltd.（San Jose）
188 Martinvale Lane
邮编：95119
电话：#09-129
邮箱：sales@rfmw.asia
官网：www.rfmw.com
• 沈阳实拓科技有限公司（沈阳）
沈阳市和平区三好街35号8层
邮编：110004
电话：024-23843636
传真：024-23905232
邮箱：lf@shituokeji.cn
• 領先科儀有限公司（香港）
新界荃灣海盛路3號TML廣場21樓B5室
邮编：.
电话：852-31523600
传真：852-31523608
邮箱：allenma@advanceinst.com
租赁合作伙伴
• 深圳君鉴科技股份有限公司（深圳市）
光明街道观光路华强创意产业园3栋B座12楼光明新区
邮编：518107
电话：400-860-3035
邮箱：shichang@chrent.com
• 益莱储（北京）检测设备租赁有限公司（北京市）
来广营高科技产业园区4号楼3层301朝阳区
邮编：100102
电话：400-819-2800
邮箱：jim.chen@electrorent.com
• 北京东方中科集成科技股份有限公司科技租赁事业部（北京市）
北京市海淀区阜成路67号银都大厦12层
邮编：100142
电话：400-650-5566
传真：010-68728001
邮箱：wangml@oimec.com.cn
• 客而禧设备租赁（上海）有限公司（Shanghai）
徐汇区古美路1515号19号楼903室
邮编：201102
电话：021-54453166
邮箱：krc@krcchina.com
• 深圳市瑞普高电子有限公司（深圳市）
天安云谷产业园一期3栋D座1505-1506龙岗区
邮编：518129
电话：0755-29050100
邮箱：rickluo@ruipugao.com
• 苏州锦凡精密仪器科技有限公司（苏州）
苏州市高新区滨河路625号创业大厦5幢505
邮编：215011
电话：18914031336
邮箱：18914031336@jfsz.net
解决方案合作伙伴
• Tokyo Weld Co., Ltd.（Ota-ku）
2-28-1 Kitamagome
邮编：143-0021
电话：81-3-3775-4331
传真：81-3-3775-4359
邮箱：d-imai@tokyoweld.com
• 上海恒榉电子科技有限公司（Shanghai）
上海市奉贤区南桥镇西闸公路1036号3栋2层
邮编：201401
电话：18112779808
邮箱：salesvalue@everise-hj.com
• 佳燁科技股份有限公司(Ghiatek)（桃園市龜山區）
光明街243巷2號
邮编：33372
电话：+886-3-350-9960
传真：+886-3-320-3475
邮箱：support@ghiatek.com
• 华美博科技（北京）有限公司（北京市）
蓝靛厂东路2号金源时代商务中心C座9A2海淀区
邮编：100097
电话：010-88598732
邮箱：sino@sino-microtech.com
• 和创联合科技（北京）有限公司（北京市）
中关村东路18号财智国际大厦A座1612海淀区
邮编：100083
电话：400 650 7802
邮箱：info@hisuntest.com
• 昆山捷得立电子有限公司（昆山市）
登云路288号海创大厦C座25楼
邮编：215316
电话：0512-36831748
邮箱：sales@jiedeli-china.com
• 深圳市捷泰普科技有限公司（深圳市）
宝安区西乡街道前进二路桃源居南面深圳市智汇创新中心A座216室
邮编：518126
电话：0755-83908488
邮箱：sales@jtptech.cn
• 深圳市易捷测试技术有限公司（深圳市）
福虹路9号世贸广场C座1203室福田区
邮编：518033
电话：0755-83698930
邮箱：dongni.zhang@gbit.net.cn
官网：gbit.net.cn
• 深圳市泰仕捷科技有限公司（深圳市）
松岗大道7号汉海达大厦616室宝安区
邮编：518105
电话：0755-27128586
邮箱：riky.gua@tesijet.com
• 深圳市蓉声科技有限公司（深圳市）
福中路海连大厦连天阁 1103 室福田区
邮编：518033
电话：13828880571
邮箱：jiang.qian@radiation-test.com
• 苏州伊欧陆系统集成有限公司（苏州）
星湖街218号生物纳米园A7楼305室苏州工业园区
邮编：215000
电话：4008808776
邮箱：info@eoulu.com
• EM Labs Inc.（Kobe）
1-4-13 Mizukasadori, Nagata
邮编：653-0842
电话：+81-50-5370-0262
邮箱：info@emlabs.jp
• MPI Corporation（Chupei）
No. 155 Chungho Street
邮编：302
电话：+886-3-555-1771
传真：+886-3-551-8381
邮箱：info@mpi-corporation.com
官网：www.mpi-corporation.com/ast
• NOFFZ（Tönisvorst）
Vorster Strasse 238
邮编：47918
电话：+49 2151-99878-0
邮箱：info@noffz.com
• Power Technology Solutions（Santa Clara）
3048 Scott Blvd
邮编：95054
电话：650-308-8091 ext:
传真：408-727-0827
邮箱：inquiries@pwrts.com
• Resillion（Hasselt）
Kempische Steenweg 303
邮编：3500
电话：+32 498 92 01 71
邮箱：global-ci-sales@resillion.com
• Suzhou Link Ways Tech Co., Ltd.（Suzhou）
16F, Block B, Jin Shi Wang Hu Building, No. 18, Jia Rui alley, SIP
邮编：215021
电话：+86 512 6602 8998
• 上海凌测电子科技有限公司（上海）
峨山路91弄120号陆家嘴软件园8号楼401A室浦东新区
邮编：200127
电话：021-61090608
邮箱：yue.lin@merlintest.com.cn
• 上海北汇信息科技有限公司（上海市）
秀路100号虹桥总部1号4号楼3C闵行区紫
邮编：201103
电话：021-34716271
邮箱：info@polelink.com
官网：polelink.com
• 上海怿星电子科技有限公司（上海市）
钦州北路1199号智汇园87号楼5F室徐汇区
邮编：200233
电话：021-64955659
邮箱：biz@e-planet.cn
• 东昇电磁兼容技术(深圳)有限公司（深圳市）
福田中心区26-3路中国凤凰大厦2栋25G
邮编：518026
电话：0755-82792411
邮箱：sales@jstoyo.cn
• 南京派格测控科技有限公司（南京市）
建邺区建邺人才服务大厦16楼
邮编：210019
电话：4008920858
邮箱：sales@pgtec.cn
官网：pgtec.cn
• 南京纳特通信电子有限公司（南京市）
江宁开发区临淮街20号
邮编：210012
电话：025-84471796
邮箱：sales@rflight.cn
• 深圳市研辰科技有限公司（深圳市）
益田路3008号皇都广场C座2815室福田区
邮编：518048
电话：0755-82828703
邮箱：roger_huang@ascentest.com
原厂翻新与二手仪器
• 是德科技原厂二手仪器商城（Keysight Certified Pre-Owned）：www.keysight.com/used/cn/zh/
• 原厂翻新仪器经与新品相同的最终测试与校准，原厂保修最长 5 年；享 40%–90% 折扣，另有线上 5% / 教育 15% 优惠
0条提问
X
提问
X
回答
暂无视频
0条口碑
X
发表口碑
粤公网安备44030902003758
