    Matsusada Precision Inc. · 放大器

    DJOP 高速双极性放大器

    50 W / 60 W
    产品定位

    The DJOP series is a four-quadrant bipolar amplifier capable of sourcing and sinking current. It operates in both constant voltage (CV) and constant current (CC) modes. Its proprietary design achieves a compact and lightweight form factor,

    weighing just 3 kg with a width of 140 mm (5.51 inches). This ultra-compact,

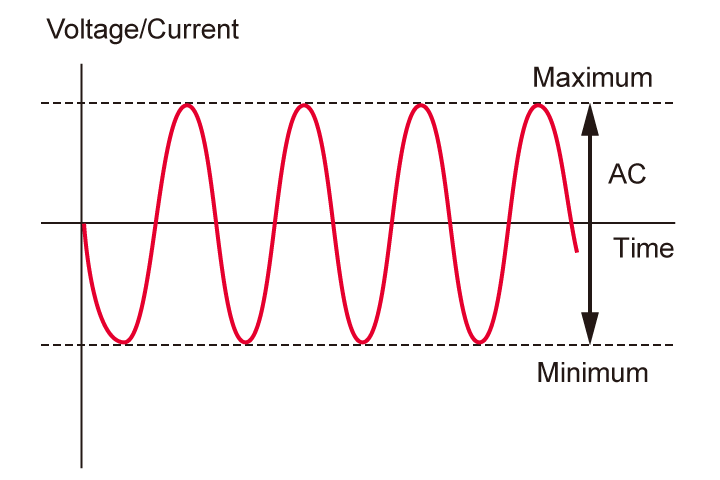

    high-speed unit produces output proportional to input waveforms, including sine, triangle, sawtooth,

    and square waves. All models are fully solid-state with output voltages ranging from ±10 V to ±60 V. The DJOP series is ideal for evaluating solar panels,

    battery-driven instruments, and battery management ICs.

    Even faster models, with function generator models and more high-power models,

    are available. Contact the local sales office for details.

    核心参数
    · ：Model ｜Maximum output
    · ：Voltage；Current；Power
    · DJOP10-5：±10V；±5A；50W
    · DJOP20-3：±20V；±3A；60W
    · DJOP30-2：±30V；±2A；60W
    · DJOP60-1：±60V；±1A；60W
    Notice of POWER switch changes
    · ：Before ｜After
    · Push button switch：Rocker switch
    CV/CC setting selection
    功能与特点
    · Newly developed DJOP series is the most appropriate for transient response tests with such high power and broad bandwidth.
    · The DJOP series can be used both as a high-speed response DC power supply and as an electronic load.
    · 3-digit digital meter displays the DC value of the output voltage and current. (The option of rms indication is available.)
    · For maximum compactness and lightweight, the DJOP series has been improved for a small footprint and easy carry.
    · A single switch selects between CV and CC modes.
    · Select a model fitting for your applications from our wide output voltage and current range.
    · The series is fully equipped with protection functions against overvoltage and overcurrent, as well as output short-circuit protection.
    典型应用
    · 驱动放大
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 DJOP-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 放大器

    DJOP 高速双极性放大器 · 详细指标

    50 W / 60 W
    产品简介

    The DJOP series is a four-quadrant bipolar amplifier capable of sourcing and sinking current. It operates in both constant voltage (CV) and constant current (CC) modes. Its proprietary design achieves a compact and lightweight form factor,

    weighing just 3 kg with a width of 140 mm (5.51 inches). This ultra-compact,

    完整技术指标
    · ：Model ｜Maximum output
    · ：Voltage；Current；Power
    · DJOP10-5：±10V；±5A；50W
    · DJOP20-3：±20V；±3A；60W
    · DJOP30-2：±30V；±2A；60W
    · DJOP60-1：±60V；±1A；60W
    Notice of POWER switch changes
    · ：Before ｜After
    · Push button switch：Rocker switch
    CV/CC setting selection
    · ：in CV mode ｜in CC mode
    · Vcon：Output voltage；Output current
    · -10 V：-Rating；-Rating
    · 0 V：0 A
    · +10 V：+Rating；+Rating
    Use of BIAS
    · ：in CV mode ｜in CC mode
    · Scale：Output voltage；Output current
    · 000 (ccw)：-Rating；-Rating
    · 500：0 V；0 A
    · 1000 (cw)：+Rating；+Rating
    ·
    – Standard ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
