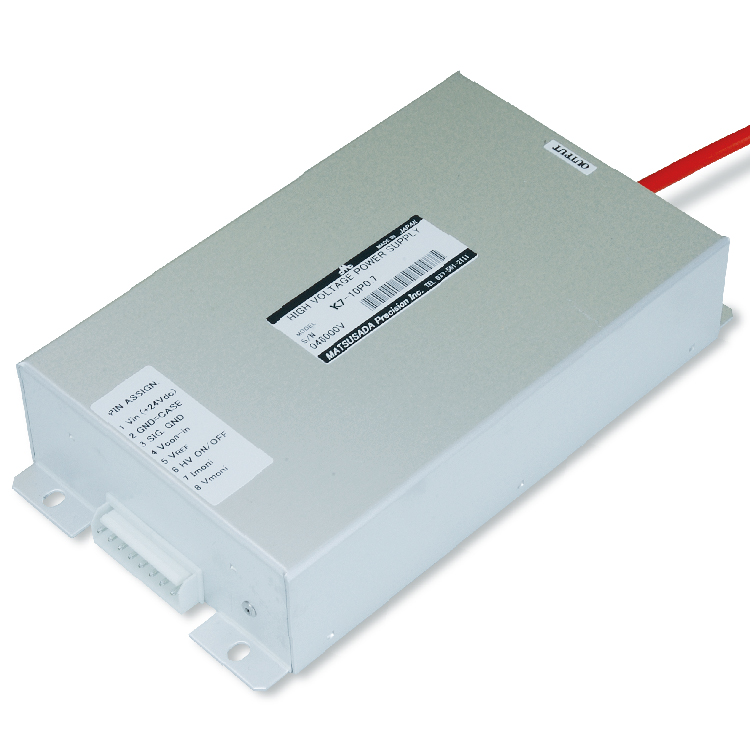

    The K7 series is a compact, chassis-mount high-voltage power supply module engineered for ultra-low noise and exceptional stability. With a 7 W output, it is an ideal choice for precision applications such as Scanning Electron Mic。

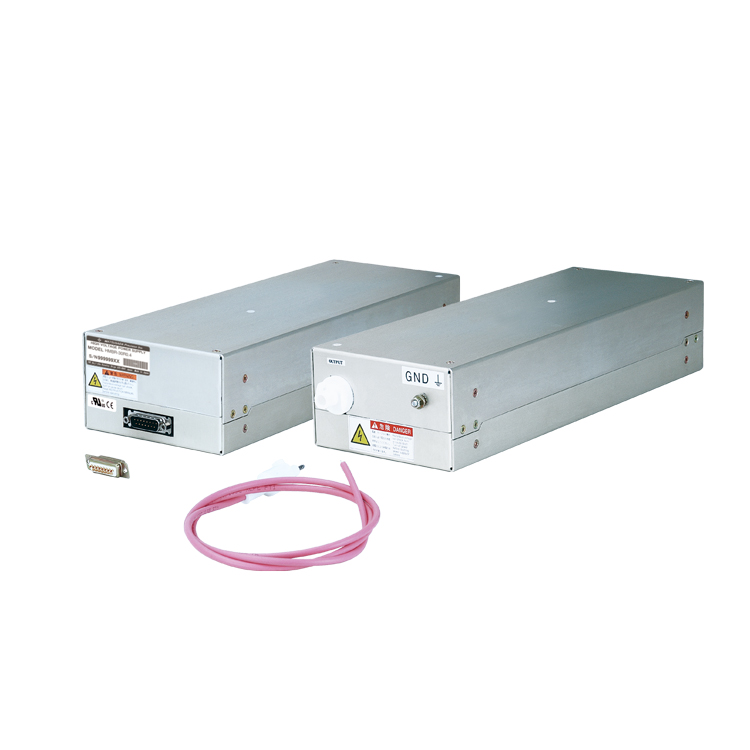

    The K3-R series is a high-voltage power supply module featuring reversible output polarity. Engineered for applications demanding exceptional stability such as mass spectrometry (MS) and ion beam systems this series allows for sea。
    The K12-R series is a high-voltage power supply module with reversible output polarity. This high-performance module is engineered for applications demanding exceptional voltage stability, such as mass spectrometry (MS) and ion be。
    • «
    • 1

    K10 0 至 5 kV高压电源|松田精密 (在产)

    The K10 series is a compact high-voltage power supply module designed for high-precision applications such as Scanning Electron Microscopes (SEM) and Mass Spectrometry (MS). It features ultra-low ripple and high stability, making 。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    K10 高压电源

    1 mA to 2 mA · 10 W
    产品定位

    The K10 series is a compact high-voltage power supply module designed for high-precision applications such as Scanning Electron Microscopes (SEM) and Mass Spectrometry (MS). It features ultra-low ripple and high stability,

    making it an ideal choice for detectors including Microchannel Plates (MCPs) and Photomultiplier Tubes (PMTs),

    as well as for electron and ion beam lens applications. With a volume approximately one-sixth that of conventional models,

    the K10 series contributes to space-saving equipment design and easy integration.

    核心参数
    · K10-5P
    – Output Voltage：0 to 5 kV
    – Output Current：2 mA
    – Ripple：50 mVp-p
    · K10-6P NEW
    – Output Voltage：0 to 6 kV
    – Output Current：1.6 mA
    – Ripple：60 mVp-p
    · K10-10P
    – Output Voltage：0 to 10 kV
    – Output Current：1 mA
    – Ripple：100 mVp-p
    · K10-5N
    – Output Voltage：0 to -5 kV
    – Output Current：2 mA
    – Ripple：50 mVp-p
    · K10-6N NEW
    – Output Voltage：0 to -6 kV
    – Output Current：1.6 mA
    – Ripple：60 mVp-p
    · K10-10N
    – Output Voltage：0 to -10 kV
    – Output Current：1 mA
    – Ripple：100 mVp-p
    功能与特点
    · Optimized for SEM and MS: Specifically engineered for Scanning Electron Microscopes and Mass Spectrometry systems.
    · High Performance: Features high stability (0.001% (5 minutes)) and ultra-low ripple (0.001% p-p).
    · Compact Design: Ultra-compact module with a width of just 70 mm.
    · High Power Output: Delivers 10 W output, allowing for continuous operation without derating.
    · Safety Certified: UL62368-1 certified and CE marking compliant (Low Voltage Directive). (Note: The 6 kV model is excluded from UL/CE certification.)
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 K10-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    K10 高压电源 · 详细指标

    1 mA to 2 mA · 10 W
    产品简介

    The K10 series is a compact high-voltage power supply module designed for high-precision applications such as Scanning Electron Microscopes (SEM) and Mass Spectrometry (MS). It features ultra-low ripple and high stability,

    making it an ideal choice for detectors including Microchannel Plates (MCPs) and Photomultiplier Tubes (PMTs),

    完整技术指标
    · K10-5P
    – Output Voltage：0 to 5 kV
    – Output Current：2 mA
    – Ripple：50 mVp-p
    · K10-6P NEW
    – Output Voltage：0 to 6 kV
    – Output Current：1.6 mA
    – Ripple：60 mVp-p
    · K10-10P
    – Output Voltage：0 to 10 kV
    – Output Current：1 mA
    – Ripple：100 mVp-p
    · K10-5N
    – Output Voltage：0 to -5 kV
    – Output Current：2 mA
    – Ripple：50 mVp-p
    · K10-6N NEW
    – Output Voltage：0 to -6 kV
    – Output Current：1.6 mA
    – Ripple：60 mVp-p
    · K10-10N
    – Output Voltage：0 to -10 kV
    – Output Current：1 mA
    – Ripple：100 mVp-p
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。

    全部



    松田精密官方渠道


    厂家联系方式

    公司：Matsusada Precision Inc.（松田精密株式会社）

    国际/日本：TEL +81-6-6150-5088　FAX +81-6-6150-5089

    美国（北卡罗来纳）：TEL (704) 496-2644　FAX (704) 496-2643
