    机架（4通道） 安装与固定，适用矢量网络分析仪、示波器、频谱分析仪，适配SDS6000 Pro、SNA5000X、SSA5000A，选配。五金机架，高度7U

    同厂商产品

    The RMO series is a rack mount shelf designed to install Matsusada Precision's benchtop power supplies and digital communication adapters into a standard 19-inch rack. Specially engineered for our product lines, the RMO series ens。

    RAC 电源机架|松田精密 (在产)

    The RAC series is a slim, heavy-duty rack cabinet designed for integrating EIA-compliant 19-inch or 23-inch rack-mount power supplies and electronic loads. Its robust yet compact design allows for high-density installation, maximi。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 其他测试附件

    RAC 电源机架

    Coated steel plate · Coated steel plate · Steel, Chloroprene rubber
    Coated steel plate
    Frame
    Coated steel plate
    Side Panel
    Steel, Chloroprene rubber
    Adjuster
    W19.3(490), W23.2(590)
    RAC-EB12
    W21.7(550), W25.6(650)
    RAC-EB16
    W19.3(490), W23.2(590)
    2 (1 set)
    产品定位

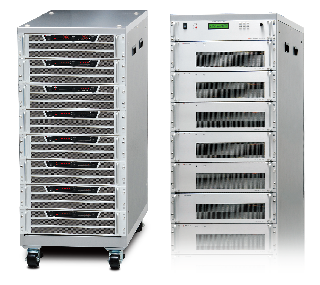

    The RAC series is a slim,

    heavy-duty rack cabinet designed for integrating EIA-compliant 19-inch or 23-inch rack-mount power supplies and electronic loads. Its robust yet compact design allows for high-density installation,

    maximizing space efficiency while minimizing footprint. All standard models differ casters for easy maneuverability.

    We also offer an optional turn-key wiring service (at additional cost) to pre-install and configure your Matsusada Precision power supplies and electronic loads. For more information,

    please contact us.

    核心参数
    19-inch type rack
    · RAC19-640-750
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：25.20 (640)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：10U
    · RAC19-820-750
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：32.28 (820)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：14U
    · RAC19-1090-750
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：42.91 (1090)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：20U
    · RAC19-1400-750
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：55.12 (1400)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：27U
    · RAC19-1850-750
    – W [inch (mm)]：21.65 (550)
    – H [inch (mm)]：72.83 (1850)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：5.51 (140)，Maximum equipment height for applicable device H2 *：35U
    · RAC19-640-900
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：25.20 (640)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：10U
    · RAC19-820-900
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：32.28 (820)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：14U
    · RAC19-1090-900
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：42.91 (1090)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：20U
    · RAC19-1400-900
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：55.12 (1400)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：27U
    功能与特点
    · Robust and compact platform for building 19-inch or 23-inch power systems
    · Flexible customization of height and depth available in addition to standard models
    · Optional turn-key wiring service for Matsusada Precision power supplies and electronic loads
    典型应用
    · 测试连接
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 RAC-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 其他测试附件

    RAC 电源机架 · 详细指标

    Coated steel plate · Coated steel plate · Steel, Chloroprene rubber
    产品简介

    The RAC series is a slim,

    heavy-duty rack cabinet designed for integrating EIA-compliant 19-inch or 23-inch rack-mount power supplies and electronic loads. Its robust yet compact design allows for high-density installation,

    完整技术指标
    19-inch type rack
    · RAC19-640-750
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：25.20 (640)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：10U
    · RAC19-820-750
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：32.28 (820)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：14U
    · RAC19-1090-750
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：42.91 (1090)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：20U
    · RAC19-1400-750
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：55.12 (1400)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：27U
    · RAC19-1850-750
    – W [inch (mm)]：21.65 (550)
    – H [inch (mm)]：72.83 (1850)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：5.51 (140)，Maximum equipment height for applicable device H2 *：35U
    · RAC19-640-900
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：25.20 (640)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：10U
    · RAC19-820-900
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：32.28 (820)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：14U
    · RAC19-1090-900
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：42.91 (1090)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：20U
    · RAC19-1400-900
    – W [inch (mm)]：19.29 (490)
    – H [inch (mm)]：55.12 (1400)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：27U
    · RAC19-1850-900
    – W [inch (mm)]：21.65 (550)
    – H [inch (mm)]：72.83 (1850)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：5.51 (140)，Maximum equipment height for applicable device H2 *：35U
    23-inch type rack
    · RAC23-640-750
    – W [inch (mm)]：23.23 (590)
    – H [inch (mm)]：25.20 (640)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：10U
    · RAC23-820-750
    – W [inch (mm)]：23.23 (590)
    – H [inch (mm)]：32.28 (820)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：14U
    · RAC23-1090-750
    – W [inch (mm)]：23.23 (590)
    – H [inch (mm)]：42.91 (1090)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：20U
    · RAC23-1400-750
    – W [inch (mm)]：23.23 (590)
    – H [inch (mm)]：55.12 (1400)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：27U
    · RAC23-1850-750
    – W [inch (mm)]：25.59 (650)
    – H [inch (mm)]：72.83 (1850)
    – D [inch (mm)]：29.53 (750)，Height of casters and adjusters [inch (mm)]：5.51 (140)，Maximum equipment height for applicable device H2 *：35U
    · RAC23-640-900
    – W [inch (mm)]：23.23 (590)
    – H [inch (mm)]：25.20 (640)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：10U
    · RAC23-820-900
    – W [inch (mm)]：23.23 (590)
    – H [inch (mm)]：32.28 (820)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：14U
    · RAC23-1090-900
    – W [inch (mm)]：23.23 (590)
    – H [inch (mm)]：42.91 (1090)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：20U
    · RAC23-1400-900
    – W [inch (mm)]：23.23 (590)
    – H [inch (mm)]：55.12 (1400)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：3.54 (90)，Maximum equipment height for applicable device H2 *：27U
    · RAC23-1850-900
    – W [inch (mm)]：25.59 (650)
    – H [inch (mm)]：72.83 (1850)
    – D [inch (mm)]：35.43 (900)，Height of casters and adjusters [inch (mm)]：5.51 (140)，Maximum equipment height for applicable device H2 *：35U
    · ：Parts ｜Material
    · Frame：Coated steel plate
    · Side Panel：Coated steel plate
    · Caster
    – Steel, Nylon (Steel, Urethane for height 72.83 inches (1850 mm)
    · Adjuster：Steel, Chloroprene rubber
    Blank panel
    · ：Model ｜H ｜h
    · 19-inch type：BP44H；17.2 (43.6)；1.25 (31.75)
    · 19-inch type：BP89H；3.47 (88.1)；3.00 (76.2)
    · 19-inch type
    – BP133H
    – 5.22 (132.6)
    – 2.25 (57.15)
    · 19-inch type
    – BP177H
    – 6.96 (177)
    – 4.00 (101.6)
    · 19-inch type
    – BP222H
    – 8.72 (221.5)
    – 5.75 (146.1)
    · 23-inch type
    – BP44H23
    – 17.2 (43.6)
    – 1.25 (31.75)
    · 23-inch type
    – BP89H23
    – 3.47 (88.1)
    – 3.00 (76.2)
    · 23-inch type
    – BP133H23
    – 5.22 (132.6)
    – 2.25 (57.15)
    · 23-inch type
    – BP177H23
    – 6.96 (177)
    – 4.00 (101.6)
    · 23-inch type
    – BP222H23
    – 8.72 (221.5)
    – 5.75 (146.1)
    Eye bolts
    · ：<span style="co

    全部



    松田精密官方渠道


    厂家联系方式

    公司：Matsusada Precision Inc.（松田精密株式会社）

    国际/日本：TEL +81-6-6150-5088　FAX +81-6-6150-5089

    美国（北卡罗来纳）：TEL (704) 496-2644　FAX (704) 496-2643
