    Matsusada Precision Inc. · 其他测试附件

    RMO 机架

    Specifications：Dimensions · Specifications：Dimensions · REKJ PVCEJ：2-unit

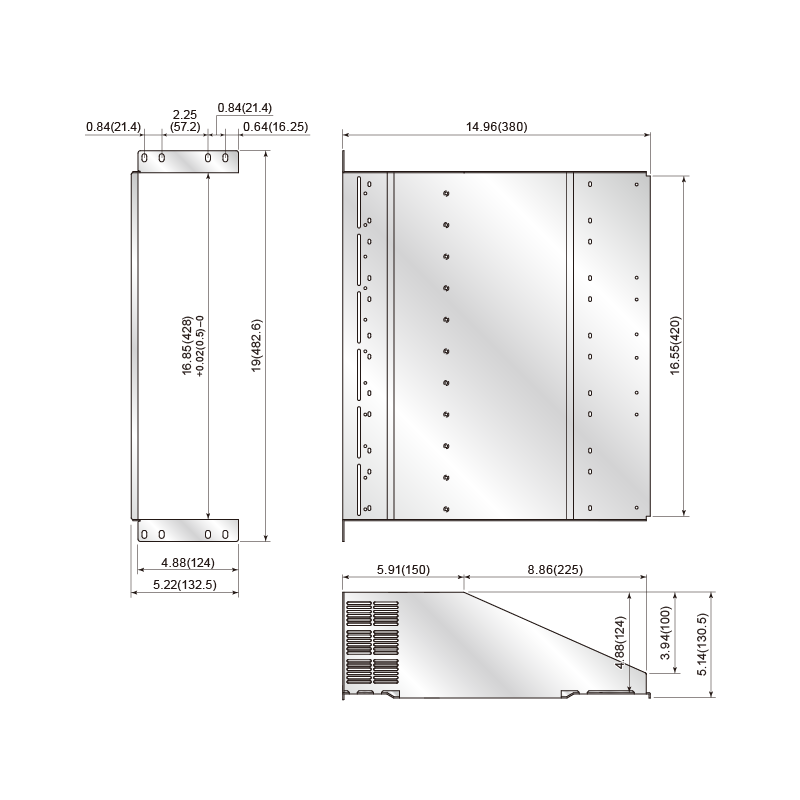

    Specifications：Dimensions
    RMO-133H-RK2

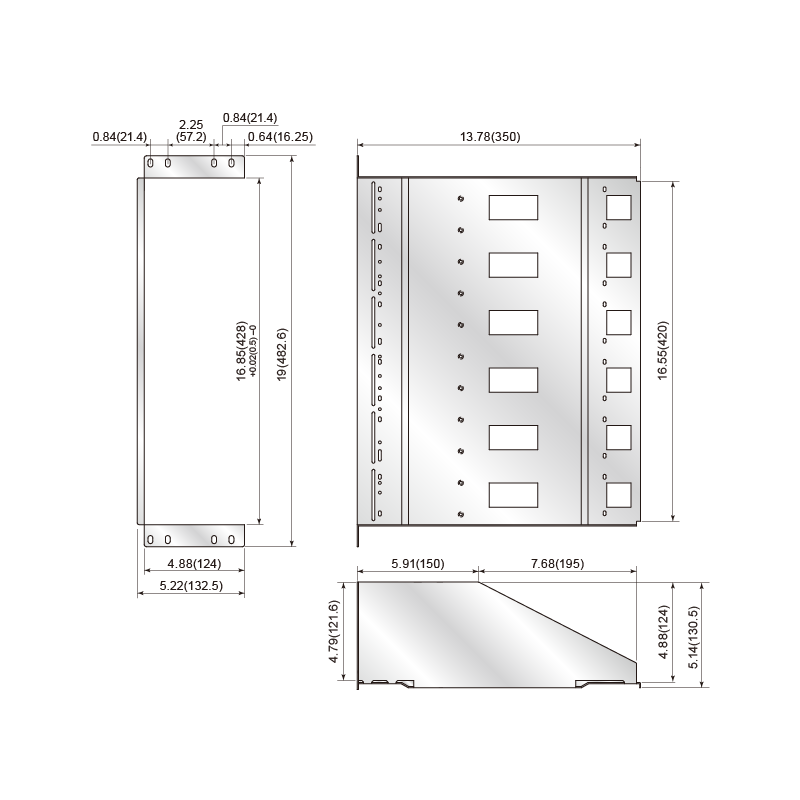

    Specifications：Dimensions
    RMO-133H-RK3
    REKJ PVCEJ：2-unit
    Max. Number of Units <Example>
    HJPSS：4-unit
    Max. Number of Units <Example>
    PKTS：8-unit
    Max. Number of Units <Example>
    CO：11-unit
    Max. Number of Units <Example>
    产品定位

    The RMO series is a rack mount shelf designed to install Matsusada Precision's benchtop power supplies and digital communication adapters into a standard 19-inch rack. Specially engineered for our product lines,

    the RMO series ensures seamless integration and stable performance within rack systems.

    核心参数
    · RMO-44H-HALF
    – Compatible model (example)：REKJ PVCEJ
    – Height [inch (mm)]：1.73 (44)
    – Max. Number of Units (Example)：2-unit
    – Specifications：Dimensions
    · RMO-133H-RK
    – Compatible model (example)：P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD (models of 36 W or less)
    – Height [inch (mm)]：5.22 (132.5)
    – Max. Number of Units (Example)：10-unit
    – Specifications：Dimensions
    · RMO-133H-RK2：Specifications：Dimensions
    · RMO-133H-RK3：Specifications：Dimensions
    · RMO-133H-RK400
    – Compatible model (example)：RK PZJR EQ TB CO
    – Max. Number of Units (Example)：RK(400 W): 6-unit RK (800 W): 3-unit RK(1200 W): 2-unit
    – Specifications：Dimensions
    · RMO-133H-DRJ
    – Compatible model (example)：DRJ DRS DJOP DJOPF CO
    – Max. Number of Units (Example)：3-unit (DRS1000:2-unit)
    – Specifications：Dimensions
    · RMO133H-EPR
    – Compatible model (example)：EGD EPR CO CD (for models of 50 W or more)
    – Max. Number of Units (Example)：5-unit: [3.31-inch (84 mm)] wide 2-unit: [8.27-inch (210 mm)] wide
    – Specifications：Dimensions
    · RMO133H-HJPSS
    – Compatible model (example)：HJPSS
    – Max. Number of Units (Example)：4-unit
    – Specifications：Dimensions
    · RM-133H-PKTS
    – Compatible model (example)：PKTS
    – Max. Number of Units (Example)：8-unit
    – Specifications：Dimensions
    · RMO-133H-CO
    – Compatible model (example)：CO
    – Max. Number of Units (Example)：11-unit
    – Specifications：Dimensions
    功能与特点
    · Special design for perfect fit
    · Special cooling structure for stable product performance *1
    · Single AC cable combining powers of the forced cooling fan and AC supply (optional).
    · Rack cabinet models: CAB series and RAC series of 19-inch rack mount types *2
    · Note that the intake air temperature of the power supply should be within the operating temperature. Increasing the temperature by 10 °C will halve the service life of the product.
    · Feel free to contact us for details.
    典型应用
    · 测试连接
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 RMO-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 其他测试附件

    RMO 机架 · 详细指标

    Specifications：Dimensions · Specifications：Dimensions · REKJ PVCEJ：2-unit
    产品简介

    The RMO series is a rack mount shelf designed to install Matsusada Precision's benchtop power supplies and digital communication adapters into a standard 19-inch rack. Specially engineered for our product lines,

    the RMO series ensures seamless integration and stable performance within rack systems.

    完整技术指标
    · RMO-44H-HALF
    – Compatible model (example)：REKJ PVCEJ
    – Height [inch (mm)]：1.73 (44)
    – Max. Number of Units (Example)：2-unit
    – Specifications：Dimensions
    · RMO-133H-RK
    – Compatible model (example)：P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD (models of 36 W or less)
    – Height [inch (mm)]：5.22 (132.5)
    – Max. Number of Units (Example)：10-unit
    – Specifications：Dimensions
    · RMO-133H-RK2：Specifications：Dimensions
    · RMO-133H-RK3：Specifications：Dimensions
    · RMO-133H-RK400
    – Compatible model (example)：RK PZJR EQ TB CO
    – Max. Number of Units (Example)：RK(400 W): 6-unit RK (800 W): 3-unit RK(1200 W): 2-unit
    – Specifications：Dimensions
    · RMO-133H-DRJ
    – Compatible model (example)：DRJ DRS DJOP DJOPF CO
    – Max. Number of Units (Example)：3-unit (DRS1000:2-unit)
    – Specifications：Dimensions
    · RMO133H-EPR
    – Compatible model (example)：EGD EPR CO CD (for models of 50 W or more)
    – Max. Number of Units (Example)：5-unit: [3.31-inch (84 mm)] wide 2-unit: [8.27-inch (210 mm)] wide
    – Specifications：Dimensions
    · RMO133H-HJPSS
    – Compatible model (example)：HJPSS
    – Max. Number of Units (Example)：4-unit
    – Specifications：Dimensions
    · RM-133H-PKTS
    – Compatible model (example)：PKTS
    – Max. Number of Units (Example)：8-unit
    – Specifications：Dimensions
    · RMO-133H-CO
    – Compatible model (example)：CO
    – Max. Number of Units (Example)：11-unit
    – Specifications：Dimensions
    · RMO-177H-EW
    – Compatible model (example)：EW
    – Height [inch (mm)]：6.97 (177)
    – Max. Number of Units (Example)：2-unit
    – Specifications：Dimensions
    · RMO-177H-R4G
    – Compatible model (example)：R4G/R4GN R4GT R4GE
    – Max. Number of Units (Example)：5-unit: [3.31-inch (84 mm)] wide 4-unit: [4.13-inch (105 mm)] wide 2-unit: [8.27-inch (210 mm)] wide
    – Specifications：Dimensions
    · RMO-150H-B
    – Compatible model (example)：ES
    – Height [inch (mm)]：5.87 (149)
    – Max. Number of Units (Example)：6-unit: [2.76-inch(70 mm)] wide 4-unit: [4.13-inch(105 mm)] wide
    – Specifications：Dimensions
    · RMO-150H-EJC
    – Compatible model (example)：EJC
    – Max. Number of Units (Example)：2-unit
    – Specifications：Dimensions
    · RMO-88H
    – Compatible model (example)：General
    – Height [inch (mm)]：3.31(88)
    – Specifications：Dimensions
    · RMO-133H：Height [inch (mm)]：5.22(132.5)
    RMO-44H-HALF
    · Max. Number of Units <Example>：REKJ PVCEJ：2-unit
    · Accessories
    – REKJ PVCEJ：Instruction manual (1 copy) Flat-head machine screw: M3 x 8 (8 pieces) Input terminal indication label (2 pieces) Output terminal indication label (2 pieces)
    RMO-133H-RK Stores up to 10 units, AC fan included, wiring required for each.
    · Max. Number of Units <Example>
    – P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD：10-unit
    · Specification
    – P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD：Input voltage/current 100 V (100 Vac to 120 Vac, 50 Hz/60 Hz) 0.4 A typical * The AC input voltage for the power supply to be installed and of the forced cooling fan
    · Accessories
    – P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD：Instruction manual (1 copy) AC cable for fan (1 piece)
    RMO-133H-RK2 Stores up to 10 units, AC fan included, additional AC distribution cable available
    · Max. Number of Units <Example>
    – P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD：10-unit
    · Accessories
    – P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD：Instruction manual (1 copy) AC cable for fan (1 piece)
    · Specification
    – P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD：Input voltage/current 100 V (100 Vac to 120 Vac, 50 Hz/60 Hz) 0.4 A typical (fan current only). * The AC input voltage for the power supply to be installed and of the forced cooling fan
    RMO-133H-RK3 Stores up to 10 units, AC fan and switch included, additional AC distribution cable available
    · Max. Number of Units <Example>
    – P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD：10-unit
    · Accessories
    – P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD：Instruction manual (1 copy) AC cable for fan (1 piece)
    · Specification
    – P4KF-80 R4K-36 R3K-36 R4K-80 RK-80 EGS CD：Input voltage/current 100 V (100 Vac to 120 Vac, 50 Hz/60 Hz) 0.4 A typical (fan current only). * The AC input voltage for the power supply to be installed and of the forced cooling fan
    RMO-133H-RK400
    · Max. Number of Units <Example>
    – RK PZJR EQ TB CO：RK (400 W): 6-unit RK (800 W): 3-unit RK (1200 W): 2-unit
    · Accessories：RK PZJR EQ TB CO：Instruction manual (1 copy)
    RMO-133H-DRJ
    · Max. Number of Units <Example>
    – DRJ DRS DJOP DJOPF CO：3-unit (DRS1000: 2-unit) DRS2000: Please consult our sales office.
    · Accessories
    – DRJ DRS DJOP DJOPF CO：Instruction manual (1 copy)
    RMO-133H-EPR
    · Max. Number of Units <Example>
    – EGD CD (for models of 50 W or more) EPR CO：5-unit: [3.31-inch (84 mm)] wide 2-unit: [8.27-inch (210 mm)] wide
    · Accessories
    – EGD CD (for models of 50 W or more) EPR CO：Instruction manual (1 copy)
    RMO-133H-HJPSS
    · Max. Number of Units <Example>：HJPSS：4-unit
    · Accessories：HJPSS：Instruction manual (1 copy)
    RM-133H-PKTS
    · Max. Number of Units <Example>：PKTS：8-unit
    · Accessories：PKTS：Instruction manual (1 copy)
    RMO-133H-CO
    · Max. Number of Units <Example>：CO：11-unit
    · Accessories
    – CO：Instruction manual (1 copy) Pan-head machine screw: M3 x 6 mm (22 pieces)
    RMO-177H-EW
    · Max. Number of Units <Example>：EW：2-unit (1200 W)
    · Accessories：EW：Instruction manual (1 copy)
    RMO-177H-R4G
    · Max. Number of Units <Example>
    – R4G/R4GN R4GT R4GE：5-unit: [3.31-inch (84 mm)] wide 4-unit: [4.13-inch (105 mm)] wide 2-unit: [8.27-inch (210 mm)] wide R4G series 8.27-inch (210 mm) wide model has the forced convection cooling system, and the fan attached to the rackmount is not always required.
    · Accessories
    – R4G/R4GN R4GT R4GE：Instruction manual (1 copy) AC cable for fan (1 piece)
    · Specification
    – R4G/R4GN R4GT R4GE：Input voltage/current 100 V (100 Vac to 120 Vac, 50 Hz/60 Hz) 0.4 A typical (fan current only). * The AC input voltage for the power supply to be installed and of the forced cooling fan
    RMO-150H-B
    · Max. Number of Units <Example>
    – ES EJL：6-unit: [2.76-inch (70 mm)] wide 4-unit:[4.13-inch (105 mm)] wide
    · Accessories：ES EJL：Instruction manual (1 copy)
    RMO-150H-EJC
    · Max. Number of Units <Example>：EJC：2-unit
    · Accessories：EJC：Instruction manua
