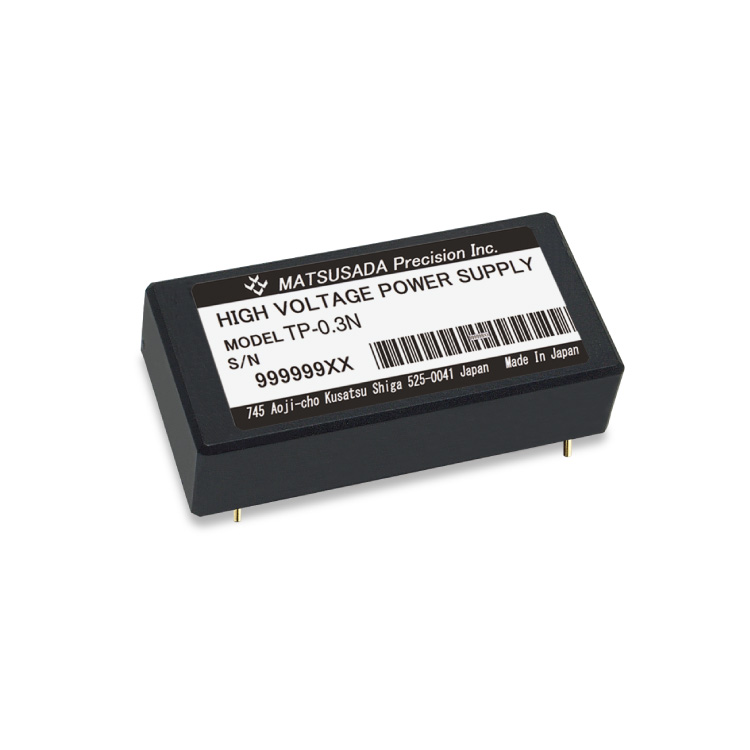

    The TP series consists of high-performance DC-DC converters designed specifically for biasing Avalanche Photodiodes (APDs) and photodetectors. With an ultra-compact footprint and lightweight design, these modules are easy to integ。

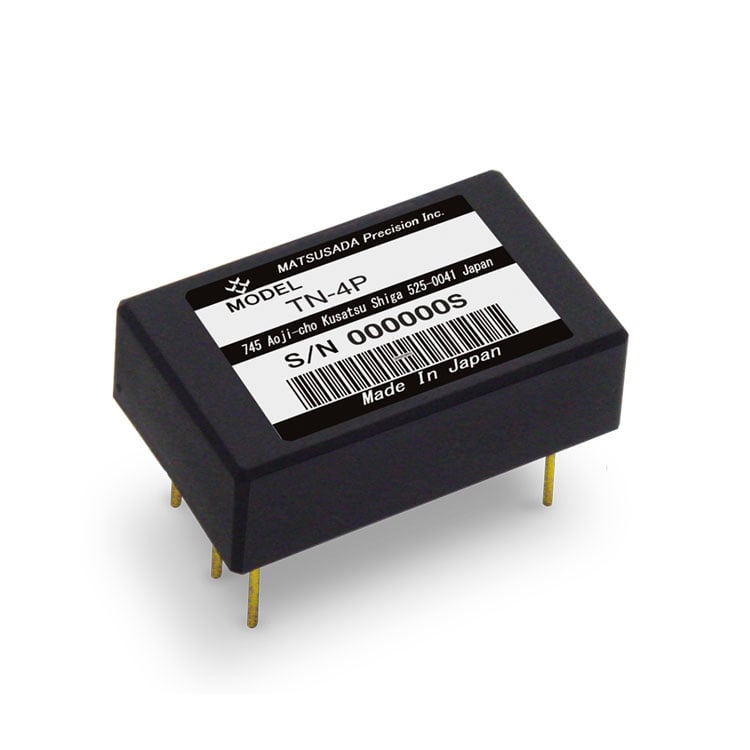

    The TN series is a PCB-mount high-voltage power supply module designed for precision applications. Balancing a compact form factor with high performance, the series delivers outputs up to 5 kV and 2 W. Its small footprint makes it。
    The TM series is a compact, high-stability high-voltage power supply module ideal for OEM integration and laboratory applications. With ultra-low ripple and well-regulated output, it ensures precision performance for sensitive equ。
    • «
    • 1

    TJ 0 至 0.18 kV高压电源|松田精密 (在产)

    The TJ series is an ultra-compact, PCB-mountable high voltage power supply featuring a space-saving Single In-line Package (SIP) design. Despite its small footprint, it delivers a robust 3W output, making it powerful enough to bia。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    TJ 高压电源

    1 to 16 mA
    产品定位

    The TJ series is an ultra-compact,

    PCB-mountable high voltage power supply featuring a space-saving Single In-line Package (SIP) design. Despite its small footprint,

    it delivers a robust 3W output,

    making it powerful enough to bias multiple devices like Photomultiplier Tubes (PMTs) and Avalanche Photodiodes (APDs) simultaneously. Combined with its exceptionally low-noise performance (as low as 20mVp-p),

    the TJ series is the perfect solution for noise-sensitive applications, including driving piezo actuators.

    核心参数
    · ：Model ｜Output ｜Ripple [mV p-p ] typ.
    · ：Voltage [kVdc]；Current [mA]
    · TJ-0.18PM：0 to 0.18 kV；16 mA；20 mV p-p
    · TJ-0.3PM：0 to 0.3 kV；10 mA
    · TJ-0.35PM：0 to 0.35 kV；8 mA
    · TJ-0.5PM：0 to 0.5 kV；6 mA；30 mV p-p
    · TJ-1PM：0 to 1 kV；2 mA
    · TJ-2PM：0 to 2 kV；1 mA；50 mV p-p
    · ：Model ｜Output ｜Ripple [mV p-p ] typ.
    · ：Voltage [kVdc]；Current [mA]
    功能与特点
    · Robust Protection (continuous short-circuit protection, etc.)
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 TJ-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    TJ 高压电源 · 详细指标

    1 to 16 mA
    产品简介

    The TJ series is an ultra-compact,

    PCB-mountable high voltage power supply featuring a space-saving Single In-line Package (SIP) design. Despite its small footprint,

    完整技术指标
    · ：Model ｜Output ｜Ripple [mV p-p ] typ.
    · ：Voltage [kVdc]；Current [mA]
    · TJ-0.18PM：0 to 0.18 kV；16 mA；20 mV p-p
    · TJ-0.3PM：0 to 0.3 kV；10 mA
    · TJ-0.35PM：0 to 0.35 kV；8 mA
    · TJ-0.5PM：0 to 0.5 kV；6 mA；30 mV p-p
    · TJ-1PM：0 to 1 kV；2 mA
    · TJ-2PM：0 to 2 kV；1 mA；50 mV p-p
    · ：Model ｜Output ｜Ripple [mV p-p ] typ.
    · ：Voltage [kVdc]；Current [mA]
    · TJ-0.18NM：0 to -0.18 kV；16 mA；20 mV p-p
    · TJ-0.3NM：0 to -0.3 kV；10 mA
    · TJ-0.35NM：0 to -0.35 kV；8 mA
    · TJ-0.5NM：0 to -0.5 kV；6 mA；30 mV p-p
    · TJ-1NM：0 to -1 kV；2 mA
    · TJ-2NM：0 to -2 kV；1 mA；50 mV p-p
    · ：Model ｜Output ｜Ripple [mV p-p ] typ.
    · ：Voltage [kVdc]；Current [mA]
    · TJ-1.5NM
    – 0 to -1.5 kV
    – 1.3 mA
    – 30 mV p-p
    · ：Model ｜Output ｜Ripple [mV p-p ] typ.
    · ：Voltage [kVdc]；Current [mA]
    · TJ-1.5PM
    – 0 to 1.5 kV
    – 1.3 mA
    – 30 mV p-p
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
