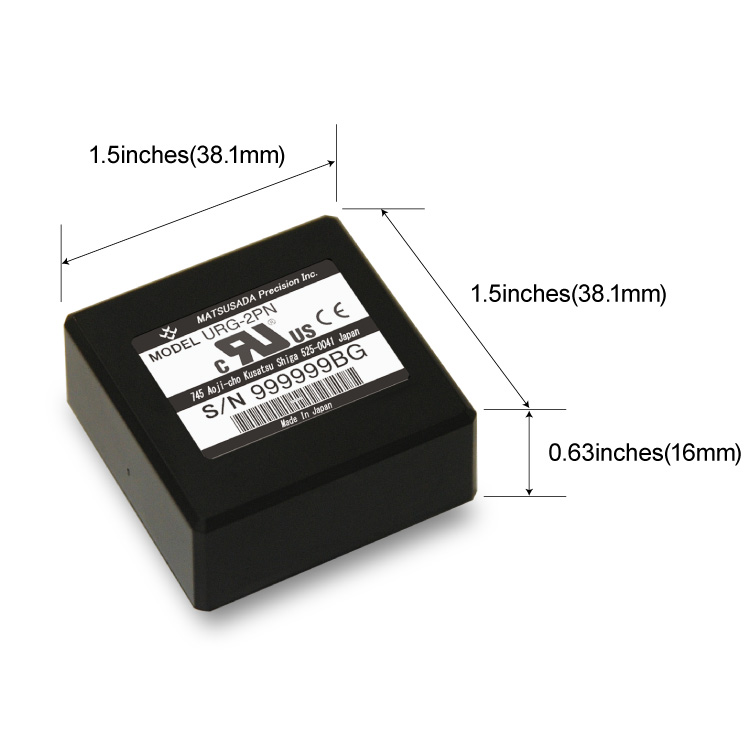

    The URG series is a lineup of compact, PCB-mount DC high-voltage power supplies engineered for precision applications. Featuring output voltages from 0.3 to 6 kV and a power rating of 1.5 W, these modules provide stable performanc。
    The Matsusada Precision UR series is a line of compact, PCB-mountable high-voltage power supply modules. The output voltage is directly proportional to the input voltage, simplifying control integration. Featuring a fully floating。
    The UP Series consists of ultra-compact high-voltage power supply modules designed for direct PCB mounting. These modules utilize an input/output proportional control method and feature a fully floating output, allowing for config。
    • «
    • 1

    U3/U6/U10 高压 模块|松田精密 (在产)

    The U3/U6/U10 series consists of input/output proportional high-voltage power supply modules designed for OEM integration. These compact, embedded modules are engineered for low noise and high reliability, making them an ideal cho。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    U3/U6/U10 高压模块

    Voltage；Current · Voltage；Current · Voltage；Current · Voltage；Current
    Voltage；Current
    Voltage；Current
    Voltage；Current
    Voltage；Current
    Voltage；Current
    Voltage；Current
    产品定位

    The U3/U6/U10 series consists of input/output proportional high-voltage power supply modules designed for OEM integration. These compact,

    embedded modules are engineered for low noise and high reliability,

    making them an ideal choice for applications with stable loads, such as Photomultiplier Tubes (PMTs),

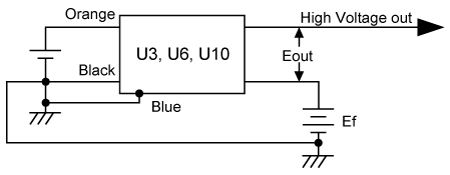

    Microchannel Plates (MCPs), and radiation detectors. For floating applications,

    models up to 6 kV feature voltage isolation between the primary and secondary sides. With output power options up to 25 kV/10 W,

    the series offers both high-performance and general-purpose models to meet specific ripple requirements.

    核心参数
    U3 series (3 watts)
    ·
    – Model ｜Output ｜Minimum Load ｜Ripple ｜I/O Isolation *
    · ：Voltage；Current
    · U3-0.3PN
    – +0.02 to +0.3/-0.02 to -0.3 kV；10 mA；0.03 MΩ；0.36 Vp-p；2000 Vdc
    · U3-0.6PN
    – +0.04 to +0.6/-0.04 to -0.6 kV；5 mA；0.12 MΩ；0.72 Vp-p
    · U3-1.1PN
    – +0.1 to +1.1/-0.1 to -1.1 kV
    – 2.75 mA
    – 0.4 MΩ
    – 1.32 Vp-p
    · U3-1.5PN
    – +0.1 to +1.5/-0.1 to -1.5 kV；2 mA；0.75 MΩ；1.8 Vp-p
    · U3A-2PN
    – +0.2 to +2/-0.2 to -2 kV
    – 1.5 mA
    – 1.3 MΩ
    – 2.4 Vp-p
    – 2500 Vdc
    · U3A-3PN
    – +0.2 to +3/-0.2 to -3 kV；1 mA；3 MΩ；3.6 Vp-p；3500 Vdc
    · U3A-6PN
    – +0.4 to +6/-0.4 to -6 kV；0.5 mA；12 MΩ；9 Vp-p；7000 Vdc
    功能与特点
    · Compact and Lightweight: Ultra-compact design ideal for OEM system integration.

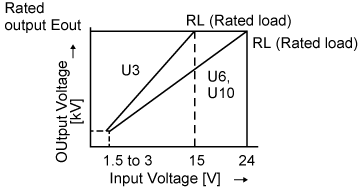

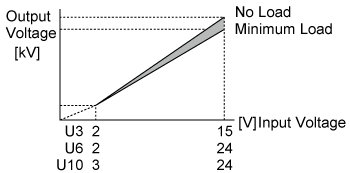

    · Proportional Output: Output voltage is directly proportional to the input voltage.
    · Low Noise Performance: Optimized for precision measurement equipment.
    · High Reliability: Built for long-term stability in demanding environments.
    · Input/Output Isolation: Available on models up to 6 kV.
    · Detachable Input Connector: Standard on most models (excluding C1 case type).
    · Shielded Metal Case: Aluminum enclosure for enhanced shielding (excluding C1 case type).
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 U3-U6-U10-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    U3/U6/U10 高压模块 · 详细指标

    Voltage；Current · Voltage；Current · Voltage；Current · Voltage；Current
    产品简介

    The U3/U6/U10 series consists of input/output proportional high-voltage power supply modules designed for OEM integration. These compact,

    embedded modules are engineered for low noise and high reliability,

    完整技术指标
    U3 series (3 watts)
    ·
    – Model ｜Output ｜Minimum Load ｜Ripple ｜I/O Isolation *
    · ：Voltage；Current
    · U3-0.3PN
    – +0.02 to +0.3/-0.02 to -0.3 kV；10 mA；0.03 MΩ；0.36 Vp-p；2000 Vdc
    · U3-0.6PN
    – +0.04 to +0.6/-0.04 to -0.6 kV；5 mA；0.12 MΩ；0.72 Vp-p
    · U3-1.1PN
    – +0.1 to +1.1/-0.1 to -1.1 kV
    – 2.75 mA
    – 0.4 MΩ
    – 1.32 Vp-p
    · U3-1.5PN
    – +0.1 to +1.5/-0.1 to -1.5 kV；2 mA；0.75 MΩ；1.8 Vp-p
    · U3A-2PN
    – +0.2 to +2/-0.2 to -2 kV
    – 1.5 mA
    – 1.3 MΩ
    – 2.4 Vp-p
    – 2500 Vdc
    · U3A-3PN
    – +0.2 to +3/-0.2 to -3 kV；1 mA；3 MΩ；3.6 Vp-p；3500 Vdc
    · U3A-6PN
    – +0.4 to +6/-0.4 to -6 kV；0.5 mA；12 MΩ；9 Vp-p；7000 Vdc
    · ：Model ｜Output ｜Minimum Load ｜Ripple
    · ：Voltage；Current
    · U3A-10P：0.8 to 10 kV；0.25 mA；40 MΩ；5 Vp-p
    · U3A-15P：1.2 to 15 kV；0.2 mA；75 MΩ；7.5 Vp-p
    · U3A-25P
    – 2 to 25 kV
    – 0.1 mA
    – 250 MΩ
    – 12.5 Vp-p
    · ：Model ｜Output ｜Minimum Load ｜Ripple
    · ：Voltage；Current
    · U3A-10N：-0.8 to -10 kV；0.25 mA；40 MΩ；5 Vp-p
    · U3A-15N：-1.2 to -15 kV；0.2 mA；75 MΩ；7.5 Vp-p
    · U3A-25N
    – -2 to -25 kV
    – 0.1 mA
    – 250 MΩ
    – 12.5 Vp-p
    U6 series (6 watts)
    ·
    – Model ｜Output ｜Minimum Load ｜Ripple ｜I/O Isolation *
    · ：Voltage；Current
    · U6A-0.3PN
    – +0.03 to +0.3/-0.03 to -0.3 kV；20 mA；0.015 MΩ；0.45 Vp-p；2000 Vdc
    · U6A-0.6PN
    – +0.05 to +0.6/-0.05 to -0.6 kV；10 mA；0.06 MΩ；0.9 Vp-p
    · U6A-1.1PN
    – +0.1 to +1.1/-0.1 to -1.1 kV
    – 5.5 mA
    – 0.2 MΩ
    – 1.65 Vp-p
    · U6A-1.5PN
    – +0.1 to +1.5/-0.1 to -1.5 kV；4 mA；0.38 MΩ；2.25 Vp-p
    · U6A-2PN
    – +0.2 to +2/-0.2 to -2 kV；3 mA；0.65 MΩ；4 Vp-p；2500 Vdc
    · U6A-3PN
    – +0.2 to +3/-0.2 to -3 kV；2 mA；1.5 MΩ；6 Vp-p；3500 Vdc
    · U6A-6PN
    – +0.3 to +6/-0.3 to -6 kV；1 mA；6 MΩ；12 Vp-p；7000 Vdc
    · ：Model ｜Output ｜Minimum Load ｜Ripple
    · ：Voltage；Current
    · U6A-10P：0.5 to 10 kV；0.5 mA；20 MΩ；5Vp-p
    · U6A-15P：0.8 to 15 kV；0.4 mA；37 MΩ；7.5Vp-p
    · U6A-25P
    – 1.4 to 25 kV
    – 0.2 mA
    – 125 MΩ
    – 12.5Vp-p
    · ：Model ｜Output ｜Minimum Load ｜Ripple
    · ：Voltage；Current
    · U6A-10N：-0.5 to -10 kV；0.5 mA；20 MΩ；5Vp-p
    · U6A-15N：-0.8 to -15 kV；0.4 mA；37 MΩ；7.5Vp-p
    · U6A-25N
    – -1.4 to -25 kV
    – 0.2 mA
    – 125 MΩ
    – 12.5Vp-p
    U10 series (10 watts)
    ·
    – Model ｜Output ｜Minimum Load ｜Ripple ｜I/O Isolation *
    · ：Voltage；Current
    · U10A-0.6PN
    – +0.06 to +0.6/-0.06 to -0.6 kV；15 mA；0.04 MΩ；0.6 Vp-p；2000 Vcd
    · U10A-1.1PN
    – +0.1 to +1.1/-0.1 to -1.1 kV；10 mA；0.11 MΩ；1.65 Vp-p
    · U10A-1.5PN
    – +0.15 to +1.5/-0.15 to -1.5 kV；8 mA；0.19 MΩ；2.25 Vp-p
    · U10A-2PN
    – +0.2 to +2/-0.2 to -2 kV；6 mA；0.33 MΩ；4 Vp-p；2500 Vcd
    · U10A-3PN
    – +0.3 to +3/-0.3 to -3 kV；4 mA；0.95 MΩ；6 Vp-p；3500 Vdc
    · U10A-6PN
    – +0.6 to +6/-0.6 to -6 kV；2 mA；3 MΩ；18 Vp-p；7000 Vdc
    · ：Model ｜Output ｜Minimum Load ｜Ripple
    · ：Voltage；Current
    · U10A-10P：1 to 10 kV；1 mA；10 MΩ；20 Vp-p
    · U10A-15P：0.15 to 15 kV；0.6 mA；25 MΩ；12 Vp-p
    · U10A-25P：2.4 to 25 kV；0.33 mA；75 MΩ；20 Vp-p
    · ：Model ｜Output ｜Minimum Load ｜Ripple
    · ：Voltage；Current
    · U10A-10N：-1 to -10 kV；1 mA；10 MΩ；20 Vp-p
    · U10A-15N：-0.15 to -15 kV；0.6 mA；25 MΩ；12 Vp-p
    · U10A-25N：-2.4 to -25 kV；0.33 mA；75 MΩ；20 Vp-p
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
