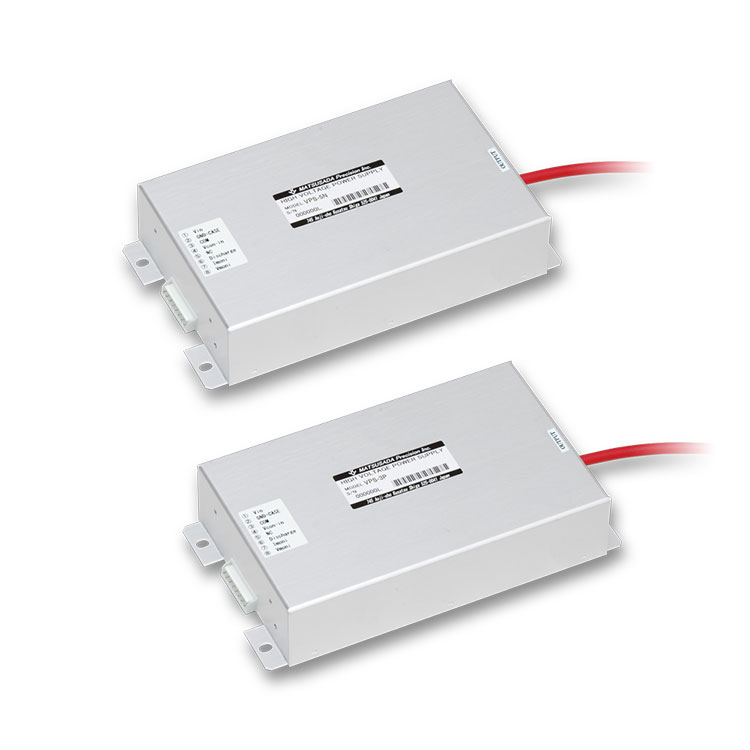

    The VPS series is a chassis-mount high-voltage power supply module engineered for ultra-low ripple and minimal radiated noise using comprehensive shielding. These characteristics make it ideal for noise-sensitive applications such。
    The URT series consists of ultra-compact, PCB-mount high-voltage power supplies featuring a standard 1/2-inch cube form factor. These modules utilize an input/output proportional control method, making them easy to integrate into 。
    The URS series is a compact, high-performance, PCB-mountable high-voltage power supply. Featuring input-to-output isolation, the series offers fully floating operation, allowing for use with either positive or negative polarity.
    • «
    • 1

    URG 高压电源|松田精密 (在产)

    The URG series is a lineup of compact, PCB-mount DC high-voltage power supplies engineered for precision applications. Featuring output voltages from 0.3 to 6 kV and a power rating of 1.5 W, these modules provide stable performanc。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    URG 高压电源

    0.25 to 5 mA · 1.5 W
    产品定位

    The URG series is a lineup of compact,

    PCB-mount DC high-voltage power supplies engineered for precision applications. Featuring output voltages from 0.3 to 6 kV and a power rating of 1.5 W,

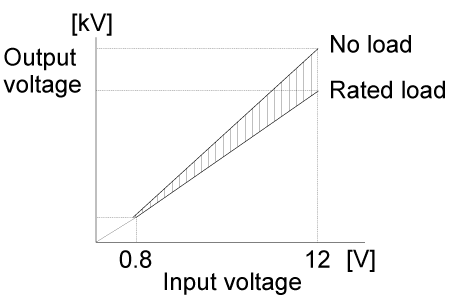

    these modules provide stable performance with ripple as low as 0.2% p-p. The series utilizes a proportional I/O control method,

    where the output voltage corresponds directly to the input voltage. With fully floating outputs and input/output isolation,

    the URG series offers flexible integration for diverse system requirements. It is UL62368-1 certified and CE marked,

    ensuring safety and compliance for global use. An optional metal shield is available for noise-sensitive environments,

    making the URG series an ideal choice for OEM integration in medical, analytical, and industrial equipment.

    核心参数
    ·
    – Model ｜Output ｜Rated load ｜Ripple ｜Input ｜Safety Standards
    ·
    – Voltage
    – Current
    – Voltage
    – Current(typical)
    · URG-0.3PN
    – 0.02 to 0.3 kVdc；5 mA；0.06 MΩ；0.6 Vp-p；0.8 to 12 Vdc；220 mA
    · URG-0.35PN
    – 0.02 to 0.35 kVdc
    – 4.3 mA
    – 0.081 MΩ
    – 0.7 Vp-p
    · URG-0.5PN：0.03 to 0.5 kVdc；3 mA；0.167 MΩ；1 Vp-p
    · URG-1PN
    – 0.06 to 1.0 kVdc
    – 1.5 mA
    – 0.667 MΩ
    – 2 Vp-p
    · URG-1.5PN：0.1 to 1.5 kVdc；1 mA；1.5 MΩ；3 Vp-p
    · URG-2PN
    – 0.13 to 2 kVdc
    – 0.75 mA
    – 2.67 MΩ
    – 4 Vp-p
    · URG-3PN：0.2 to 3 kVdc；0.5 mA；6 MΩ；30 Vp-p
    · URG-4PN
    – 0.27 to 4 kVdc
    – 0.37 mA
    – 10.8 MΩ
    – 40 Vp-p
    功能与特点
    · Compact, PCB-mountable design
    · Low ripple and high stability
    · Proportional input/output control
    · Input to output isolation
    · Optional center tap for bipolar output
    · UL62368-1 certified and CE marked
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 URG-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    URG 高压电源 · 详细指标

    0.25 to 5 mA · 1.5 W
    产品简介

    The URG series is a lineup of compact,

    PCB-mount DC high-voltage power supplies engineered for precision applications. Featuring output voltages from 0.3 to 6 kV and a power rating of 1.5 W,

    完整技术指标
    ·
    – Model ｜Output ｜Rated load ｜Ripple ｜Input ｜Safety Standards
    ·
    – Voltage
    – Current
    – Voltage
    – Current(typical)
    · URG-0.3PN
    – 0.02 to 0.3 kVdc；5 mA；0.06 MΩ；0.6 Vp-p；0.8 to 12 Vdc；220 mA
    · URG-0.35PN
    – 0.02 to 0.35 kVdc
    – 4.3 mA
    – 0.081 MΩ
    – 0.7 Vp-p
    · URG-0.5PN：0.03 to 0.5 kVdc；3 mA；0.167 MΩ；1 Vp-p
    · URG-1PN
    – 0.06 to 1.0 kVdc
    – 1.5 mA
    – 0.667 MΩ
    – 2 Vp-p
    · URG-1.5PN：0.1 to 1.5 kVdc；1 mA；1.5 MΩ；3 Vp-p
    · URG-2PN
    – 0.13 to 2 kVdc
    – 0.75 mA
    – 2.67 MΩ
    – 4 Vp-p
    · URG-3PN：0.2 to 3 kVdc；0.5 mA；6 MΩ；30 Vp-p
    · URG-4PN
    – 0.27 to 4 kVdc
    – 0.37 mA
    – 10.8 MΩ
    – 40 Vp-p
    · URG-5PN
    – 0.3 to 5 kVdc
    – 0.3 mA
    – 16.7 MΩ
    – 50 Vp-p
    · URG-6PN：0.4 to 6 kVdc；0.25 mA；24 MΩ；60 Vp-p
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
