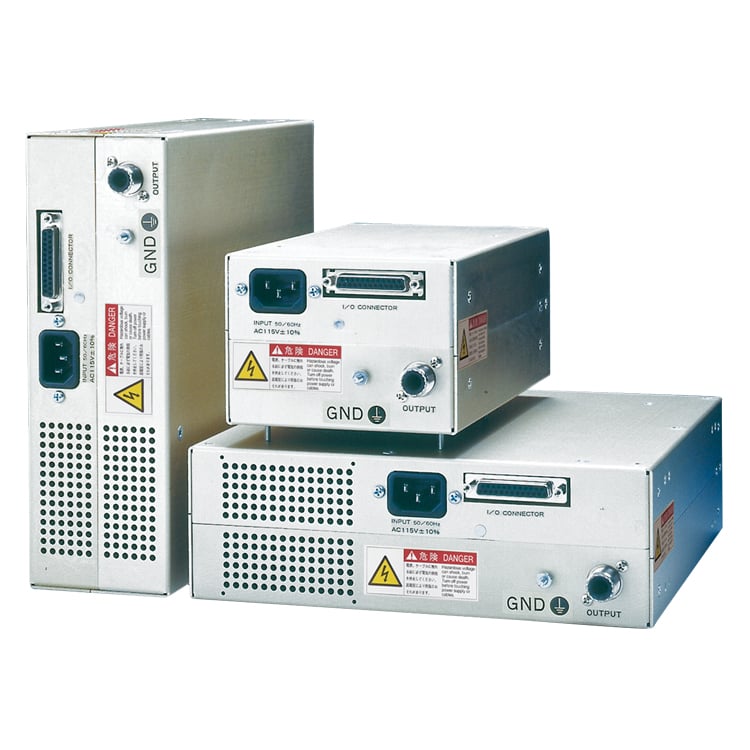

    The WA series is a compact, high-power, AC-input high-voltage power supply module designed for chassis mounting. It is an ideal choice for applications such as Automatic Test Equipment (ATE), X-ray inspection systems, and capacito。
    The W series is a compact, high-power high-voltage power supply module designed for chassis mounting. It is an ideal choice for applications such as Automatic Test Equipment (ATE), X-ray inspection systems, and capacitor charging.。

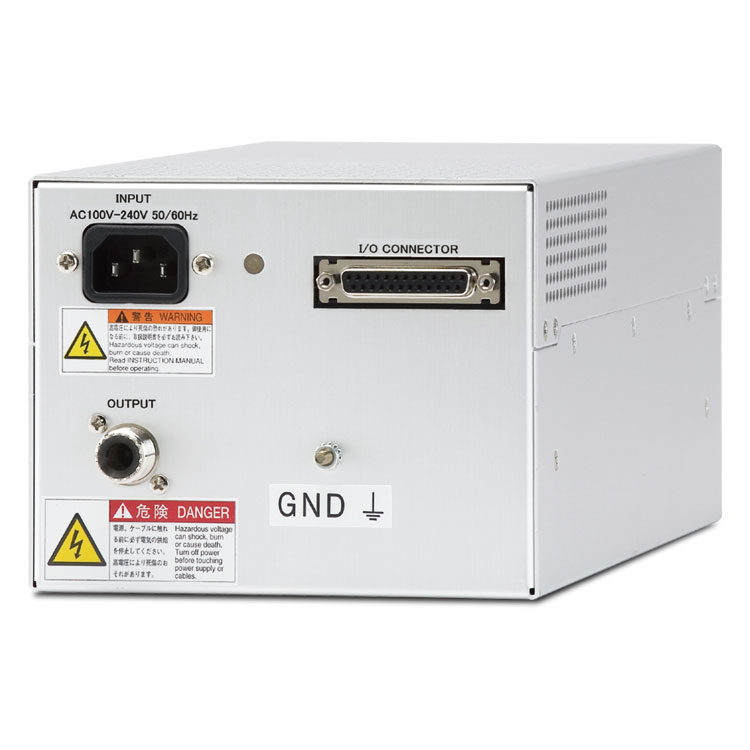

    The VPS series is a chassis-mount high-voltage power supply module engineered for ultra-low ripple and minimal radiated noise using comprehensive shielding. These characteristics make it ideal for noise-sensitive applications such。
    • «
    • 1

    URT 高压电源|松田精密 (在产)

    The URT series consists of ultra-compact, PCB-mount high-voltage power supplies featuring a standard 1/2-inch cube form factor. These modules utilize an input/output proportional control method, making them easy to integrate into 。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    URT 高压电源

    0.05 to 1.6 mA · 0.5 W
    产品定位

    The URT series consists of ultra-compact,

    PCB-mount high-voltage power supplies featuring a standard 1/2-inch cube form factor. These modules utilize an input/output proportional control method,

    making them easy to integrate into compact systems. The 0.3 kV and 0.5 kV models are designed as floating power supplies,

    allowing for reversible polarity operation.

    Input voltage is selectable from 5 V, 12 V, or 24 V, supporting a wide range of applications,

    including battery-powered equipment.

    核心参数
    ·
    – Model ｜Output ｜Rated load ｜Ripple ｜Input ｜Insulation
    ·
    – Voltage
    – Current
    – Voltage
    – Current (typical)
    – Max floating Voltage
    · URT-1P-5
    – 0.16 to 1.0 kVdc；0.5 mA；2 MΩ；2 Vp-p；0.8 to 5 Vdc；175 mA；±500 Vdc
    · URT-1P-12
    – 0.07 to 1.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-1P-24：0.04 to 1.0 kVdc；0.8 to 24 Vdc；50 mA
    · URT-1.2P-5
    – 0.20 to 1.2 kVdc；0.4 mA；3 MΩ；2.4 Vp-p；0.8 to 5 Vdc；175 mA
    · URT-1.2P-12
    – 0.08 to 1.2 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-1.2P-24：0.04 to 1.2 kVdc；0.8 to 24 Vdc；50 mA
    · URT-1.5P-5
    – 0.24 to 1.5 kVdc；0.3 mA；5 MΩ；3 Vp-p；0.8 to 5 Vdc；175 mA
    · URT-1.5P-12
    – 0.10 to 1.5 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    功能与特点
    · Ultra-compact PCB-mount design
    · High performance with low ripple (0.2% p-p for models up to 2 kV)
    · Input/Output proportional control
    · Input/Output isolation
    · CE marking (Low Voltage Directive)
    典型应用
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 URT-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    URT 高压电源 · 详细指标

    0.05 to 1.6 mA · 0.5 W
    产品简介

    The URT series consists of ultra-compact,

    PCB-mount high-voltage power supplies featuring a standard 1/2-inch cube form factor. These modules utilize an input/output proportional control method,

    完整技术指标
    ·
    – Model ｜Output ｜Rated load ｜Ripple ｜Input ｜Insulation
    ·
    – Voltage
    – Current
    – Voltage
    – Current (typical)
    – Max floating Voltage
    · URT-1P-5
    – 0.16 to 1.0 kVdc；0.5 mA；2 MΩ；2 Vp-p；0.8 to 5 Vdc；175 mA；±500 Vdc
    · URT-1P-12
    – 0.07 to 1.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-1P-24：0.04 to 1.0 kVdc；0.8 to 24 Vdc；50 mA
    · URT-1.2P-5
    – 0.20 to 1.2 kVdc；0.4 mA；3 MΩ；2.4 Vp-p；0.8 to 5 Vdc；175 mA
    · URT-1.2P-12
    – 0.08 to 1.2 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-1.2P-24：0.04 to 1.2 kVdc；0.8 to 24 Vdc；50 mA
    · URT-1.5P-5
    – 0.24 to 1.5 kVdc；0.3 mA；5 MΩ；3 Vp-p；0.8 to 5 Vdc；175 mA
    · URT-1.5P-12
    – 0.10 to 1.5 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-1.5P-24：0.05 to 1.5 kVdc；0.8 to 24 Vdc；50 mA
    · URT-2P-5
    – 0.32 to 2.0 kVdc；0.25 mA；8 MΩ；4 Vp-p；0.8 to 5 Vdc；175 mA
    · URT-2P-12
    – 0.14 to 2.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-2P-24：0.07 to 2.0 kVdc；0.8 to 24 Vdc；50 mA
    · URT-3P-5
    – 0.48 to 3.0 kVdc
    – 0.16 mA
    – 18.7 MΩ
    – 9 Vp-p
    – 0.8 to 5 Vdc
    – 175 mA
    · URT-3P-12
    – 0.20 to 3.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-3P-24：0.10 to 3.0 kVdc；0.8 to 24 Vdc；50 mA
    · URT-5P-5
    – 0.80 to 5.0 kVdc；0.1 mA；50 MΩ；20 Vp-p；0.8 to 5 Vdc；250 mA
    · URT-5P-12
    – 0.34 to 5.0 kVdc
    – 0.8 to 12 Vdc
    – 150 mA
    · URT-5P-24：0.17 to 5.0 kVdc；0.8 to 24 Vdc；75 mA
    · URT-6P-5
    – 0.96 to 6.0 kVdc；0.083 mA；72 MΩ；30 Vp-p；0.8 to 5 Vdc；175 mA
    · URT-6P-12
    – 0.40 to 6.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-6P-24：0.20 to 6.0 kVdc；0.8 to 24 Vdc；50 mA
    · URT-8P-5
    – 1.28 to 8.0 kVdc
    – 0.063 mA
    – 127 MΩ
    – 40 Vp-p
    – 0.8 to 5 Vdc
    – 175 mA
    · URT-8P-12
    – 0.54 to 8.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-8P-24：0.27 to 8.0 kVdc；0.8 to 24 Vdc；50 mA
    · URT-10P-5
    – 1.60 to 10.0 kVdc
    – 0.05 mA
    – 200 MΩ
    – 50 Vp-p
    – 0.8 to 5 Vdc
    – 175 mA
    · URT-10P-12
    – 0.67 to 10.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-10P-24：0.34 to 10.0 kVdc；0.8 to 24 Vdc；50 mA
    ·
    – Model ｜Output ｜Rated load ｜Ripple ｜Input ｜Insulation
    ·
    – Voltage
    – Current
    – Voltage
    – Current (typical)
    – Max floating Voltage
    · URT-1N-5
    – -0.16 to -1.0 kVdc；0.5 mA；2 MΩ；2 Vp-p；0.8 to 5 Vdc；175 mA；±500 Vdc
    · URT-1N-12
    – -0.07 to -1.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-1N-24：-0.04 to -1.0 kVdc；0.8 to 24 Vdc；50 mA
    · URT-1.2N-5
    – -0.20 to -1.2 kVdc；0.4 mA；3 MΩ；2.4 Vp-p；0.8 to 5 Vdc；175 mA
    · URT-1.2N-12
    – -0.08 to -1.2 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-1.2N-24：-0.04 to -1.2 kVdc；0.8 to 24 Vdc；50 mA
    · URT-1.5N-5
    – -0.24 to -1.5 kVdc；0.3 mA；5 MΩ；3 Vp-p；0.8 to 5 Vdc；175 mA
    · URT-1.5N-12
    – -0.10 to -1.5 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-1.5N-24：-0.05 to -1.5 kVdc；0.8 to 24 Vdc；50 mA
    · URT-2N-5
    – -0.32 to -2.0 kVdc；0.25 mA；8 MΩ；4 Vp-p；0.8 to 5 Vdc；175 mA
    · URT-2N-12
    – -0.14 to -2.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    · URT-2N-24：-0.07 to -2.0 kVdc；0.8 to 24 Vdc；50 mA
    · URT-3N-5
    – -0.48 to -3.0 kVdc
    – 0.16 mA
    – 18.7 MΩ
    – 9 Vp-p
    – 0.8 to 5 Vdc
    – 175 mA
    · URT-3N-12
    – -0.20 to -3.0 kVdc
    – 0.8 to 12 Vdc
    – 100 mA
    ·
