    This compact module integrates adjustable beam, bias, and filament power supplies, making it ideal for low-power X-ray applications. The high voltage and filament current ramp up linearly, ensuring rapid startup. The emission curr。
    The XPg series is a high-stability, low-ripple negative output high-voltage power supply designed for X-ray applications. It features a built-in floating AC filament supply to ensure stable X-ray generation. Essential safety featu。
    The XKg series is a highly stable, low-ripple positive-polarity power supply designed for X-ray tubes. It features an integrated filament supply to ensure consistent X-ray output. Comprehensive safety features, including interlock。
    • «
    • 1

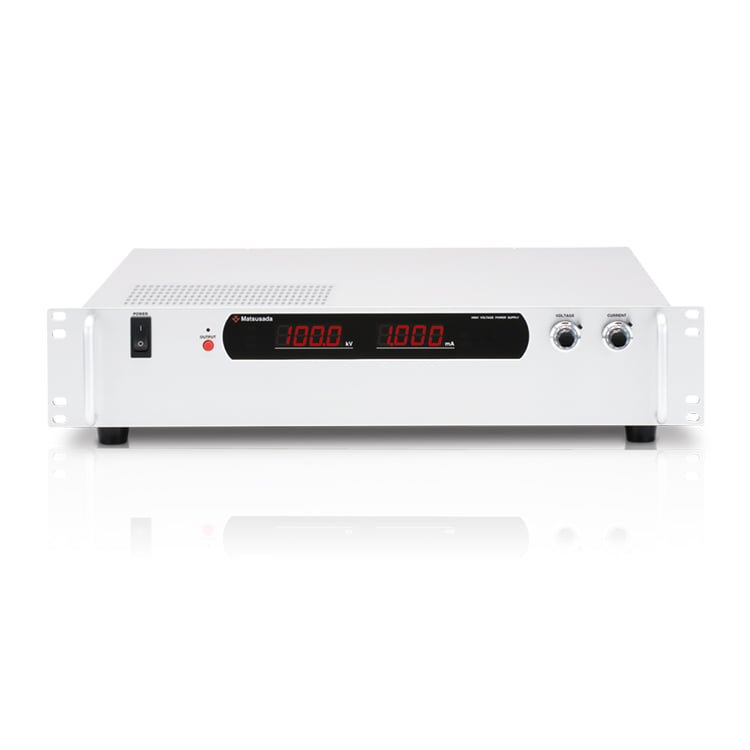

    WA 高压电源|松田精密 (在产)

    The WA series is a compact, high-power, AC-input high-voltage power supply module designed for chassis mounting. It is an ideal choice for applications such as Automatic Test Equipment (ATE), X-ray inspection systems, and capacito。

    参考价格 ：

    厂家：松田精密|Matsusada Precision Inc. （收录160个产品）

    产地：日本

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Matsusada Precision Inc. · 直流电源

    WA 高压电源

    Power；Voltage；Current · 150 W；1 kV；150 mA · 3 kV；50 mA · 5 kV；30 mA
    Power；Voltage；Current
    150 W；1 kV；150 mA
    WA1-1P
    3 kV；50 mA
    WA1-3P
    5 kV；30 mA
    WA1-5P
    10 kV；15 mA
    WA1-10P
    20 kV；7.5 mA
    WA1-20P
    产品定位

    The WA series is a compact, high-power,

    AC-input high-voltage power supply module designed for chassis mounting. It is an ideal choice for applications such as Automatic Test Equipment (ATE),

    X-ray inspection systems,

    and capacitor charging. Featuring universal input and a power factor correction (PFC) circuit,

    the WA series supports global deployment. When combined with the digital controller CO/USB series digital controller ,

    the unit supports remote control via LAN, USB, RS-232C, RS-485, and GPIB.

    核心参数
    · ：Model ｜Output ｜Safety Standards
    · ：Power；Voltage；Current
    · WA1-1P：150 W；1 kV；150 mA
    · WA1-3P：3 kV；50 mA
    · WA1-5P：5 kV；30 mA
    · WA1-10P：10 kV；15 mA
    · WA1-20P：20 kV；7.5 mA
    · WA1-30P：30 kV；5 mA
    · WA1-40P：40 kV；3.75 mA
    · WA1-50P：50 kV；3 mA
    功能与特点
    · Compact design with high power density
    · Universal AC input and power factor correction (PFC) circuit
    · Equipped with remote control and output monitoring functions as standard
    · Automatic crossover between Constant Voltage (CV) and Constant Current (CC) modes
    · Comprehensive protection against output short circuits and arc discharges
    典型应用
    · 自动化测试
    · 器件供电
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 WA-specs.html
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Matsusada Precision Inc. · 直流电源

    WA 高压电源 · 详细指标

    Power；Voltage；Current · 150 W；1 kV；150 mA · 3 kV；50 mA · 5 kV；30 mA
    产品简介

    The WA series is a compact, high-power,

    AC-input high-voltage power supply module designed for chassis mounting. It is an ideal choice for applications such as Automatic Test Equipment (ATE),

    完整技术指标
    · ：Model ｜Output ｜Safety Standards
    · ：Power；Voltage；Current
    · WA1-1P：150 W；1 kV；150 mA
    · WA1-3P：3 kV；50 mA
    · WA1-5P：5 kV；30 mA
    · WA1-10P：10 kV；15 mA
    · WA1-20P：20 kV；7.5 mA
    · WA1-30P：30 kV；5 mA
    · WA1-40P：40 kV；3.75 mA
    · WA1-50P：50 kV；3 mA
    · WA3-1P：300 W；1 kV；300 mA
    · WA3-3P：3 kV；100 mA
    · WA3-5P：5 kV；60 mA
    · WA3-10P：10 kV；30 mA
    · WA3-20P：20 kV；15 mA
    · WA3-30P：30 kV；10 mA
    · WA3-40P：40 kV；7.5 mA
    · WA3-50P：50 kV；6 mA
    · WA6-1P：600 W；1 kV；600 mA
    · WA6-3P：3 kV；200 mA
    · WA6-5P：5 kV；120 mA
    · WA6-10P：10 kV；60 mA
    · WA6-20P：20 kV；30 mA
    · WA6-30P：30 kV；20 mA
    · WA6-40P：40 kV；15 mA
    · WA6-50P：50 kV；12 mA
    · WA9-1P：900 W；1 kV；900 mA
    · WA9-3P：3 kV；300 mA
    · WA9-5P：5 kV；180 mA
    · WA9-10P：10 kV；90 mA
    · WA9-20P：20 kV；45 mA
    · WA9-30P：30 kV；30 mA
    · WA9-40P：40 kV；22 mA
    · WA9-50P：50 kV；18 mA
    · WA1.2k-1P：1200 W；1 kV；1200 mA
    · WA1.2k-3P：3 kV；400 mA
    · WA1.2k-5P：5 kV；240 mA
    · WA1.2k-10P：10 kV；120 mA
    · WA1.2k-20P：20 kV；60 mA
    · WA1.2k-30P：30 kV；40 mA
    · WA1.2k-40P：40 kV；30 mA
    · WA1.2k-50P：50 kV；24 mA
    · ：Model ｜Output ｜Safety Standards
    · ：Power；Voltage；Current
    · WA1-1N：150 W；-1 kV；150 mA
    · WA1-3N：-3 kV；50 mA
    · WA1-5N：-5 kV；30 mA
    · WA1-10N：-10 kV；15 mA
    · WA1-20N：-20 kV；7.5 mA
    · WA1-30N：-30 kV；5 mA
    · WA1-40N：-40 kV；3.75 mA
    · WA1-50N：-50 kV；3 mA
    · WA3-1N：300 W；-1 kV；300 mA
    · WA3-3N：-3 kV；100 mA
    · WA3-5N：-5 kV；60 mA
    · WA3-10N：-10 kV；30 mA
    · WA3-20N：-20 kV；15 mA
    · WA3-30N：-30 kV；10 mA
    · WA3-40N：-40 kV；7.5 mA
    · WA3-50N：-50 kV；6 mA
    · WA6-1N：600 W；-1 kV；600 mA
    · WA6-3N：-3 kV；200 mA
    · WA6-5N：-5 kV；120 mA
    · WA6-10N：-10 kV；60 mA
    · WA6-20N：-20 kV；30 mA
    · WA6-30N：-30 kV；20 mA
    · WA6-40N：-40 kV；15 mA
    · WA6-50N：-50 kV；12 mA
    · WA9-1N：900 W；-1 kV；900 mA
    · WA9-3N：-3 kV；300 mA
    · WA9-5N：-5 kV；180 mA
    · WA9-10N：-10 kV；90 mA
    · WA9-20N：-20 kV；45 mA
    · WA9-30N：-30 kV；30 mA
    · WA9-40N：-40 kV；22 mA
    · WA9-50N：-50 kV；18 mA
    · WA1.2k-1N：1200 W；-1 kV；1200 mA
    · WA1.2k-3N：-3 kV；400 mA
    · WA1.2k-5N：-5 kV；240 mA
    · WA1.2k-10N：-10 kV；120 mA
    · WA1.2k-20N：-20 kV；60 mA
    · WA1.2k-30N：-30 kV；40 mA
    · WA1.2k-40N：-40 kV；30 mA
    · WA1.2k-50N：-50 kV；24 mA
    LAN/USB/RS-232C/RS-485/GPIB Control adapters
    ·
    – Standard For WA1, WA3 models ｜CABLE TYPE1 ｜125 V/10 A ｜2.5 meters Fixed length
    · Standard For WA6 models
    – CABLE TYPE8
    – 125 V/15 A
    – 2.5 meters Fixed length
    · Standard For WA9, WA1.2k models [Compatible with WA1, WA3, and WA6 models]
    – CABLE TYPE3
    – 250 V/10 A
    – 2.5 meters Fixed length
    · Sold separately Available for all models
    – CABLE TYPE4
    – 250 V/10 A
    – 2.5 meters Fixed length
    ·
    – Standard 1 kV to 10 kV models ｜CN-15-MHVP ｜2.5 meters (Specified length available)
    · Standard 20 kV to 30 kV models
    – CN-30-MHVP；2.5 meters (Specified length available)
    · Standard 40 kV models
    – CN-45-MHVP；2.5 meters (Specified length available)
    · Standard 50 kV models
    – CN-60-MHVP；2.5 meters (Specified length available)
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
    资源下载
    Matsusada Precision Inc. · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。

    全部



    松田精密官方渠道


    厂家联系方式

    公司：Matsusada Precision Inc.（松田精密株式会社）

    国际/日本：TEL +81-6-6150-5088　FAX +81-6-6150-5089

    美国（北卡罗来纳）：TEL (704) 496-2644　FAX (704) 496-2643
