    The new PLS 5G green laser levels offer the durability and precision you expect from PLS, a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settl。
    Lighten your toolbelt with the 3×360 red laser level. This versatile combination laser level features best-in-class accuracy as well as a rechargeable battery pack with charging adapter and a pendulum lock for added protection dur。

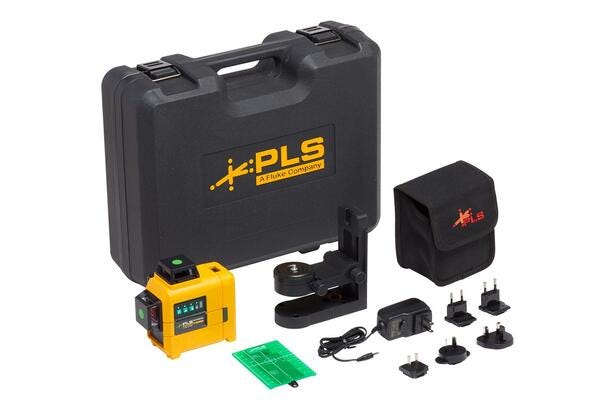

    Lighten your toolbelt with the 3×360 green laser level. This versatile combination laser level features best-in-class accuracy as well as a rechargeable battery pack with charging adapter and a pendulum lock for added protection d。
    • «
    • 1

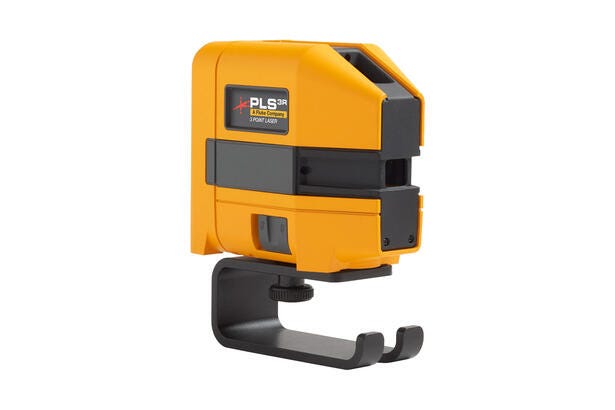

    PLS 3R 30 m激光标线仪|福禄克 (在产)

    The new PLS 3R red laser levels offer the durability and precision you expect from PLS, a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settlin。

    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 激光测量仪

    PLS 3R 激光标线仪

    3 x AA Alkaline IEC LR6 · 90° up, down, forward · Automatic, Pendulum · 4 °
    3 x AA Alkaline IEC LR6
    Battery
    90° up, down, forward
    Point Laser Direction
    Automatic, Pendulum
    Laser Leveling System
    4 °
    Laser Leveling Range
    ~0.6 kg (1.3 lb.)
    Weight
    IEC 60825-1:2014 Class 2
    Laser
    产品定位

    The new PLS 3R red laser levels offer the durability and precision you expect from PLS,

    a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settling,

    self-leveling pendulum gives you accurate point and reference lines almost instantly.

    This professional self-leveling three-point red and green laser level allows for fast,

    accurate layout of reference points and is excellent for steel stud framing, HVAC installation,

    electrical and residential construction.

    核心参数
    技术规格
    · Battery：3 x AA Alkaline IEC LR6
    · Battery Life, Continuous Use Red：≥ 30 hours
    · Battery Life, Continuous Use Green：≥ 16 hours
    · Point Laser Direction：90° up, down, forward
    · Working Range：≤ 30 m (100 ft.)
    · Accuracy：≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.)
    · Laser Leveling System：Automatic, Pendulum
    · Laser Leveling Range：4 °
    · Point Laser Diameter：≤ 4 mm at 5 m
    功能与特点
    · Accuracy：≤1/8 in at 30 ft. (≤3 mm @ 10 m)
    · Red laser beam
    · Point laser direction：90° up, down, forward
    · Durable pendulum lock platform.
    · IP54 rating to limit dust and water entry for years of operation on the job site.
    典型应用
    · 建筑测量
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 3-red-laser-level-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 激光测量仪

    PLS 3R 激光标线仪 · 详细指标

    3 x AA Alkaline IEC LR6 · 90° up, down, forward · Automatic, Pendulum · 4 °
    产品简介

    The new PLS 3R red laser levels offer the durability and precision you expect from PLS,

    a Fluke Company. Our new laser level platform offers a pendulum lock platform for safe transport and tilt mode functionality. The fast settling,

    完整技术指标
    技术规格
    · Battery：3 x AA Alkaline IEC LR6
    · Battery Life, Continuous Use Red：≥ 30 hours
    · Battery Life, Continuous Use Green：≥ 16 hours
    · Point Laser Direction：90° up, down, forward
    · Working Range：≤ 30 m (100 ft.)
    · Accuracy：≤ 3 mm @ 10 m (≤ 1/8 in at 30 ft.)
    · Laser Leveling System：Automatic, Pendulum
    · Laser Leveling Range：4 °
    · Point Laser Diameter：≤ 4 mm at 5 m
    · Temperature Operating：-10 °C to 50 °C (14 °F to 122 °F)
    · Temperature Storage：15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)
    · Temperature With Batteries：-18 °C to 50 °C (-0.4 °F to 122 °F)
    · Temperature Without Batteries：-20 °C to 70 °C (-13 °F to 158 °F)
    · Relative Humidity：0 % to 90 % (0 °C to 35 °C)
    · Relative Humidity：0 % to 75 % (35 °C to 40 °C)
    · Relative Humidity：0 % to 45 % (40 °C to 50 °C)
    · Size (H x W X L)
    – 116 mm x 64 mm x 104 mm (4.6 in x 2.5 in x 4.1 in)
    · Weight：~0.6 kg (1.3 lb.)
    · Safety：IEC 61010-1: Pollution Degree 2
    · Laser：IEC 60825-1:2014 Class 2
    · Light Source：Semiconductor laser diode
    · Max Output Power：< 1 mW
    · Wavelength Red：635 nm ± 5 nm
    · Wavelength Green：525 nm ± 5 nm
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
