    Fluke Corporation · 红外热像仪

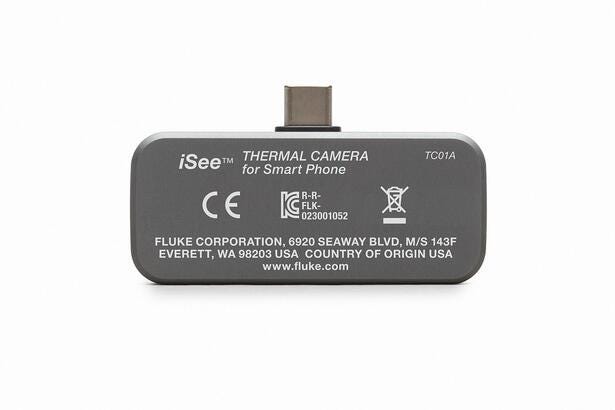

    TC01A/TC01B/TC01C 手机红外热像模块

    TC01B；TC01C · 256 x 192 · 12 μm · 25 Hz · 1 minute
    TC01B；TC01C
    TC01A
    256 x 192
    IR resolution
    12 μm
    Pixel size
    25 Hz
    Frame rate
    1 minute
    Warm-up time
    Fixed focal length: 3.2 mm
    Focal length
    产品定位

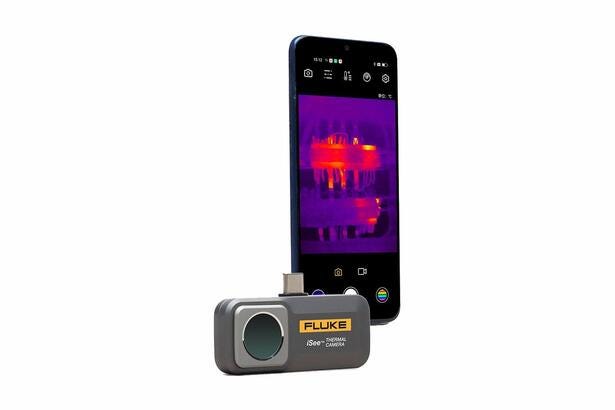

    Experience fast and easy inspections on the go with Fluke iSee Mobile Thermal Camera,

    weighing just 22g. It takes only a second to start using. The wide temperature measurement range,

    up to 550°C (1022°F), makes it suitable for various applications, including inspecting electrical cabinets,

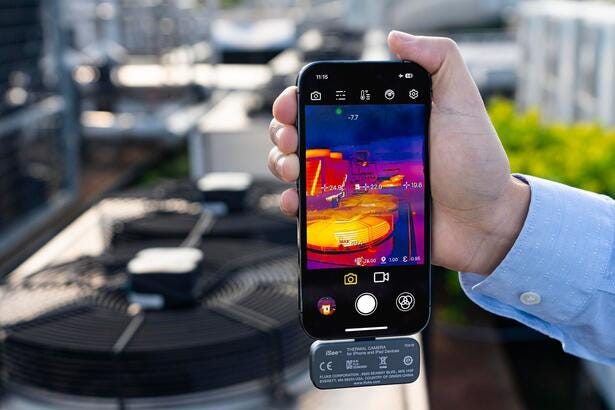

    identifying HVAC issues, and installing underfloor heating. Fluke iSee boasts professional-grade image quality,

    comparable to high-end thermal cameras,

    with a 256 x 192 pixel thermal resolution and smooth video recording at a 25 Hz frame rate. Additionally,

    our software offers comprehensive spot, line, and area temperature analysis for precise diagnostics.

    More than 10 standard and custom color palettes to achieve a variety of personalized images

    核心参数
    技术规格
    · TC01A：TC01B；TC01C
    Performance Specifications
    · IR resolution：256 x 192
    · Pixel size：12 μm
    · Temperature range
    – -10 °C to 550 °C/14 °F to 1022 °F；-20 °C to 550 °C/-4 °F to 1022 °F
    · Temperature accuracy
    – ± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater (@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature)
    · Temperature measurement distance
    – 0.25 m to 5 m (* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m)
    · Frame rate：25 Hz
    · Warm-up time：1 minute
    功能与特点
    · 256 x 192 pixels, detailed image quality, and 25 Hz frame rate for smooth video recording
    · Up to 550 °C (1022°F), suitable to use in many applications
    · 50 mK (0.05 °C) thermal sensitivity for fine differences and ± 2% or ±2 °C accuracy to ensure reliable results
    · Customize image view with more than 10 standard or custom color palettes
    · Compact design as light as 22 g
    典型应用
    · 电气设备检测
    · 暖通空调检测
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 fluke-tc01a-tc01b-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 红外热像仪

    TC01A/TC01B/TC01C 手机红外热像模块 · 详细指标

    TC01B；TC01C · 256 x 192 · 12 μm · 25 Hz · 1 minute
    产品简介

    Experience fast and easy inspections on the go with Fluke iSee Mobile Thermal Camera,

    weighing just 22g. It takes only a second to start using. The wide temperature measurement range,

    完整技术指标
    技术规格
    · TC01A：TC01B；TC01C
    Performance Specifications
    · IR resolution：256 x 192
    · Pixel size：12 μm
    · Temperature range
    – -10 °C to 550 °C/14 °F to 1022 °F；-20 °C to 550 °C/-4 °F to 1022 °F
    · Temperature accuracy
    – ± 2 % of rdg or ± 2 °C/3.6 °F, whichever is greater (@ 23 °C ± 5°C/73.4 °F ± 9 °F ambient temperature)
    · Temperature measurement distance
    – 0.25 m to 5 m (* -20 ℃/-4 °F to 10 ℃/50 °F, only for 0.25 m to 3 m)
    · Frame rate：25 Hz
    · Warm-up time：1 minute
    · Focal length：Fixed focal length: 3.2 mm
    · Shutter mode：Internal
    · Thermal sensitivity (NETD)：50 mK
    · Spectral range：8 to 14 μm
    · Field of view (H x V)：56° x 42°
    · Spatial resolution：3.81 mrad
    一般规格

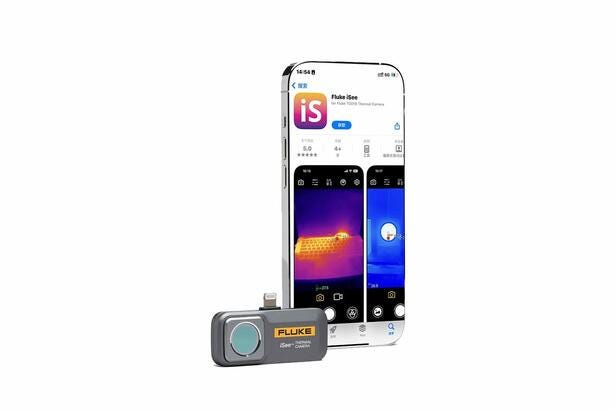

    · USB interface Type-C：Lightning；Type-C
    · Compatible system Android and HarmonyOS：iOS
    · Operating temperature：0 ℃ to 40 ℃/32 °F to 104 °F
    · Storage temperature：-30 ℃ to 60 ℃/–22 °F to 140 °F
    · Operating humidity：10 % to 90 % RH, non-condensing
    · Power consumption：350 mW (Typical)；200 mW (Typical)
    · Drop test：1 m/3.3 ft
    · Ingress protection
    – IEC 60529：IP54 (with the protective cover for Type C)
    – IEC 60529：IP56
    · Operating altitude：2 000 m/6 562 ft
    · Storage altitude：12 000 m/39 370 ft
    · Dimensions (L x W x H)：60 x 33.5 x 11.2 mm/2.36 x 1.32 x 0.44 in
    · EMC Environment
    – International IEC 61326-1: Electromagnetic environment for portable equipments CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply net- work that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Korea (KCC) Class A Equipment (Industrial Broadcasting and Communication Equipment) Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. United States (FCC) 47 CFR 15 Subpart B. This product is considered an exempt device per clause 15.103.
    · Warranty：2 years
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
