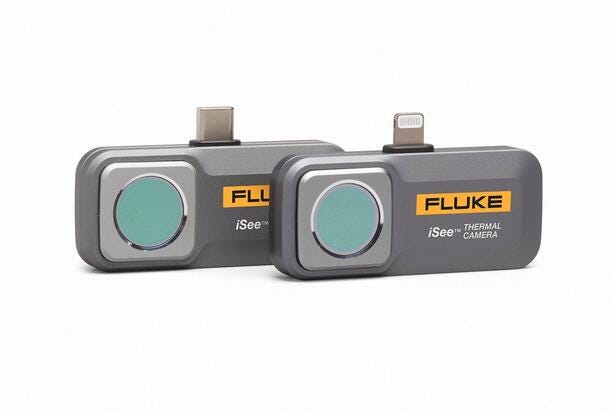

    Experience fast and easy inspections on the go with Fluke iSee Mobile Thermal Camera, weighing just 22g. It takes only a second to start using. The wide temperature measurement range, up to 550°C (1022°F), makes it suitable for va。

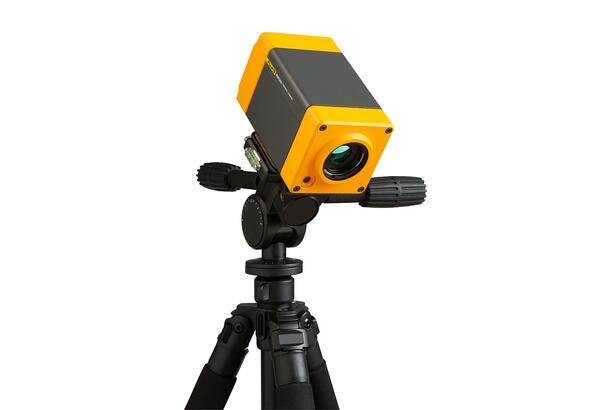

    RSE300 320 x 240在线式红外热像仪|福禄克 (在产)

    Introducing the first ever fully-radiometric, mounted Fluke infrared cameras – the RSE series. Equipped with advanced features and software plug-ins to MATLAB and LabVIEW, these tools are ideal for continuously streaming and analy。
    参考价格 ：

    厂家：福禄克|Fluke Corporation （收录272个产品）

    产地：美国

    点击访问厂家官网

    产品描述
    详细指标
    软件和手册|白皮书
    购买渠道
    选件
    问大家
    视频
    测评
    口碑
    系统与解决方案

    Fluke Corporation · 红外热像仪

    RSE300 在线式红外热像仪

    1.85 mRad · 320 x 240 (76, 800 pixels) · 34 °H x 25.5 °V
    1.85 mRad
    IFOV with standard lens (spatial resolution)
    320 x 240 (76, 800 pixels)
    Detector resolution
    34 °H x 25.5 °V
    Field of view
    15 cm (approx. 6 in)
    Minimum focus distance
    Yes
    Filter mode (NETD improvement)
    60 Hz or 9 Hz versions
    Frame rate
    产品定位

    Introducing the first ever fully-radiometric,

    mounted Fluke infrared cameras – the RSE series. Equipped with advanced features and software plug-ins to MATLAB and LabVIEW,

    these tools are ideal for continuously streaming and analyzing infrared data.

    Designed for your research, science and engineering needs,

    enhance your testing and quality assurance procedures by mounting the RSE300 to your workstation. Continuously stream up to 60 frames of data per second directly to your computer to monitor minute temperature differences,

    and analyze videos frame-by-frame remotely from SmartView desktop software. Enhance your viewing experience with optional add-on lenses to target different applications (analyzing from a distance,

    or getting the close-up details).

    核心参数
    Key Features
    · IFOV with standard lens (spatial resolution)：1.85 mRad
    · Detector resolution：320 x 240 (76, 800 pixels)
    · Field of view：34 °H x 25.5 °V
    · Minimum focus distance：15 cm (approx. 6 in)
    · Camera focus options
    – Focus is adjusted in SmartView R&D desktop software
    · IR-Fusion technology
    – Yes, in SmartView R&D desktop software. Five modes of image blending (AutoBlend mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image
    · Thermal sensitivity (NETD)：≤ 0.030 °C at 30 °C target temp (30 mK)*
    · Filter mode (NETD improvement)：Yes
    · Level and span
    – Smooth auto and manual scaling, in SmartView R&D desktop software
    功能与特点
    · Streaming thermal image capture and analysis via Smartview R&D desktop software
    · MATLAB and LabVIEW software compatibility allows users to integrate thermal data, images and videos to support R&D analysis
    · 320 x 240 resolution
    · See the details you need with optional smart lenses: 2x and 4x telephoto, macro and wide angle
    典型应用
    · 电气设备检测
    资源下载
    · 本页仅列出核心参数，完整技术指标请见 rse300-specs.html
    Fluke Corporation · onetest 仪器资源库
    本文由 onetest 仪器资源库依据厂商公开资料整理，参数以厂商正式资料为准。





    Fluke Corporation · 红外热像仪

    RSE300 在线式红外热像仪 · 详细指标

    1.85 mRad · 320 x 240 (76, 800 pixels) · 34 °H x 25.5 °V
    产品简介

    Introducing the first ever fully-radiometric,

    mounted Fluke infrared cameras – the RSE series. Equipped with advanced features and software plug-ins to MATLAB and LabVIEW,

    完整技术指标
    Key Features
    · IFOV with standard lens (spatial resolution)：1.85 mRad
    · Detector resolution：320 x 240 (76, 800 pixels)
    · Field of view：34 °H x 25.5 °V
    · Minimum focus distance：15 cm (approx. 6 in)
    · Camera focus options
    – Focus is adjusted in SmartView R&D desktop software
    · IR-Fusion technology
    – Yes, in SmartView R&D desktop software. Five modes of image blending (AutoBlend mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image
    · Thermal sensitivity (NETD)：≤ 0.030 °C at 30 °C target temp (30 mK)*
    · Filter mode (NETD improvement)：Yes
    · Level and span
    – Smooth auto and manual scaling, in SmartView R&D desktop software
    · Fast auto toggle between manual and auto modes：Yes, in SmartView R&D desktop software
    · Fast auto-rescale in manual mode：Yes, in SmartView R&D desktop software
    · Minimum span (in manual mode)
    – 0.1 °C (0.18 °F), in SmartView R&D desktop software
    · Minimum span (in auto mode)
    – < 1.0 °C ( < 1.8 °F), in SmartView R&D desktop software
    · Built-in digital camera (visible light)：5 megapixel industrial performance
    · Frame rate：60 Hz or 9 Hz versions
    · Digital zoom
    – Variable up to 16x in SmartView R&D desktop software
    Image capture
    · Image capture, review, save mechanism Image file formats
    – Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
    · Software
    – Smartview R&D desktop software - streaming image capture and analysis Smartview Classic software - image analysis and reporting Compatible with MATLAB and LabVIEW software
    · Voice annotation：Yes
    · Text annotation：Yes
    · Video recording：Yes
    · File formats video
    – Non-radiometric (MPEG-encoded .AVI) and fully-radiometric (.IS3)
    · Remote display viewing
    – Yes, see the live stream of the camera display on your PC via Smartview R&D desktop software
    · Remote control operation：Yes, through Smartview R&D desktop software
    Temperature measurement
    · Temperature measurement range (not calibrated below -10 °C)：-10 °C to +1200 °C (14 °F to +2192 °F)
    · Accuracy：± 2 °C or ± 2 %, whichever is greater
    · Reflected background temperature compensation：Yes
    · Transmission correction：Yes
    · Live line marker：Yes
    Color Palettes
    · Ultra Contrast palettes
    – 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
    一般规格
    · Infrared spectral band：8 μm to 14 μm (long wave)
    · Operating temperature：-10 °C to +50 °C (14 °F to 122 °F)
    · Storage temperature
    – -20 °C to +50 °C (-4 °F to 122 °F) without batteries
    · Relative humidity：10 % to 95 % non-condensing
    · Center-Point temperature measurement：Yes
    · Spot temperature：Yes, hot and cold spot markers
    · User-definable spot markers
    – Unlimited user-definable spot markers, in software
    · Center box
    – Expandable-contractible measurement box with MIN-MAX-AVG temp display
    · Electromagnetic compatibility：EN 61326-1:2013 IEC 61326-1:2013; (Industrial)
    · US FCC：CFR 47, Part 15 Subpart B Class A
    · Vibration
    – IEC 60068-2-26 (sinusoidal vibration): 3G, 11–200 Hz, 3 axis
    · Shock
    – IEC 60068-2-27 (mechanical shock): 50G, 6 ms, 3 axis
    · Size (H x W x L)：8.3 x 8.3 x 16.5 cm (3.3 x 3.3 x 6.5 in)
    · Weight (battery not included)：1 kg (2.2 lb)
    · Enclosure rating
    – IEC 60529: IP67 (protected against dust, limited ingress; protection against water spray from all directions)
    · Warranty
    – Two years (standard), extended warranties are available
    · Recommended calibration cycle
    – Two-years (assumes normal operation and normal aging)
    · Supported languages
    – Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
    以上指标摘自厂商官方网站产品页/公开技术资料；厂商未标注测试条件与典型值口径的条目均按原文收录，实际以厂商正式规格书为准。
